1 4 5 10 15 18.9 L 20L liter plastic paint bucket water pail handle cover injection moulding molding making machine
- Category: Injection Molding Machines >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (60738987810):
Product Overview
Description
Products Name: 20 litre plastic paint bucket handle crate box injection moulding molding making machine price
Crate Injection machine advantage:
1) A-Z complete machine line provided, including machine, mold, auxiliary.
2) Provide engineer to customer factory, for machine installation and worker training.
3) Crate mold made of high hardness material, HRC45-48, durable use and produce quality crate.
4) Crate injection machine, with competitive price, high preformance
5) Technical support online, spare parts available all time.
Plastic Crate injection molding machine price specification:
|
MACHINE MODEL |
UNIT |
OST-5500 |
||
|
INJECTION DEVICE |
|
|||
|
SCREW DIAMETER |
MM |
80 |
85 |
90 |
|
SCREW DOAMETER RATIO |
L/D |
23.4 |
22 |
20.8 |
|
THEORETICAL SHOT VOLUME |
CM3 |
2210 |
2495 |
2797 |
|
INJECTION WEIGHT ( PS) |
G |
2011 |
2270 |
2545 |
|
INJECTION RATE ( PS) |
G/S |
416 |
470 |
527 |
|
INJECTION PRESSURE |
MPA |
184 |
163 |
145 |
|
PLASTICIZING CAPACITY( PS) |
G/S |
59 |
65 |
72 |
|
SCREW SPEED |
RPM |
120 |
||
|
CLAMPING UNIT |
|
|||
|
CLAMPING FORCE |
KN |
5500 |
||
|
TOGGLE STROKE |
MM |
840 |
||
|
SPACE BETWEEN TIE-BARS |
MM |
830X830 |
||
|
MIN-MAX MOULD THICKNESS |
MM |
350-850 |
||
|
EJETION STROKE |
MM |
220 |
||
|
EJECTING FORCE |
KN |
150 |
||
|
EJECTOR NUMBER |
PC |
13 |
||
|
OTHER |
|
|||
|
MAXIMUM SYSTEM PRESSURE |
MPA |
16 |
||
|
OIL PUMP MOTOR POWER |
KW |
55( 23+31) |
||
|
HEATER POWER |
KW |
41 |
||
|
OIL TANK CAPACITY |
KG |
900 |
||
|
OVERALL DIMENSION (ROUGH ) |
MM |
9300X2070X2500 |
||
|
MACHINE WEIGHT ( ROUGH ) |
TONS |
22M |
||
Machine Deatils:

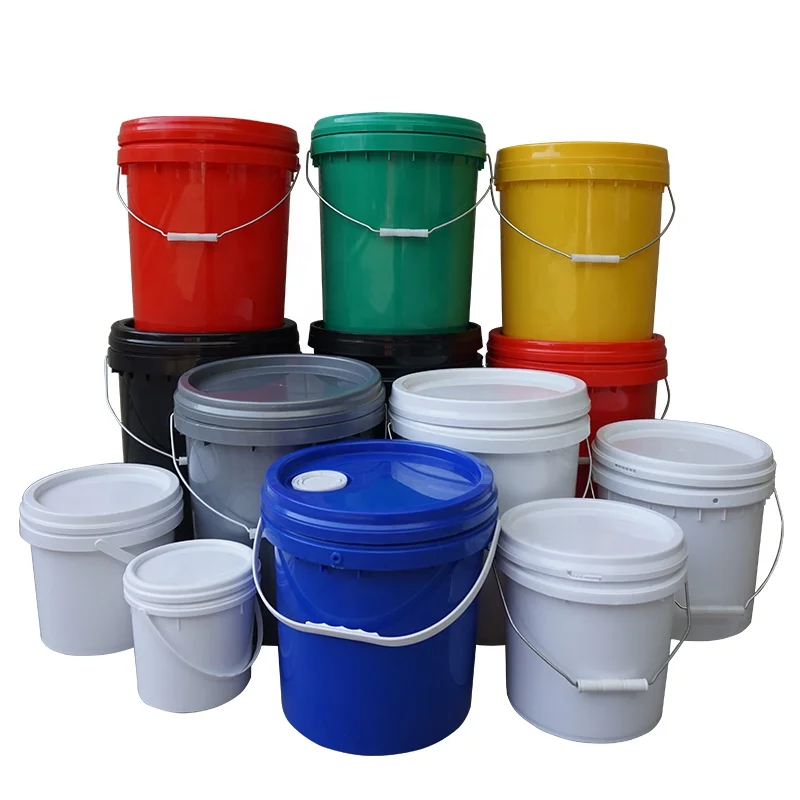

20l Bucket Mold Photos:

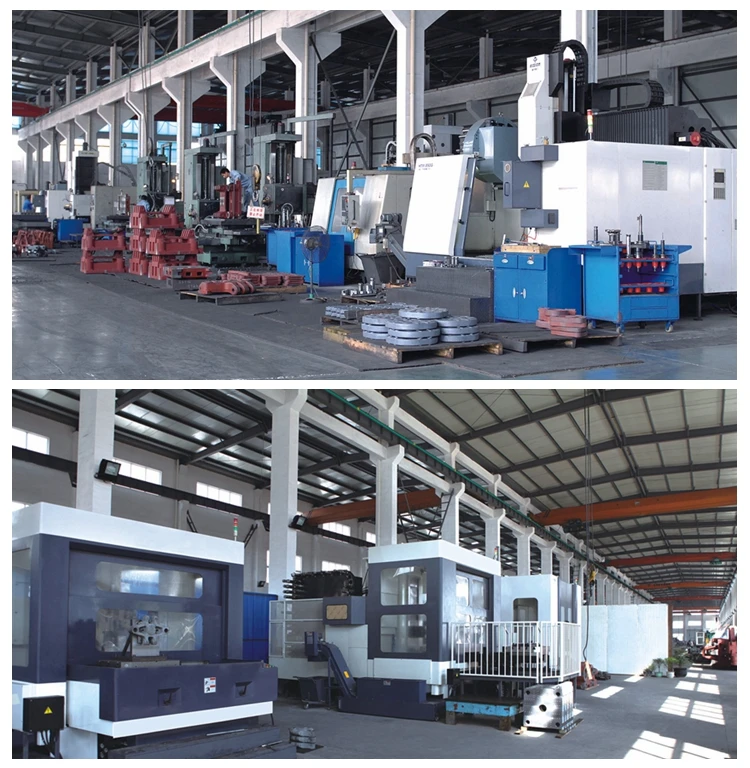

Company Introducation:
Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.
