Машина для производства пластиковых зубочисток, автоматическая, низкая цена, распродажа
- Category: Injection Molding Machines >>>
- Supplier: Ningbo,Haijiang,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Toothpick making machine for sale
We supply DMC,SMC,BMC injection molding machines from 25T to 3000T, including color chips making machines, energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc.

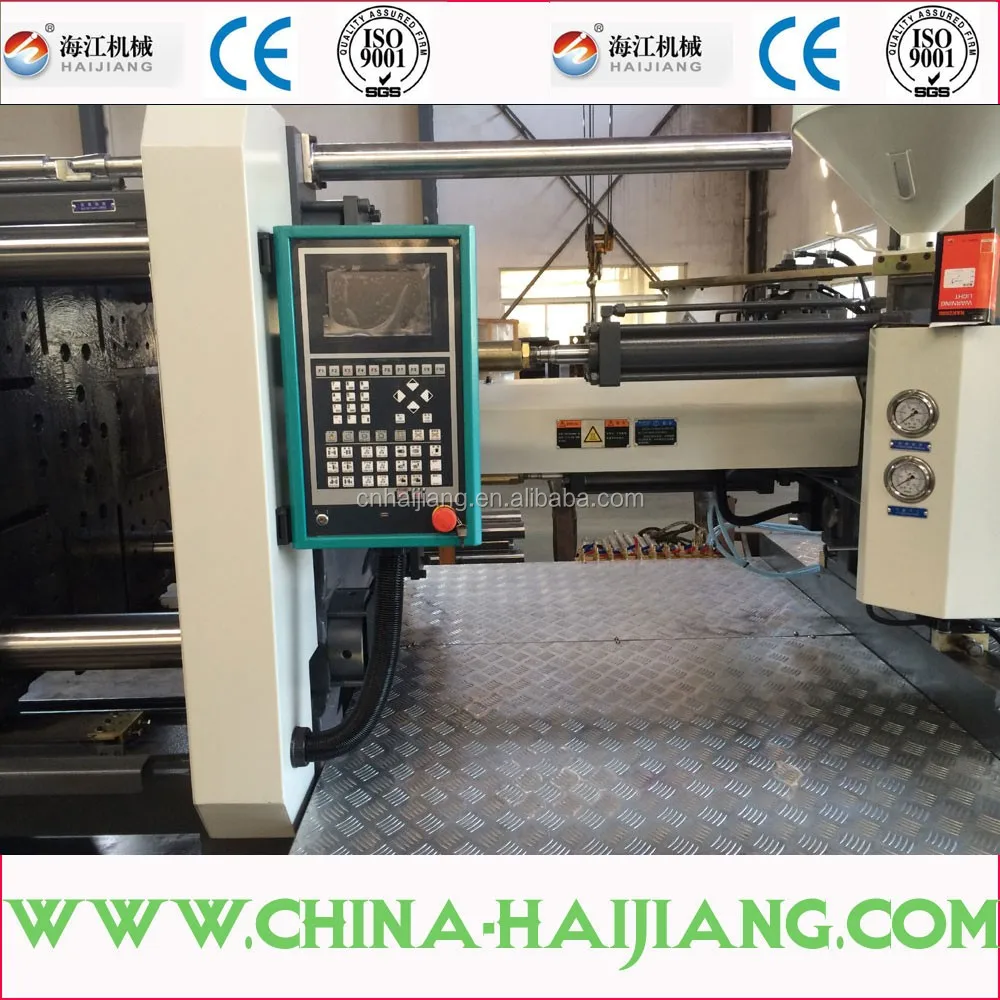

118T Injection Molding Machine main technical datas as below;
| Parameter | Unit | HJF118-F5 | ||
| Screw diameter | mm | A | B | C |
| 35 | 38 | 40 | ||
| Screw I/D ratio | L/D | 23.9 | 22 | 20.9 |
| shot volumn (theoretical) | Cm3 | 154 | 181 | 201 |
| injection weight(PS) | g | 141 | 165 | 183 |
| injection rate | g/s | 80 | 95 | 105 |
| injection pressure | Mpa | 219 | 186 | 167 |
| screw speed | r/min | 0~220 | ||
| clamp force | KN | 1180 | ||
| opening stroke | mm | 340 | ||
| space between tie bars (W*H) | mm | 370*370 | ||
| max mould height | mm | 400 | ||
| min mould height | mm | 150 | ||
| ejector stroke | mm | 100 | ||
| ejector force | KN | 33 | ||
| ejector number | PC | 5 | ||
| max pump pressure | Mpa | 16 | ||
| pump motor power | KW | 11 | ||
| heating power | KW | 6.5 | ||
| machine dimension | M | 4.2*1.25*1.8 | ||
| machine weight | T | 3.5 | ||
| oil tank capacity | L | 210 | ||
