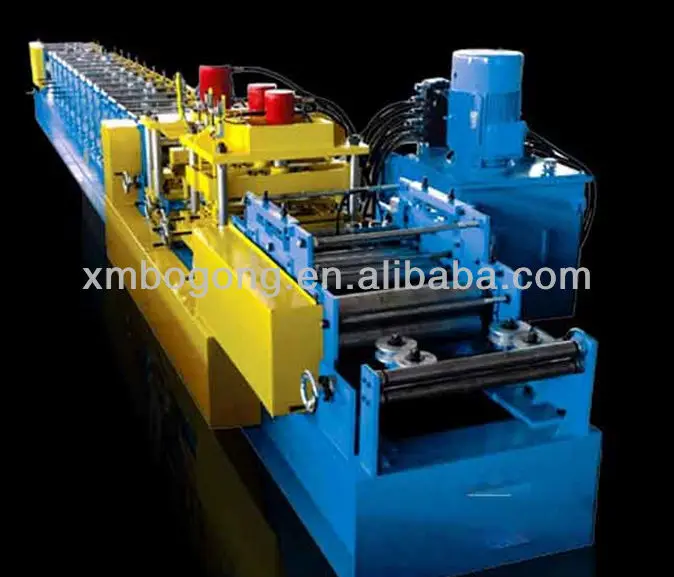

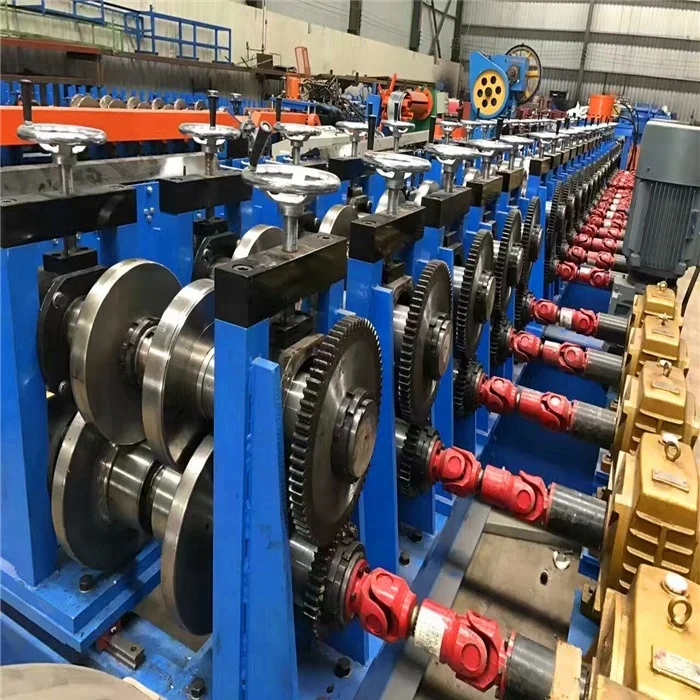

Heavy Duty stud & truss & furring C/U/Z/L channel roll forming machine

Product Overview

Description

Heavy Duty stud & truss & furring C/U/Z/L channel roll forming machine

The description of Z  Purline Forming Machine are as follows:

1.Roll Forming Speed: 12m/min
2.Purlin Thickness:1.5-2.7mm
3.Roll Stations:14
4.Usage:Beam and Support In Steel Construction



Main Technical Data:

Size: 9400*1750*1600mm

Weight: 8000kg

Capacity: 15kw
Hydraulic Engine: 7.5kw

Roll Speed: 12m/min
Thickness: 1.5-2.5mm

Roll Stations: 14

Shaft Dia.: 95mm



Usage :

The purlin machine can produce many sizes C/Z purlin(60-250,80-300…),

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction,.and our automatic C purlin machines can automatically replacement purlins’ model number.,have a high speed(20M/min)



This Purlin roll forming machin is heavy duty type, suit for 4mm thickness.





Sale Service:



1.we provide the technical support for whole life of our Metal Tile Machine

2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
