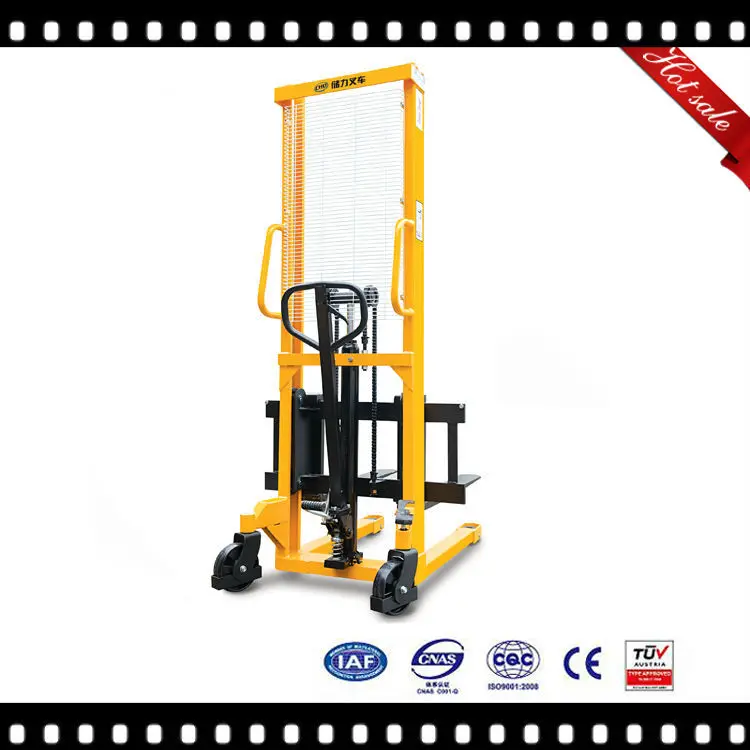

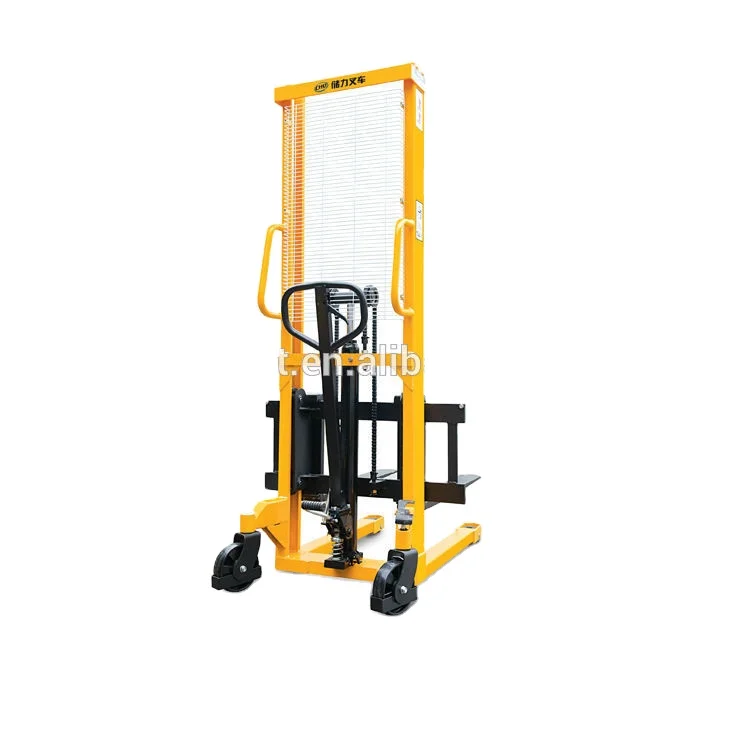

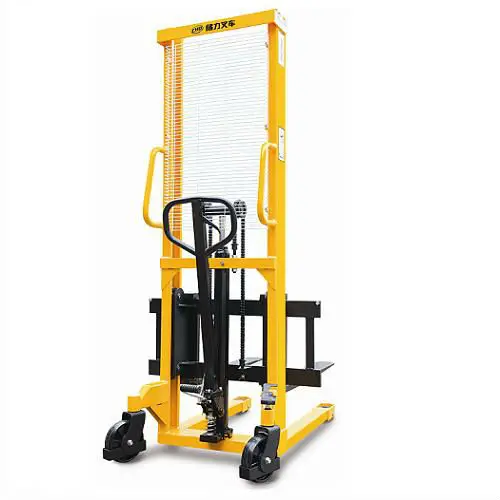

Hydraulic Manual Stacker With CE TUV

Product Overview

Description

Manual stacker hand stacker pallet truck manual mini stacker hydraulic stacker



Manual stacker description

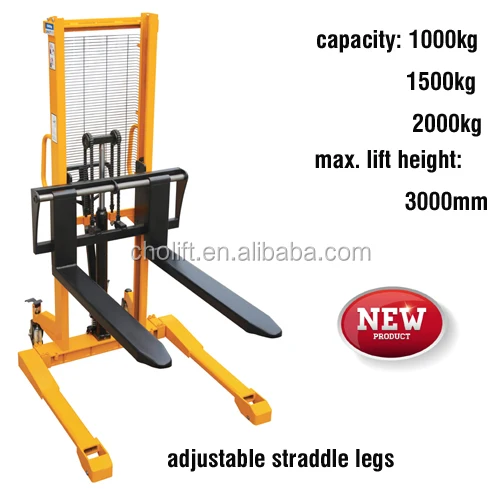

1. Capacity: 1000kg, 1500kg, 2000kg



2. Color : red/yellow /blue/green etc, as per customer request

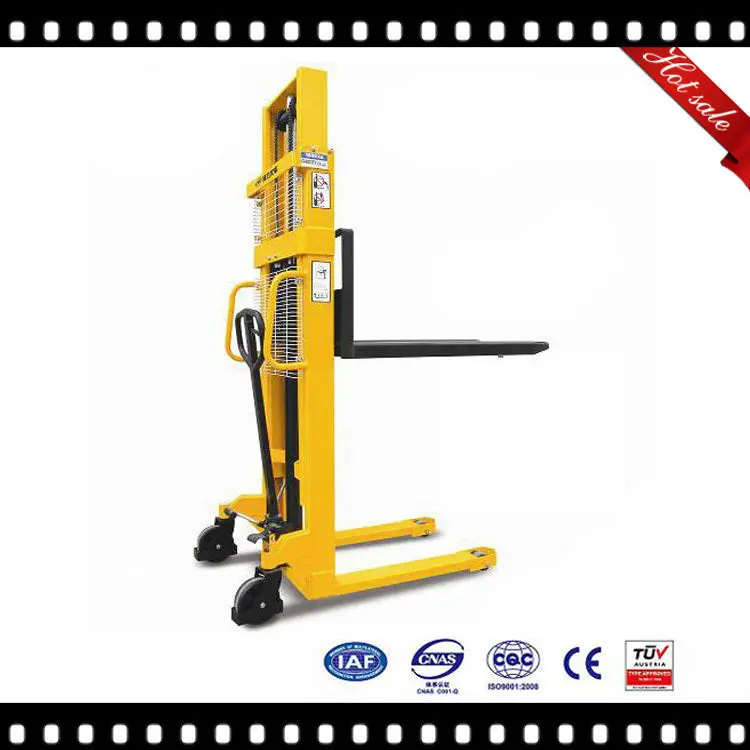

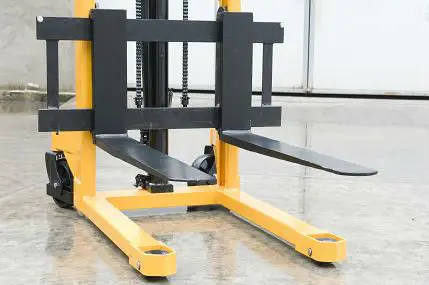

3. Fork : adjustable or fixed forks



4. Legs: straddle or forkover type



5. Power coating finish



With CE certificates, waiting for your order!



About us

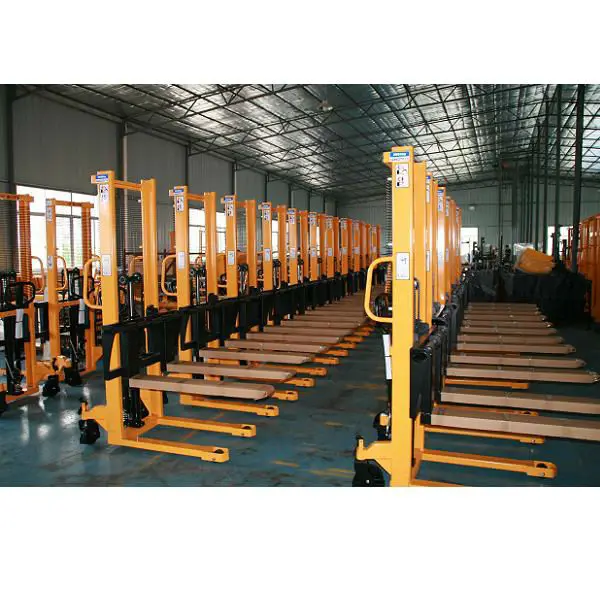

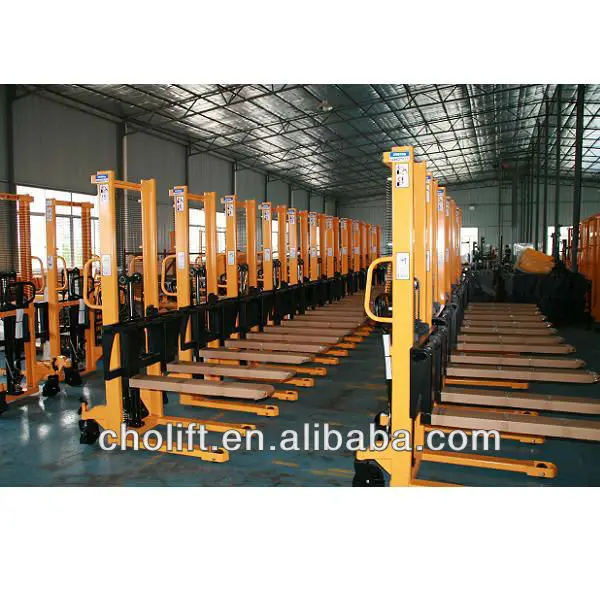

1) more than 23 years experience team in manufacturing, service.



2) with ISO certificates service and quality is before profit



3) sample order is acceptable



4) the payment terms: T/T



5) delivery term: FOB Ningbo, CIF, Ex-w factory etc.



Product details

• High quality mast steel ensures rigidity, durability.
•
• Integral pump, which prevents loosening, leak-proof
•
• High efficiency pump, operating lighter, more comfortable.
• Regardless of loading weight, lifting speed always smoothly as same, no impact, safe to use.
•

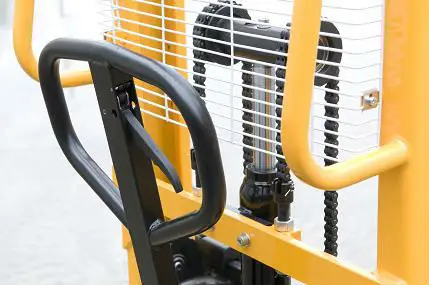

• The stacker can be lifted by handle or foot pedal.
• Hand control valve precises control convenience.
•
• Set the active safety valve to prevent overloading of use.
• Maintenance-free design, ensure security, reduce service cost.
•

Model		SDA10	SDA15	SDA20
Load capacity/rated load	Q(kg)	1000	1500	2000
Load centre distance	c (mm)	500	400	400
Tyre size,front	mm	Φ80*70	Φ80*70	Φ80*70
Tyre size rear	mm	Φ180*50	Φ180*50	Φ180*50
Lifting height	H (mm)	1600/2500/3000	1600/2500/3000	1600
Fork lowered height	h (mm)	90	90	90
Most lowered height	F (mm)	2080/1830/2080	2080/1830/2080	2080
Groung clearance	X (mm)	30	30	30
Turning radius	R (mm)	1200	1200	1200
