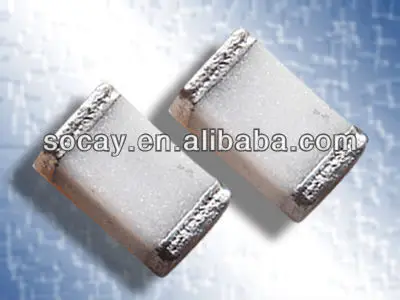

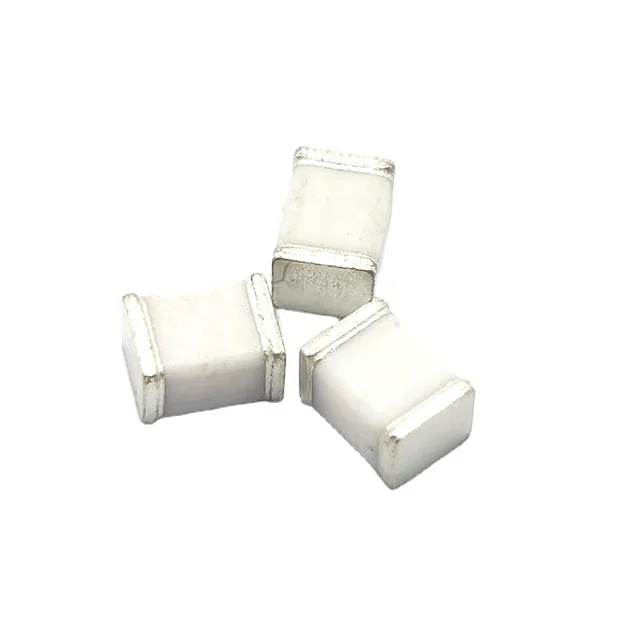

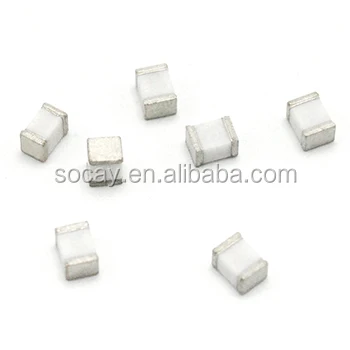

2021 Circuit Surge Protect surface mount 2 Electrode Gas discharge tube electronic parts from Socay Brand factory

Product Overview

Description

2021 Circuit Surge Protect surface mount 2-Electrode Gas discharge tube  electronic parts from Socay Brand  factory



 Applications

* Communication equipment,CATV equipment,Test equipment

* Data lines,Power supplies,Telecom SLIC protection
* Broadband equipment,ADSL equipment including ADSL2+
* XDSL equipment ,Satellite and CATV equipment
* General telecom equipment



*Features:

*RoHS compliant and Lead-free

*Broad voltage range from 450V-620V

*Low capacitance

*RoHS compliant

*Helps provide overvoltage fault protection against

*Non-radioactive materials high energy surges
Characteristics:

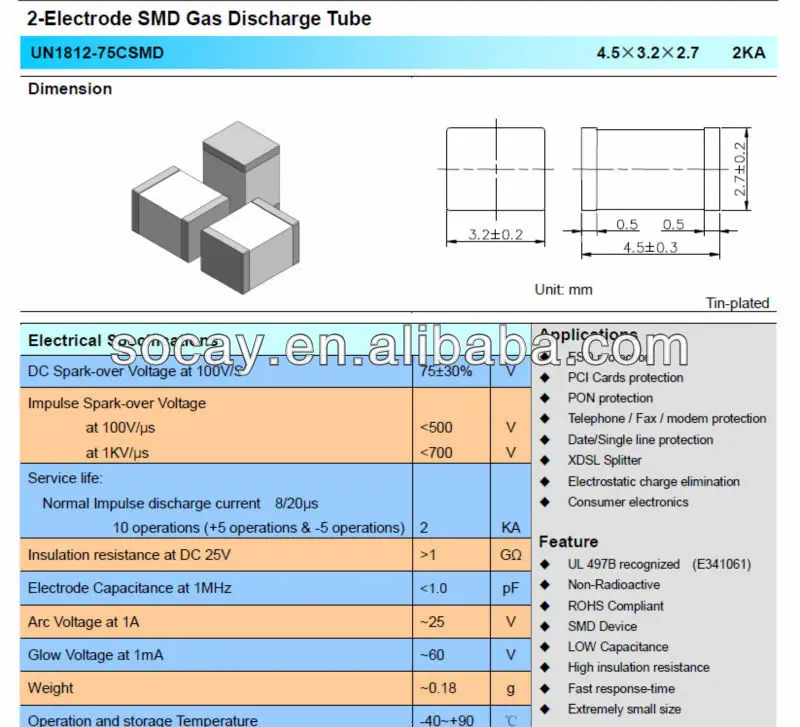

Type             Number	DC Spark-over Voltage 100v/s (V)	Impulse Spark-over Voltage      100V/S  (V)	Impulse Discharge Current 10/1000μs 100A (Times )	Maximum  Capacitance(1MHz) PF	Maximum Discharge Current 8@/20μs (KA)
UN1812-75CSMD	75± 30%	<700V	5	1.0	2
UN1812-90CSMD	90± 30%	<700V	5	1.0	2
UN1812-150CSMD	150± 30%	700V	5	1.0	2
UN1812-200CSMD	200± 30%	<750V	5	1.0	2
UN1812-230CSMD	230± 30%	<750V	5	1.0	2
UN1812-250CSMD	250± 30%	<800V	5	1.0	2
UN1812-350CSMD	350± 30%	<900V	5	1.0	2
UN1812-420CSMD	420± 30%	<1000V	5	1.0	2
UN1812-470CSMD	470± 30%	<1000V	5	1.0	2
UN1812-600CSMD	600± 30%	<1200V	5	1.0	2
