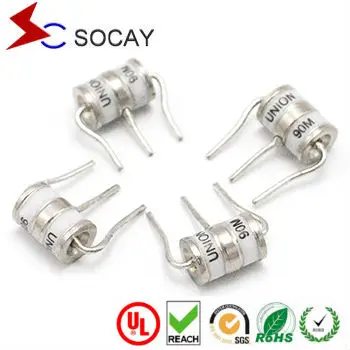

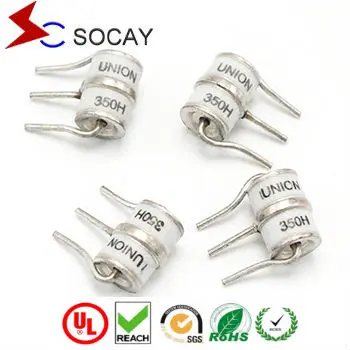

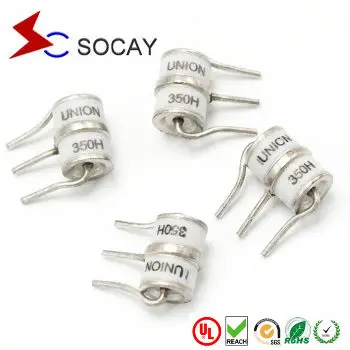

Lightning 3 pin type tubes Arrester, SMD GDT, Surge Protector/ Gas Discharge Tube
- Category: Gas Discharge Tubes >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (60297542662):
Product Overview
Description
Lightning 3 pin type tubes Arrester, SMD GDT, Surge Protector/ Gas Discharge Tube
* Communication equipment,CATV equipment,Test equipment
* Data lines,Power supplies,Telecom SLIC protection
* Broadband equipment,ADSL equipment including ADSL2+
* XDSL equipment ,Satellite and CATV equipment
* General telecom equipment
Lightning Arrester, SMD GDT, Surge Protector/ Gas Discharge Tube
*Features:
*RoHS compliant and Lead-free
*Broad voltage range from 75V-600V
*Low capacitance
*RoHS compliant
*Helps provide overvoltage fault protection against
*Non-radioactive materials high energy surges
Characteristics:
| Type Number | DC Spark-over Voltage 100v/s (V) | Impulse Spark-over Voltage 100V/S (V) | Impulse Discharge Current 10/1000μs 100A (Times ) | Maximum Capacitance(1MHz) PF | Maximum Discharge Current 8@/20μs (KA) |
| UN1812-75CSMD | 75± 30% | <700V | 5 | 1.0 | 2KA |
| UN1812-90CSMD | 90± 30% | <700V | 5 | 1. 0 | 2KA |
| UN1812-150CSMD | 150± 30% | <700V | 5 | 1.0 | 2KA |
UN1812-200SSMD
| 200± 30% | <750V | 5 | 1.0 | 2KA |
| UN1812-230CSMD | 230± 30% | <750V | 5 | 1.0 | 2KA |
| Payment Terms | T/T , Western Union , Money Order , Paypal , Others |
|---|---|
| Minimum Order | 1000pcs |
| Lead Time / Delivery Time | 40 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit in advance .100% payment in advance |
| FOB Port | Shenzhen |
| Loading Info | we can ship to you by UPS/DHL/TNT/FEDEX/EMS,by air or by ship both OK Please contact us directly and we will use your preferred ways |
| Packing Info | 1pc/bag 5000pcs/boxbulk or taped both OK |
| Target Market(s) | Central & Southern Asia, Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
