Неизолированные алюминиевые проводники AAAC 304mm2, смазанный кабель, потолочный кабель, кабель из алюминиевого сплава
- Category: Power Cables >>>
- Supplier: Henan Huaxing Wires And Cables Co. Ltd.
Share on (1400435142):
Product Overview
Description
Exhibition
Product description

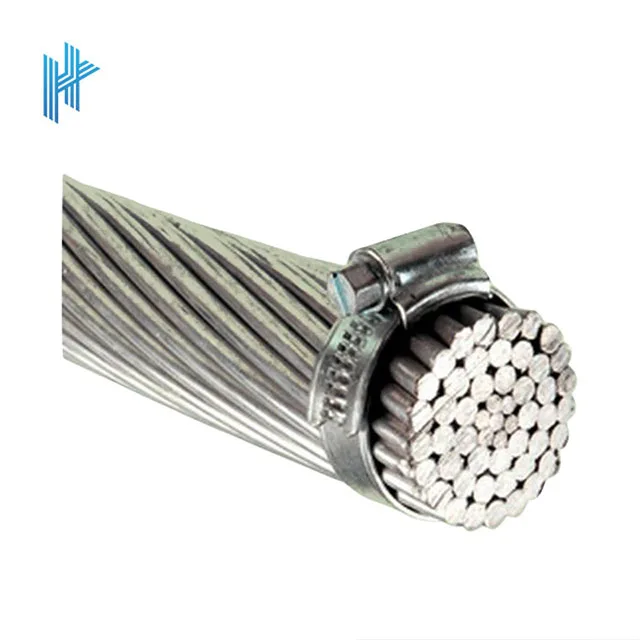

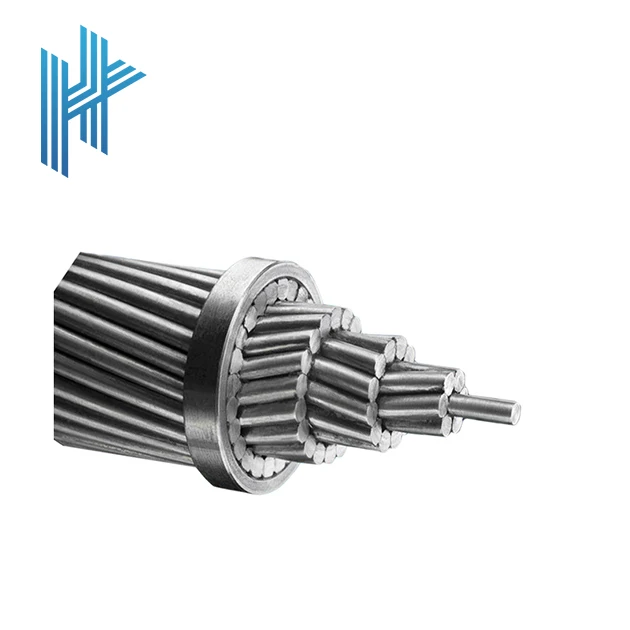

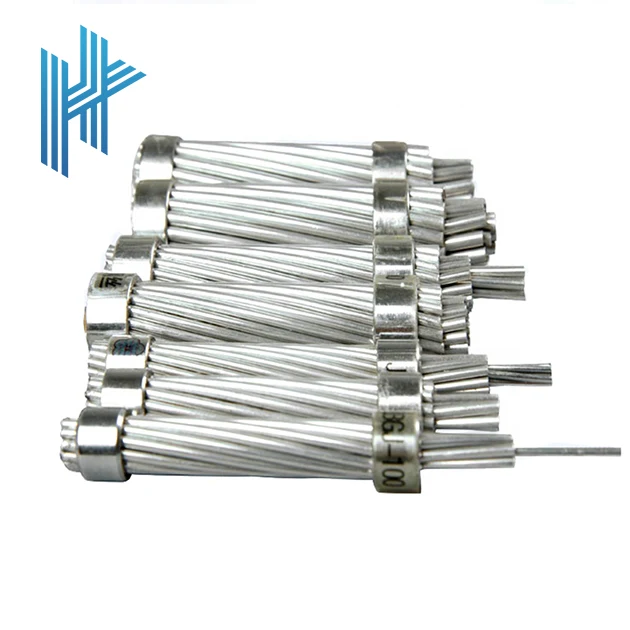

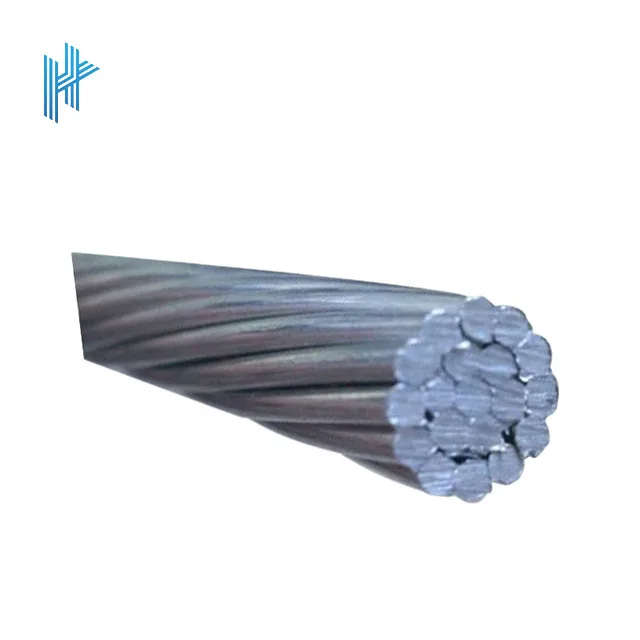

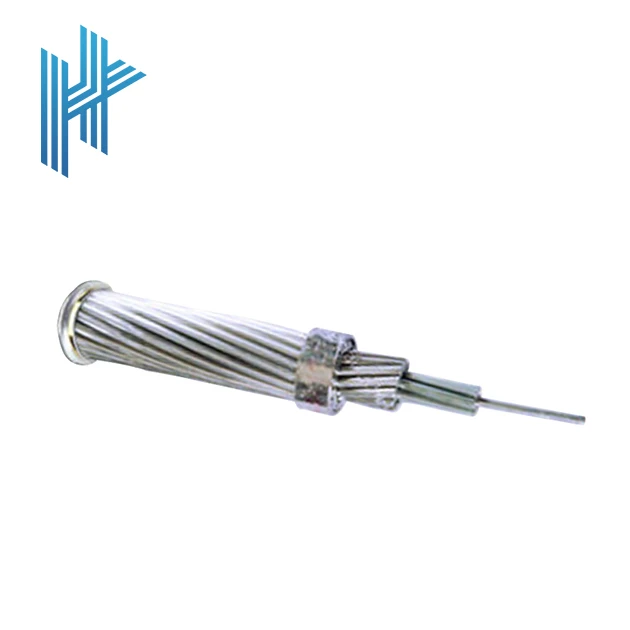

AAAC 304mm2 37/3.23mm greased/AA6201 AAAC Conductor
Advantage:
1. AAAC has large mechanical resistance than AAC which permits its use as a bare overhead conductor on aerial circuits for power transmission and distribution lines.
2. AAAC has better sag characteristics and strength to weight ratio as compared to AAC.
3. AAAC weight per unit and resistance is also lower which gives it advantage over the ACSR. Also, AAAC conductor has better corrosion protection than ASCR conductors..
1. AAAC has large mechanical resistance than AAC which permits its use as a bare overhead conductor on aerial circuits for power transmission and distribution lines.
2. AAAC has better sag characteristics and strength to weight ratio as compared to AAC.
3. AAAC weight per unit and resistance is also lower which gives it advantage over the ACSR. Also, AAAC conductor has better corrosion protection than ASCR conductors..
Parameter：
AAAC bare conductor meets or exceeds the following ASTM specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
AAAC bare conductor meets or exceeds the following ASTM specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
Application :
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.
Product Standard
ASTM-B399 | BS3242 | DIN48021 | SS424 0814 | IEC60189 |
mm2 | mm2 | mm2 | ||
Akron | Box | 16 | 31 | 16 |
Alton | Acacia | 25 | 62 | 25 |
Ames | Almond | 35 | 99 | 40 |
Azusa | Cedar | 50 | 157 | 63 |
Anaheim | Fir | 70 | 241 | 100 |
Amherst | Hazel | 95 | 329 | 125 |
Alliance | Pine | 120 | 454 | 160 |
Butte | Willow | 150 | 593 | 200 |
Canton | Oak | 185 | 774 | 250 |
Cairo | Mulberry | 240 | 910 | 315 |
Darien | Ash | 300 | 400 | |
Elgin | Elm | 400 | 450 | |
Flint | Poplar | 500 | 500 | |
Greeley | Sycamore | 625 | 560 | |
Upas | 800 | 630 | ||
Walnut | 1000 | 710 | ||
Yew | 800 | |||
Totara | 900 | |||
Rubus | 1000 | |||
Araucaria | 1120 | |||
1250 |
Code Name | Nominal Area (mm²) | Stranding (No./mm) | Diameter Of Conductor (mm) | Linear Mass(kg/km) | Rated Strength (kgf) |
Box | 15 | 7/1.85 | 5.55 | 51 | 537 |
Acacia | 20 | 7/2.08 | 6.24 | 65 | 680 |
Almond | 25 | 7/2.34 | 7.02 | 82 | 861 |
Cedar | 30 | 7/2.54 | 7.62 | 97 | 1014 |
Fir | 40 | 7/2.95 | 8.85 | 131 | 1367 |
Hazel | 50 | 7/3.30 | 9.9 | 164 | 1711 |
Pine | 60 | 7/3.61 | 10.83 | 196 | 2048 |
Willow | 75 | 7/4.04 | 12.12 | 245 | 2402 |
Oak | 100 | 7/4.65 | 13.95 | 325 | 3398 |
Mulberry | 125 | 19/3.18 | 15.9 | 415 | 4312 |
Ash | 150 | 19/3.48 | 17.4 | 497 | 5164 |
