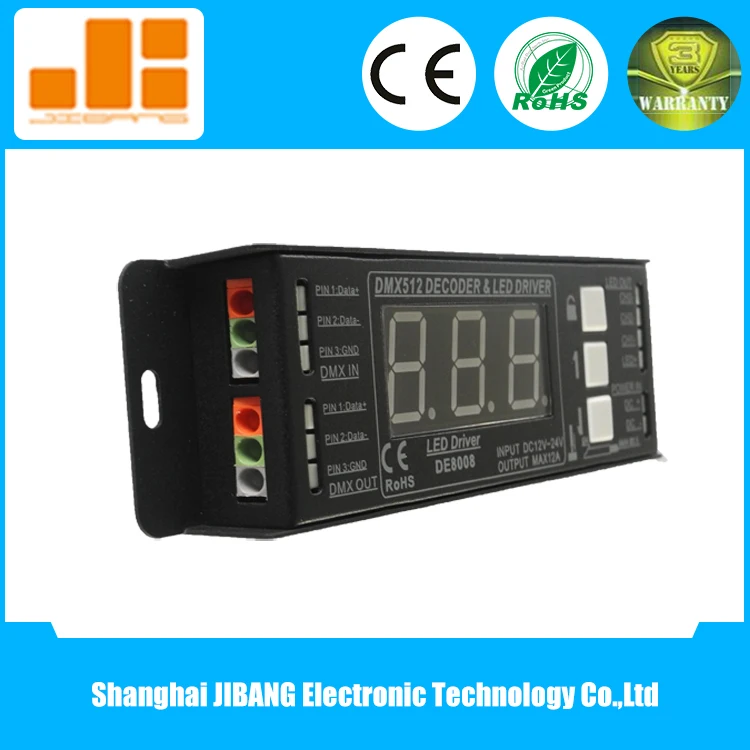

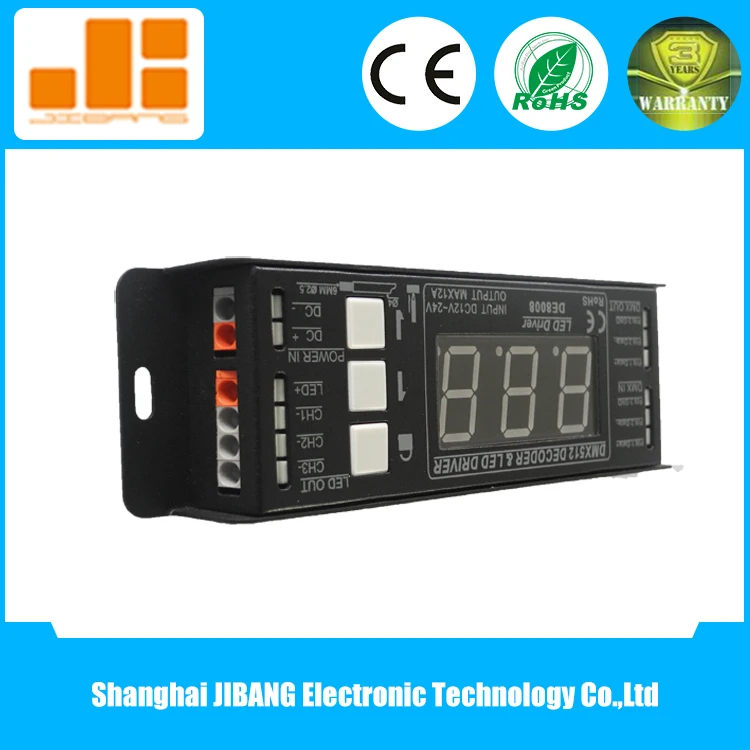

CV 12V RGB DMX512 Decoder DE8008

 SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~3 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

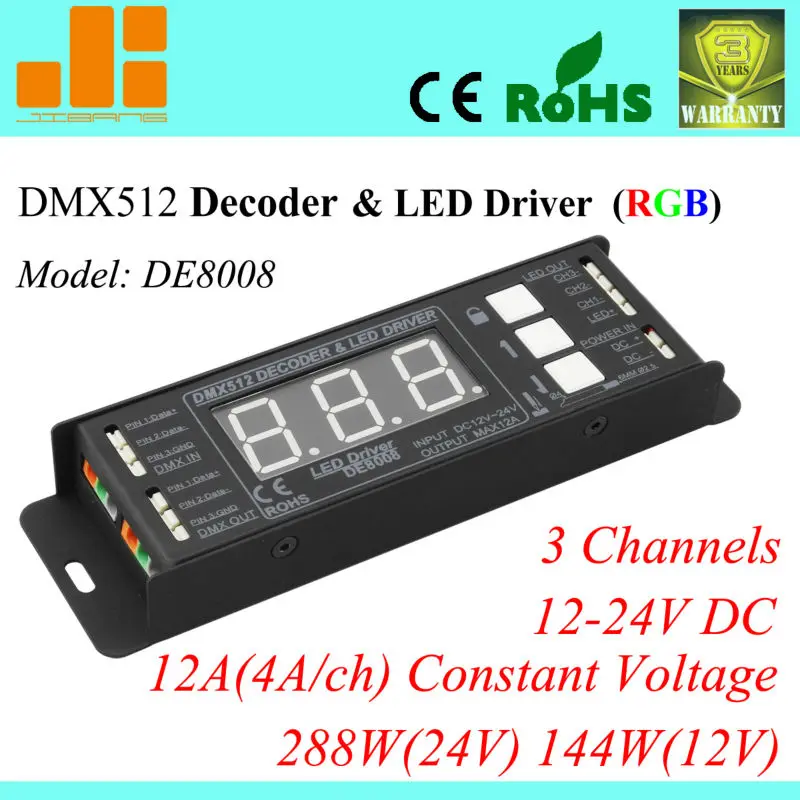

Features of RGB DMX512 Decoder:

1,Meets DMX512/1990 Signal with screwsless DMX In/Out connection .

2,256-levels brightness,full-color with driver controls.

3,Power without flashing, low jitter free.

4,Output 3 channels,4A/CH.Max current is 12A.

5,Can achieve asynchronous color changes effect under working with controller.

6,Cooperating with lighting control system, can realize rich change effect.

7,Setting up the DMX address freely by digital display .

8,Modularizing and can be matched with different LED module neatly.

9,Custom-made available.

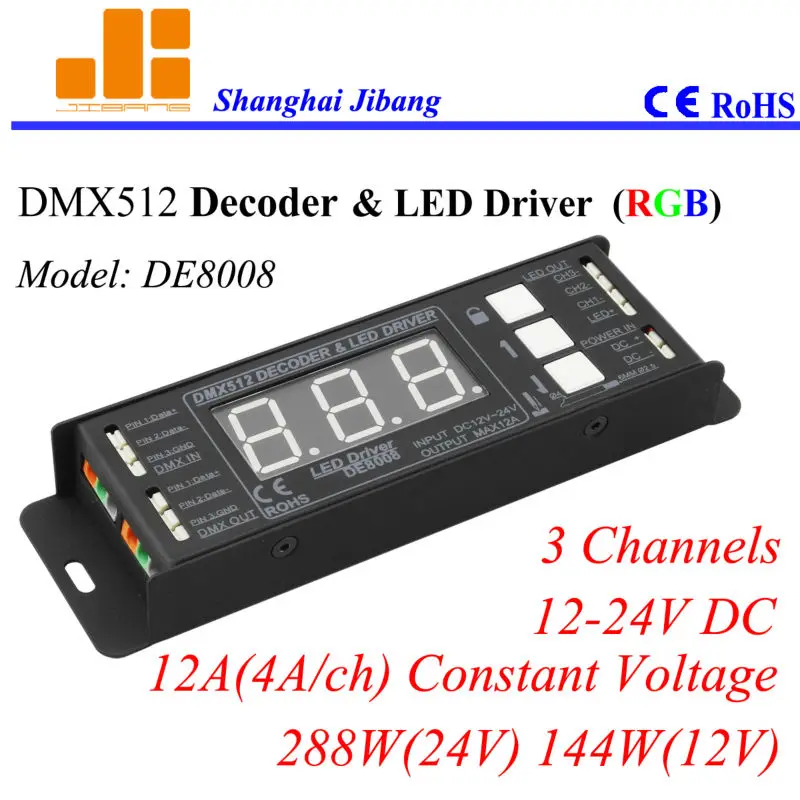

Tech-parameter: Model DE8008

Size

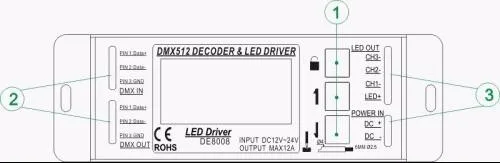

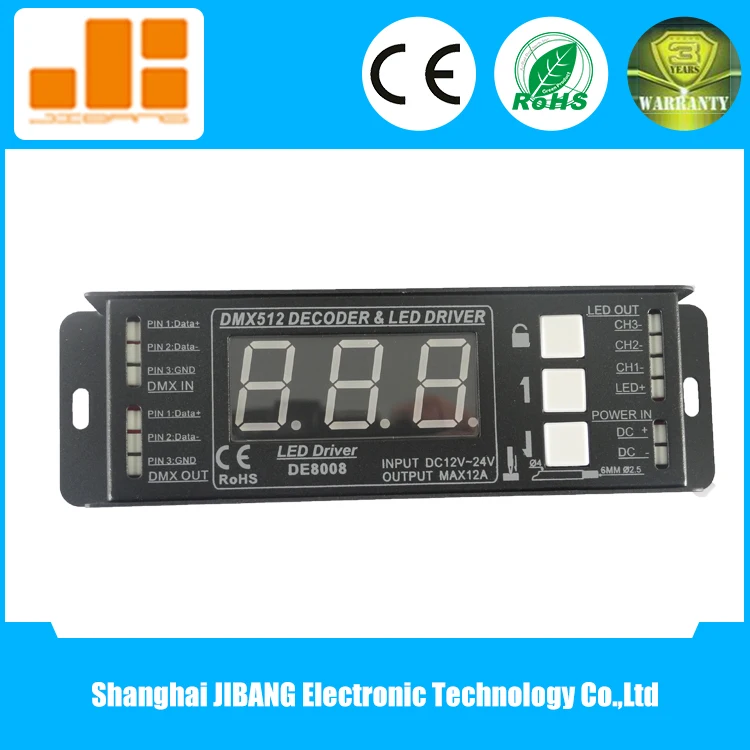

Function Instruction

1: Product panel operation instructions,through the digital tube display the address, through the switch control address code, when adjust to the address code of you need, can press lock key and lock the current address code, if in the current state not press the lock key, in 3 seconds the system self-locking address, demand reset address code, first press the unlock key, then set the address code. (in the lock key operation, the third paragraph digital tube will show the corresponding instructions), if in 5 minutes didn't any operation with the switch, so digital tube will close, If want to see the show again, then press the unlock key.

    a.Address code Settings: such as the first DE8008, put into 001, the second is set to 004. A DE8008 accounted for three DMX address.

    b.With self test procedures, numerical Settings to 000 address, full channels output 3 seconds, then each color gradient

2: DMX input/output terminals. See panel connectcorrectly.

3 : 4PIN is driver output interface (of altogether anode output driver, with a LED + interface and 3 channels CH1-CH2-CH3-output interface, may meet all kinds of full-color module and monochrome module automatically according to the lamps module load regulation output pulse). 2 PIN is the power input interface (supplythe power for decoder itself and decoder with lamps).

SELF-TESTING: Set DMX adress 000, full channels output 3 seconds, then each color gradient

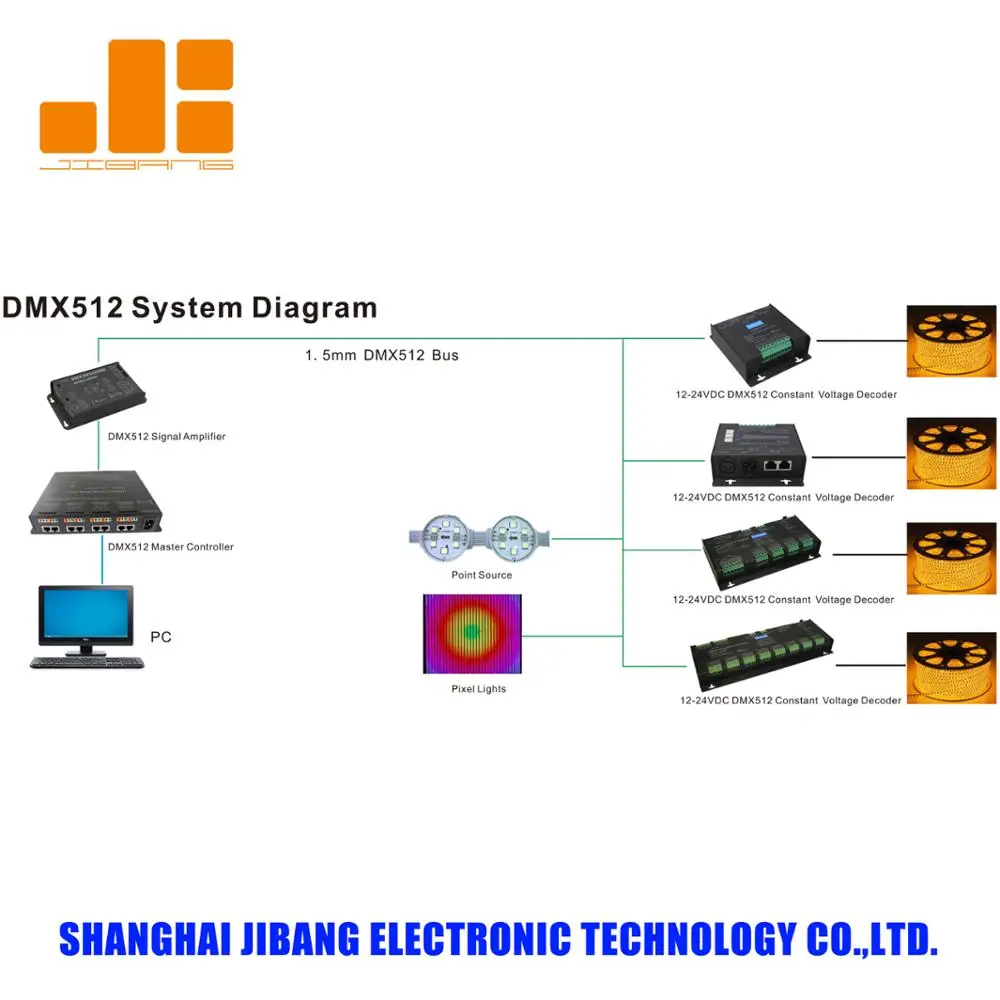

Wiring Diagram

DMX-512 Control signal connection
1,DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end,
in pressure welding DMX signal line plug should pay special attention to polarity.
DMX512 controller output signal positive, signal negative, signal ground with DE8008 input interface
corresponding connection.
2,DMX5000 output and DE8008's transmission lines can't be over 300 meters.
3,DMX5000 each interface can with not more than 170 pieces of DE8008. eight output interface.
Through the JBLED FLASH light making software and can with computer on line control. Realize
infinite contact the DMX lights.
4,When connected 32 pieces of DE8008, DMX signal must add a signal amplifier RE2000 .
RE2000 Cascade can't more than 4 PCS.
