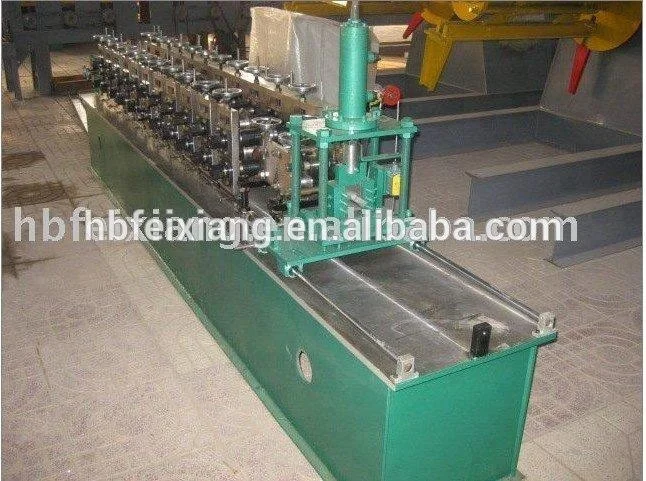

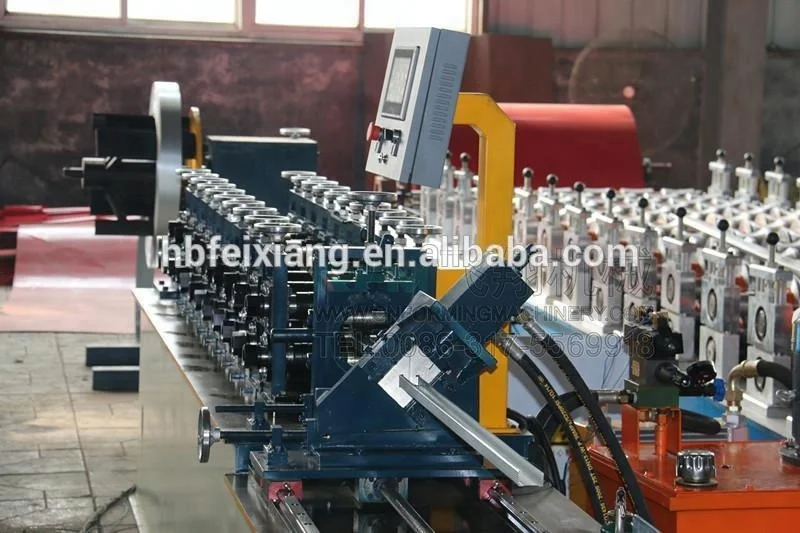

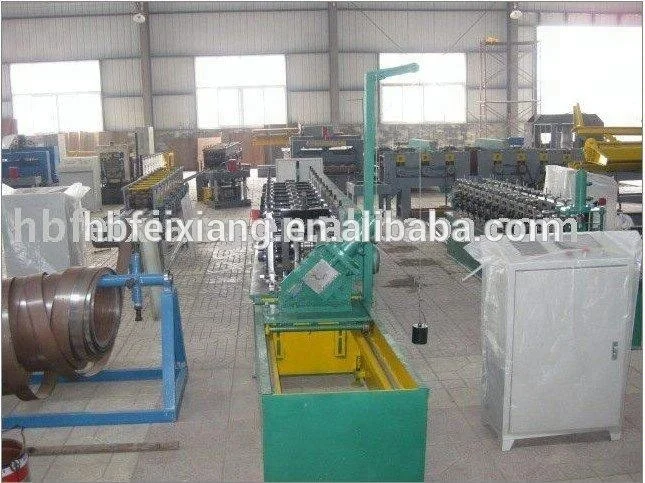

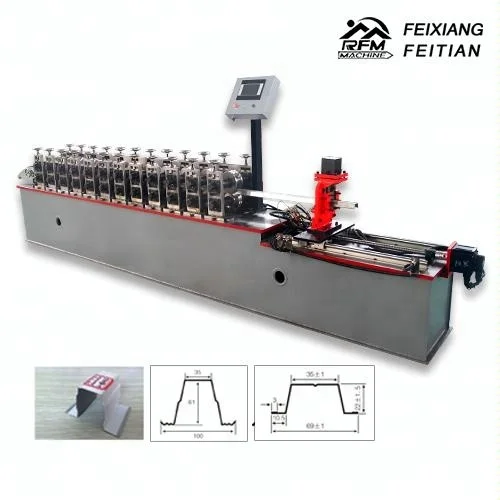

Gutter machine for sale,gutter roll forming machine,gutter equipment
1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile
thickness:0.3--0.8mm

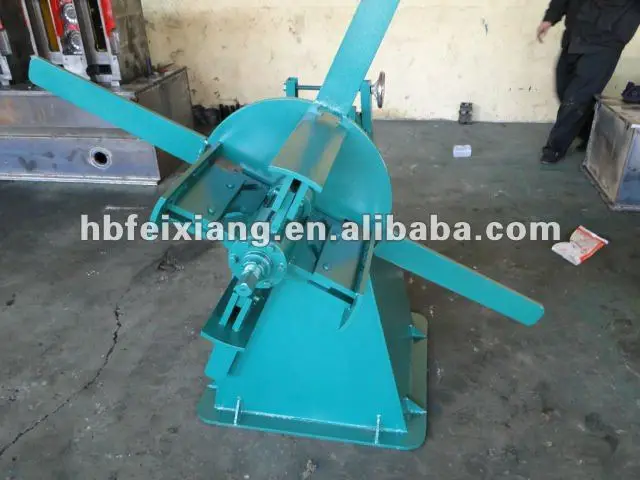

2)inner tight decoiler
A.coil inner diameter:450mm--550mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg

3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:15

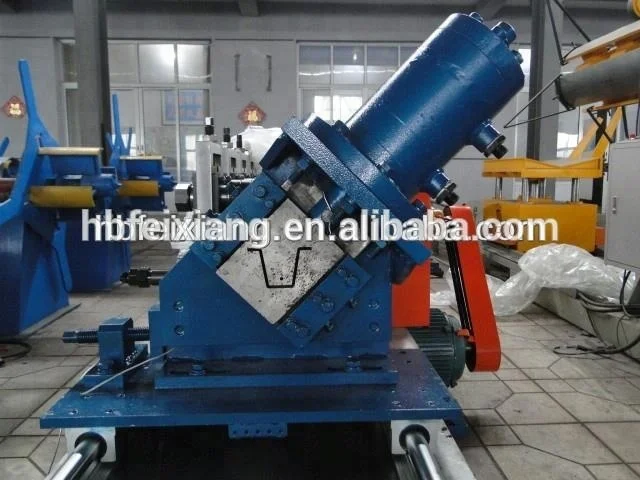

4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no
5)control system
A.PLC: taida form Taiwan
B.Coder:from south korea
6)hydraulic system
A.advanced hydraulic system from taiwan
B.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs




Terms:
1.Delivery:in stock

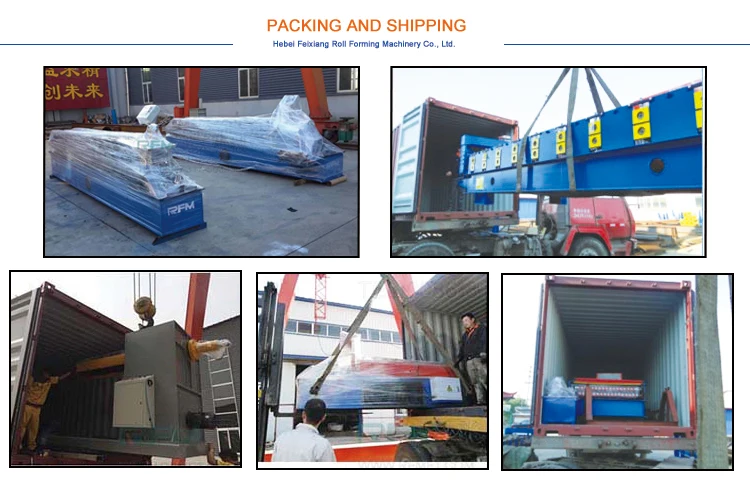

2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.
Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.
In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.
The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipment .
They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.
The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .



Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
