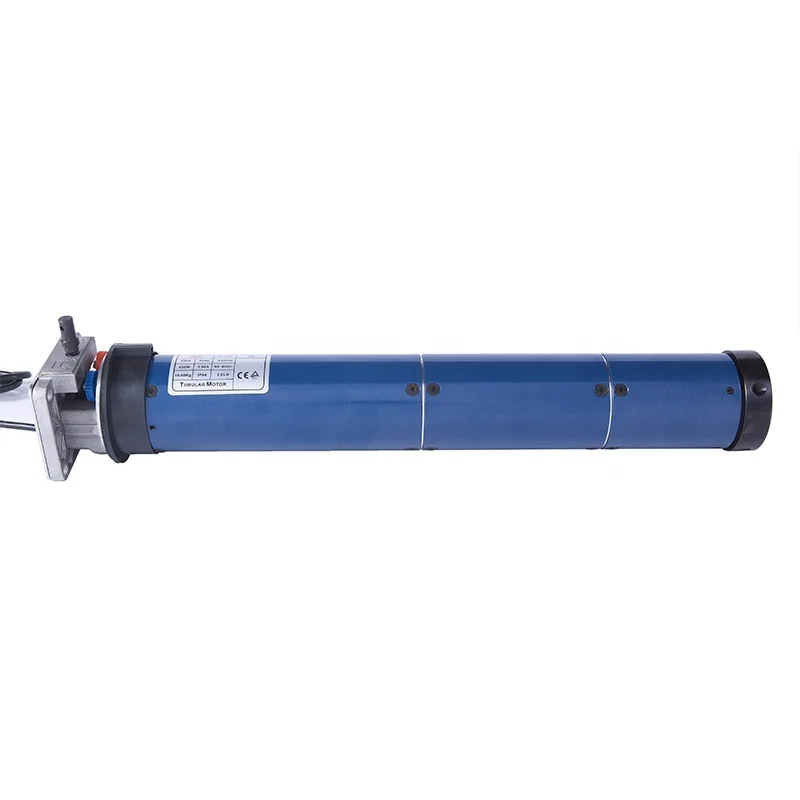

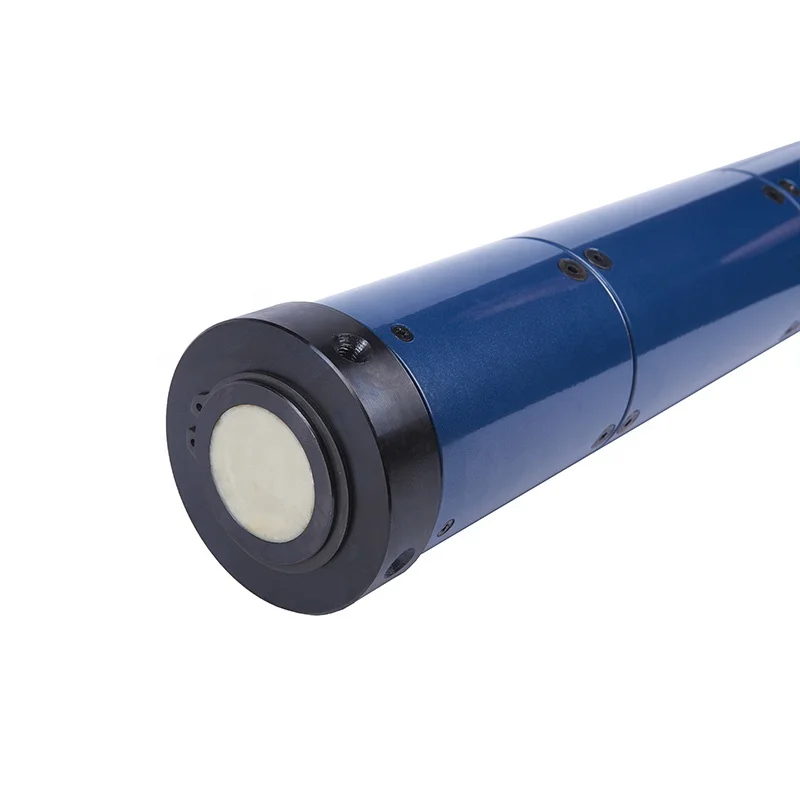

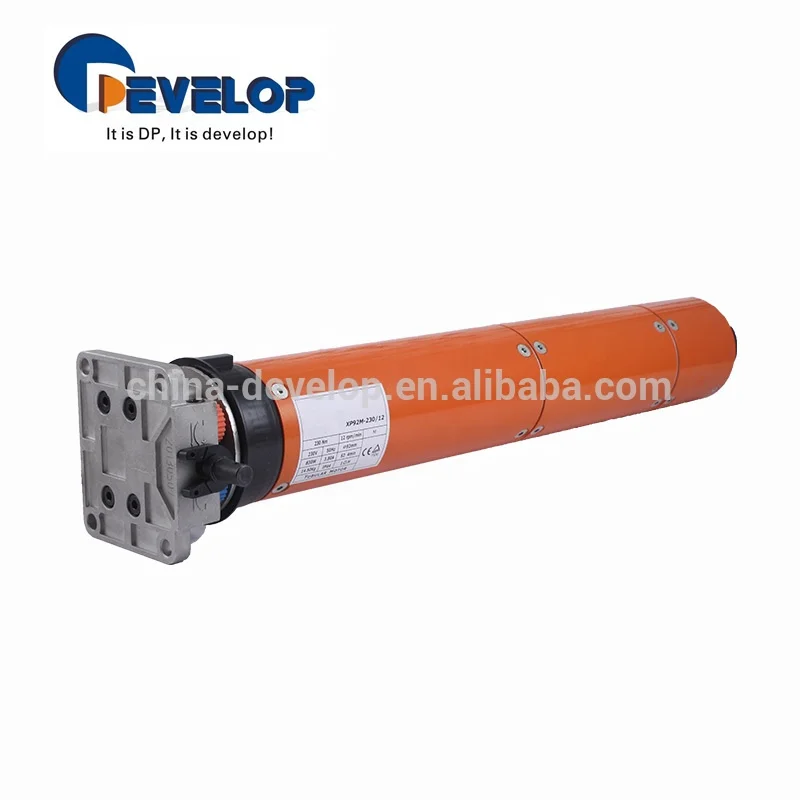

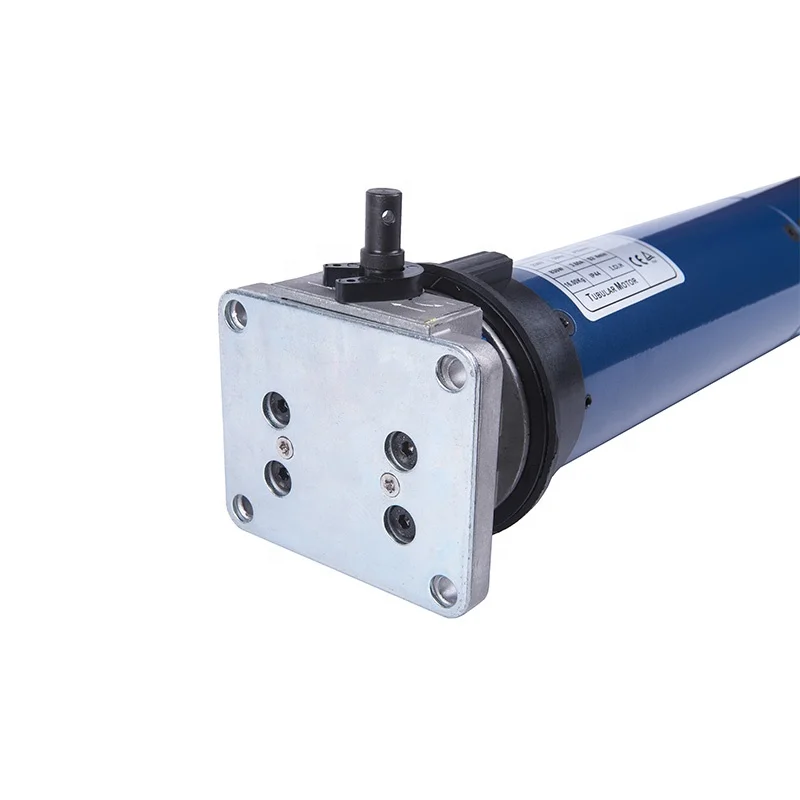

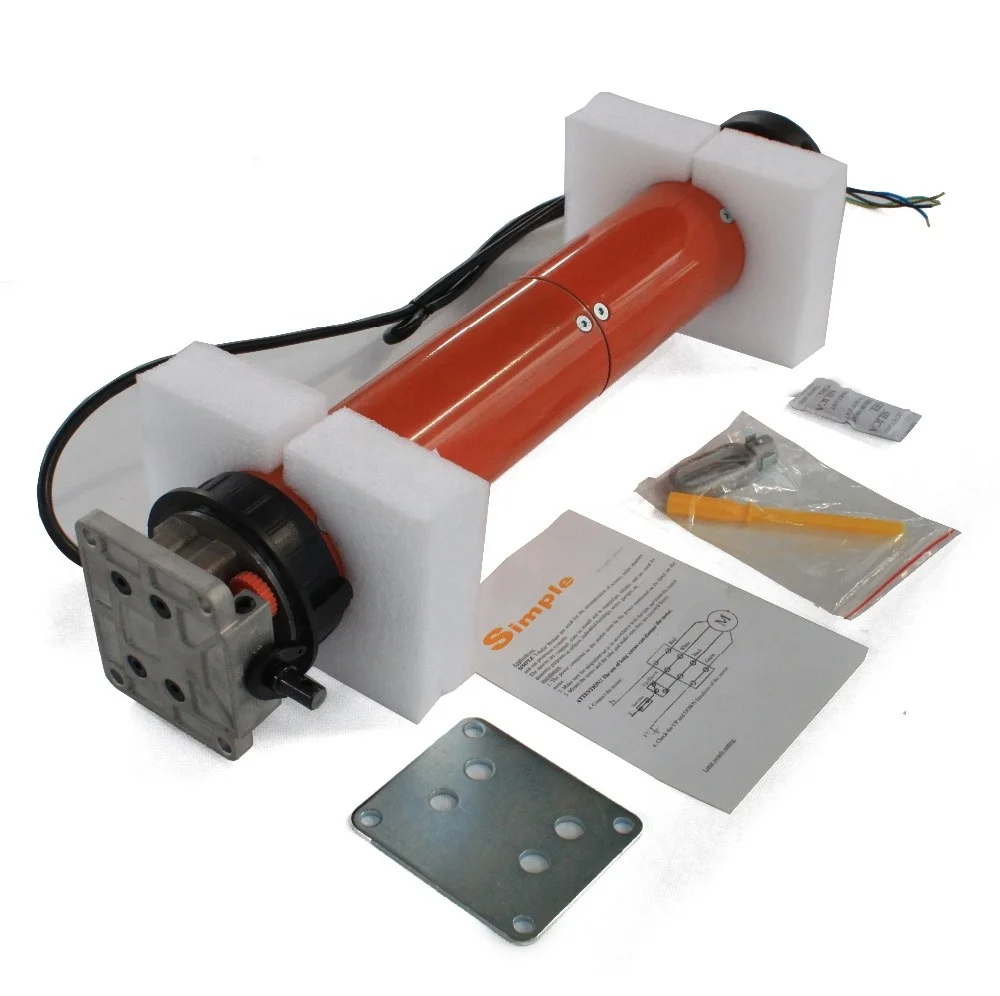

92mm industrial roller shutter tubular motor

Product Overview

Description

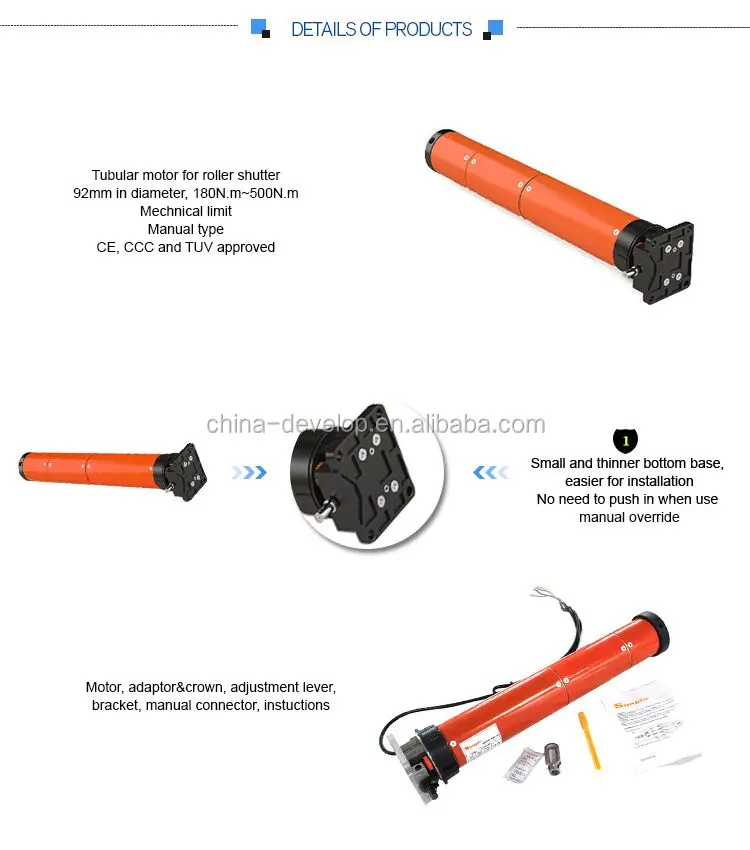

92mm industrial roller shutter tubular motor



(Latest type with competitve price)



1. The max. Lift capacity reached 500kg with different size of tubes

2.   electromagnetic brake system are adopted to make sure the motor security

3.   Manual override devices ensure the normal operating in case of emergency and power failure

4. 5 year of warranty









Rated torque     (N.m)	Rated Voltage  (V)	Rated Frequency	Rated Power Input	Tube Diameter
180N.m	230V	50HZ	626W	92MM
230N.m	230V	50HZ	830W	92MM
300N.m	230V	50HZ	920W	92MM
330N.m	230V	50HZ	980W	92MM
500N.m	230V	50HZ	980W	92MM
Rated Current (A)	Running time (Min)	Rated Speed(Rpm)	Protection Index(IP)	Insulation class
2.8A	4MIN	12RPM	IP44	Class H
3.8A	4MIN	12RPM	IP44	Class H
4.2A	4MIN	9RPM	IP44	Class H
4.5A	4MIN	9RPM	IP44	Class H
4.5A	4MIN	5.5RPM	IP44	Class H
