59mm AC elctronic rolling shutter door motor

Product Overview

Description

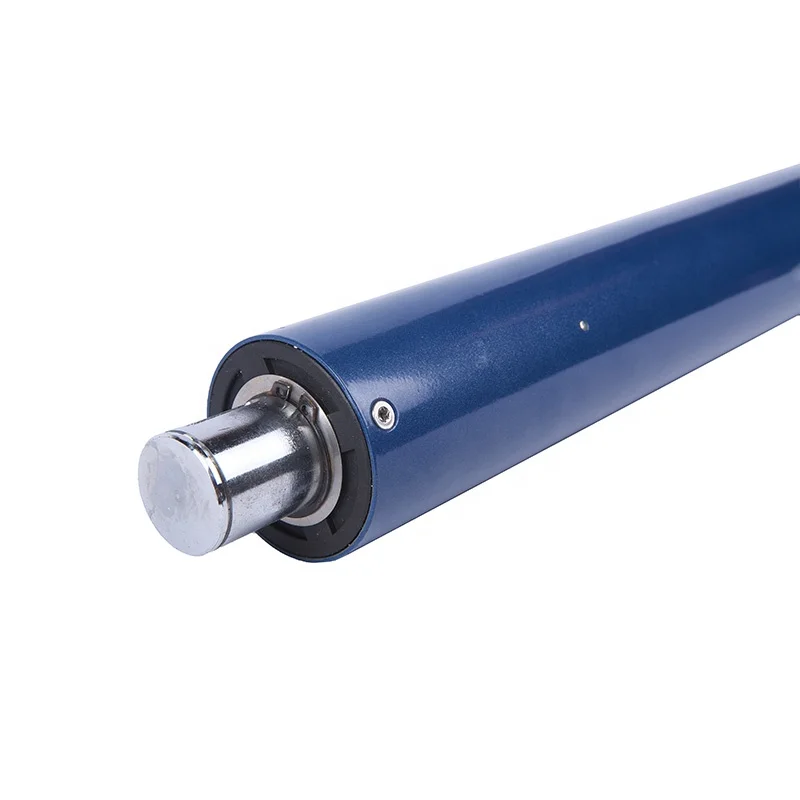

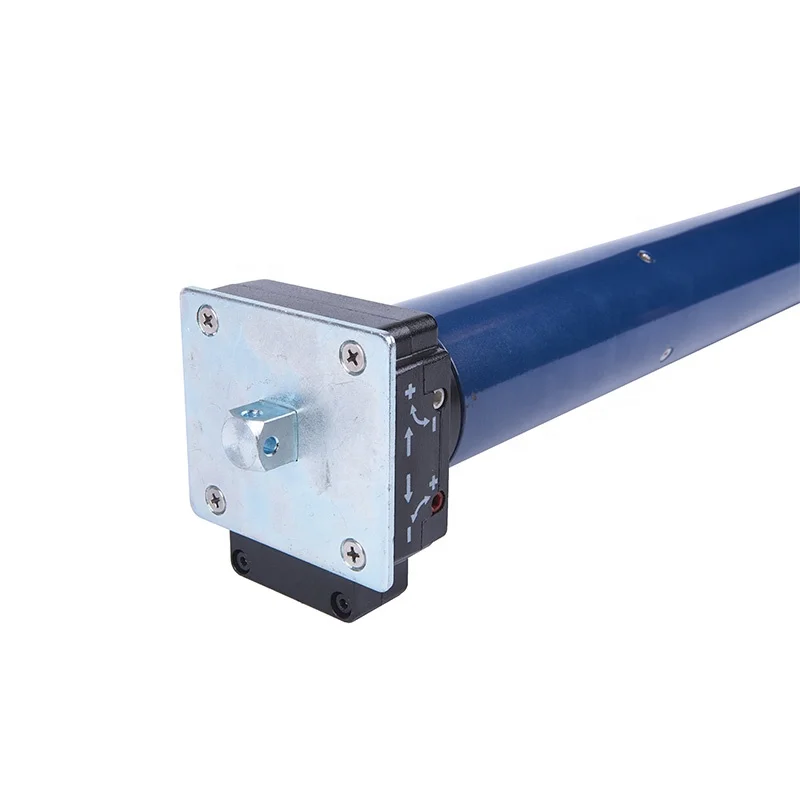

59mm AC elctronic rolling shutter tubular motor



(NEW type with competitve price)





1. 59mm in diameter

2.60N.m, 80N.m, 100N.m, 120N.m, 140N.m

3. manual new type

4. easier for installation, stable quality

5. CE, CCC and TUV approved





---Technical Specifications





XP59M new manual	Rated torque	Rated voltage	Rated frequency	Rated power input	Tube diameter	Rated current	Running time	Rated speed	Protection index	Insulation
	(N.m)	(V)	(Hz)	(W)	(mm)	(A)	(min)	(rpm)	(IP)
	60N.m	230V	50Hz	288W	59mm	1.28A	S2 4min	12rpm	Ip44	Class H
	80N.m	230V	50Hz	350W	59mm	1.50A	S2 4min	12rpm	Ip44	Class H
	100N.m	230V	50Hz	440W	59mm	1.94A	S2 4min	12rpm	Ip44	Class H
	120N.m	230V	50Hz	450W	59mm	2.00A	S2 4min	12rpm	Ip44	Class H
	140N.m	230V	50Hz	460W	59mm	2.20A	S2 4min	9rpm	Ip44	Class H



110v/60HZ is also available

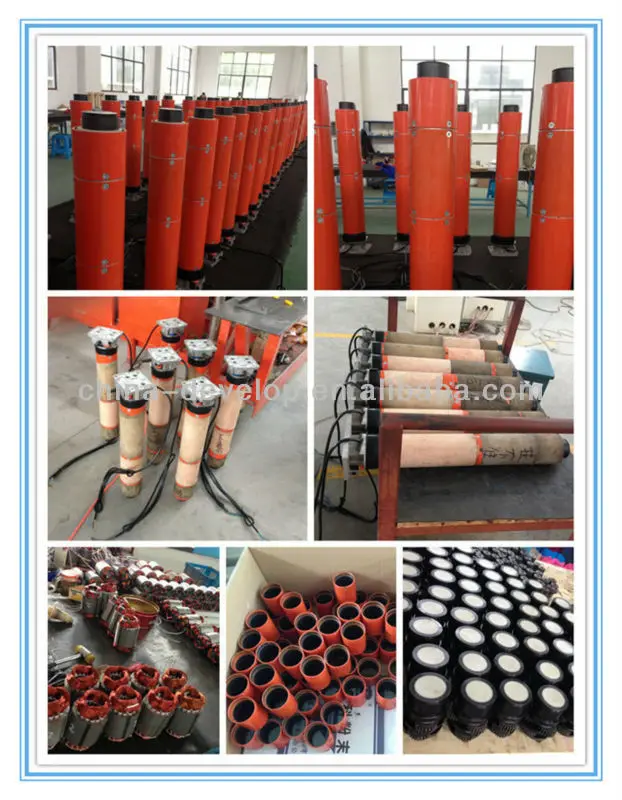

---Process of Product

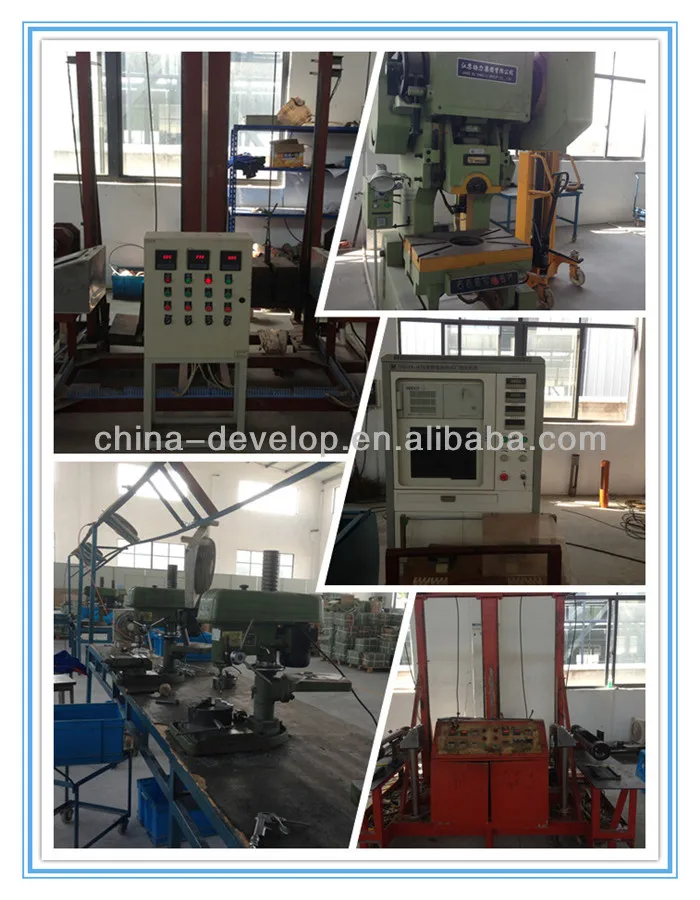

---Manufactoring shop









---Package









---Certification









-Aboves are our regular specifacation, any Customizing request is also welcome!

-We are one of most competive manufacturers/exporters in China on tubular motor, Side motor, Central motor ,sliding motor etc, contact us directly for more items and better prices!

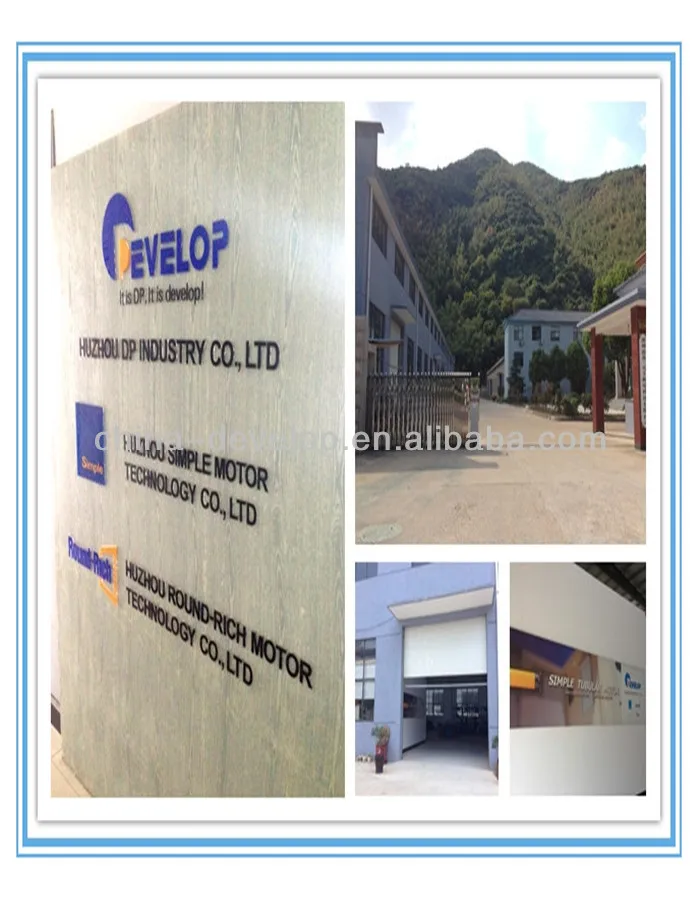

---About our Factory
