3 в 1/305 TTMC сочетание ножницы Тормозная н ролл машина
- Category: Other Machine Tool Equipment >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1471325208):
Product Overview
Description
Product Description
* Maximum capacity of 20 gauge mild steel for all functions.
* Handles material up to 12” wide, just right for those small jobs.

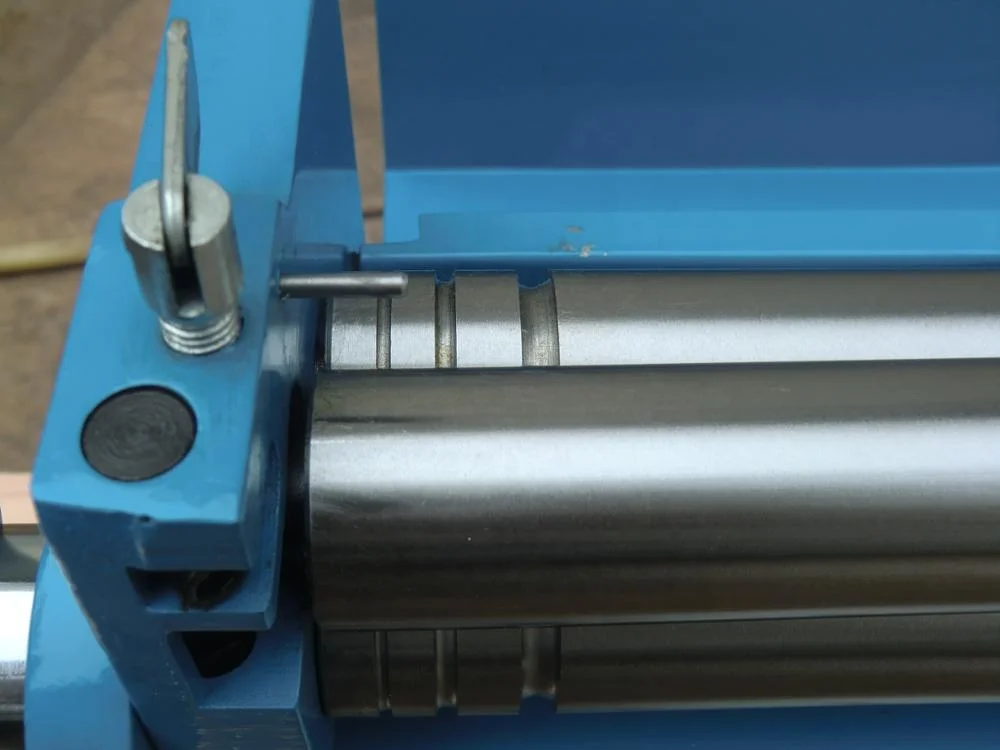

* Slip roll portion on top has hardened and polished shafts for long life.
* Minimum rolling diameter of 1.54”.
* 3 grooves in the roll let you form wire perfectly.
* Adjustable fingers on the top beam can make boxes of varying sizes with.
* Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
* Handles material up to 12” wide, just right for those small jobs.
* Slip roll portion on top has hardened and polished shafts for long life.
* Minimum rolling diameter of 1.54”.
* 3 grooves in the roll let you form wire perfectly.
* Adjustable fingers on the top beam can make boxes of varying sizes with.
* Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
Item No. | 371001 |
Model | 3-IN-1/305 |
Bed Width | 305mm /12" |
Thickness | 1.0mm |
Beding Angle | 90° |
Rolling Dia. | 39mm |
Packing Size | 49x33x42 cm |
N.W./G.W. | 43/45 |
Size Information
3-IN-1 Machine
Item NO. | 371000 | 371001 | 371002 | 371003 |
Model | 3-IN-1/200 | 3-IN-1/305 | 3-IN-1/610 | 3-IN-1/760 |
Width (mm) | 200 | 305 | 610 | 760 |
Thickness (mm) | 1.0 | 1.0 | 1.0 | 1.0 |
Bending Angle | 90° | 90° | 90° | 90° |
Rolling Dia. (mm) | 29 | 39 | 39 | 39 |
Packing Size(cm) | 36x25x30 | 49x33x42 | 84x41x66 | 100x45x72 |
N.W./G.W. (kg) | 17/19 | 43/45 | 112/128 | 136/143 |
