Universal Milling Machine price with swivel milling table for sale
- Category: Milling Machines >>>
- Supplier: Tengzhou Hising Machine Tools Co. Ltd.
Share on (1478821202):
Product Overview
Description
Universal milling machine price
Specifications of Universal Milling Machine price with swivel milling table for sale:
Model | UM1480A |
Spindle Taper | ISO 50 |
Distance from Spindle to Column surface | 200-1000mm |
Distance from Spindle Nose to Table Surface | 210-700mm |
Max.Distance from Spindle Center to Table Surface(H) | 470mm |
Distance from Spindle Center to Table Surface | 280-1160mm |
Spindle Speed Range | 50-1500rpm |
Table Size | 2000×360mm |
Worktable Swivel Angle | 45° |
Table Travel | 1600mm |
Cross | 400mm |
Vertical | 500mm |
X,Y axis Feeding | 22.4-560mm/min |
Z axis Feeding | 11.2-280mm/min |
T-slots of Table | 3 |
Width | 18mm |
Distance | 80mm |
Main Motor | 5.5kw |
Feeding Motor | 3kw |
Coolant Pump Motor | 40w |
Overall Dimensions | 2300×2700×2300mm |
Weight | 3980kgs |
Standard accessories of Universal Milling Machine price with swivel milling table:
Halogen Lamp
3-Axis Digital Readout
Power Feeds
Horizontal Arbor Support
Collet Chuck
Drawbar
Coolant System
Machine Vice
Manual and Parts List
Optional accessories of Universal Milling Machine price with swivel milling table:
Rotary Table
Clamp Kit
Universal Dividing Head
Slotting Head
End Mill Arbors
Drill Chuck and Arbor
Boring Head
Angle Plates
FEATURES of Universal Milling Machine price with swivel milling table:
3 Axis Power Feed
Long 2000mm Table
Pendant Control with Integrated DRO(not visible on picture)
Horizontal Milling Spindle

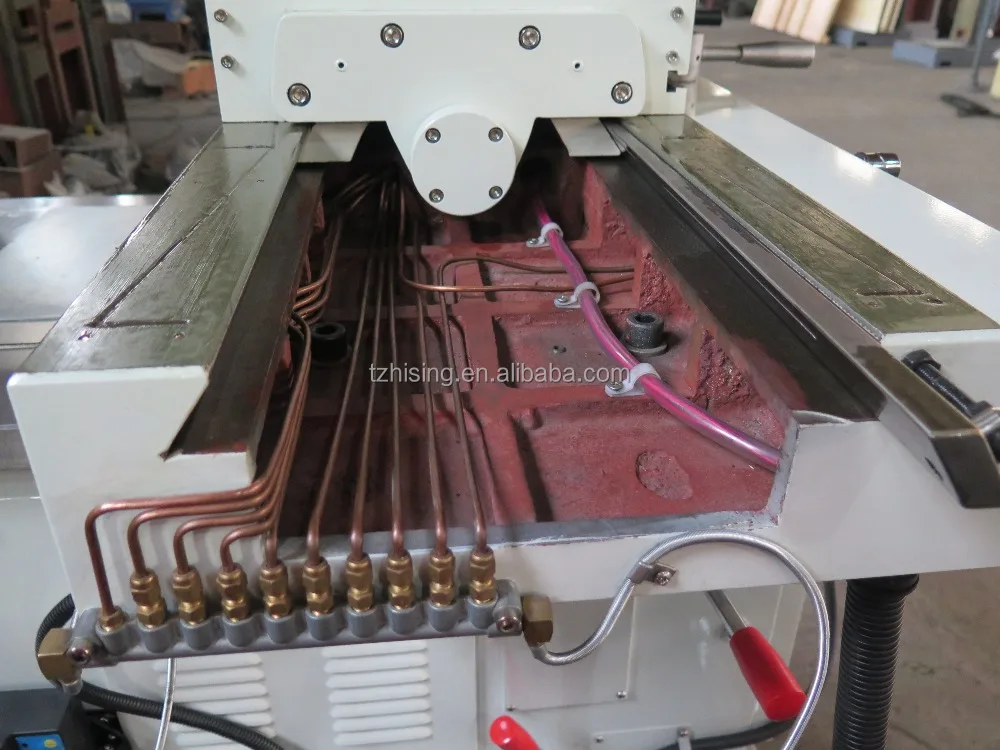

Photos of Universal Milling Machine price with swivel milling table:

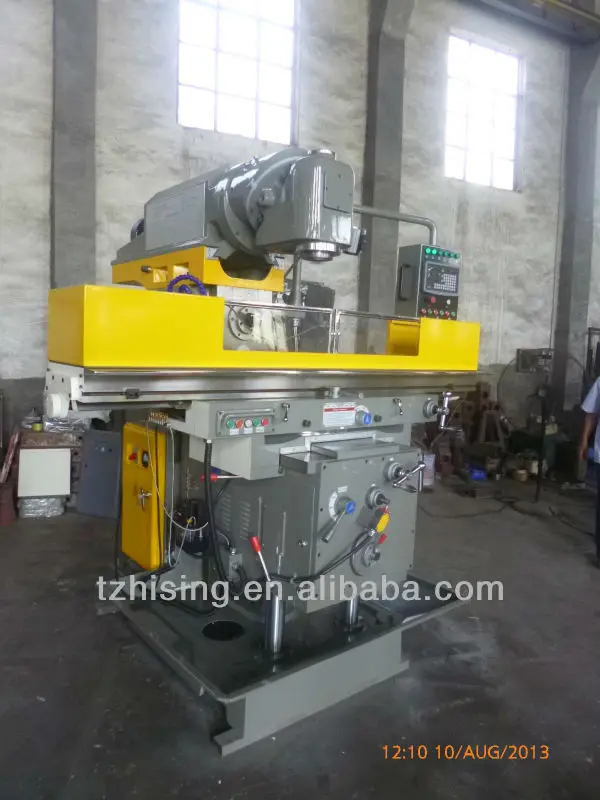

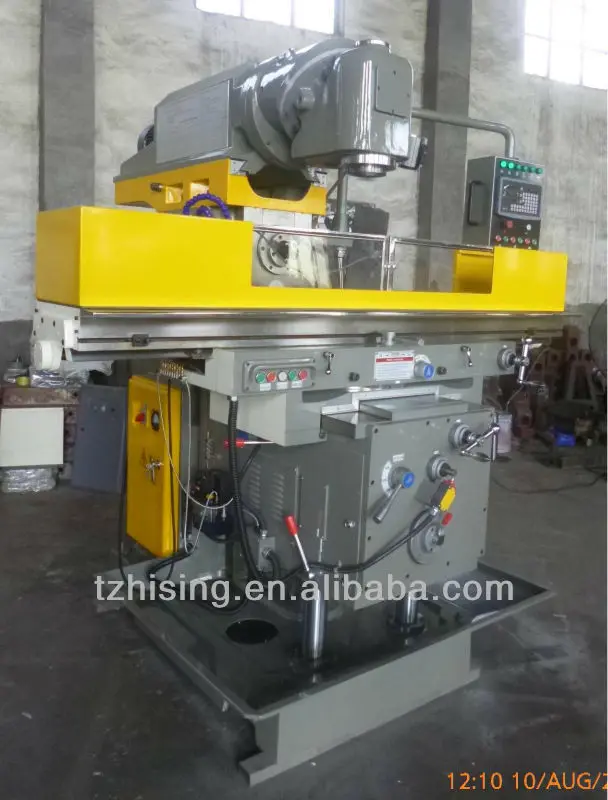

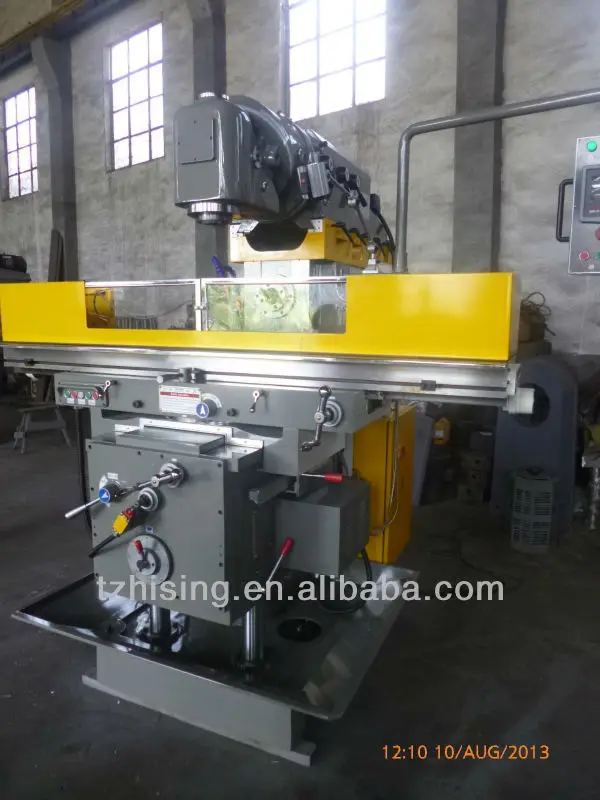

Overall appearance of Universal Milling Machine price with swivel milling table:

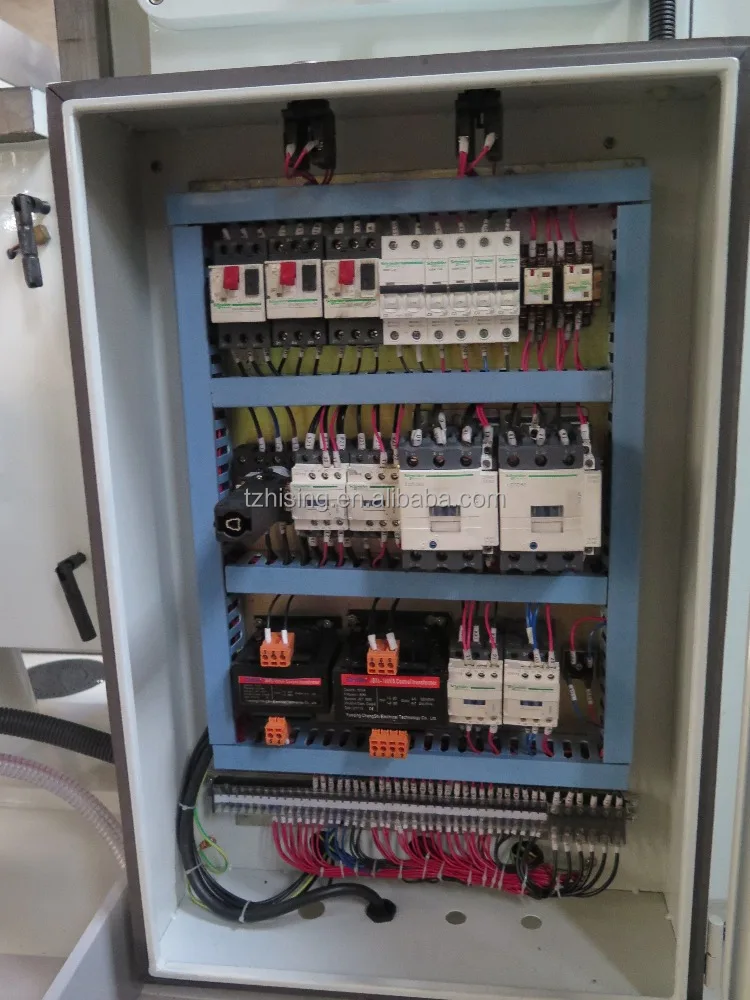

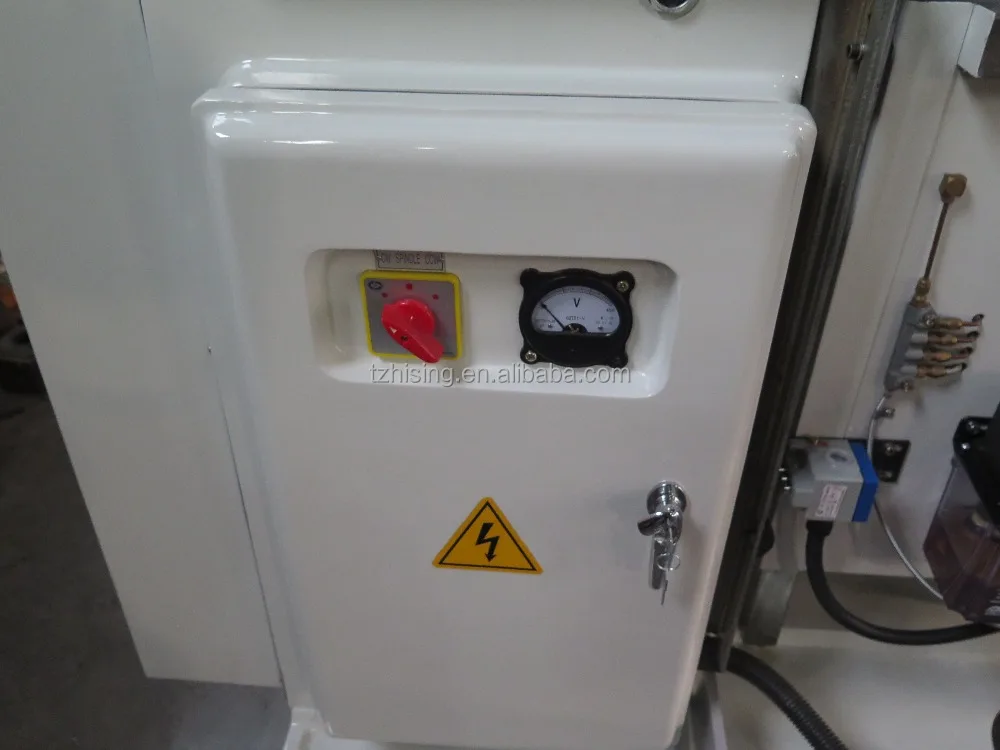

Electricity Cabinet photo of Universal Milling Machine price with swivel milling table:

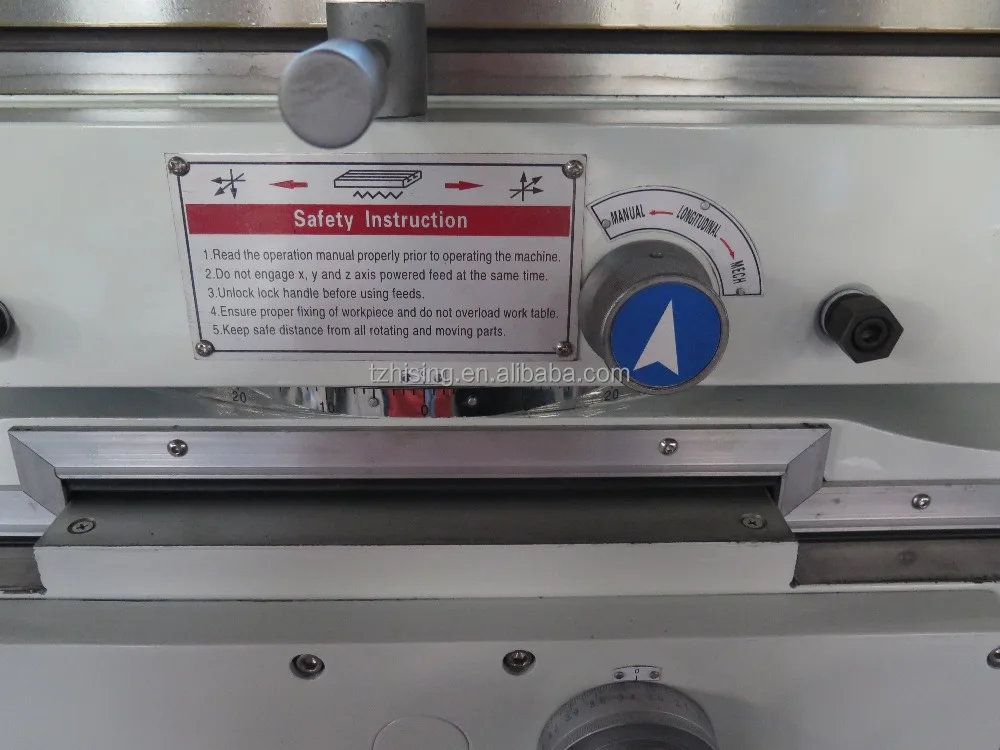

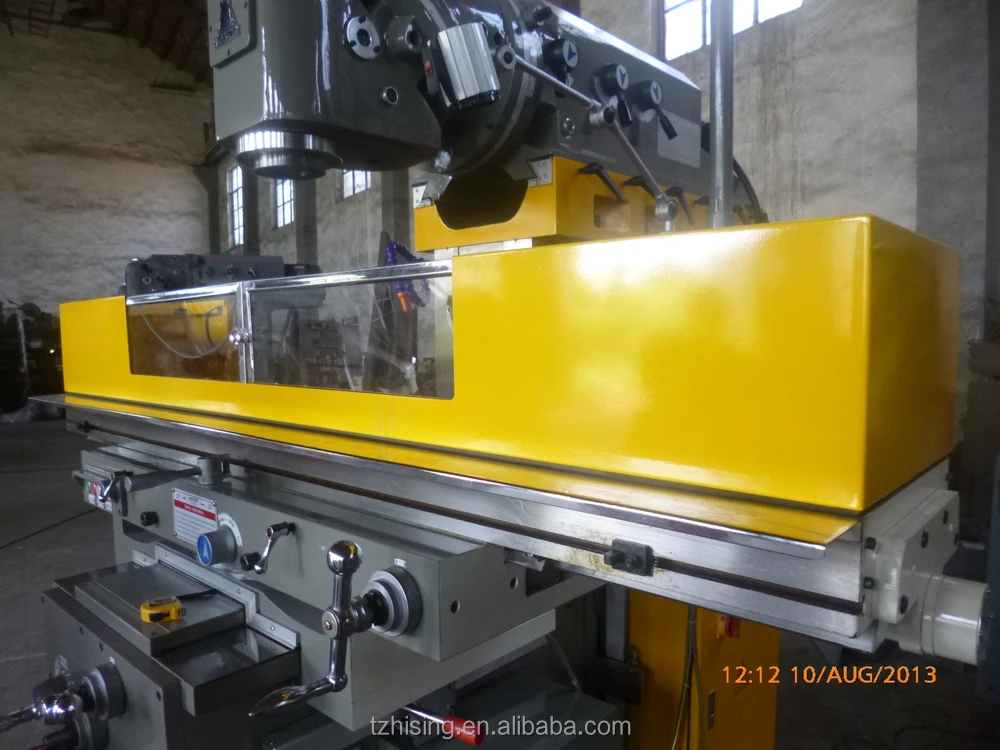

Table guard of Universal Milling Machine price with swivel milling table :
For more universal milling machine price with good quality, pls click here
