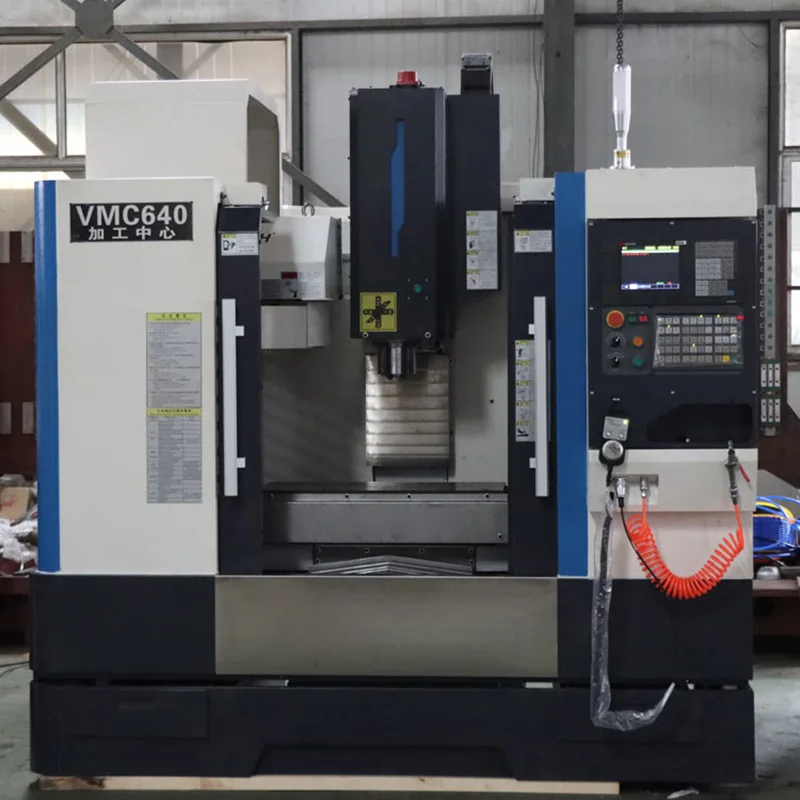

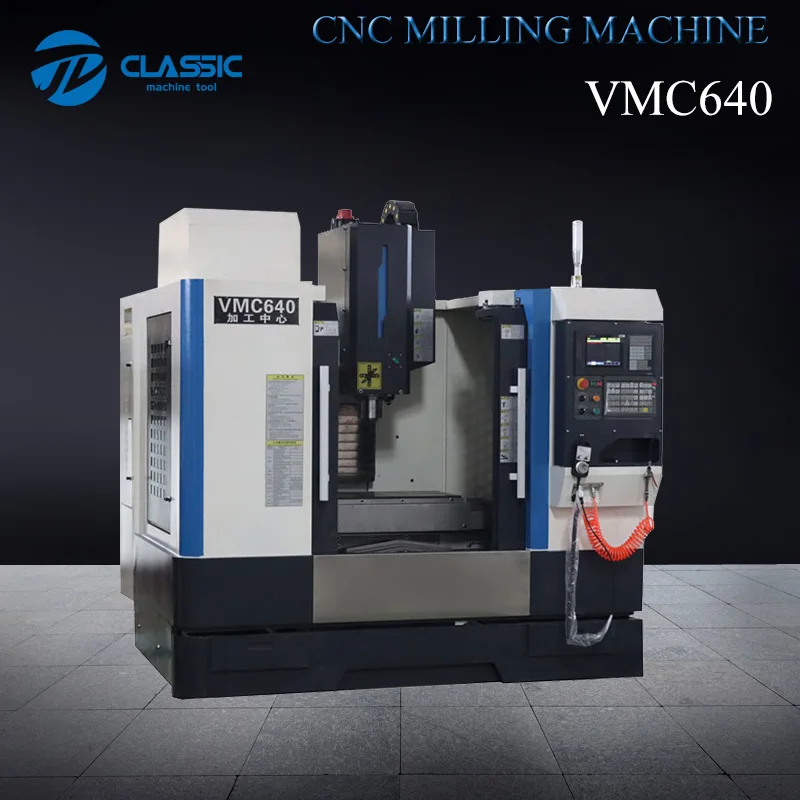

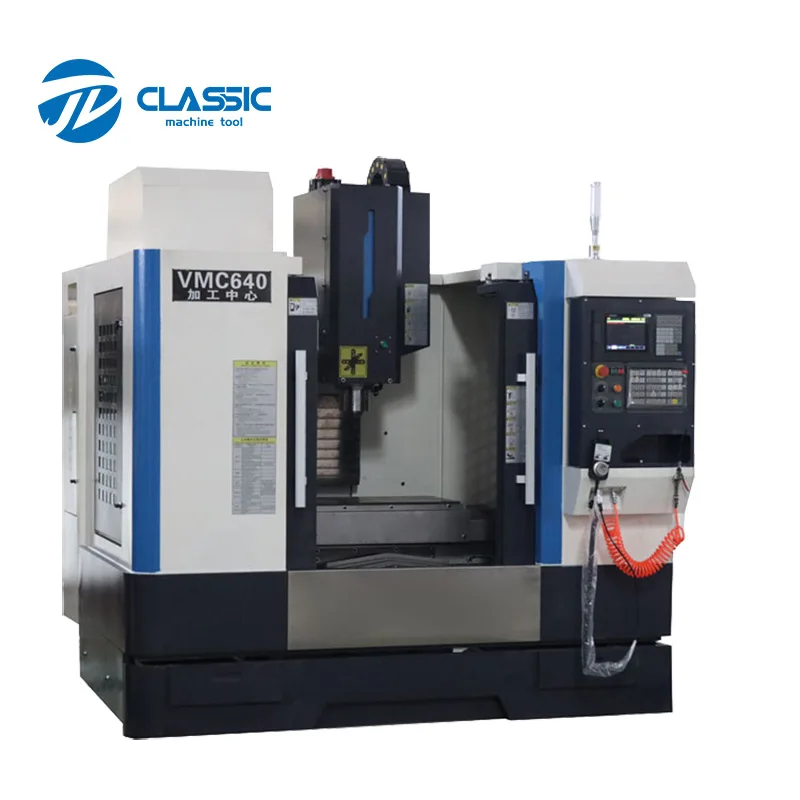

vmc 640 taiwan cnc vertical machining center 3axis 4 axis 5 axis cnc milling machine for metal
- Category: Milling Machines >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600373603328):
Product Overview
Description
Products Description
Product Application
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
Product main technical parameters:
specifications | unit | VMC640 |
Table size | mm | 800x320 |
X axis travel | mm | 600 |
Y axis travel | mm | 300 |
Z axis travel | mm | 400 |
Distance between spindle center and column surface | mm | 469 |
Distance between spindle nose and table surface | mm | 100-600 |
T slot | 3-18*125 | |
Spindle taper | mm | BT40 |
Max. spindle speed | r/min | 8000(10000 optional) |
Main motor power | kw | 5.5 |
X/Y/Z axis servo motor torque | N.M | 10/10/15 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Max.table load | kg | 450 |

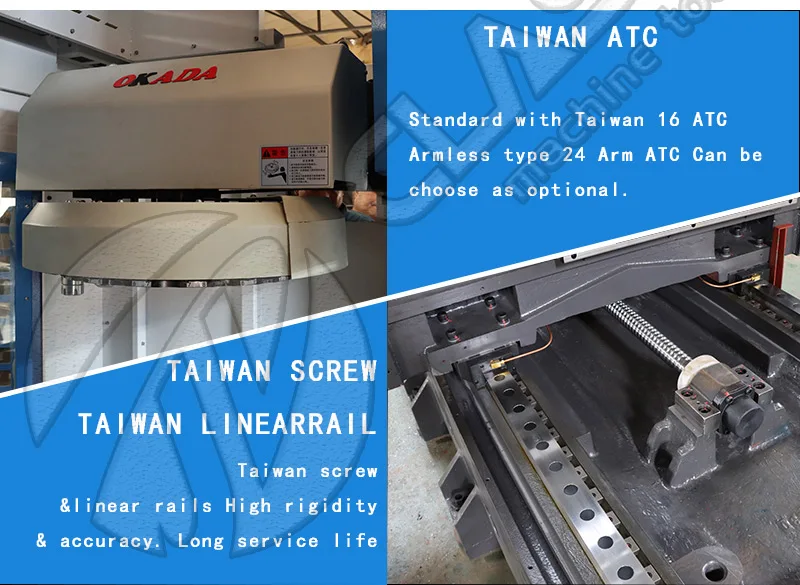

Automatic tools changer | 16 Armless type(optional:24 arm type) | |
Max.tool weight | kg | 7 |
Max. tool length | mm | 250/350 |
Max. tool diameter | mm | 100(Adjacent)/150(Apart) |
X/Y/Z axis rapid traverse | M/min | 24(optional :48) |
Cutting feed speed | M/min | 10 |
Position accuracy | mm | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 |

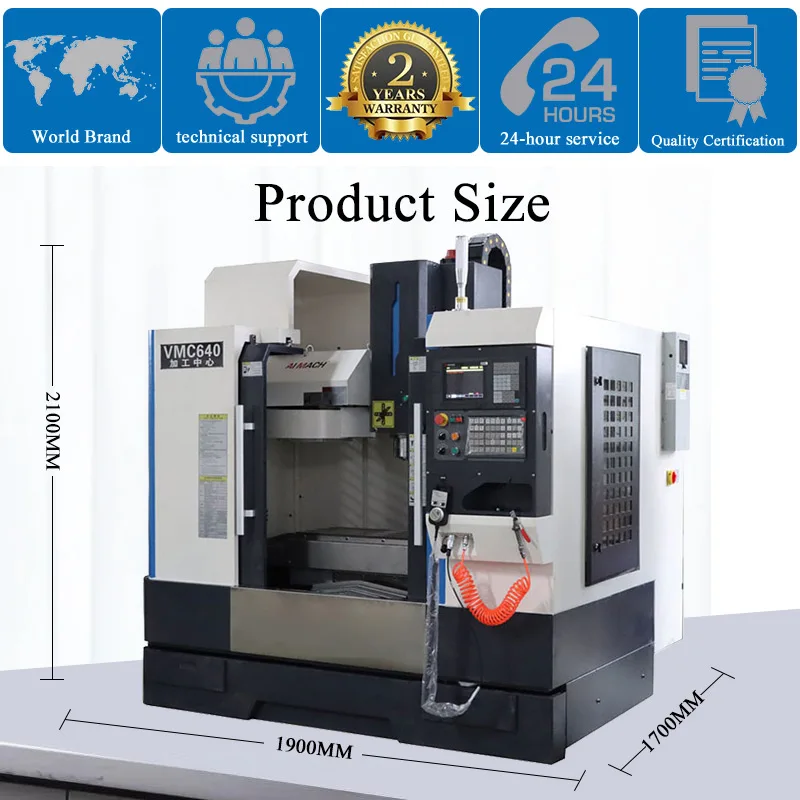

Machine dimension | mm | 1710*2100*2250 |
Machine weight | kg | 3000 |
Standard Configuration:
·KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver

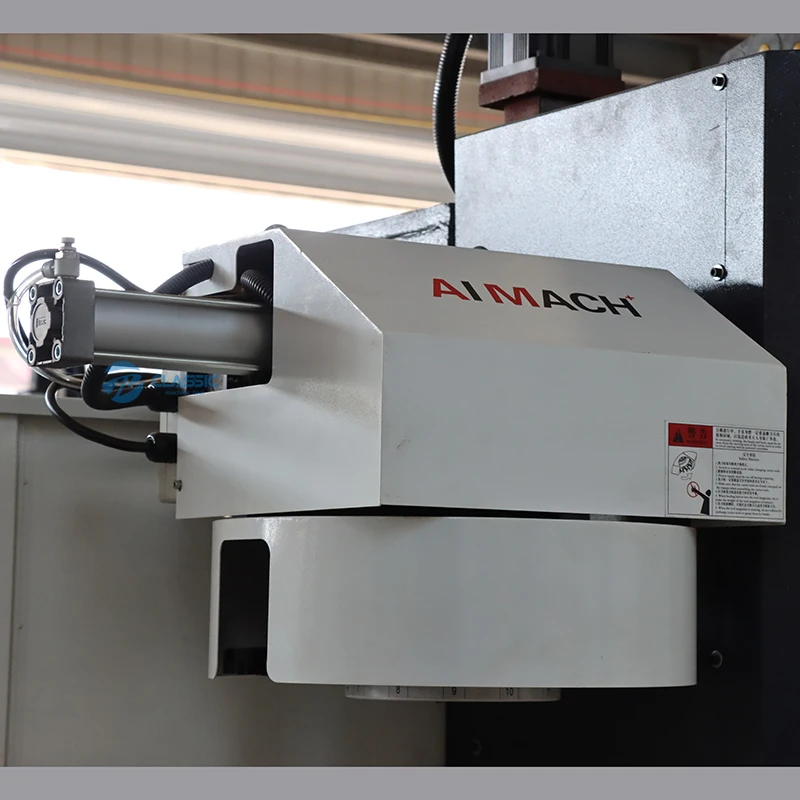

·10T FUNNEL type tool magazine
·Full closed cover
Optional configuration:

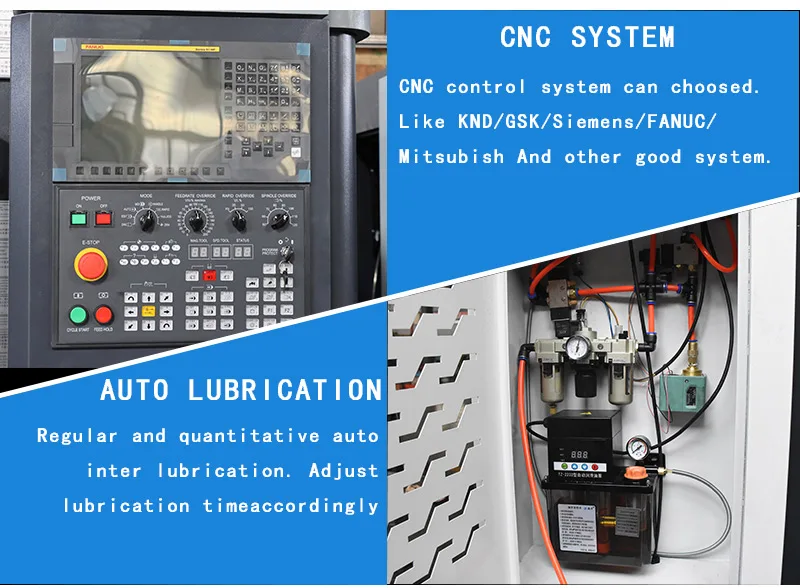

·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
·KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver
·10T FUNNEL type tool magazine
·Full closed cover
Optional configuration:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection
Product description
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
