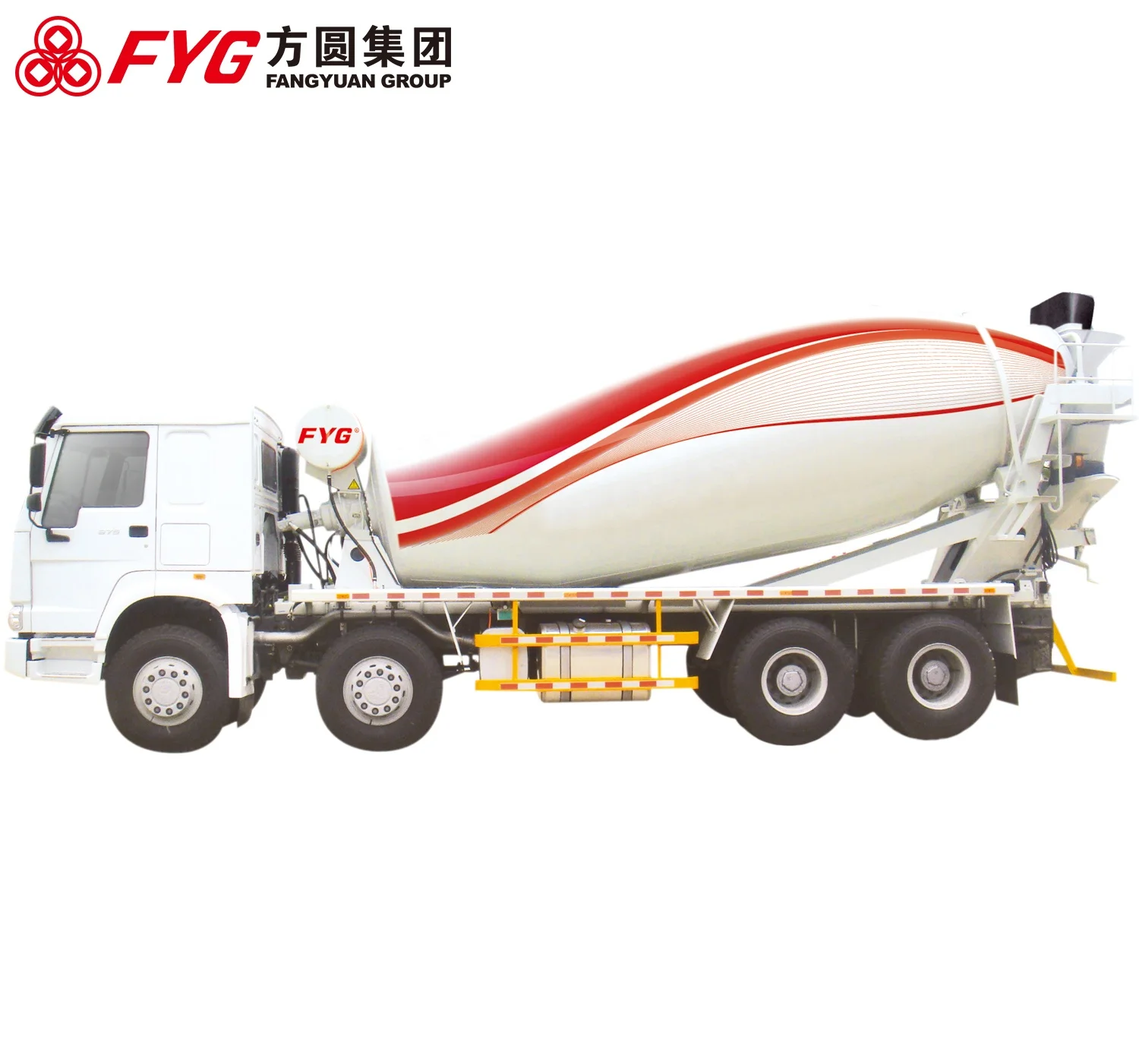

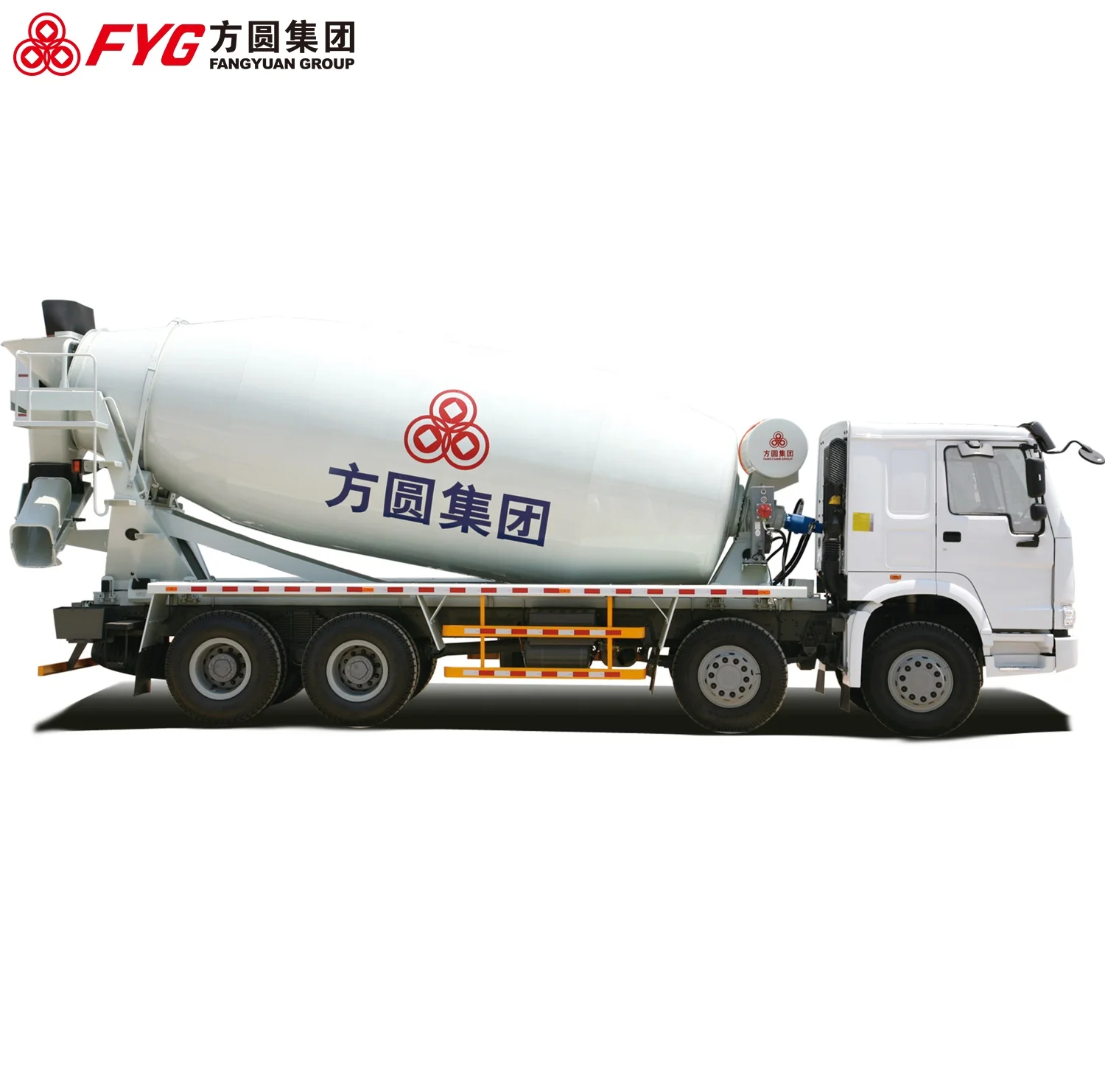

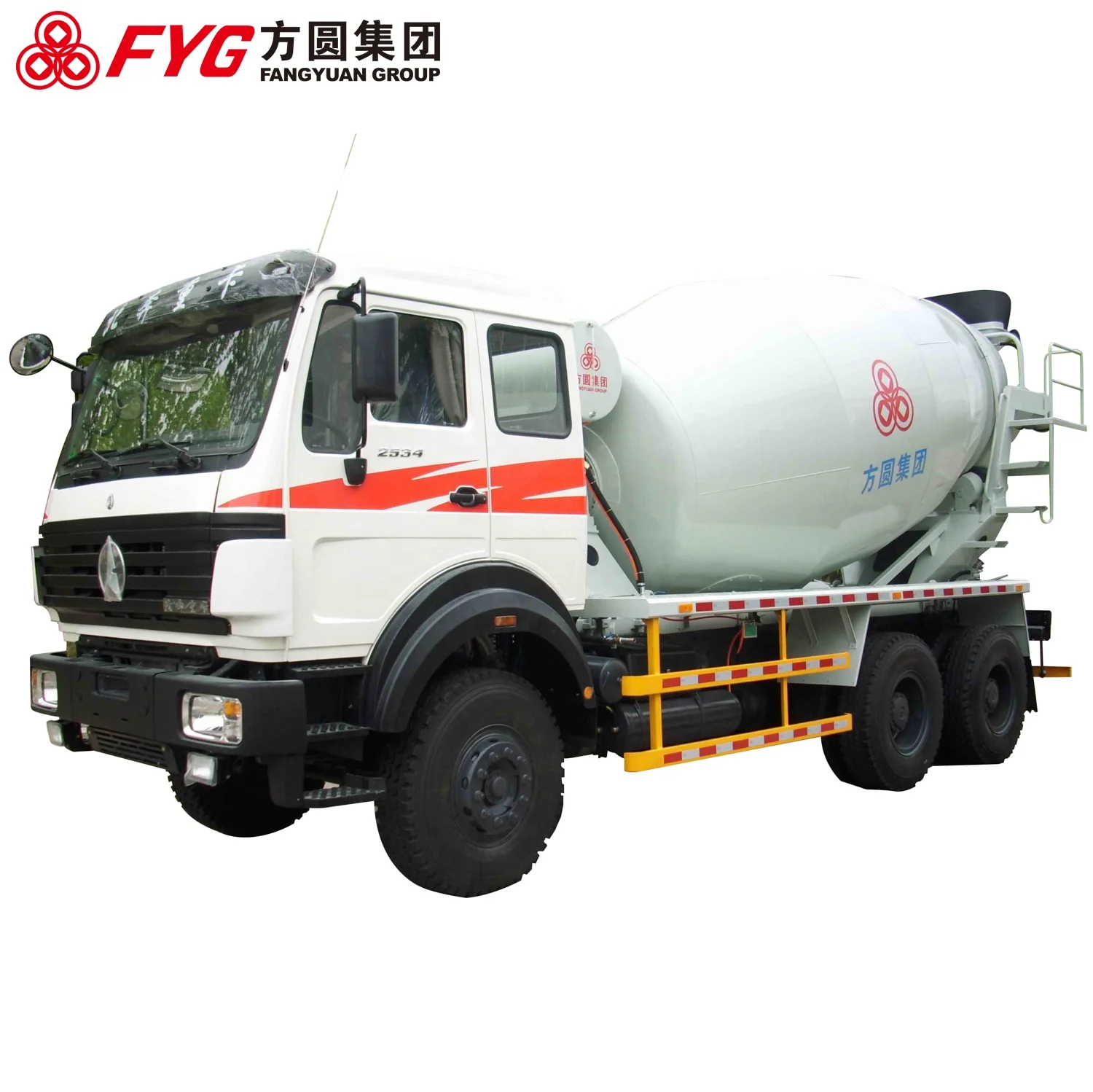

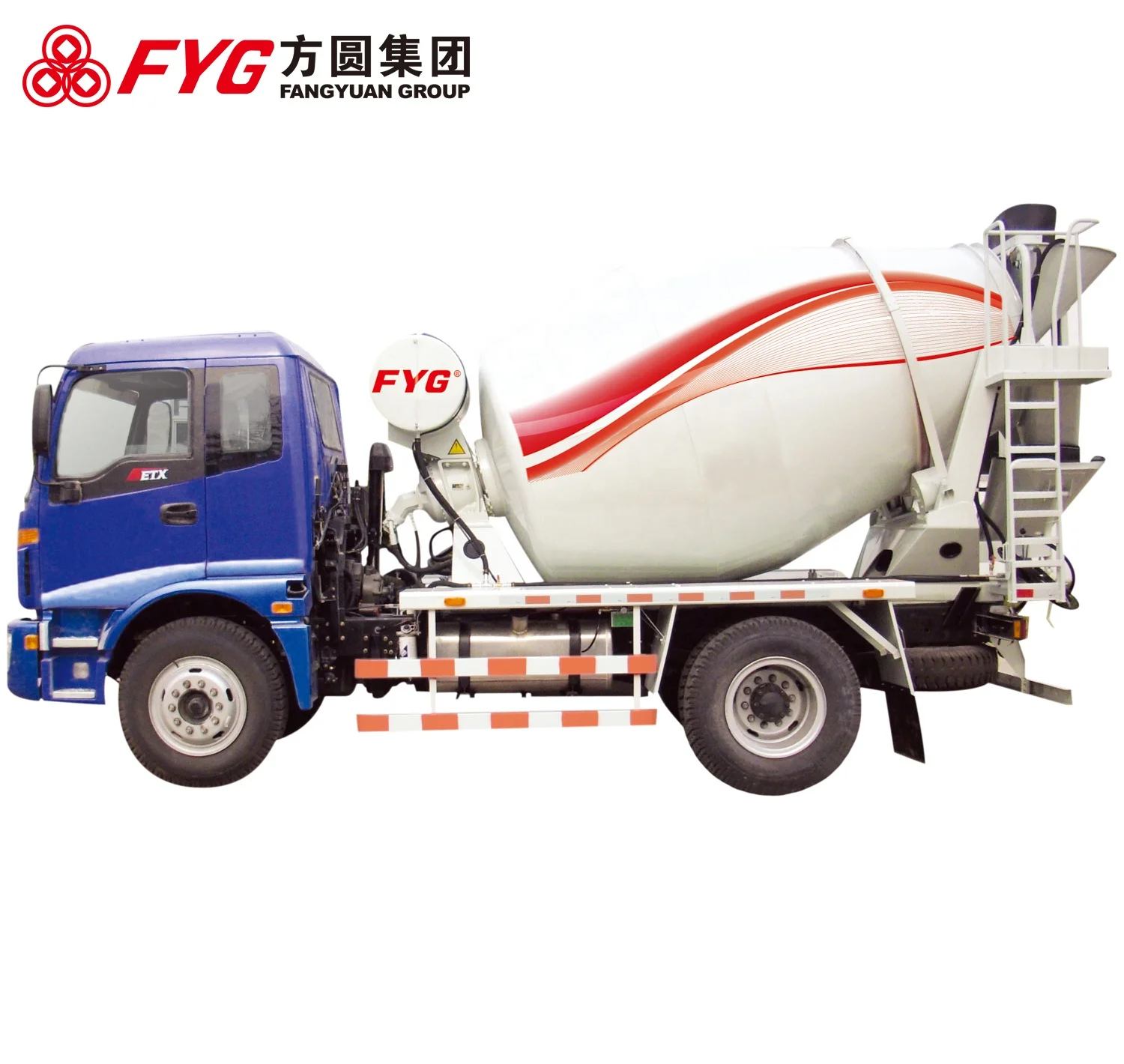

sino chassis 9m3 concrete mixer truck for sale

MIXING DRUM

Geometric volume

17.5 m3

Maximum mixing Capacity

10 m3

Material of drum

High-strength& wear-resistant manganese plate

Angle of drum

12°

Rotational speed

0~14 r/min

Blades

double-screw blades

Device of inlet/outlet

Hooper(L*W)

950×1000; material: High-strength& wear-resistant manganese plate

Length of Main trough

1600; material: High-strength& wear-resistant manganese plate

Length of extend groove

780; material: High-strength& wear-resistant manganese plate

System of Hydraulic

Oil pump &motor

America ETON

Speed reducer box

Italy Bonfiglioli

Chassis

Style of Motor

WD615.95E

Tyres

12R22.5

Style of chassis

ZZ1257N3847C

Max speed

75 km/h

wheelbase

3825/1350

Size

L*W*H

9020×2496×3835  Height of Feed hooper:3780

Quality parameters

unloaded WT

13155kg

Max. loaded

11715 kg

Total quality

25000 kg
