Pre freezing lyophilizer oil free vacuum pump industrial fruit food drying machine freeze dryer

Product Overview

Description

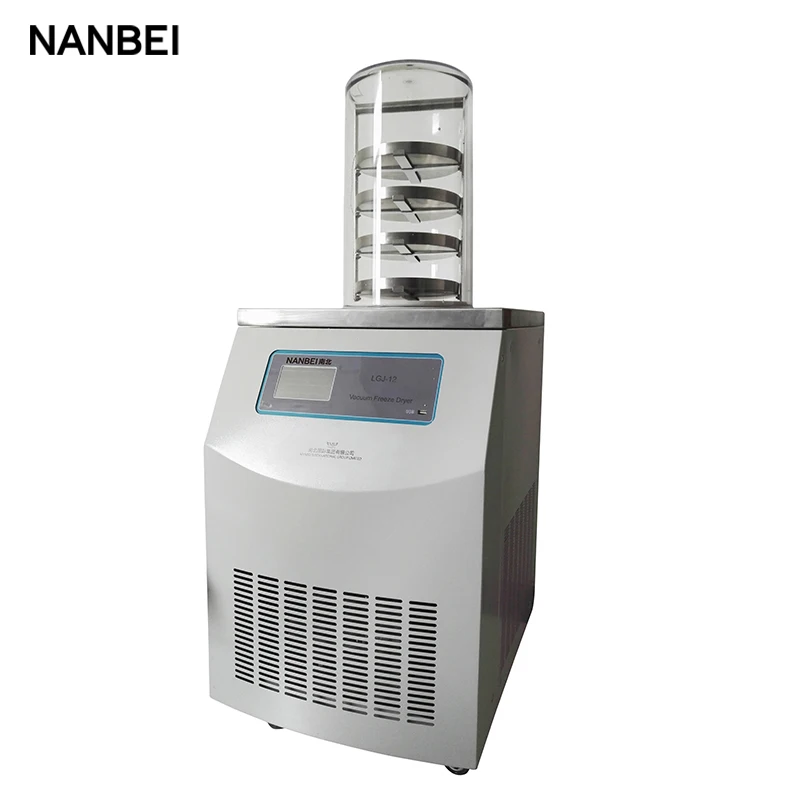

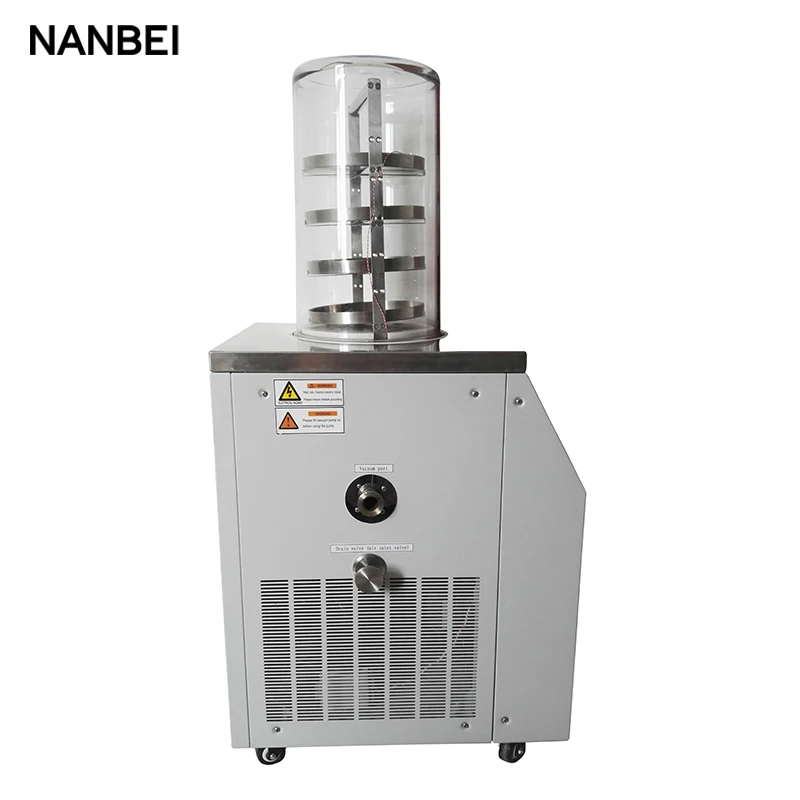

Pre-freezing lyophilizer oil free vacuum pump industrial fruit food drying machine freeze dryer

Application:

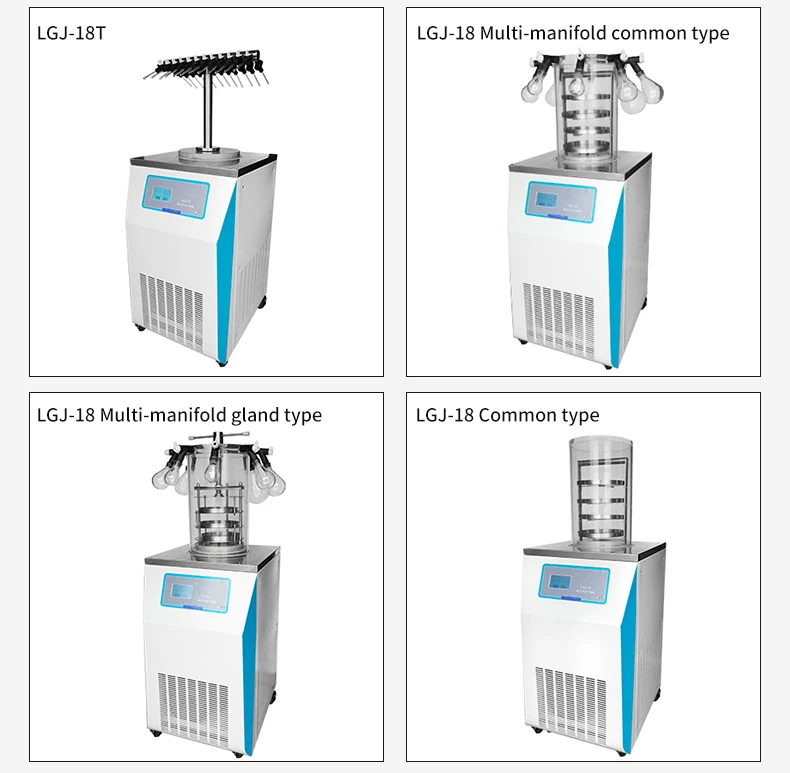

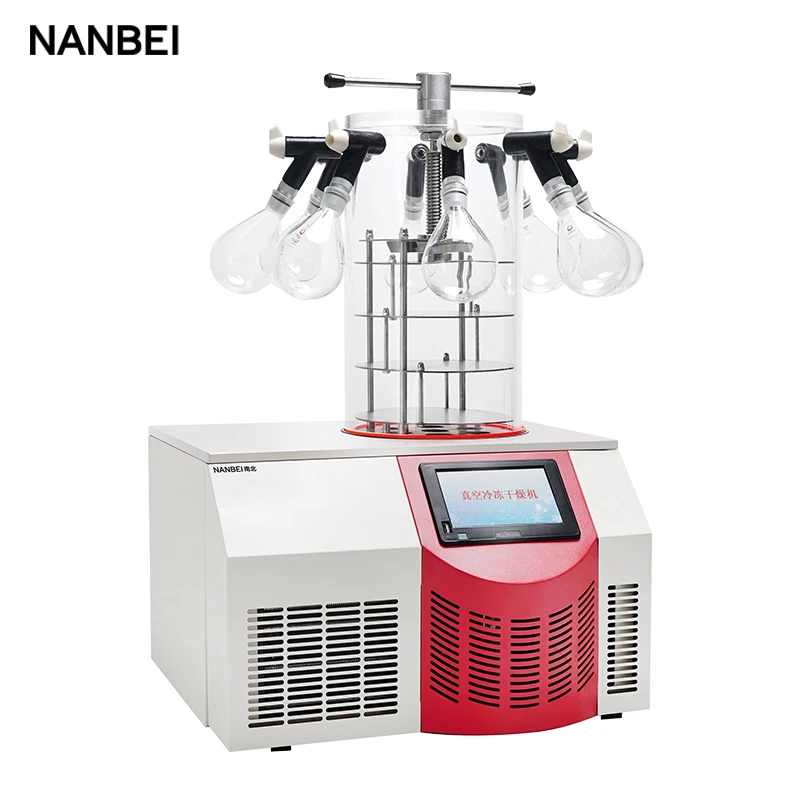

If you want to buy a freeze dryer,here it is.LGJ-10/12/18 eyela freeze dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.

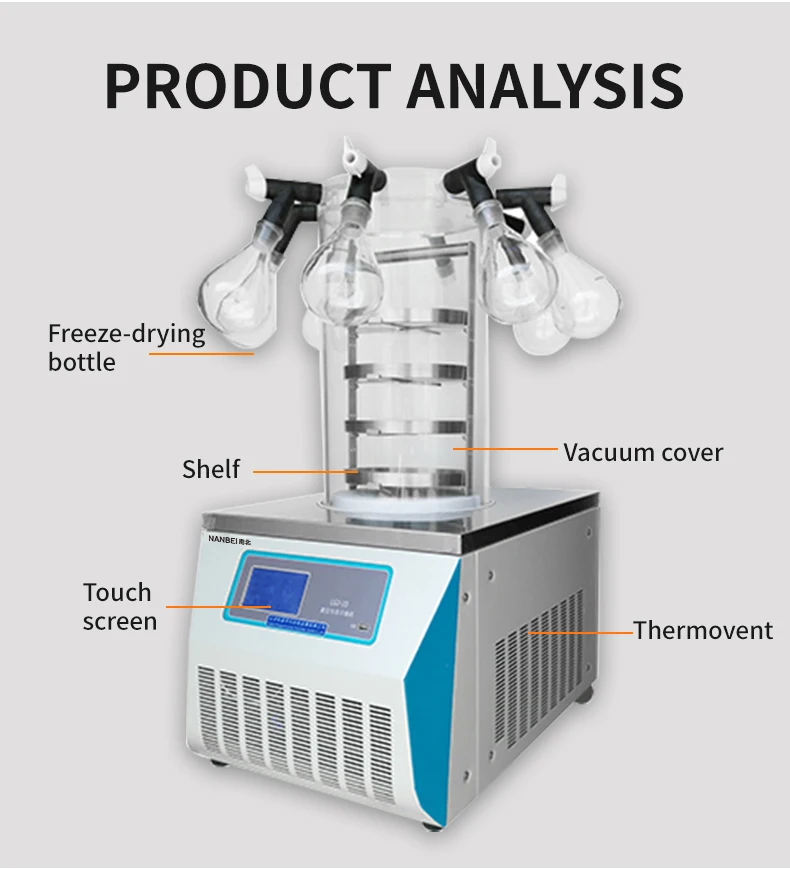

Main Characteristics:

1.Match the green environment protection of international standard.

2.Liquid crystal display,Chinese interface,display drying curve.

3.Big openings of the cold trap,without coil pipe inside,have pre-freeze function

4.Imported compressor,high capability of water-capture,low noise.

5.The pre-cooling shelf can be used as draft tube,so it can accelerate the speed of drying.

6.Cold trap and operation pane are all stainless steel,corrosion-resistant and bright

7.Transparent bell-cap drying room is safe and visual.

8.Stainless steel sample shelf,the space of common sample tray can be adjusted

9.Small volume,convenient operation.

10.Value with nitrogen is optional.





Parameters:

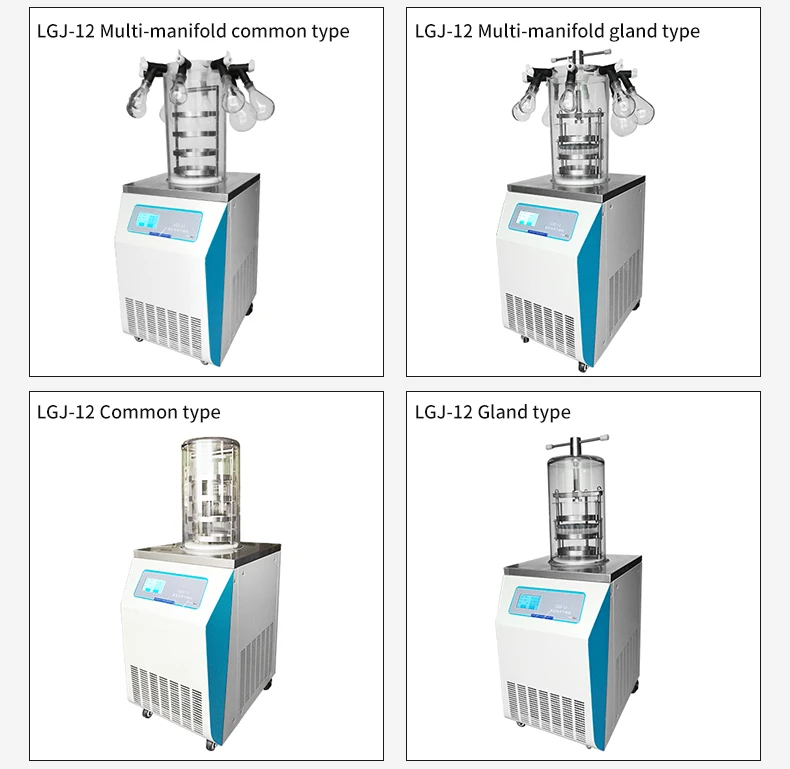

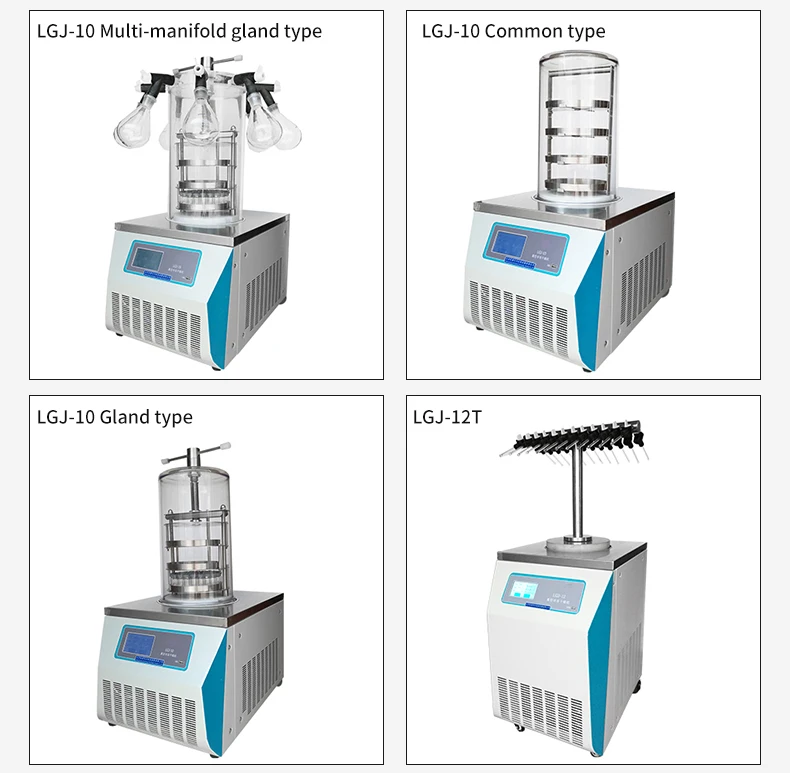

Model	Unit	LGJ-10		LGJ-12		LGJ-18
Specification		Top-press	Ordinary	Top-press	Ordinary	Top-press	Ordinary
Freeze-drying area	m²	0.08	0.1	0.08	0.12	0.12	0.18-0.27
Cold trap temperature	°C	<-55
Vacuum degree	Pa	<10
Water-capture capacity	Kg/24h	3-4		3-4		6
Material tray	Mm	180*3	200*4	180*3	200*4	200*3	240*4
Power	W	970		1070		1400
Dimension	Mm	565*420*(360+430)		560*460*(710+430)		635*540*(970+430)
Material	L	0.7	1.2	0.7	1.2	0.9	1.8
12mm exiling bottle		560	920	560	920	990	1320
16mm exiling bottle		285	480	285	480	555	740
22mm exiling bottle		165	260	165	260	270	360

 Notice: The temperature of cold trap may reach -80C according to the user's needs.
