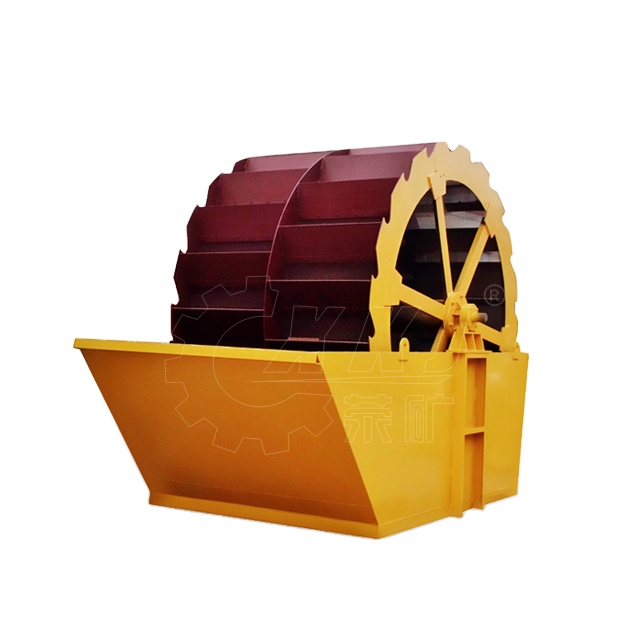

Top Manufacture Bucket Type Wheel Sand Wash Machine Suppliers



Product Description


Sand Washer is an artificial sand (natural sand), high-quality washing equipment, also known as stone washing machine. The machine is mainly used for sand products to remove impurities (such as dust), because in the course of washing method, so sand washing machine. Among them, because the general mechanism of sand (stone broken from), also known as stone washing machine. Because of their appearance and principles, also known as spiral sand washing machine, drum, sand washing machine, water wheels, sand washing machine, vibration, sand washing machine, etc. .


_20190826151746




_20191227110808_



Application


Sand washing machine is widely used in sand quarry, mine, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries in the material washing, can also be applied in construction sites, gravel factory, glass factory, hydropower stations and other units used by the smaller particles of sand required washing, grading and dehydration. It can remove the impurities on the surface of the covering sand, while destroying the coated grit vapor layer, in order to dehydration, the efficient sand washing cleaning effect.


IMG_2095_IMG_2182_










Working Principle


Sand washing machine principle and structure diagram


Sand washing machine working, motor through a triangle belt, reducer, gear reducer to drive the impeller to rotate slowly, sand and gravel to the trough into the washing tank, the impeller drive roll, and mutual lapping, removal of impurities on the surface covered with gravel, while destroying the coated grit vapour layer, in order to facilitate the dehydration; while adding water, formation of strong current, timely impurities and the proportion of small foreign body away, and from the overflow outlet washing tank discharge, complete cleaning effect. Clean gravel from the leaves away, finally, sand and gravel from the rotation of the impeller into the discharge chute, complete sand cleaning effect.










Drawing of sand washing machine





Features


Sand washing machine features:





A,bucket wheel type sand washing machine structure is simple, the impeller drive bearing device with water and water material isolation substantially avoids bearing due to water, sand and pollutants cause damage to the phenomenon of.





B,sand washing machine structure is reasonable, convenient repair, large handling capacity, small power consumption, high cleanliness. Novel sealing structure, the blockade of the oil bath type transmission device, adjustable overflow weir plate, to ensure that the products of high performance, durable, cleaning, good dewatering effect, fine products to maintain the chaos characteristics.


_20200115085136


C,spiral sand washing machine used for construction sites, gravel factory, glass factory, hydropower stations and other units used by the smaller particles of sand and gravel for washing, grading and dehydration.





Technical Parameter





















































ModelImpeller(mm)Feeding Size(mm)Capacity(t/h)Power(kw)Overall Dimension(mm)
XSD2610Φ2600≤1030-607.53320 × 2125 ×2670
XSD2900Φ2900≤1050-90153810 × 2686 × 3085
XSD3016Φ3000≤1080-12018.53845 × 3000 × 3080
XSD3220Φ3000≤10120-200224150 × 3780 × 3400
XSD3620Φ3600≤10150-280304600 × 3780 × 3900





Working Site


 Using site of sand washing machine




 IMG_2105_









Packaging & Shipping


Shipping of sand washing machine


 .jpg




Our Services





1)  Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.





2)  Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export





3)  After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
