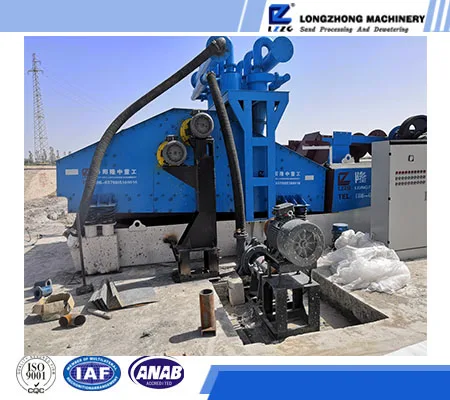

More than 98% recycling rate sand recovery system fine sand collecting machine
Brief introduction
As we all know, current sand washing machine(wheel type and screw type)can't process fine sand below 3mm, that's why we produce sand collecting machine.
LZ patent sand collecting machine is designed on the basis of absorbing world advanced technology and combining with the applications of domestic sand making industrial. It is widely used for recycling 0.16-3mm fine sand.Working principle
Through rubber pipes sand and water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a settling pond.
Technical Parameter | ||||||||||||||
Model | Slurry Pump | Cyclone (mm) | Dewatering Screen | Productivity(m³/h) | Weight (kg) | |||||||||
Material | Power(kw) | Material | Power(kw) | |||||||||||
LZ250 | Cr26 | 11 | 250 | PU | 0.75*2 | 30-80 | 2050 | |||||||
LZ300 | Cr26 | 15 | 300 | PU | 0.75*2 | 40-100 | 2200 | |||||||
LZ350 | Cr26 | 18.5 | 350 | PU | 0.75*2 | 70-130 | 2555 | |||||||
LZ550 | Cr26 | 11*2 | 250*2 | PU | 1.1*2 | 100-220 | 3250 | |||||||
LZ650 | Cr26 | 15*2 | 300*2 | PU | 1.1*2 | 120-272 | 3945 | |||||||
LZ750 | Cr26 | 18.5*2 | 350*2 | PU | 2.2*2 | 180-350 | 4900 | |||||||
LZ900 | Cr26 | 37 | 300*3 | PU | 3.0*2 | 250-500 | 5650 | |||||||
Features
1. It is followed sand washing machine, screw sand washer or sand dewatering screen;
2. 0.16-3mm fine sand can be recycled;
3. Recycling rate reaches above 95%;
4. Moisture content within 12%-15%.
1. It is followed sand washing machine, screw sand washer or sand dewatering screen;
2. 0.16-3mm fine sand can be recycled;
3. Recycling rate reaches above 95%;
4. Moisture content within 12%-15%.
Detailed Images
Main Parts
Hydrocyclone
The 0.074-3mm fine sand is collected by the centrifugal force of cyclone, which takes highly wearable material with a long lifetime.Polyurethane screen
Imported polyurethane which is of high aperture ratio and wear resistance,inside the screen there is steel frame to support, and the hole is a cone shape which can prevent blocking.
Main Parts
Slurry pump
Wear-resistant metal inner lining, impeller, jacket, plate
and other flow components.
Main Parts
Vibrating motor
Adopt dual-motor self-synchronization technology, with eccentric plate to drive the material move straightly, the eccentric scale can also be adjustable to change the amplitude.
Adopt dual-motor self-synchronization technology, with eccentric plate to drive the material move straightly, the eccentric scale can also be adjustable to change the amplitude.

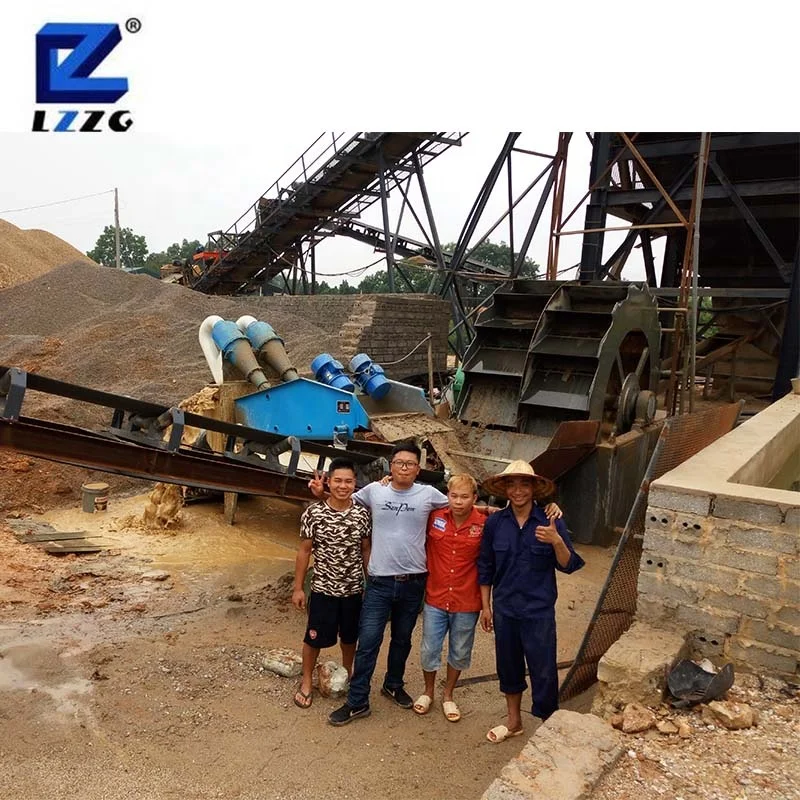

Working Site
Packing & Delivery
Packaging | ||
Size | 3680*1200*2500mm | |
Weight | 2250kg | |
Packaging Details | Waterproof cloth package for main body of LZ sand recycling machine; Wooden package for electric motor and parts of LZ sand recycling machine; When arrive at the port, will all be loaded with containers. | |
