PN 1/2A TTMC ручной разводной ножа, кольцевая пила nothcer
- Category: Other Machine Tool Equipment >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1552691606):
Product Overview
Description
Product Overview

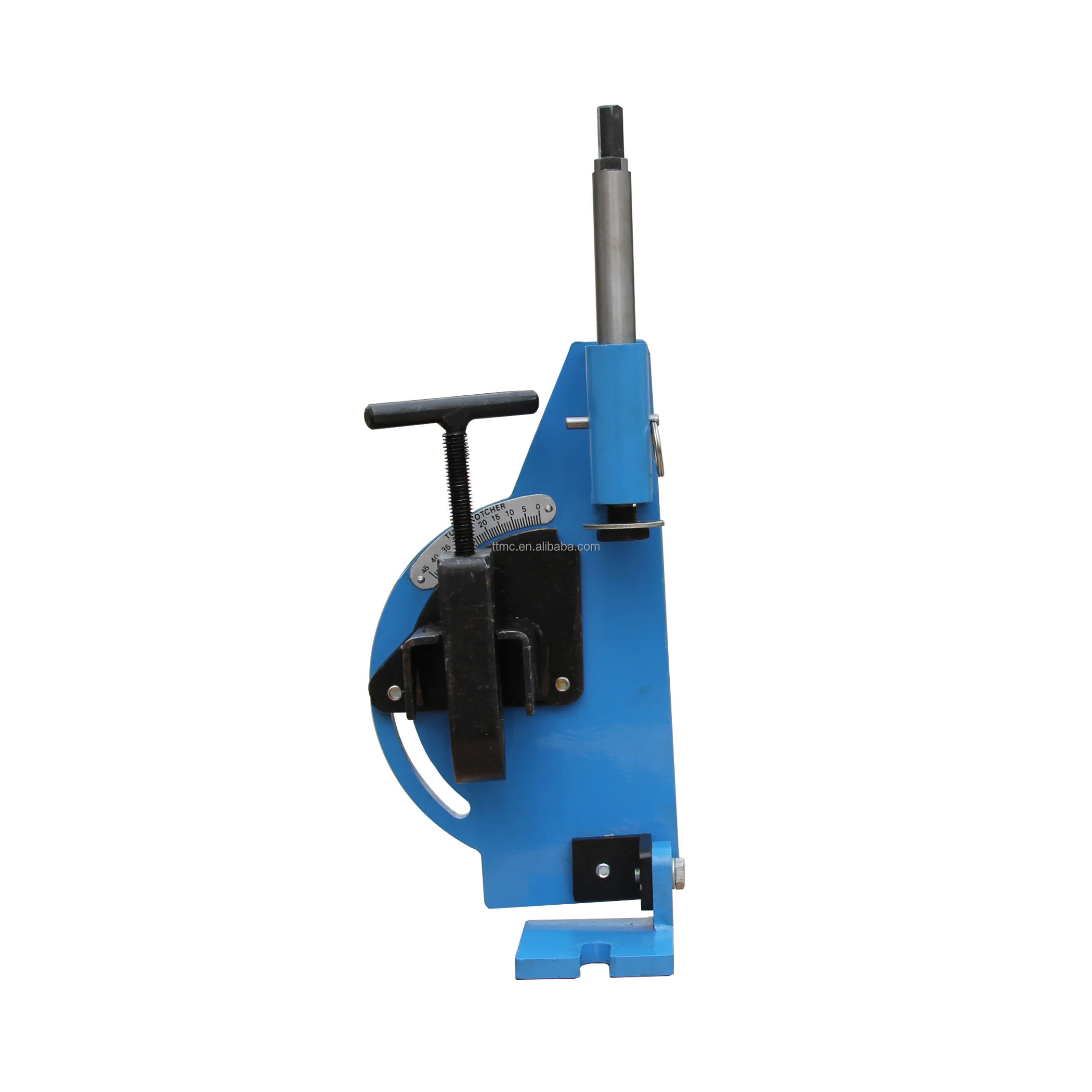

TTMC Tube Notcher PN-1/2A
Need to weld tubing at varying angles? The PN-1/2A makes notches up to 45° in less than 30 seconds. Built from .5” plate steel, this hole saw notcher comes at an economical price.
FEATURES AT A GLANCE
Maximum capacity of 2” round tube.
This hole saw notcher can be vertically mounted on a drill press. It also works with a hand drill.
Offers .5” and 5/8” spindle adapters for different hole saws (sold separately).
Solidly-built steel plate frame maintains accuracy and adds strength to the tube notcher.
This hole saw notcher can be vertically mounted on a drill press. It also works with a hand drill.
Offers .5” and 5/8” spindle adapters for different hole saws (sold separately).
Solidly-built steel plate frame maintains accuracy and adds strength to the tube notcher.
PRODUCT SPECIFICATIONS
TTMC Hole Saw Notcher
Item NO. | 376201 | 376202 | 376212 |
Model | PN-1/2A | PN-1/2S | PN-1/2H |
Tube Capacity | 2" | 2" | 2" |
Spindle | 3/4" | 3/4" | 1" |
Spindle Adapter | 1/2" to 5/8" | 1/2" to 5/8" | 1/2" to 5/8" |
Angle Adjustment | 0-45° | 0-60° | 0-50° |
N.W./G.W. | 2.8/3 kg | 4.5/5 kg | 4/5 kg |
Packing size | 30x18x14 cm | 30x18x20 cm | 31x18x13 cm |
