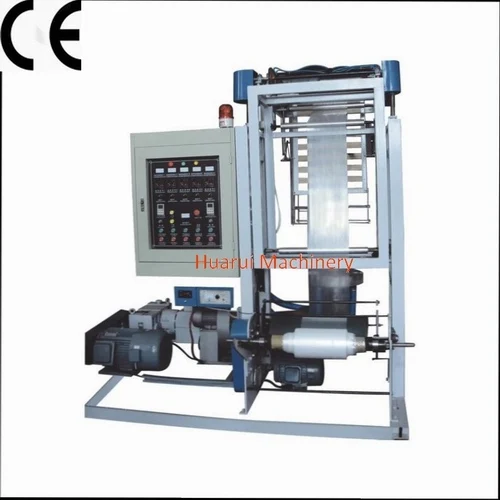

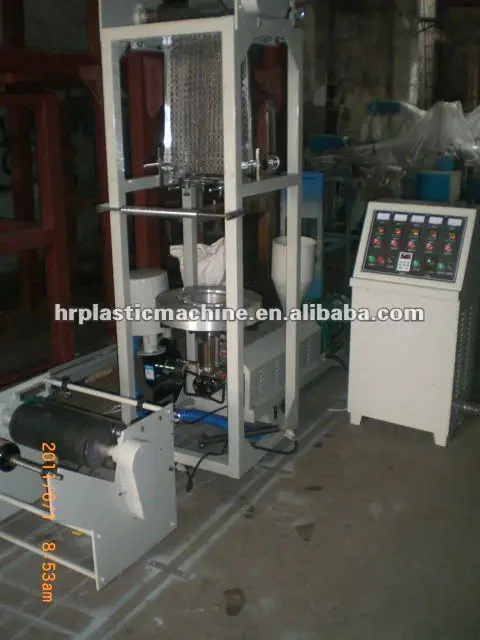

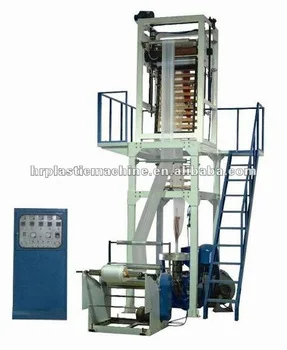

sj 35 automatic mini film blowing machine

Product Overview

Description

PE film blowing machine:
film blowing machine;
plastic film blowing machine;
plastic film extrusion line;
plastic machinery



USAGE

It is used for blowing the various kinds film of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) etc., which are widely used for packing liquid, industrial products, garments and textile, making plastic bags, like T-shirt bag, flat bag, and other daily usage bag, etc.



 Main technical parameter

Model	SJ-35
Screw Diameter	35mm
Screw Ratio	L/D28:1
Screw speed	10-100r/min
Main Output	10-20kg/h
Power of Main Motor	2.2kw
Specification of Die Head	Φ100-Φ170mm
Single-side Thickness of Film	0.01-0.10mm
Max. Folding Width of Film	250mm
Total Power	8kw
Weight of Machine	600kg
Overall Dimension(L*W*H)	1500*700*1700
