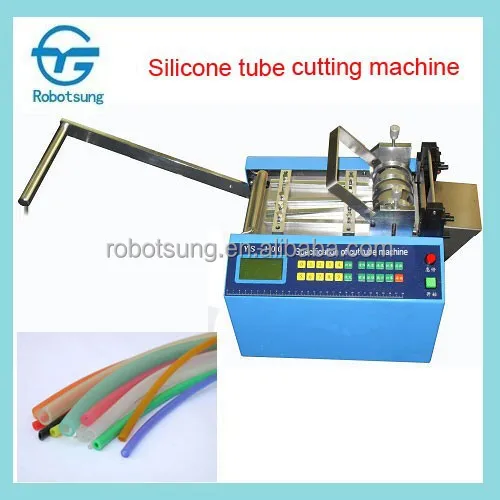

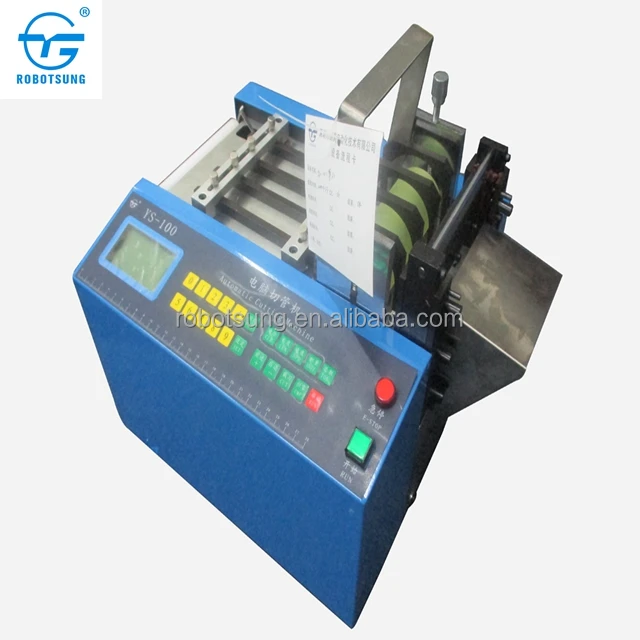

Automatic silicone tube cutting machine

Share on (1566444868):


Price:

Quantity:


Product Overview

Description


Automatic silicone tube cutting machine





Application





The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.





Tube:  PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.


Cable: Flat cable, copper wire, etc


Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc


Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc


Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc





Key Features





1.High speed: It can cut 100~120 cut per minute. (50mm long)


2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.


3.Cutting type: Both for cold cut and hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.


4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.


5.Automatic stopper: It stops automatically if materials run out during operation


6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on


7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.


8.High speed, high accuracy, designed for cutting non-adhesive materials.





Specification









































Available Cutting Width



0-100mm



Available Cutting Length



1-9999.9mm



Cutting Speed



100-120Pcs/Min(50mm)



Accuracy



≤1mm



Cutting Method



Cold knife or hot cut



Power Supply



AC110V 60Hz / AC220V 50Hz  250W



Measurement & Weight



36*30*35cm (28kg)



Available materials



textile braid,fabric tape,nylon tape,safety belt,magic stick etc







More Information


Materials can cut:


Material can cut.jpg








Cutting Machine parts show:













More details:










Shipping Parts:


cutting machine parts.png







Our Cutting machine models:





YS-100(Cutting width:0-120mm)


YS-120(Cutting width:0-120mm)


YS-160 (Cutting width:0-160mm)


YS-200W (Cutting width:0-200mm)


YS-250W (Cutting width:0-250mm)


YS-300W (Cutting width:0-300mm)


YS-120WH (Cutting width:0-120mm for cutting bigger tubes)






Packaging & Shipping


Shipping & Package:


G.W:31kg        Packing size:56*44*50cm










Our Services








 We provide:


*Leadtime:within 3 days after receiving payment
*One year Warranty
*OEM and customized service


*High quality and factory price





We guarantee:


*Every machine has been tested before shippment.Machine testing video can be sent
