High Fastest Plastic Pipe Cutter

Share on:


Price:$4,000.00
Price in USD:Details

Quantity:


Product Overview

Description

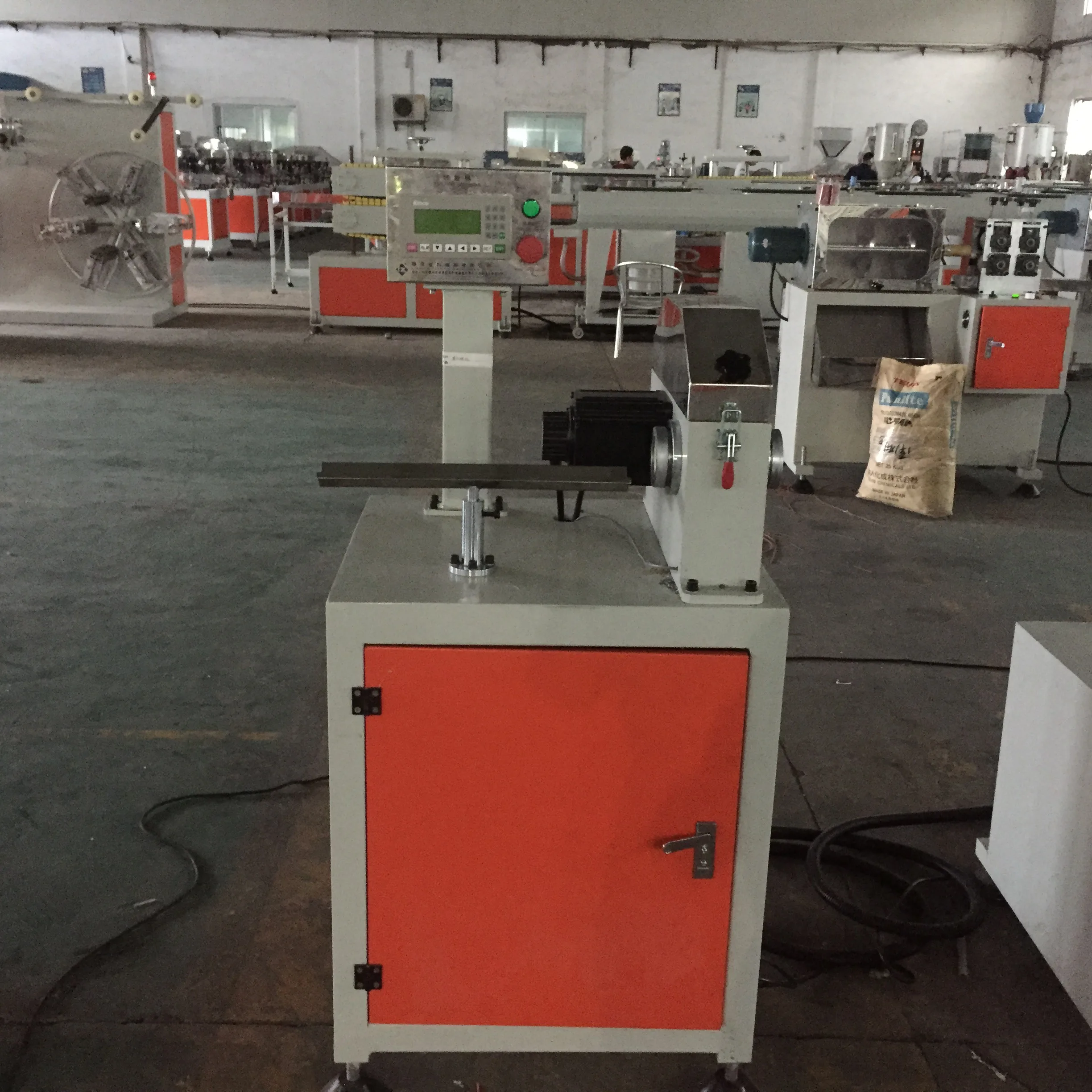

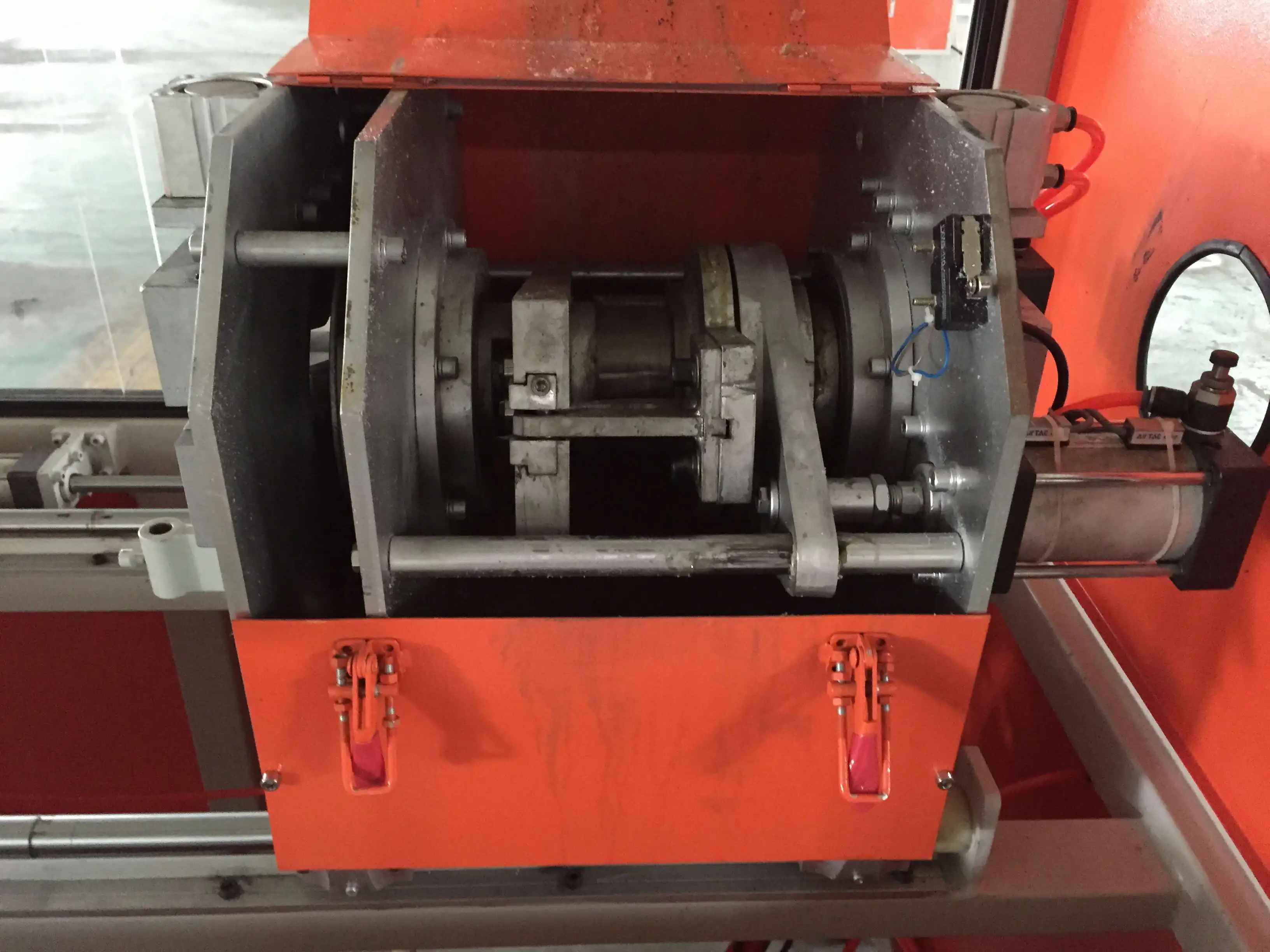

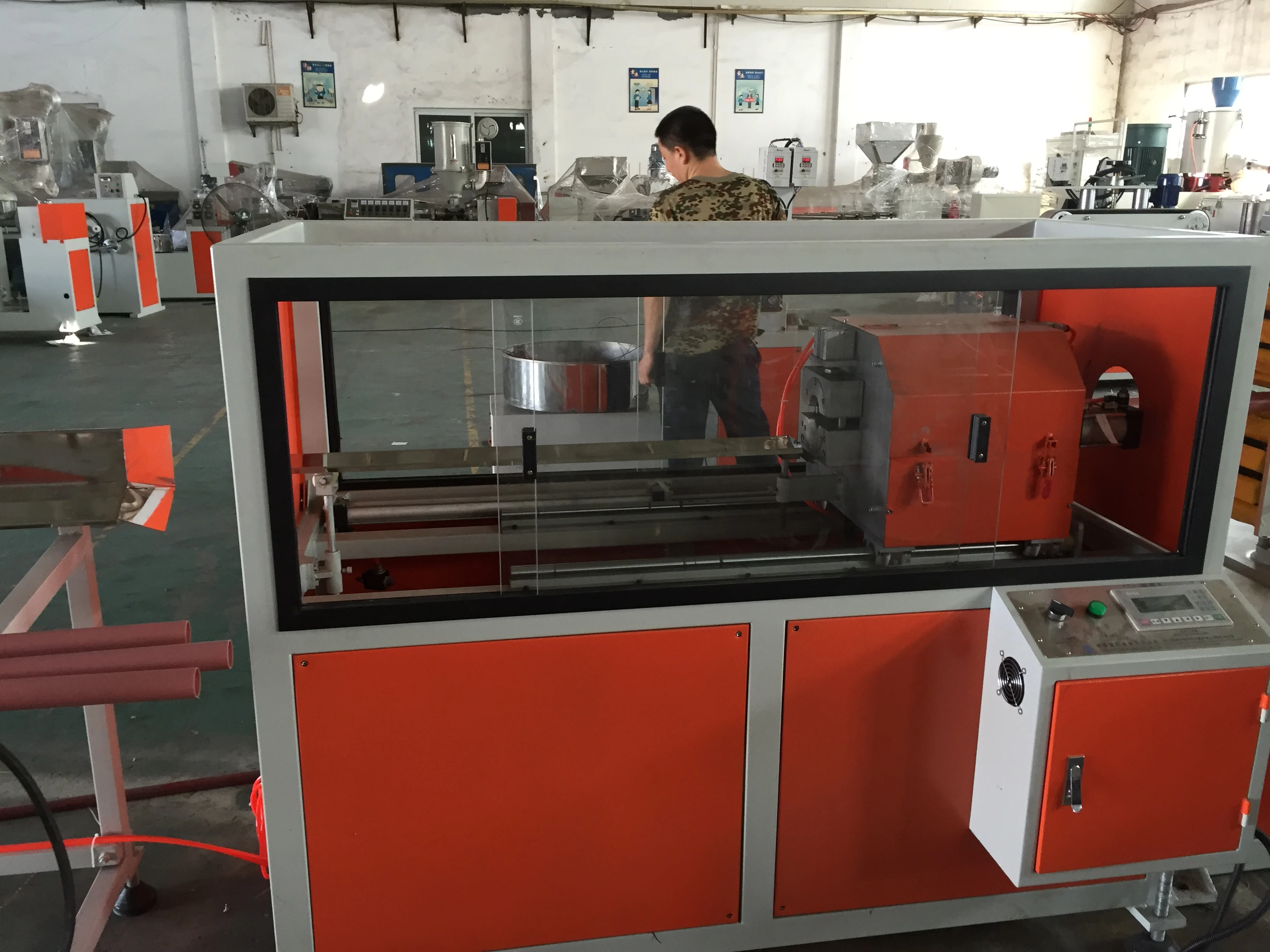

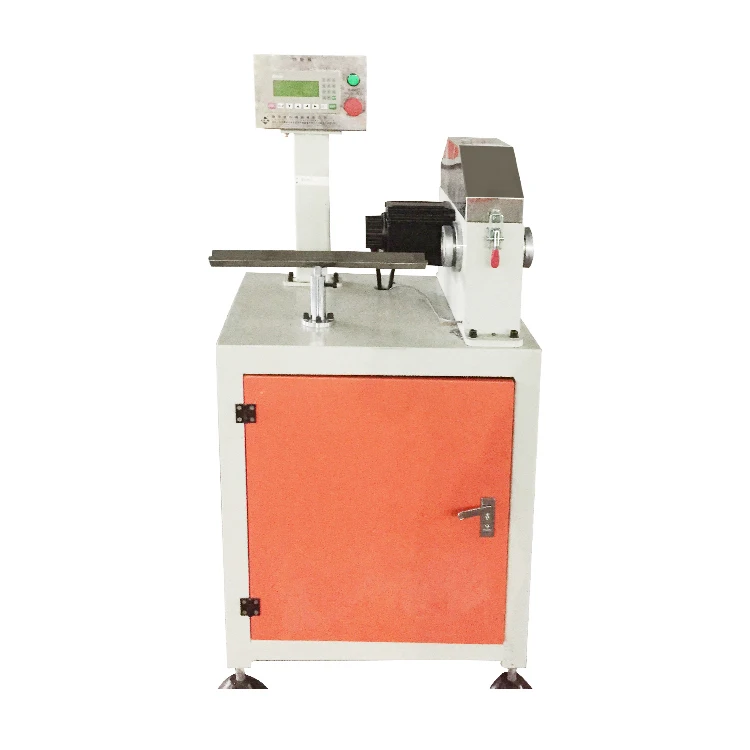

             Plastic Pipe Cutting Machine (Servo System)





The plastic pipe cutter,cutting machine is mainly used in cutting plastic pipe and speed so fast to cut pipe and the cutting length was no any limite



Product Description


Main technical standards:




 --Motor power:         1kw, servo motor
--Cutting way:           rotary feed
--Clamping way:         nylon clamp
--Rotary support:         bearing
--Pneumatic components:  Taiwan Yadeke
--Air pressure:           0.6-0.8Mpa
--Max cutting thickness:   4mm
--Line speed:            50m/min


--Cutting length:        any length
--Blade material:         SKD-11
--Center height:         1000mm±50mm
--Dimensions (approx):   800*400*1100mm(L*W*H)
