Product Overview

Description

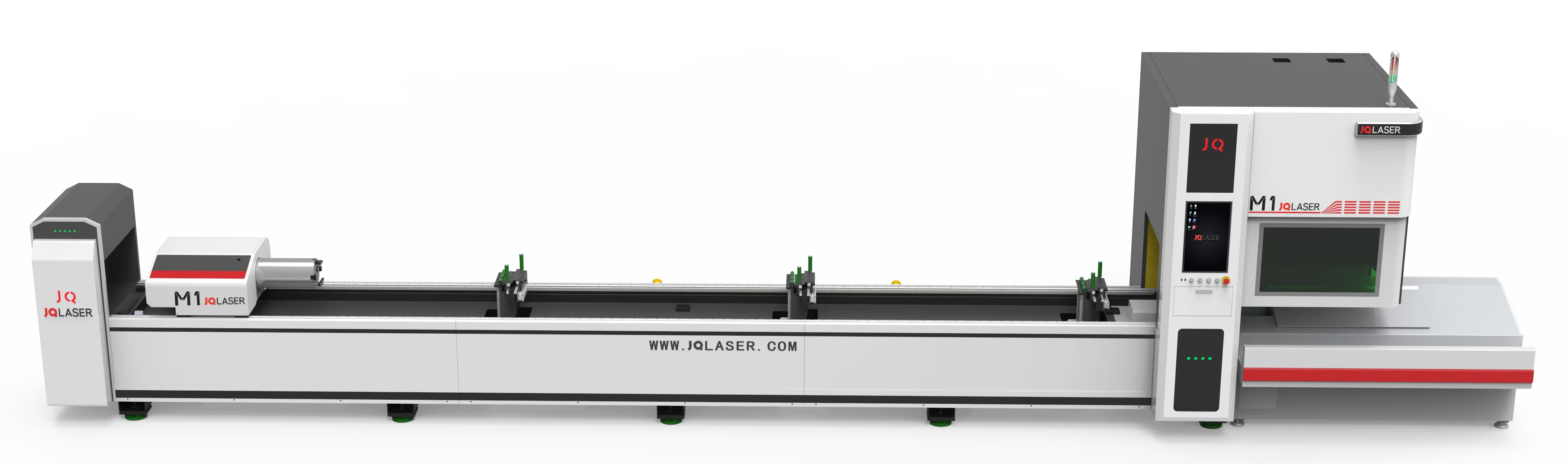

2 kw lazer cutter m1 6m rotary device automatic aluminium profiles square tube pipe cutters h-beams fiber laser cutting machine

2 kw lazer cutter m1 6m rotary device automatic aluminium profiles square tube pipe cutters h-beams fiber laser cutting machine has received high attention and praise of customers with its excellent loading automation and super high cost-performance. It matched with the universal automatic loading system to realize the whole bundle tubes loading, saving processing time and reducing labor cost.

                                                                          New design 2021

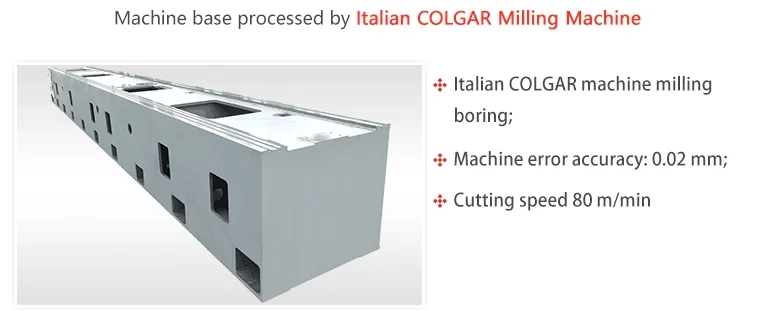

Machine Base for 2 kw lazer cutter m1 6m rotary device automatic aluminium profiles square tube pipe cutters h-beams fiber laser cutting machine

A. The machine base adopts high-strength rectangular tube and steel plate welding, and through the secondary aging treatment, Italian GOLGAR milling machine (Jinan FIN process center) precision machining, to ensure the stability and accuracy of machine tool operation.

B. Plate welded cantilever beam, make sure good cutting stability

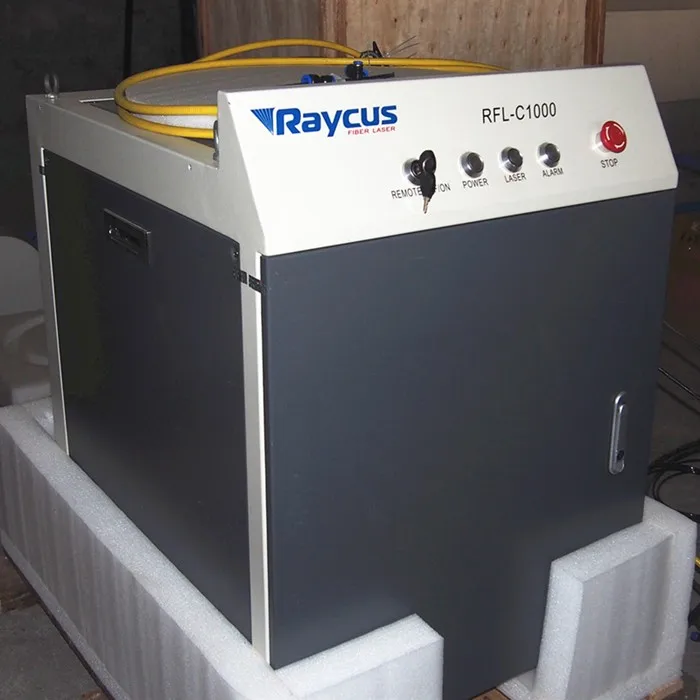

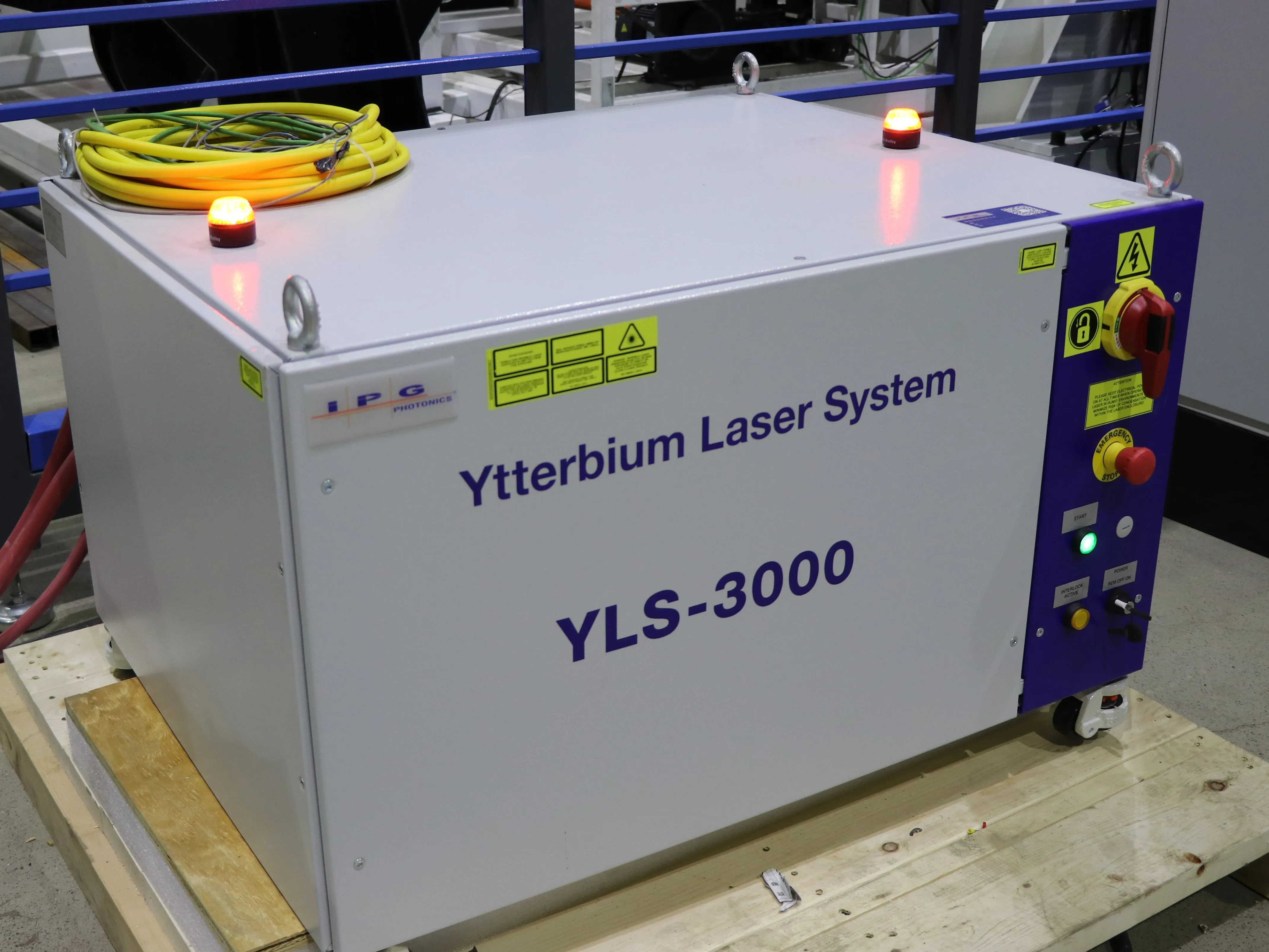

Fiber laser device (Raycus or IPG)

Laser Power:1000/1500/2000/3000W

Laser wavelength:1070nm

Output power adjust:10%-100%

Input power:within 2KW

Working temperature:15-35°C

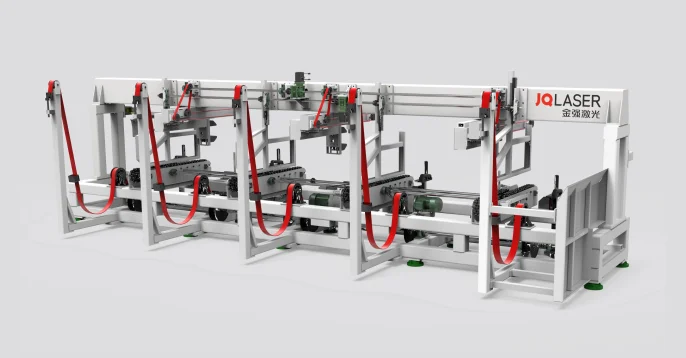

Automatic Loader advantage of 2 kw lazer cutter m1 6m rotary device automatic aluminium profiles square tube pipe cutters h-beams fiber laser cutting machine

Model	FLT-M	unit
Tube cutting size	roundΦ16-φ220, L≤6000;	mm
X aixs distance	230	mm
Y aixs distance	6000	mm
X,Y aixs positioning accuracy	±0.05/1000mm	mm
X,Y aixs repeat positioning accuracy	±0.03/1000mm	mm
acceleration	1.5 G	m/s²
X,Y aixs Max moving speed	100	m/min
Chunk Max rotary speed	150	r/min
Tailing length	≥100(according to tube maybe different)	mm
Machine size	About  12500×3500×2400	mm
Laser power	1kw-6kw	w
Control system	FSCUT
Power consumption	12KW-15KW	Kw
Electric	380V/50Hz	V

1. completely servo control during feeding process, parameterized control, no manual intervention required

2. Segmented combined conveying chain, which can be controlled by frequency conversion to improve pipe conveying stability

3. For rectangular pipes with unequal sides, the feeding condition can be corrected automatically.

4. Overall high rigid frame structure design.

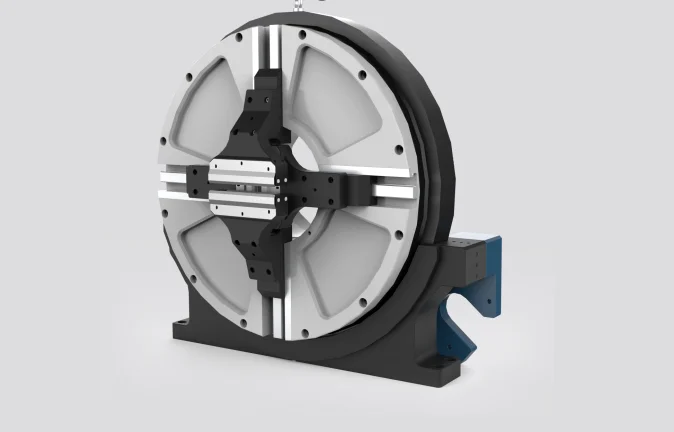

Fully enclosed chucks of 2 kw lazer cutter m1 6m rotary device automatic aluminium profiles square tube pipe cutters h-beams fiber laser cutting machinemachine prices

1. Effectively prevent cutting dust pollution

2. Full stroke design, high alignment accuracy

3. Gear transmission, good rigidity and high transmission accuracy;
