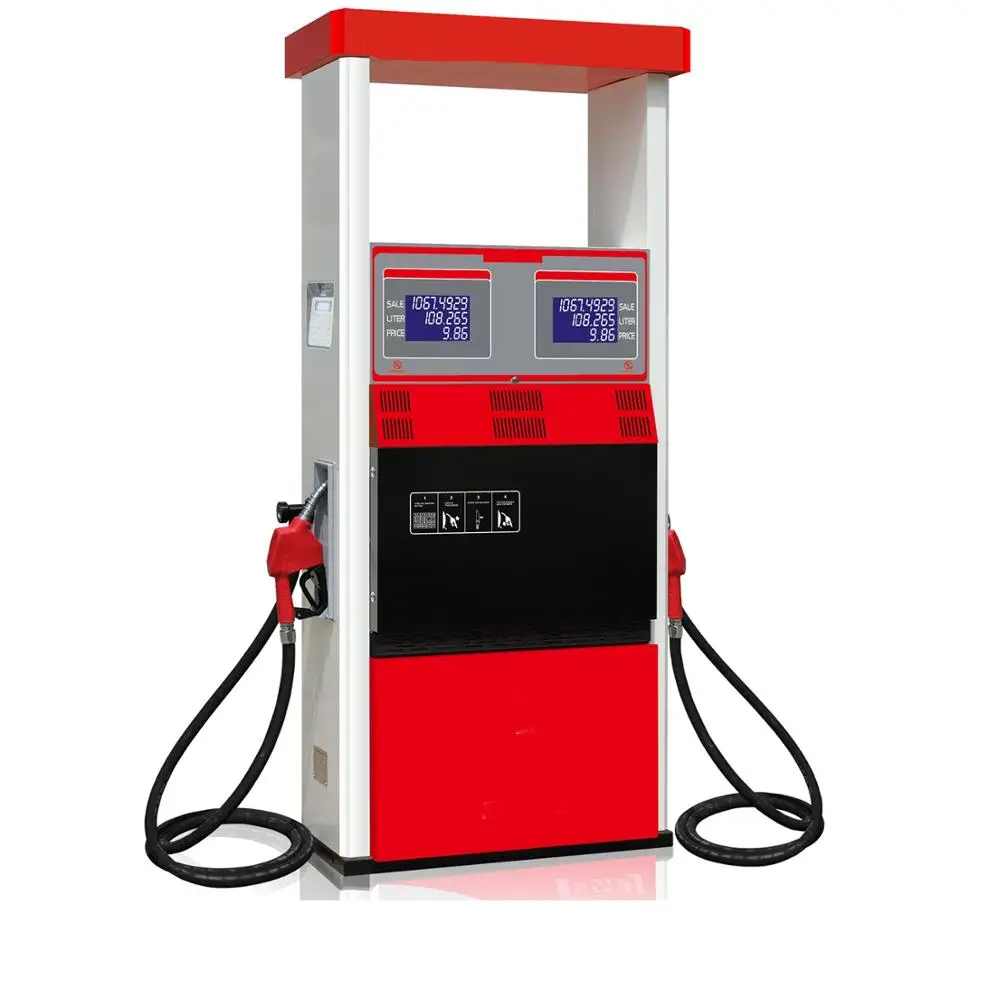

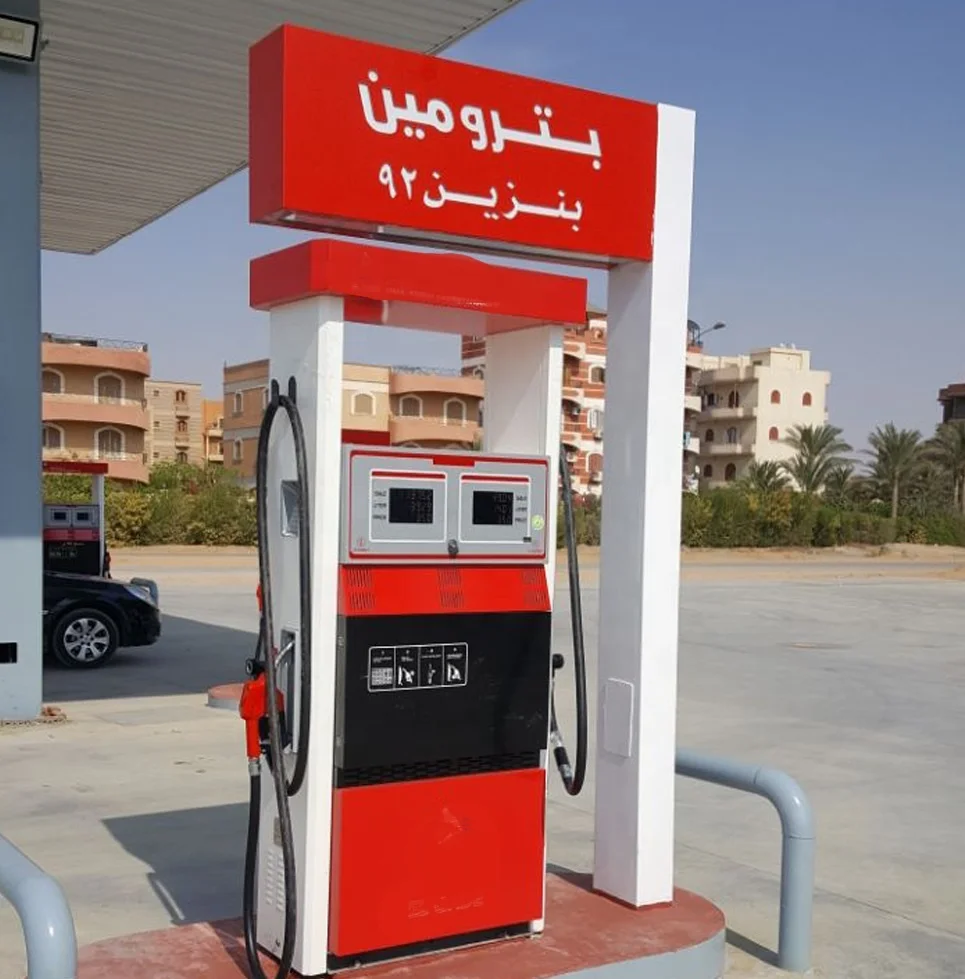

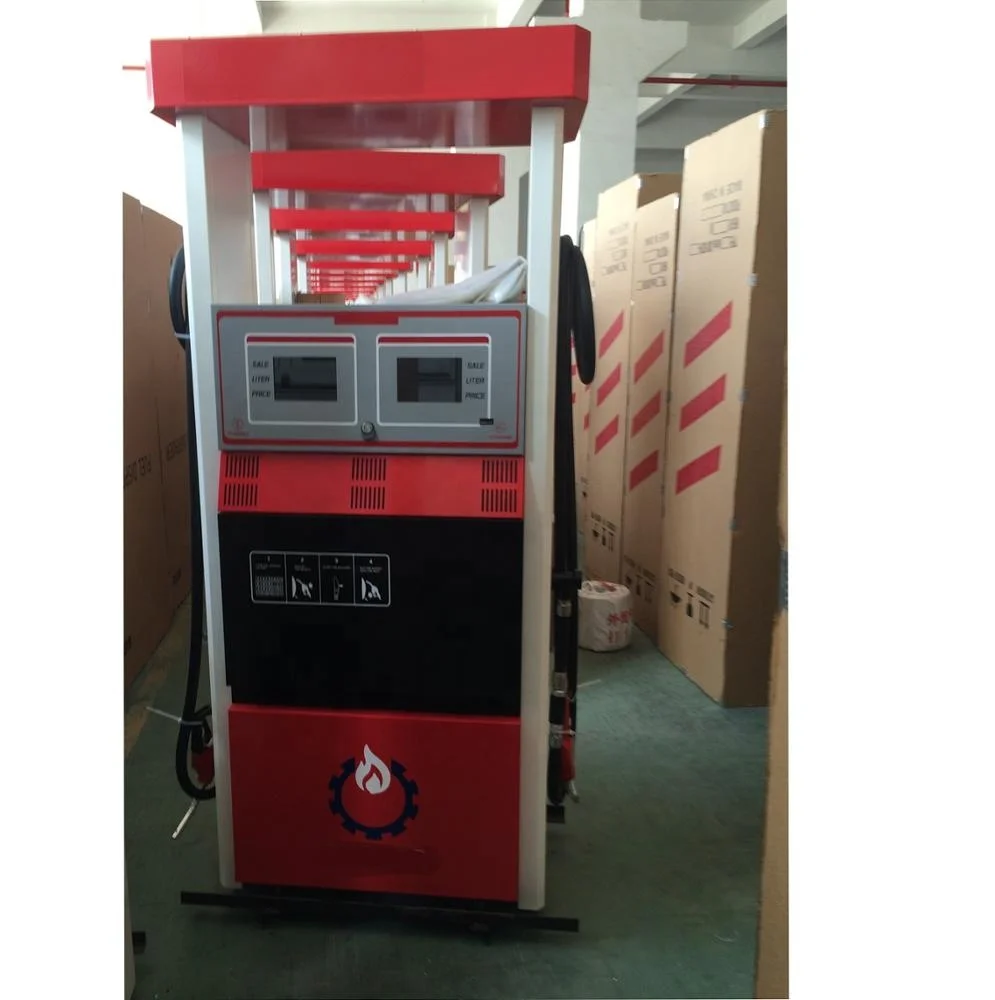

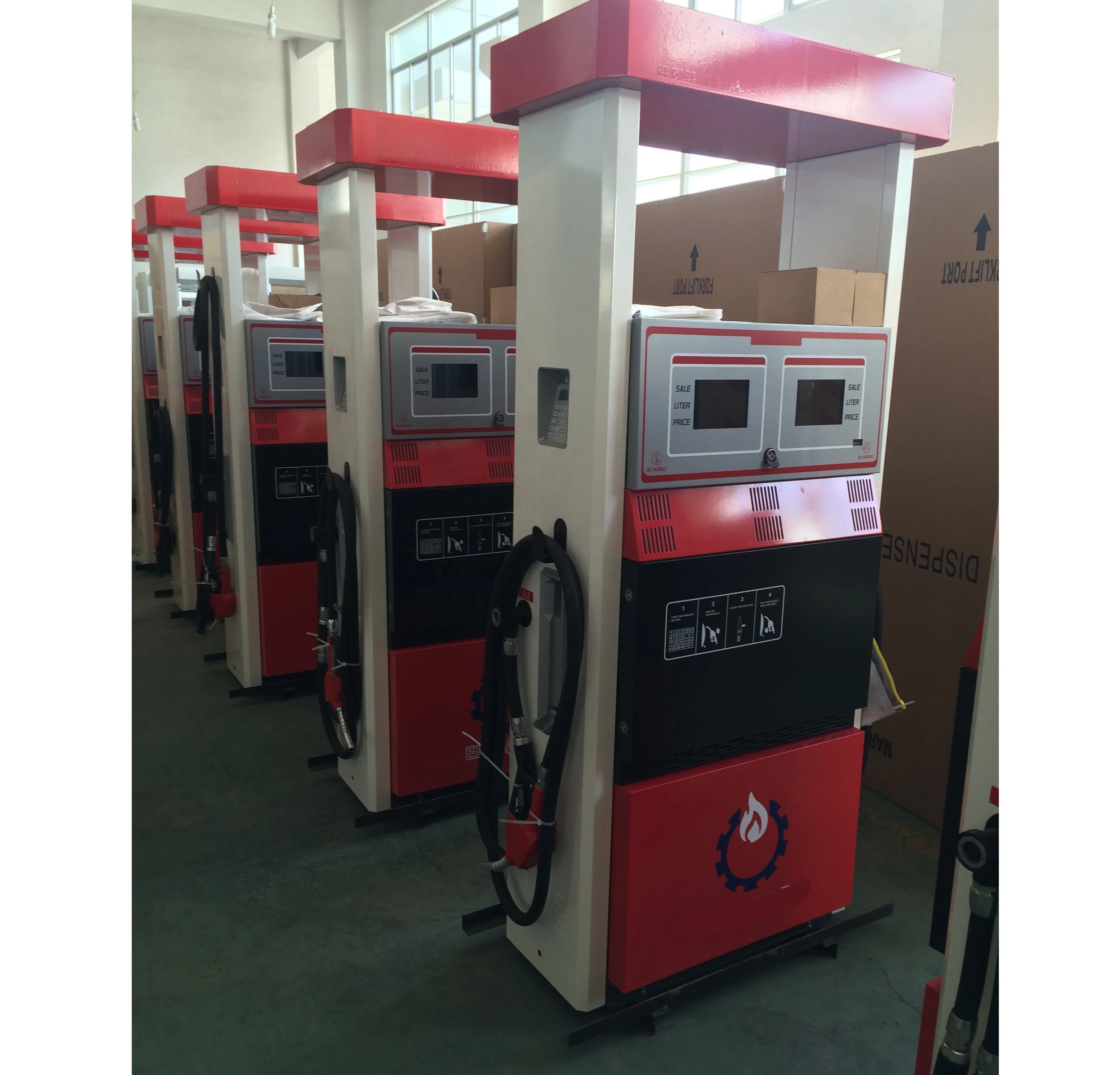

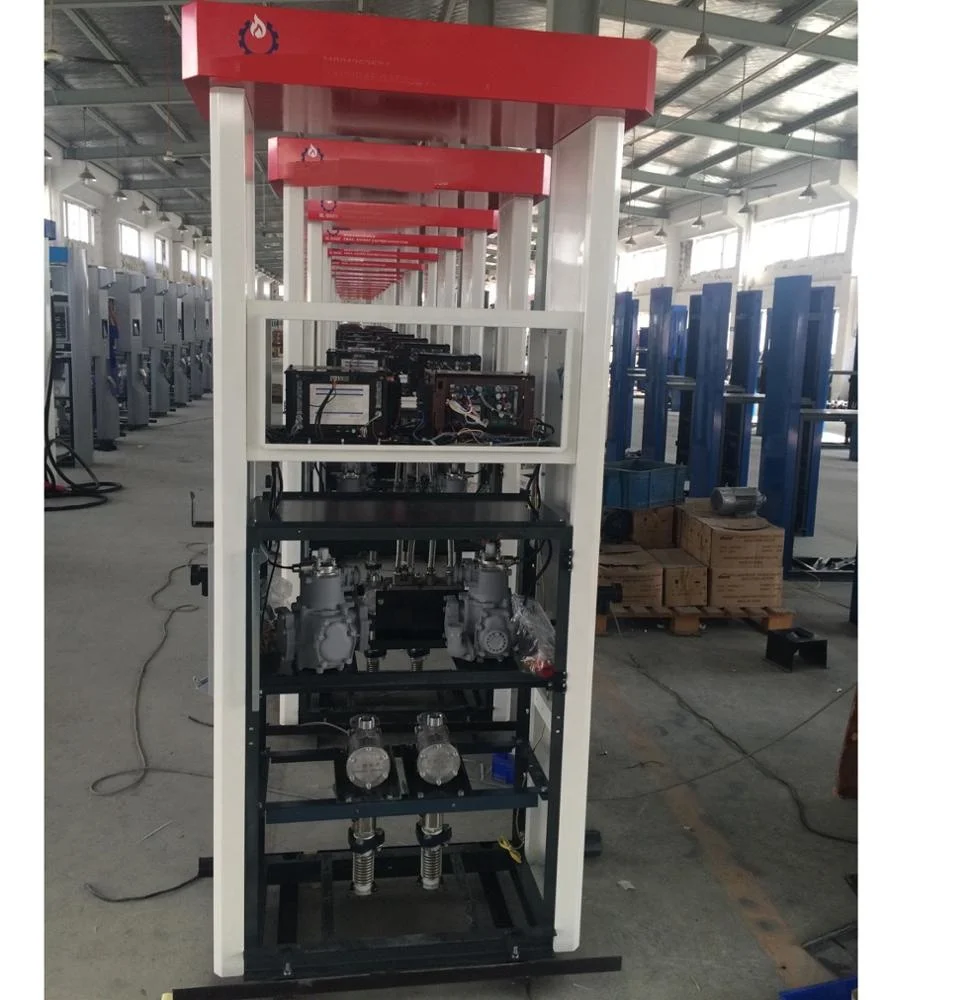

petrol pump machine fuel dispenser

Product Overview

Description

Specifications/Feature
Model		B series CMD1687SK-G22
Pump	Type	Gear pump(U102-B)
	Inlet Pressure	≥54kPa.
	Flow rate (L/min.)	55±5
	Suction Distance (m)	6(verticalmente) / 50(orizzontalmente)
FlowMeter	Type	Flowmeter(U101-B)
	Accuracy	±0.2%
Motor	Voltage(V)	110V/220V/380V,50Hz/60Hz
	Capacity(hp)	1HP(0.75kw)
Input Voltage		110V/220V/380V,50Hz/60Hz
Nozzle		Auto Shut-off Nozzle
Environmental Condition		-40°C~~+55°C
Control Type		Solenold Vale Control Type
Preset		Function Provided(Small LCDIndicator)
Display(Counter)	Type	LCD and Bright Backlight
	Digit of Volume	0~~999,999(6 Digits),Decimal point can be changed
	Digit of Amount	0~~999,999(6 Digits),Decimal point can be changed
	Digit of Unit price	0~~9999(4 Digits),Decimal point can be changed
	Digit of Total Range	0~~99,999,999,99
Optional Display	Type	LCD and Bright Backlight
	Digit of Volume	0~~99,999,999(8 Digits),Decimal point can be changed
	Digit of Amount	0~~99,999,999(8 Digits),Decimal point can be changed
	Digit of Unit price	0~~999999(6 Digits),Decimal point can be changed
	Digit of Total Range	0~~99,999,999,99
Totalizer		1~~9,999,999
Hose		4.5m
Weight
Dimension(L×W×H)		1060 x 550 x 1620 mm
Dimension(L×W×H)Of Qty of Container		22 sets/20" container; 44sets/40" container
