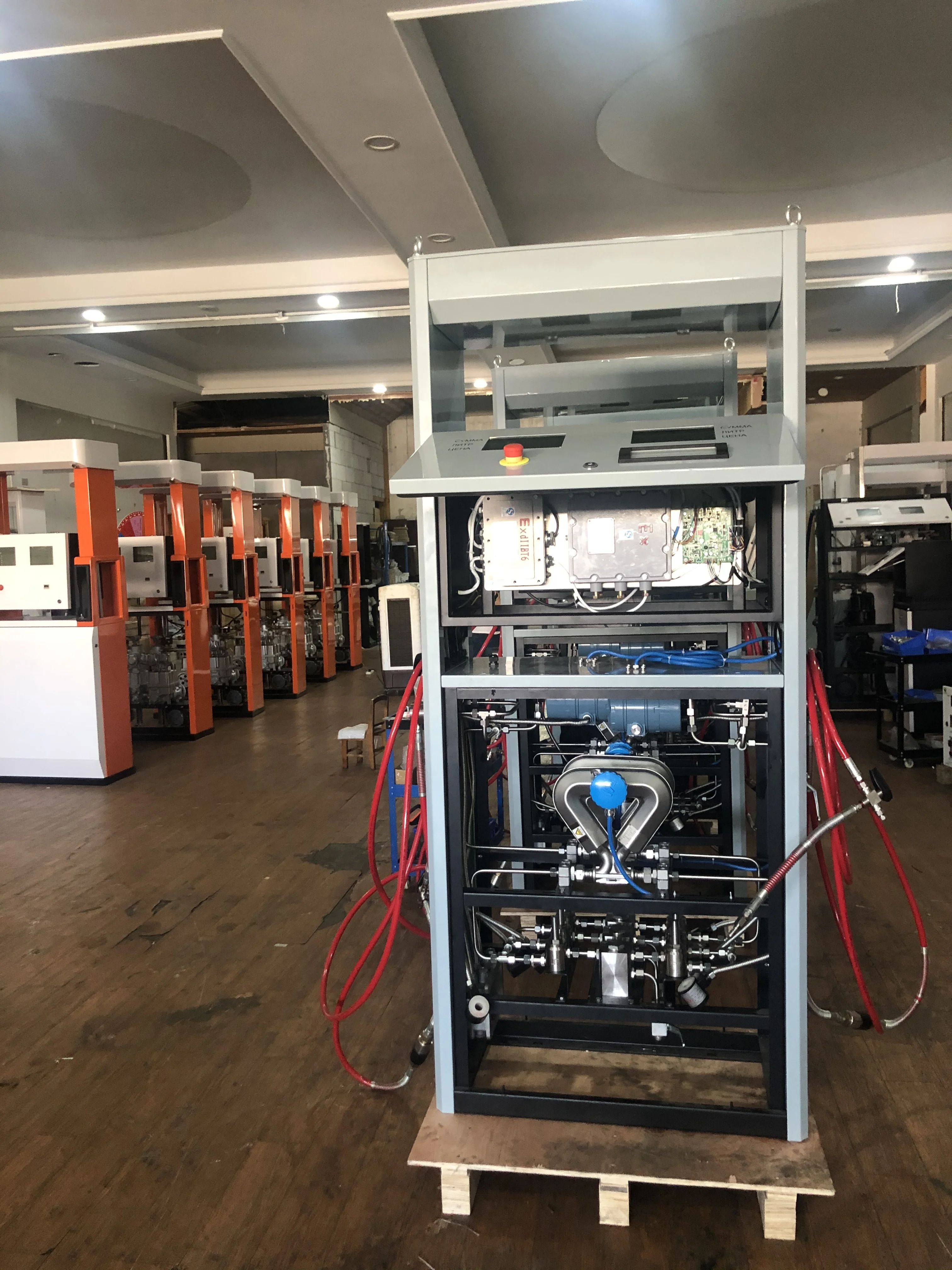

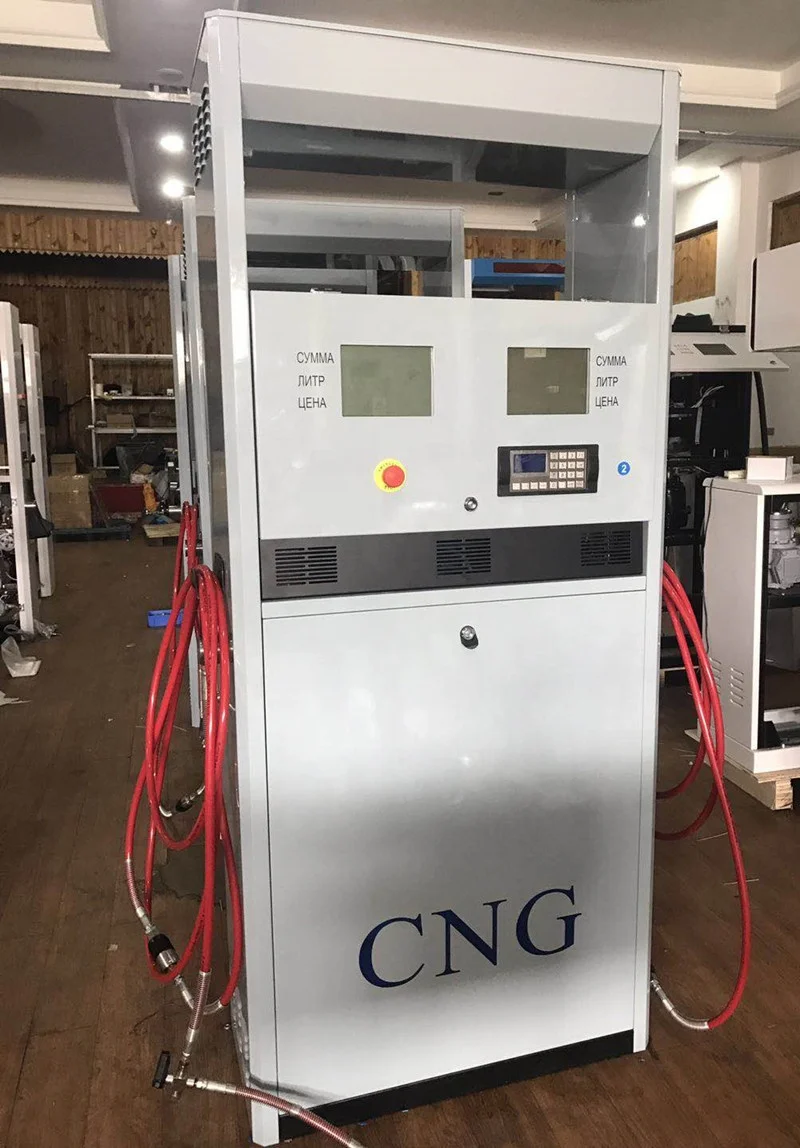

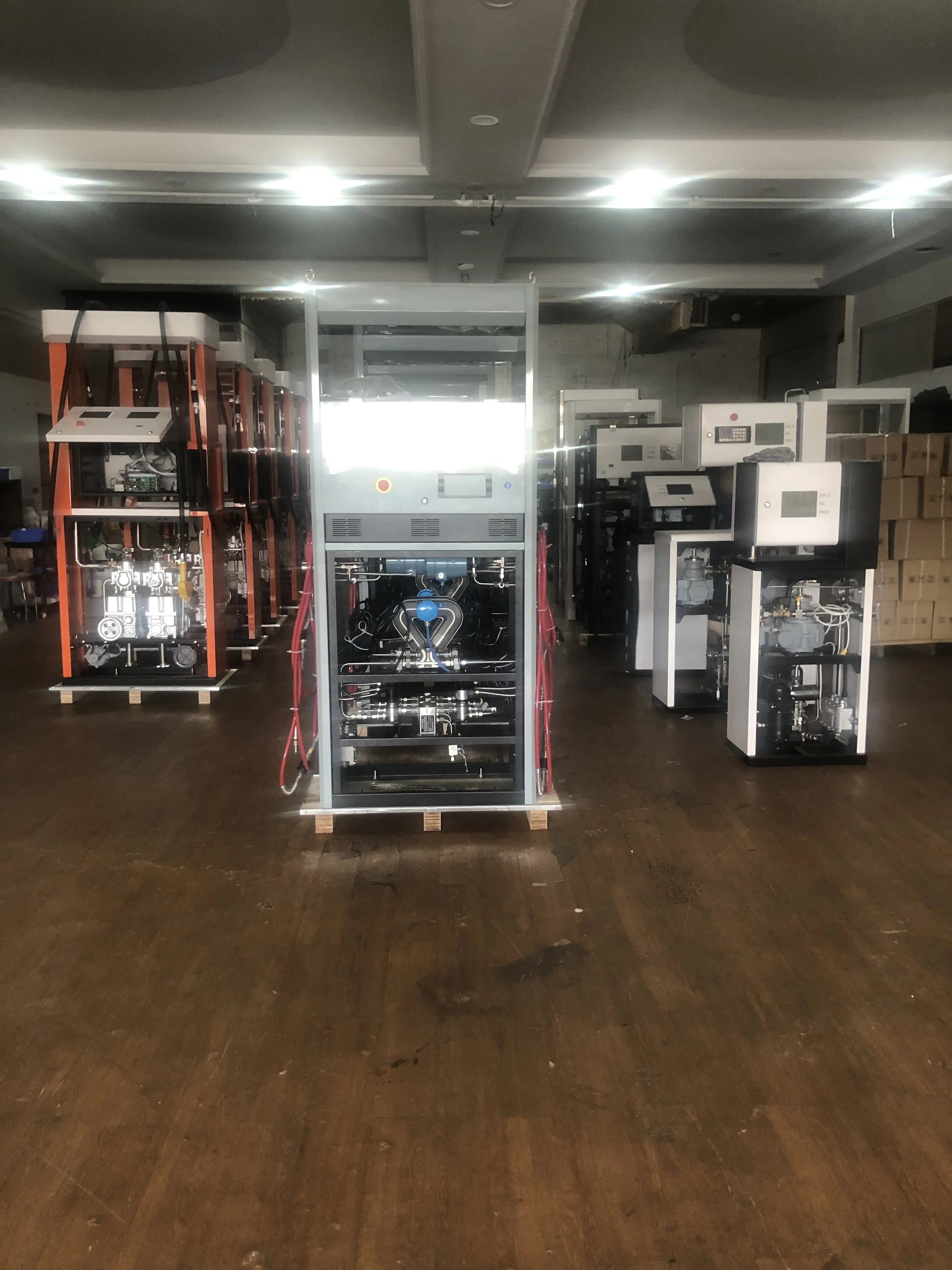

CNG Dispenser/NGV dispenser/natural gas dispenser from Welldone Machine with ATEX and CE certificate

Product Overview

Description

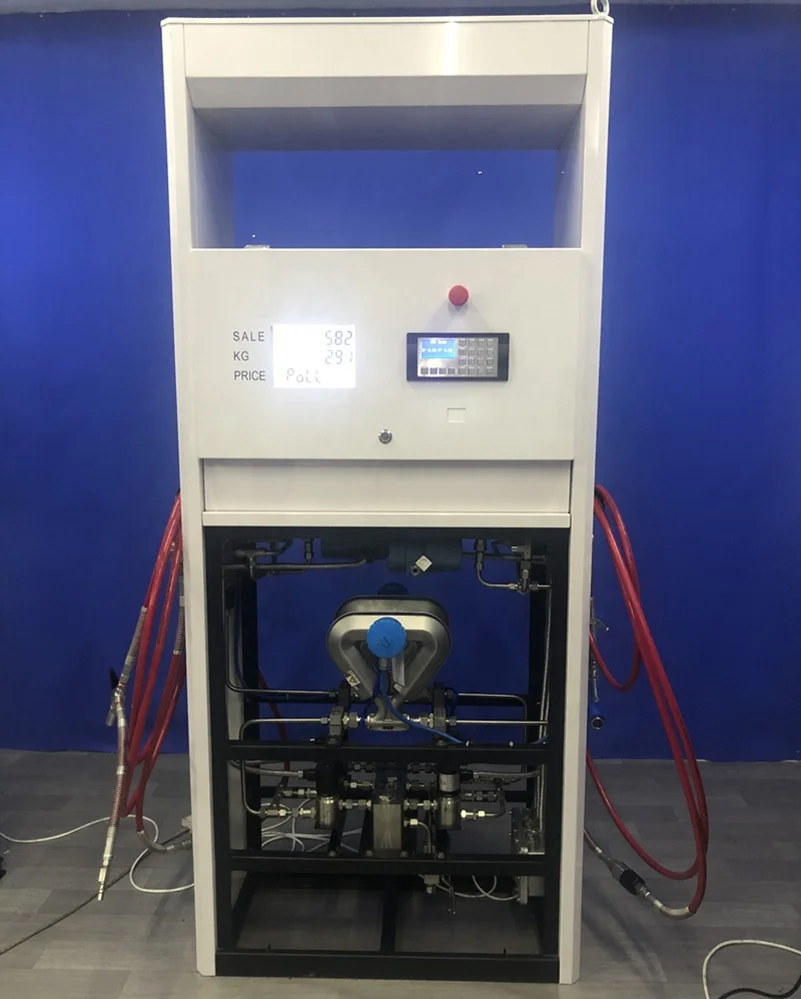

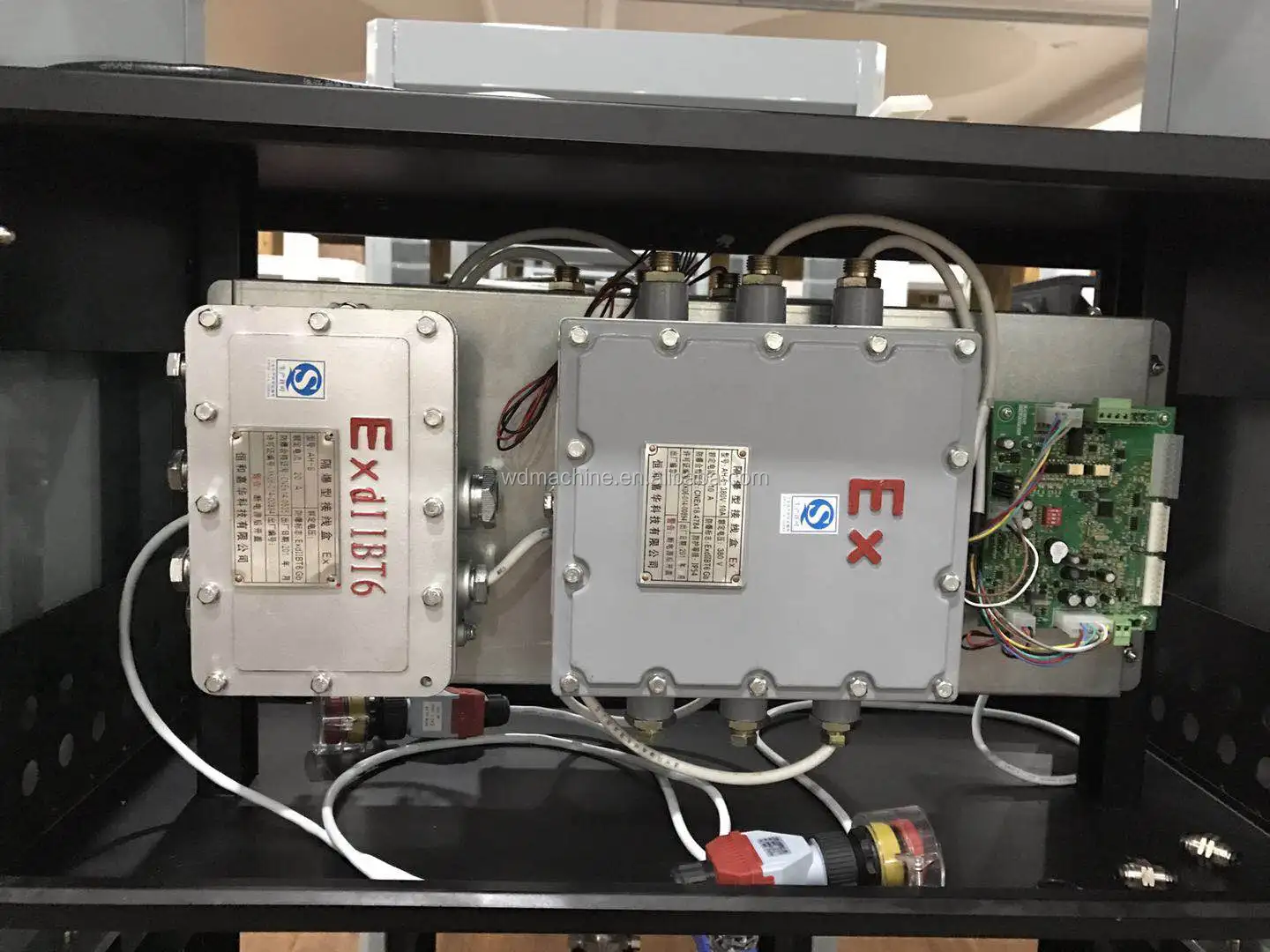

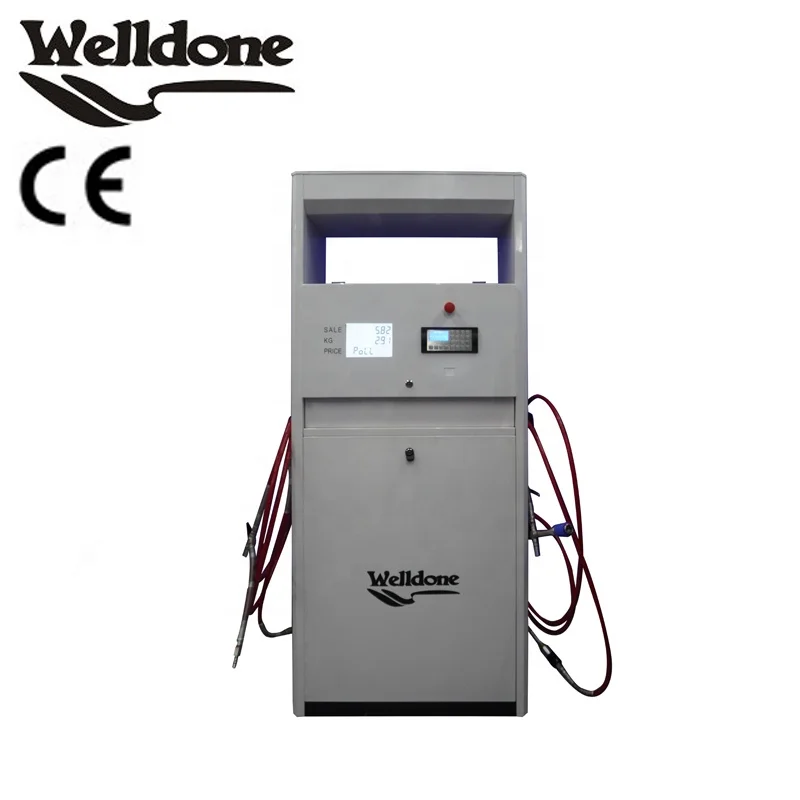

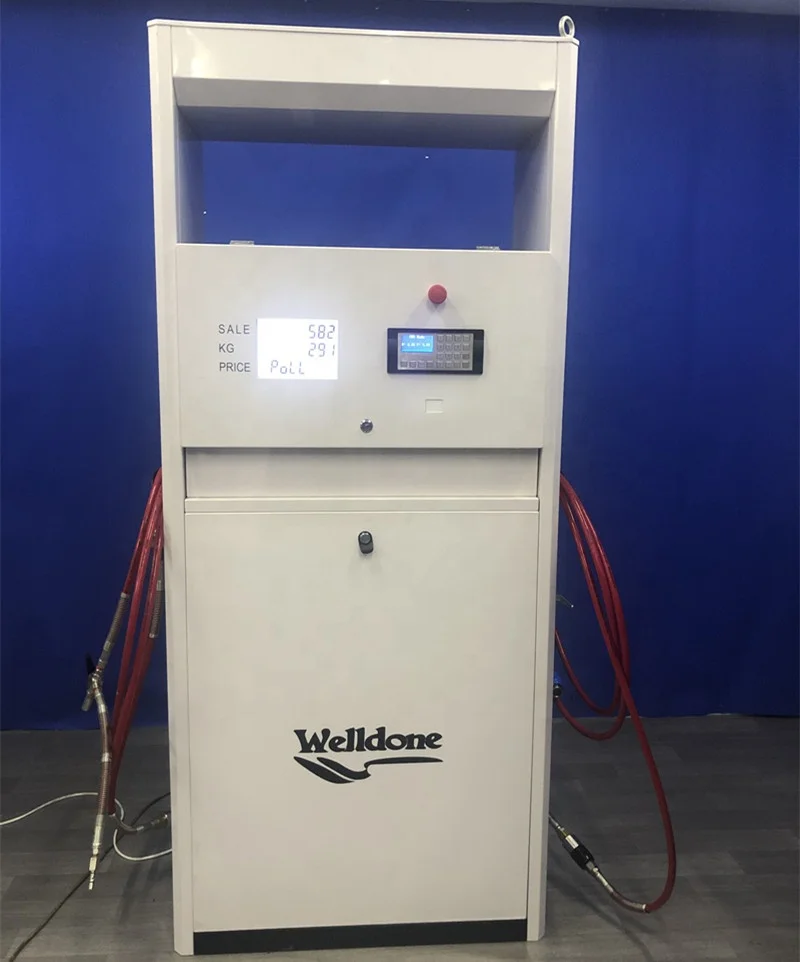

CNG Dispenser (ATEX certificate) (CE APPROVAL)

single nozzle (1 flowmeter-1 nozzle-2 dispaly-1keyboard)

Double nozzle (2 flowmeter-2 nozzle-4 display-2 keyboard)

1 inlet pipe ,2 inlet pipeline, 3 inlet pipe for choose

We can do OEM for you ,we can add your logo or photo as required .

If you have special model ,we can special do for you

Technical Specification:

Ambient Temperature: -40°C~+55°C
Power: AC220V±20% (50±1Hz)
Flow rate: 2-30 m3 /min (standard state)
Mass flowmeter accuracy: ±0.5%
Working pressure: ≤25MPa
Density preset range: 0.5000-0.9999kg/m3
Unit price range: 0~9999, 0~999999 (changeable)
Single range:1~9900.00,1~999900.00 (changeable)
Accumulative range: 0~9999999999.99
Electronic Calibration.
Printer (option).
Fueling times limit function.
Stop fueling by integer sale.
Can set the decimal point for the display, so can be used in many country with different currency rate.
Leaves the communication ports, so it can communicate with the gas station management system.



We have screen touch function for choose ,make the dispenser much more nice .

We have GPRS function ,so you can check any data ,anywhere anytime you want by mobilephone or computer .





Each of our products have 12 months for warranty ,after you using our products ,you can get all the life after sell service .
