SJ 45 50 55 65 PE High and Low Pressure Film Blowing Machine/Film Blowing Machine Price

Share on (1596035275):


Price:$4,700.00 - $4,800.00

Quantity:


Product Overview

Description


SJ 45 50 55 60 65 PE film blowing machine







film blowing machine price


Introduction  :








Usage


It is the film blowing machine for blowing PE (polyethylene) film, such kinds as low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) etc.


Which kinds of film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.





Characteristic


1. Main motor, take up motor and winder motor are controlled by Taiwan Powtran frequency inverters.


2. Material of screw and barrel: 38CrMoAlA Polished with Nitride Treatment
   hardness of heat treatment: screw HV≥740, barrel HV≥900
   depth of hardening: 0.6-0.7mm
   brittleness grade: ≤2 grade


3. Gear box: 250 Involutes cylinder Bevel wheel, cast alloy steel piston, fine grinding hard gear surface


4. Die material: steel 45#/surface treatment of flow channel: hard chrome- plating


5. Double digital display temperature controller in the die head


6. It can use 100% recycled materials to blow film.





Parameter









































































































Model



SJ-50



SJ-55



SJ-60



SJ-65



SJ-80



SJ-100



Max. Folding Width of film



600mm



800mm



1000mm



1100mm



1500mm



2000mm



Main Output



25-35kg



35-50kg



55-65kg



55-70kg



70-80kg



110-140kg



Main motor power



7.5-11kw



11-15kw



15-18.5kw



18.5-22kw



30-37kw



37-45kw



Screw Diameter



50mm



55mm



60mm



65mm



80mm



100mm



L/D ratio of screw



28:1



28:1



28:1



28:1



28:1



28:1



Speed of screw



10-100r/min



10-100r/min



10-100r/min



10-100r/min



10-100r/min



10-100r/min



Film thickness



0.01-0.10mm



0.01-0.10mm



0.01-0.10mm



0.01-0.10mm



0.01-0.10mm



0.01-0.10mm



Specification of die head



60-120mm



100-170mm



100-170mm



120-220mm



150-300mm



500mm



Weight of machine



2000kg



2300kg



2500kg



3800kg



4600kg



6000kg



Overall Dimensions[L*W*H]



4.5*1.8*3.5m



5.5*2.0*3.8m



6.0*2.2*4.2m



6.0*2.4*4.3m



7.0*2

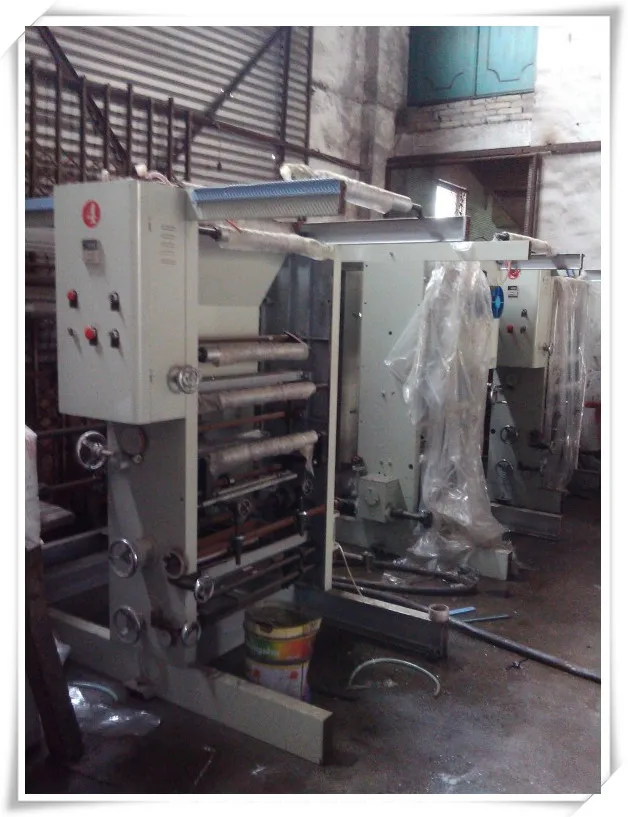

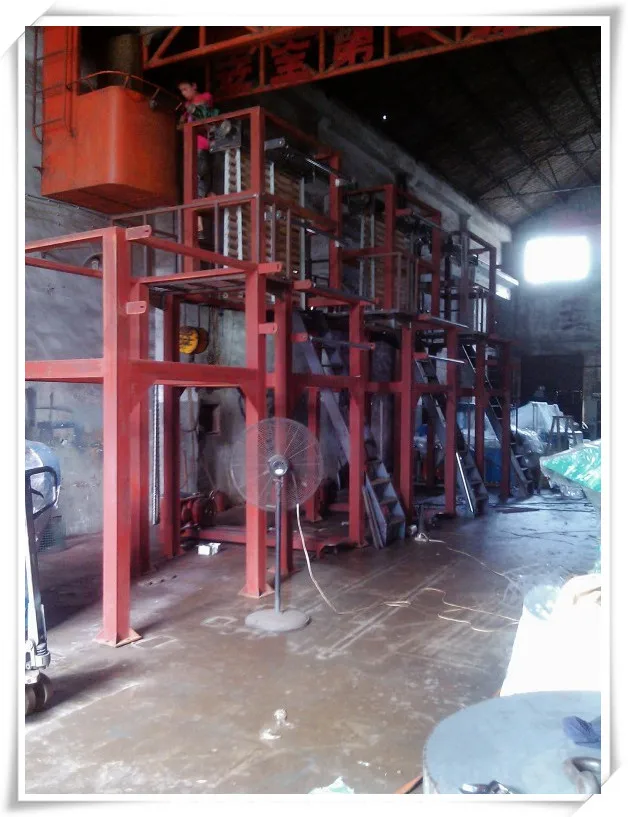

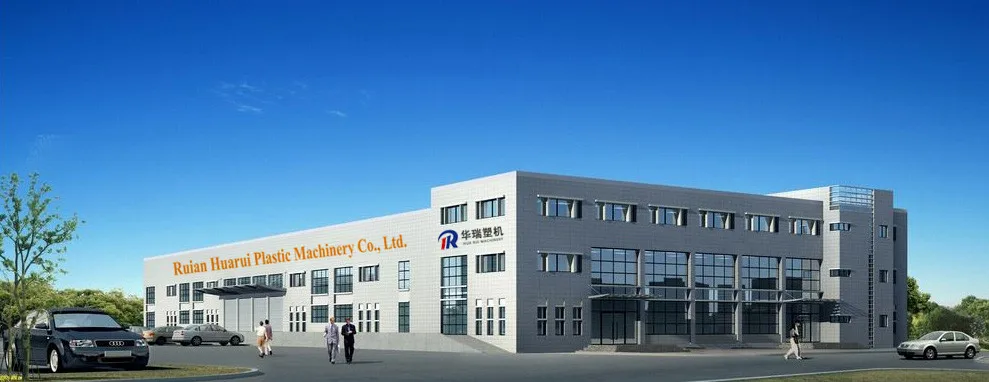

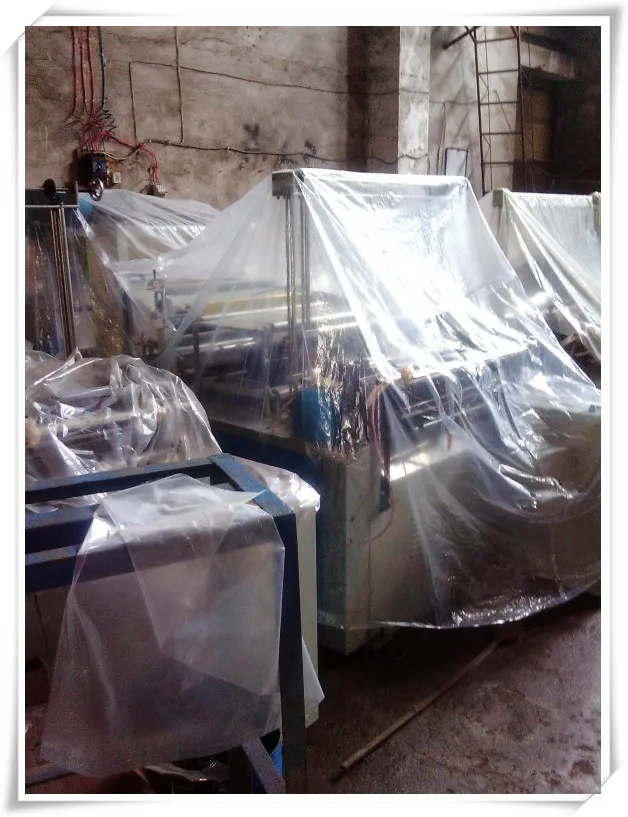

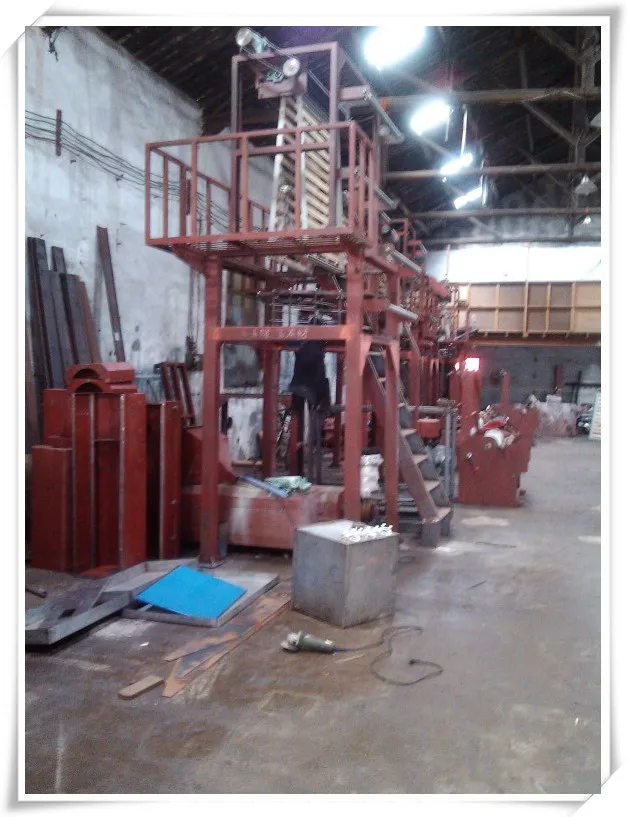

 our factory:

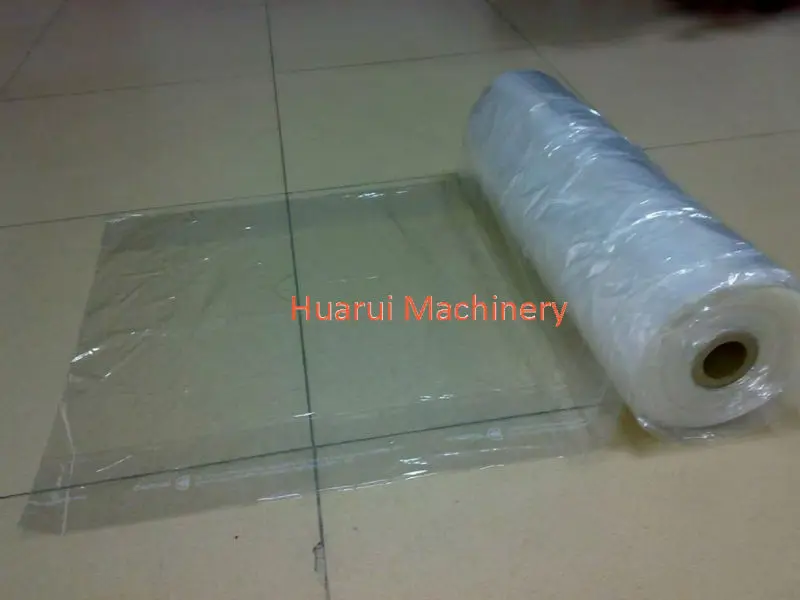

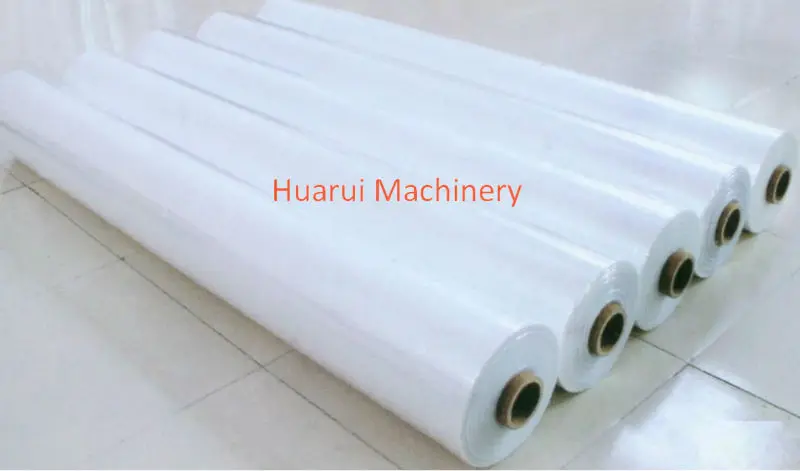

Product




The certificate:
