This slitter is advantage in handling with carbon paper, paper material with high speed, big roll. Resonable structure, station shaftless center rewinding way, easy operation and save labor.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS
Slitting Material
Carbon paper. release paper
Machanical Speed
Max. 800m/min
Slitting Way
Shear cut
Unwinding Way
Shaft drive unwinding
Unwinding Width
Max 2230mm
Unwinding Diameter
Max φ1500 mm
Unwinding Core Size
3″paper core,6″paper core
Edge guide Way
Oscillation device
Rewinding Way
shaftless center rewinding
Rewinding Width
450-1800mm
Rewinding Diameter
Max.φ1000mm
Rewinding Core Size
3″paper core,6″paper core
Rewinding Station quantity
（Alternative）
Unloading Way
Unloading with trolleys
Edge Trim Way
Vacuum suction system with smash function
Equipment Power
380V, 50Hz, 3 phase AC
Equipment Size
About 12000mm (length)×7000mm (width)×5000mm(height)
Control System
Germany siemens servo system
Heating splicing table
Include

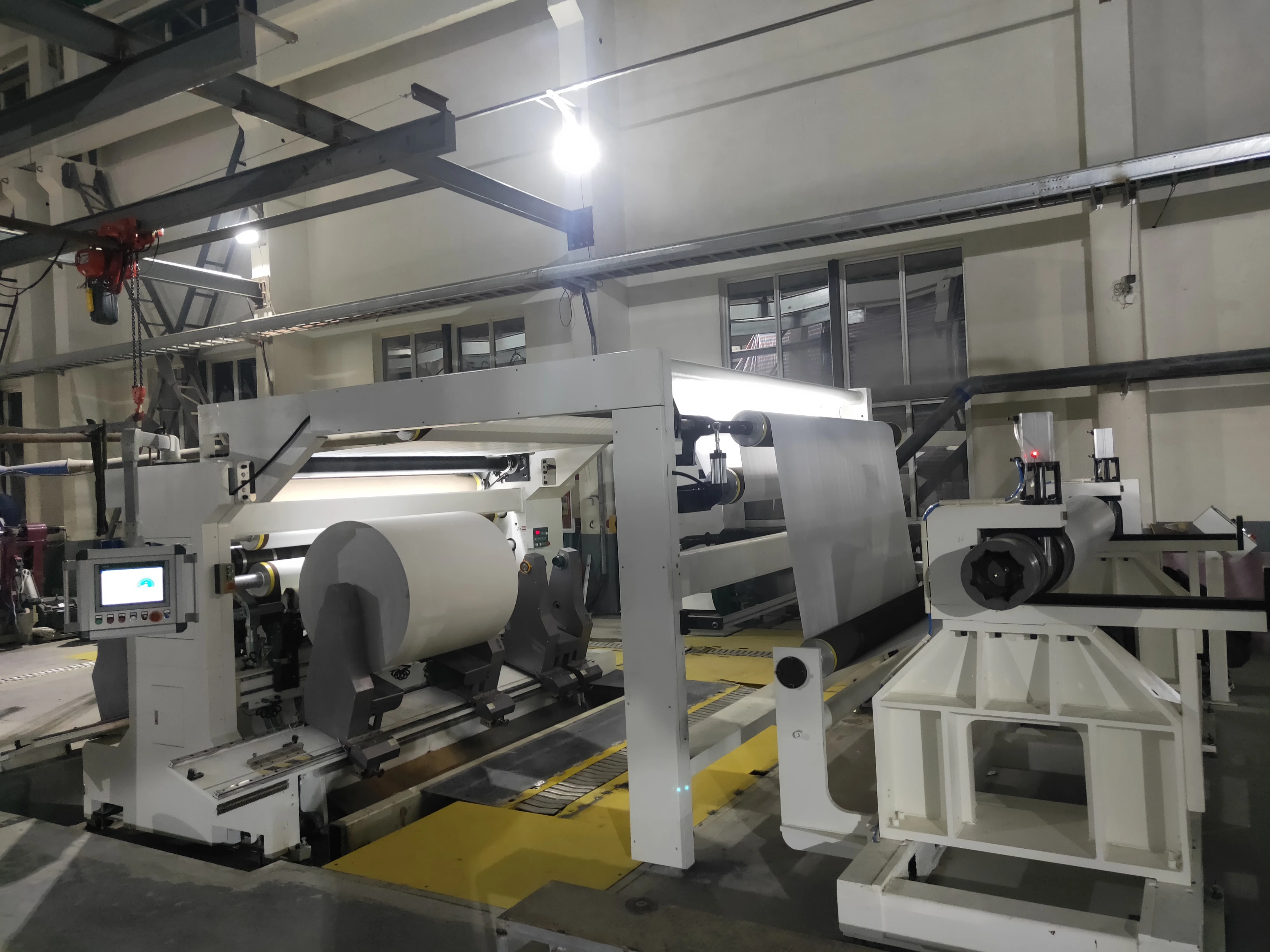

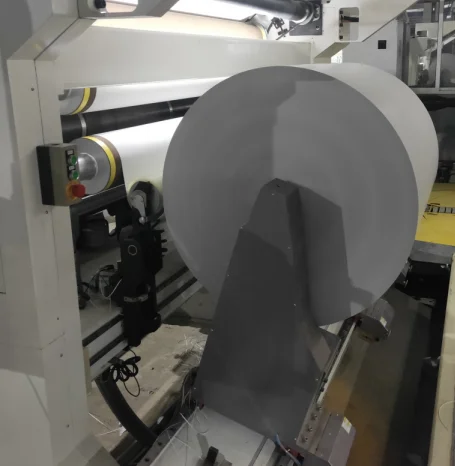

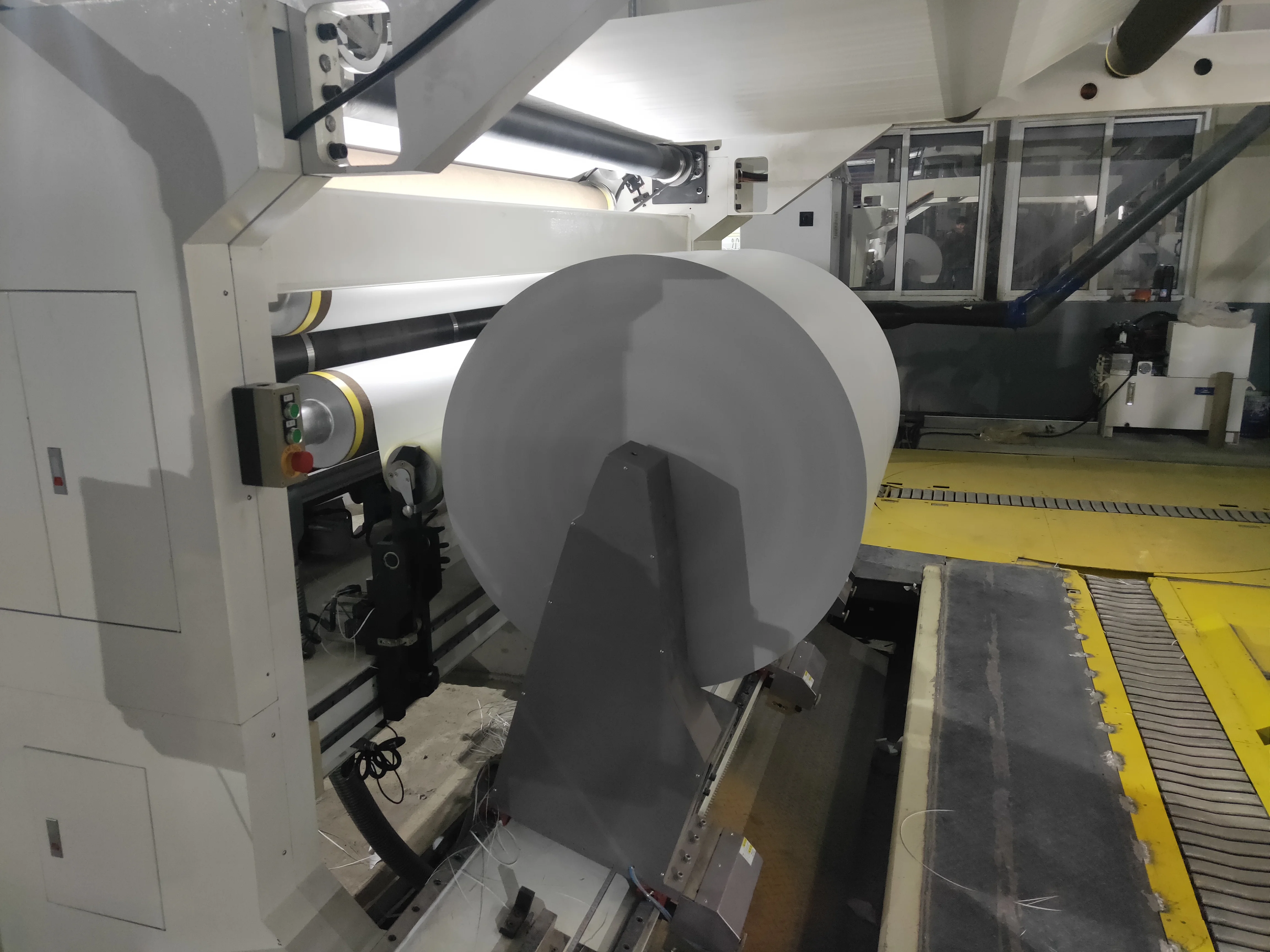

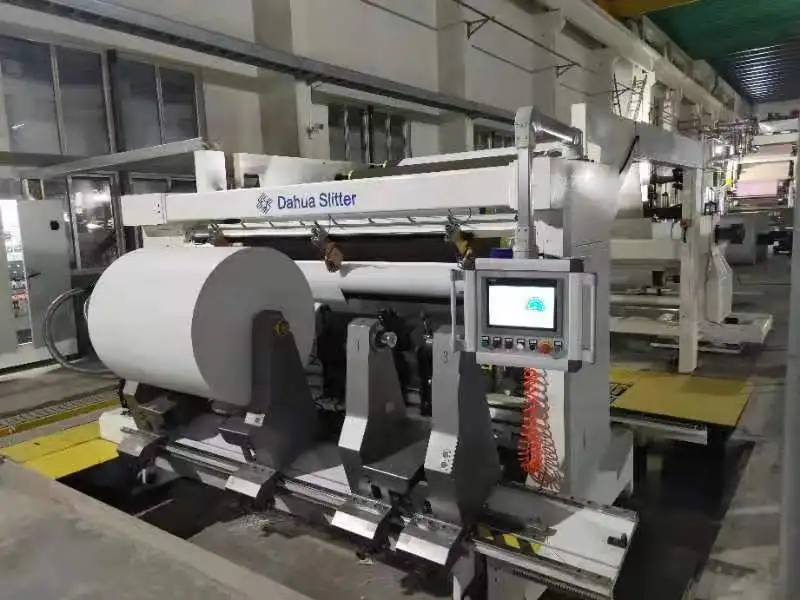

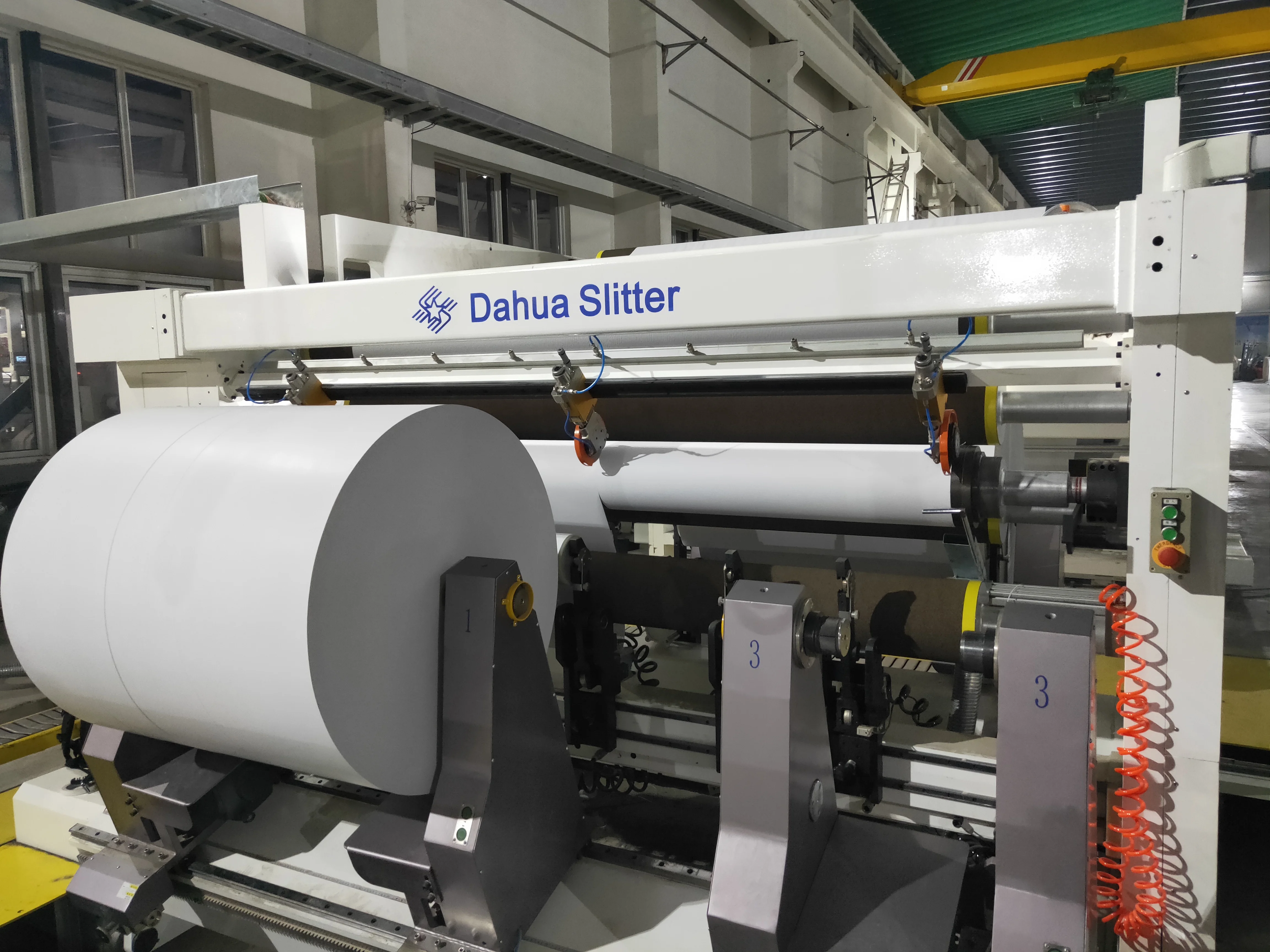

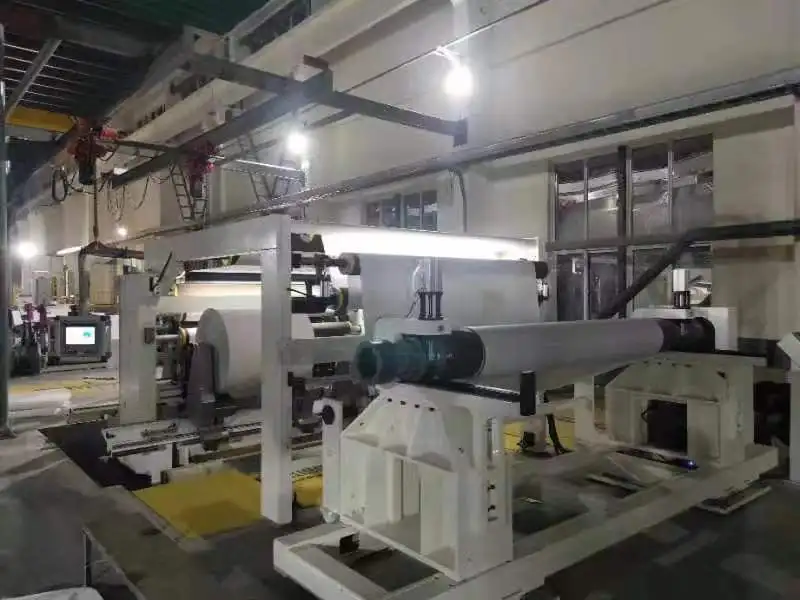

Detail Images
Equipment Main Feature
1、High efficiency with reliable performance
2、Large tension control for board laminates
3、Center rewinding technology to ensure the good quality finish roll
4、Cost effective machine
Acceptance index
1, Trial
2, Quality guarantee
3, Equipment cleanliness
Special instructions of Equipment
1、The hydraulic lift system to pick up the unwinding roll easily.

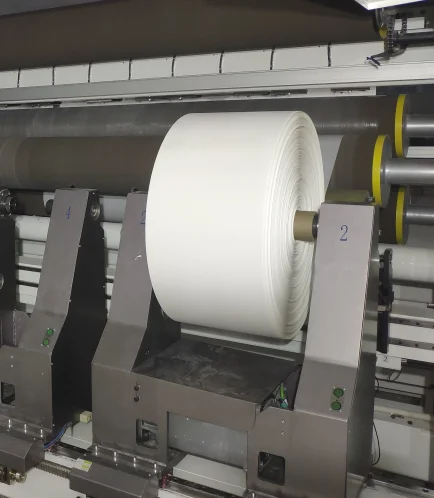

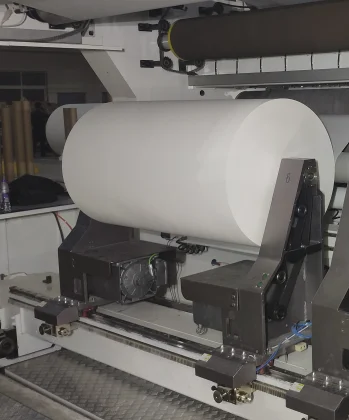

3、Individual rewinding station design instead of air expanding shaft, easy operation and save labor.

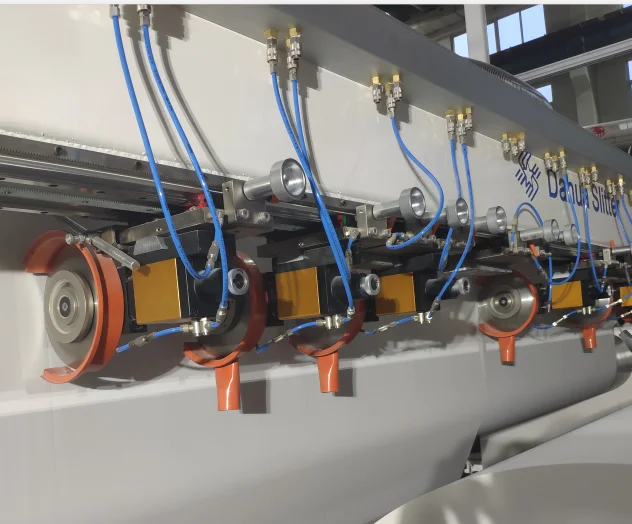

4、Pneumatic shear cut system to slit the material properly and easy for knife movement
5、 Dancing roll design to control the tension properly.
