800kg Electric Glass Lifting Equipment Vacuum Lifter
- Category: Lifting, Pulling & Positioning >>>
- Supplier: Jinan Plk Machinery Co. Ltd.
Share on (1600062348957):
Product Overview
Description
GL-LD Series Truck Glass Vacuum Lifting Equipment
Widely used in lifting and handling glass panes, metal block, marble block, sandwich panel or other planar objects. The suction pads
are specially made to allow for shape distortion pressing against objects with irregular shapes.
Specs Table
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 | |
| Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W | |
| Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Packing Size | 2.56*1.03*1.7m | 2.58*1.05*1.7m | 3*1.25*2.3m | |||
| Movement | Automatic (4kinds) | 1. Pad frame vertical up/down 180°automatic | ||||
| 2. Boom in/out 610/760mm automatic | ||||||
| 3. Powered arm up/down automatic | ||||||
| 4. Lateral side shift 100mm automatic | ||||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
| Usages | Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. | |||||
| Optional | Optional 1> Need pad frame automatic tilt left/right 90° | |||||
| Optional 2> Need pad frame automatic rotation 360° | ||||||
| Optional 3> Need remote control and 5m wire | ||||||
| Optional 5> Customized painting color | ||||||
| Free Spare Parts | 1 set of seal rings, fuse, 1 air pipe, air pipe joint, sucker nozzle, bolt | |||||
| Spare Parts | 1> Need extra rubber suction cap Ø300mm | |||||
| 2> Need extra suction cap assembly (rubber suction cap+aluminum pedestal) | ||||||
Product Overview
1. Integrated control system secures quick and automatic positioning vertically and horizontally.
2. DC24V reliable actuators for lifting, extension and tipping, efficient and precise.
3. Attractive pricewise, manpower saving, significant improvement of working environment.
4. Vacuum lifters are treated with shot blasting and stoving varnish to be corrosion-proof.
5. High quality pump station makes the vacuum lifter lift and fall stably.
6. High performance cylinders to ensure smooth operation.

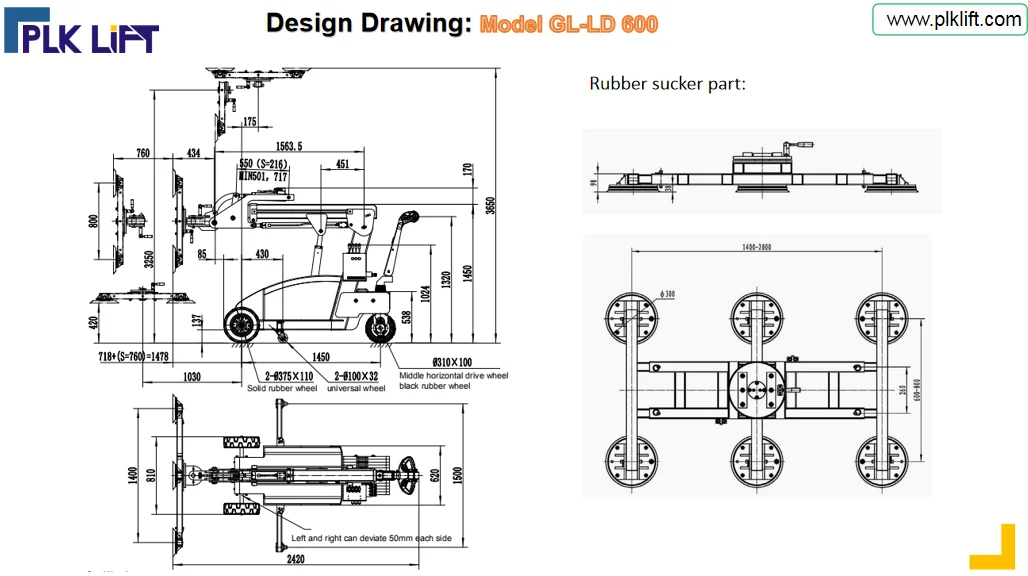

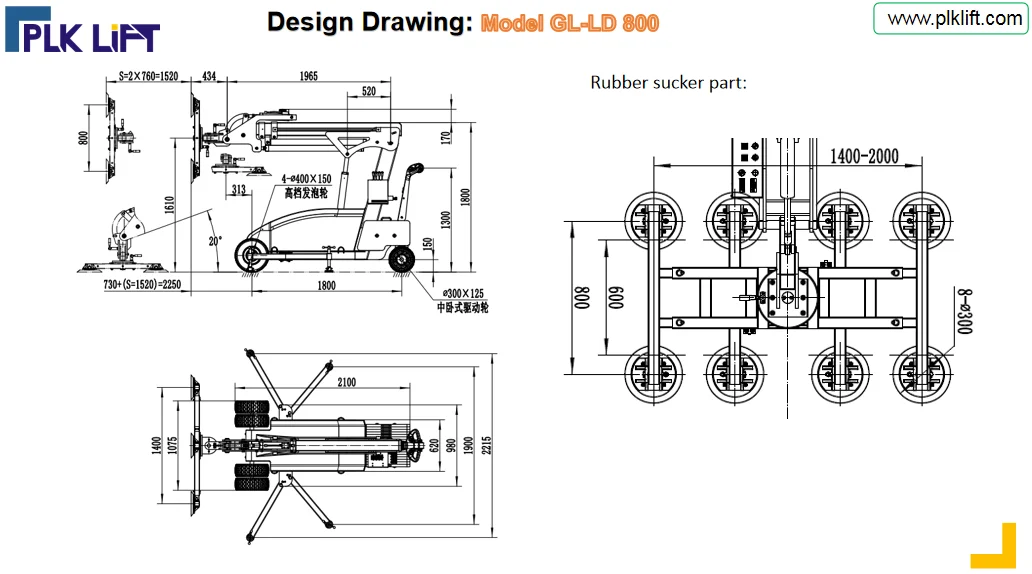

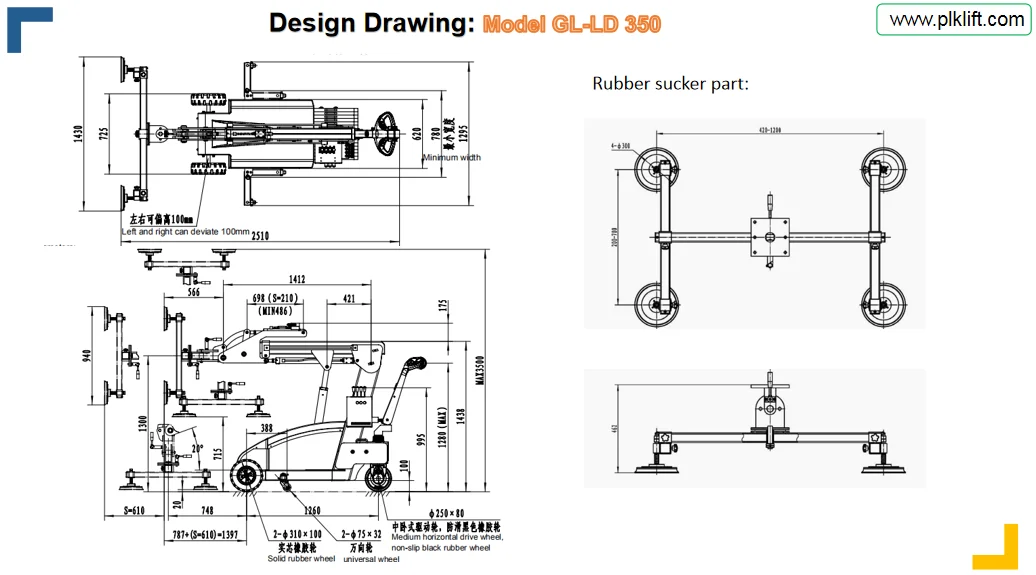

Drawing

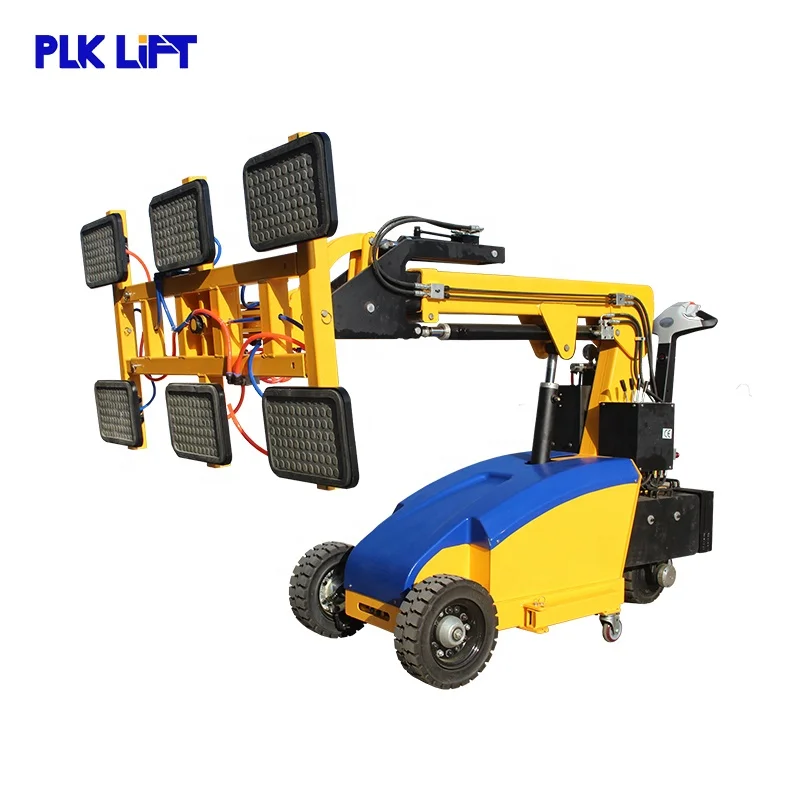

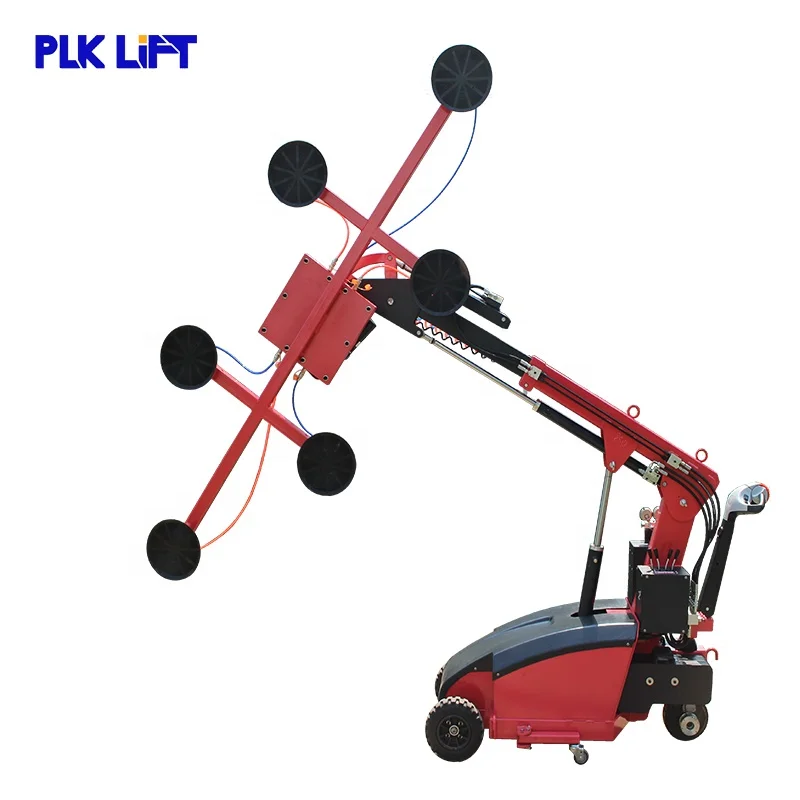

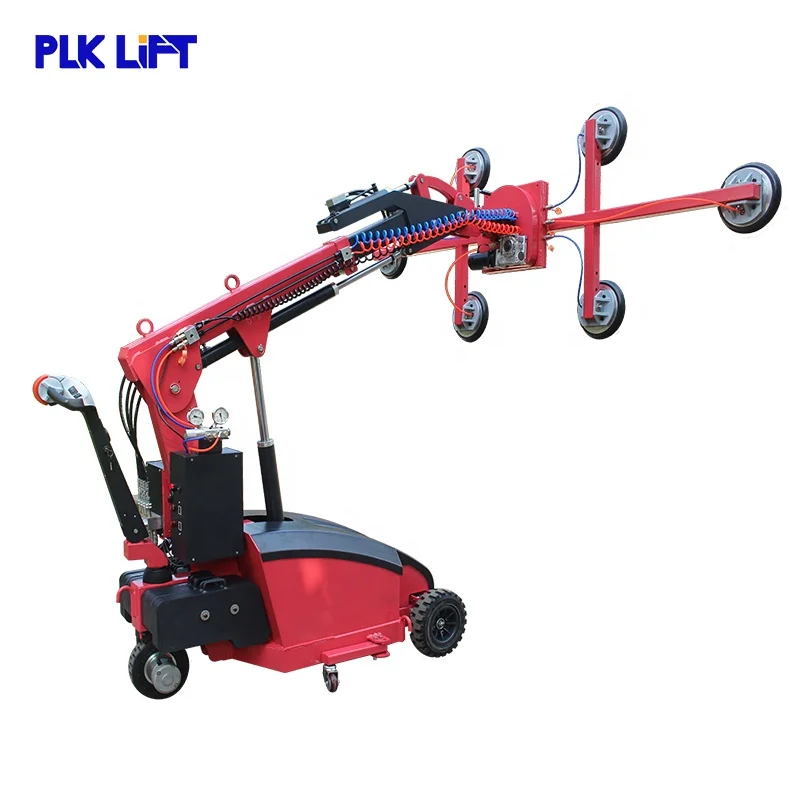

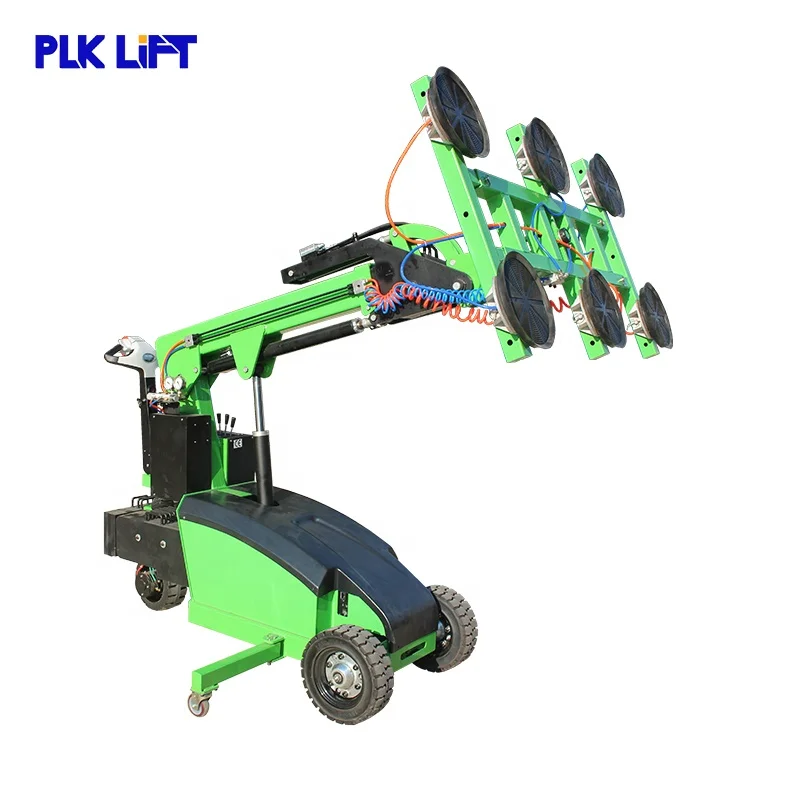

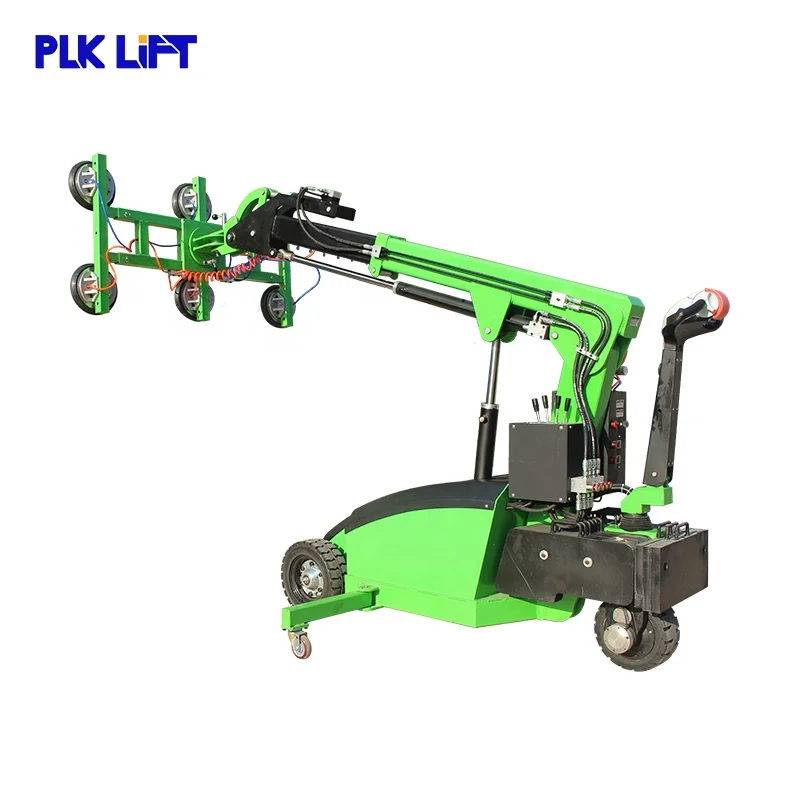

Detailed Images
