Product Description
YT-4600 YT-4800 YT-41000 YT-41200 YT-41400 YT-41600

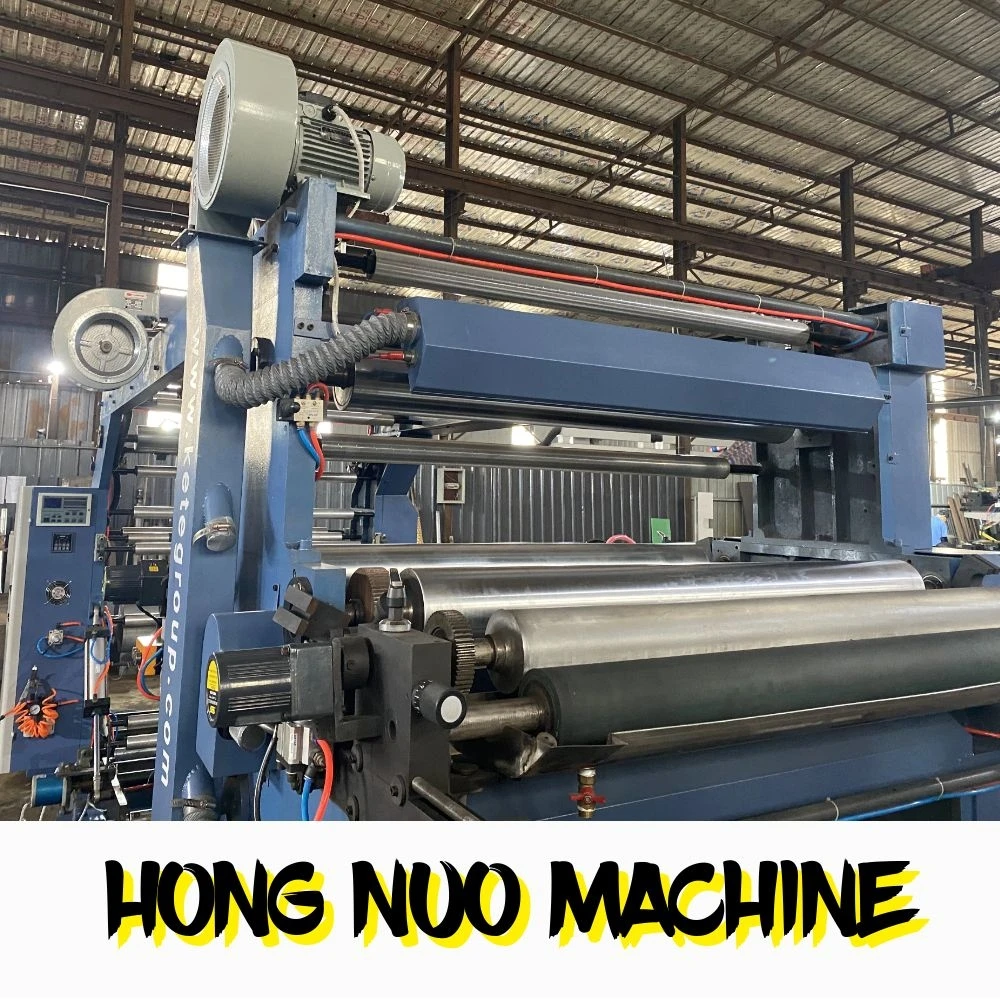

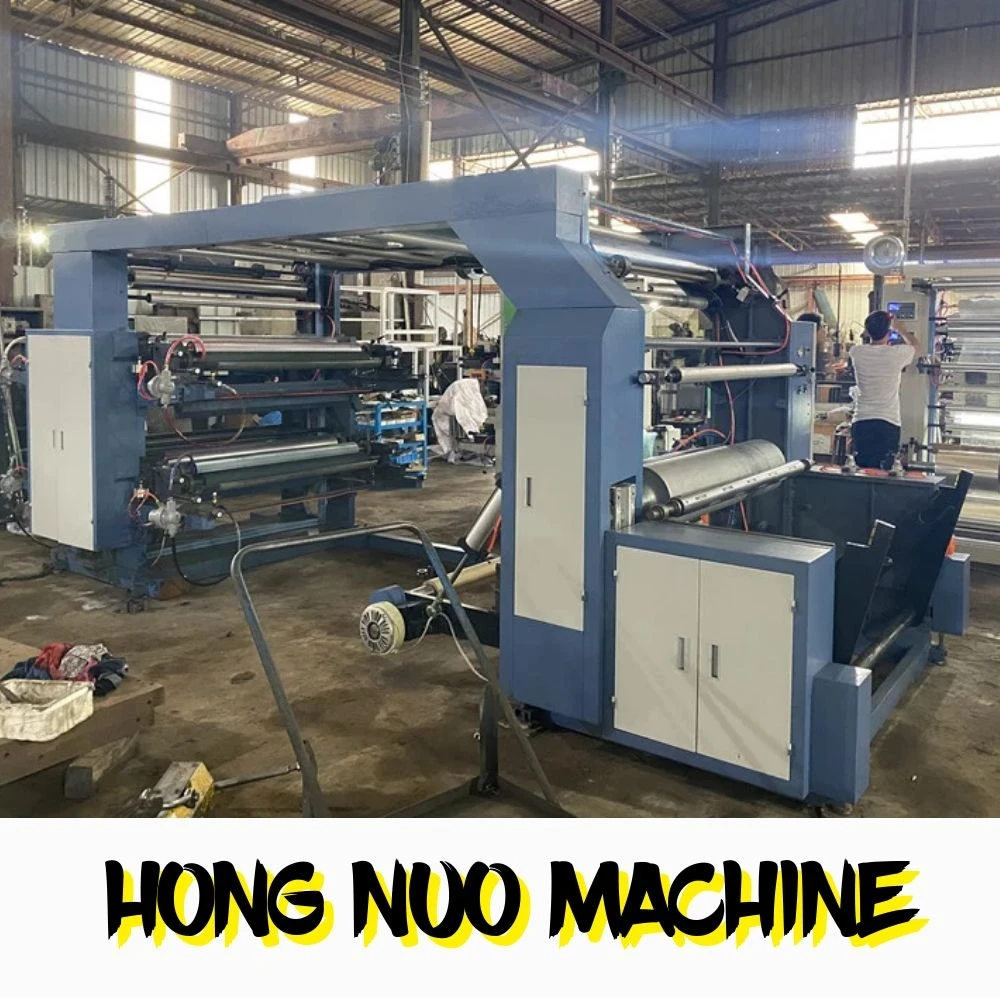

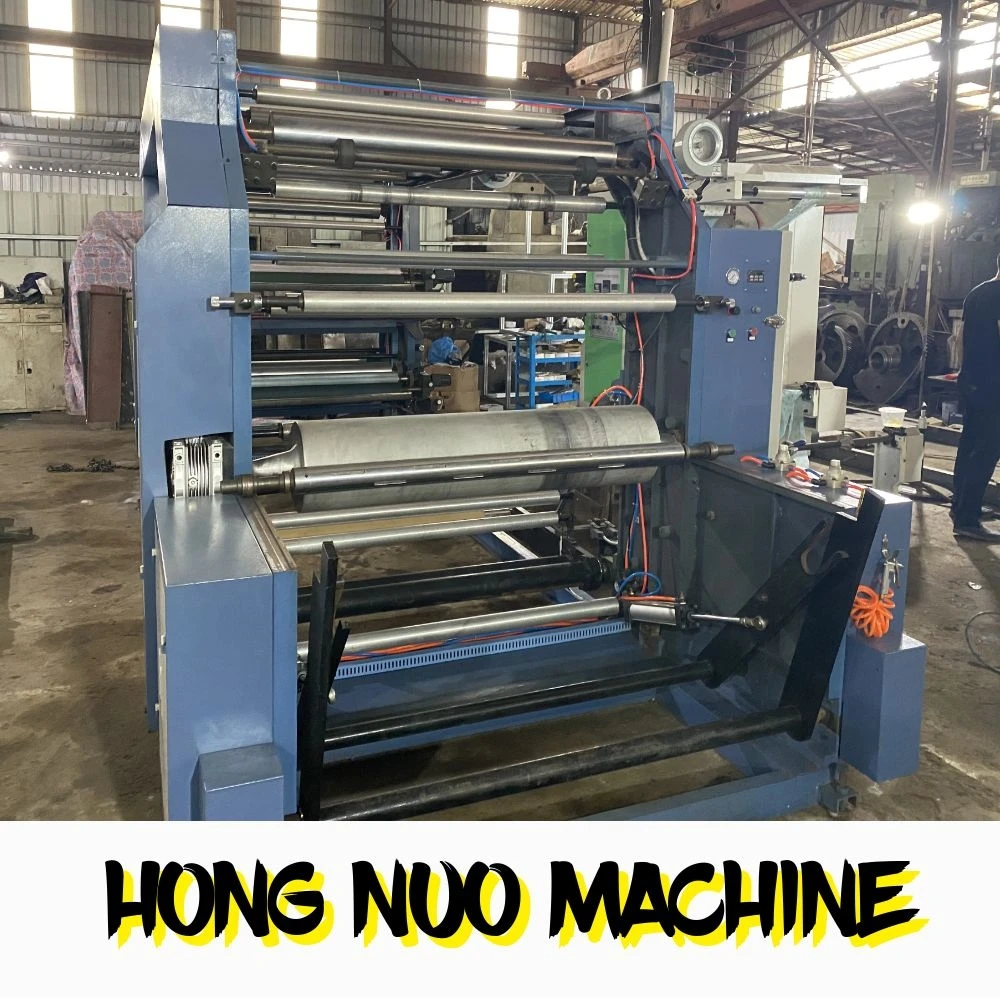

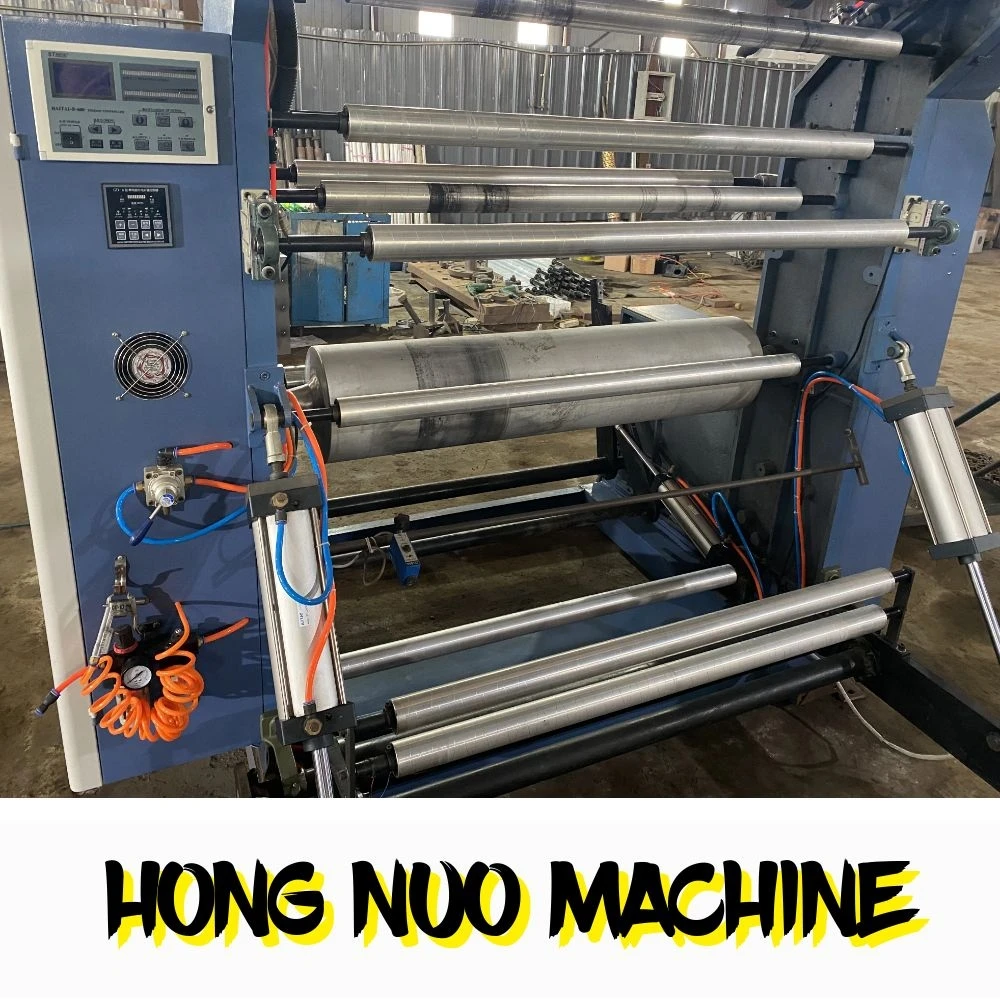

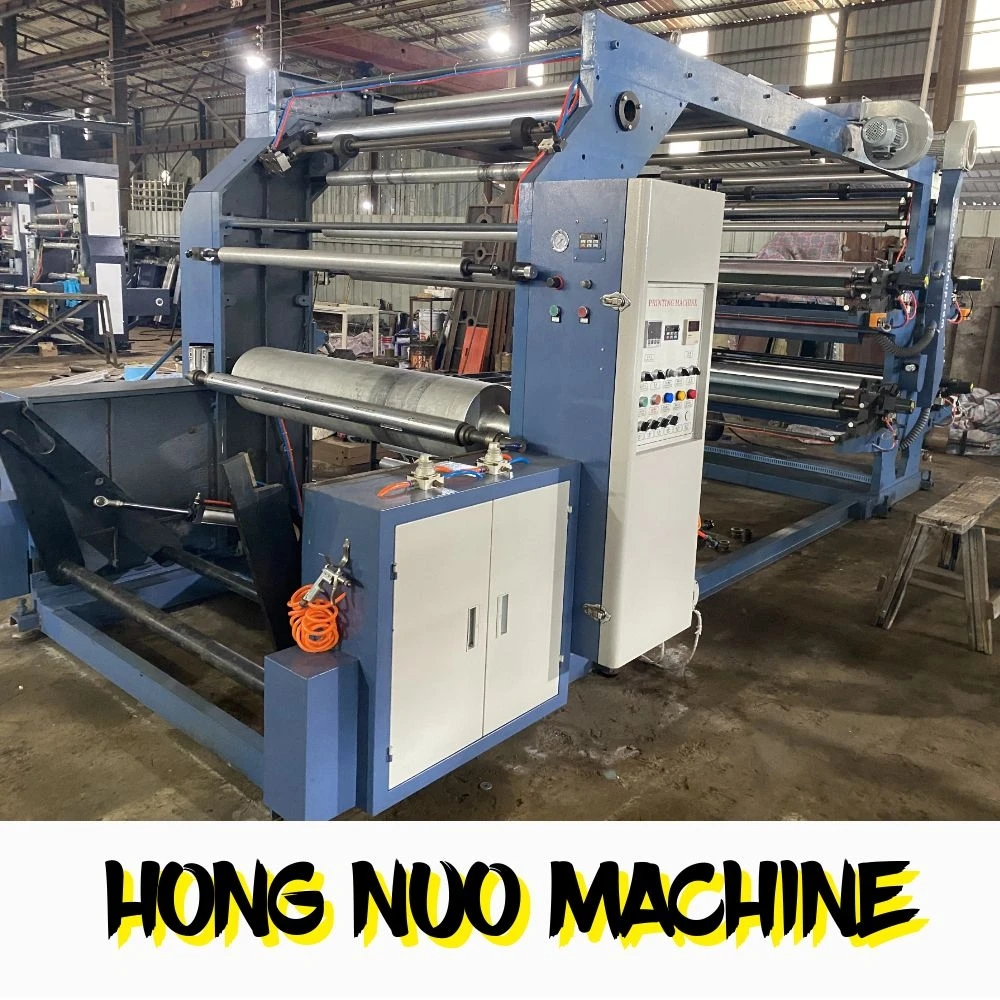

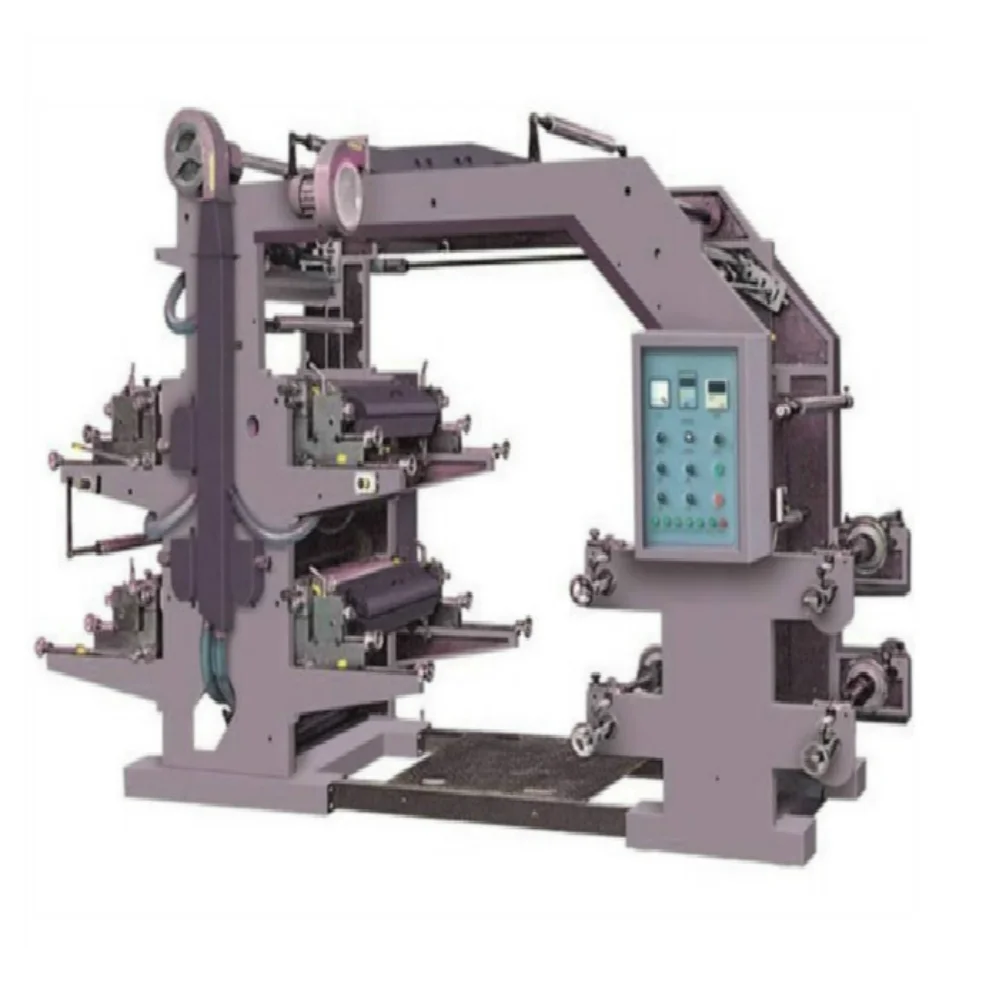

Four Colors Flexible Printing Machine
Characteristics:
This flexible printing machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. And it is a kind of ideal flexo printing equipment for producing paper packing bag for food, supermarket carry bag ,vest bag and clothes bag, etc.
1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirements Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4.The printing ink is spread by the knurled cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
| Model |
YT-4600 |
YT-4800 |
YT-41000 |
| Max. width of printing material |
600mm |
800mm |
1000mm |
| Max. printing Width |
560mm |
760mm |
960mm |
| Length range of printed product |
191-914mm |
191-914mm |
191-914mm |
| Max. diameter of roll material |
450mm |
450mm |
450mm |
| Printing speed |
5~50m/min |
5~50m/min |
5~50m/min |
| Thickness of plate (Including two-sided glue paper) |
2.38mm |
2.38mm |
2.38mm |
| Total power |
10.87kw |
12.5kw |
14.37kw |
| Weight of machine |
3000kg |
3500kg |
4000kg |
| Overall dimensions(L*W*H) |
4200*1600*2400mm |
4200*1800*2400mm |
4200*2000*2400mm |
| Model |
YT-41200 |
YT-41400 |
YT-41600 |
| Max. width of printing material |
1200mm |
1400mm |
1600mm |
| Max. printing width |
1160mm |
1360mm |
1560mm |
| Length range of printed product |
191-914mm |
191-914mm |
191-914mm |
| Max. diameter of roll Material |
450mm |
450mm |
450mm |
| Printing speed |
5~50m/min |
5~50m/min |
5~50m/min |
| Thickness of plate (Including two-sided glue paper) |
2.38mm |
2.38mm |
2.38mm |
| Total power |
13.24kw |
15.29kw |
17.12kw |
| Weight of machine |
4500kg |
5000kg |
5500kg |
| Overall dimensions(L*W*H) |
4200*2200*2400mm |
4200*2400*2400mm |
4200*2600*2400mm |

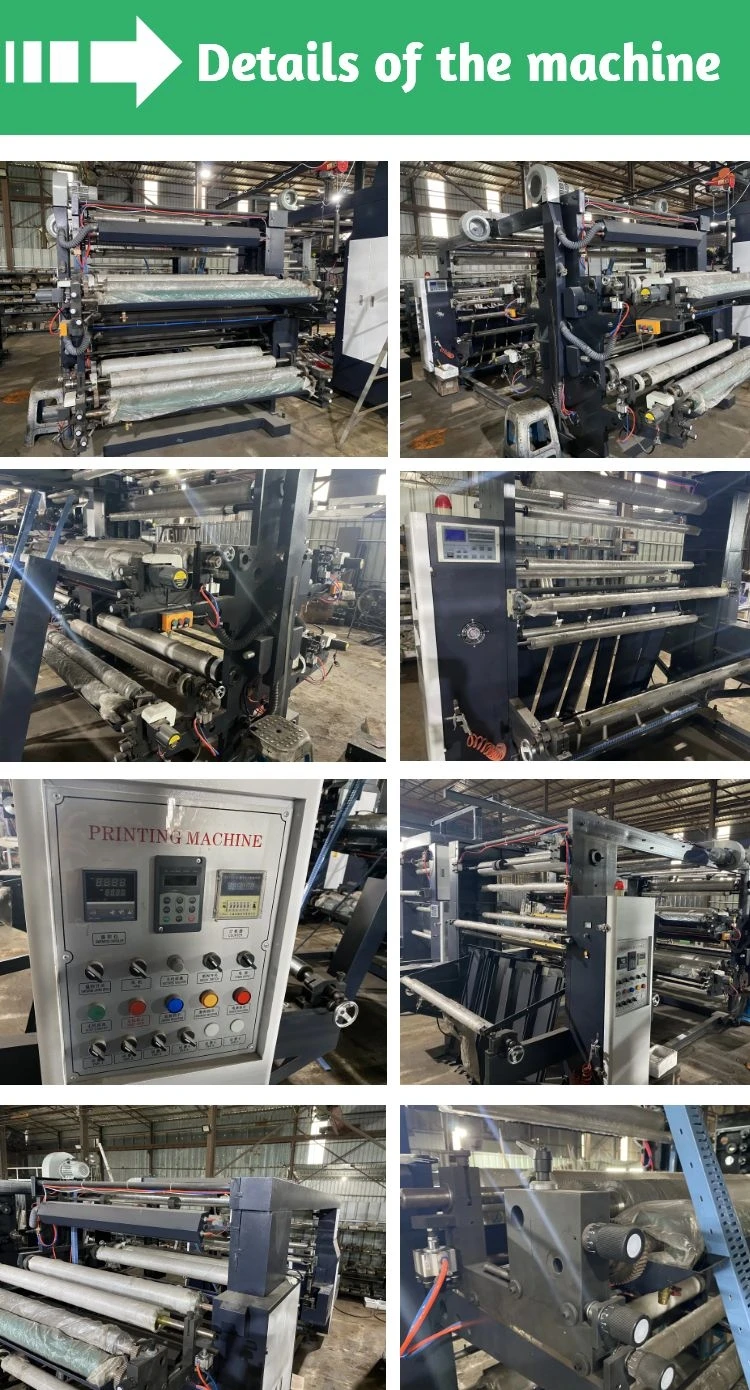

Machine details
