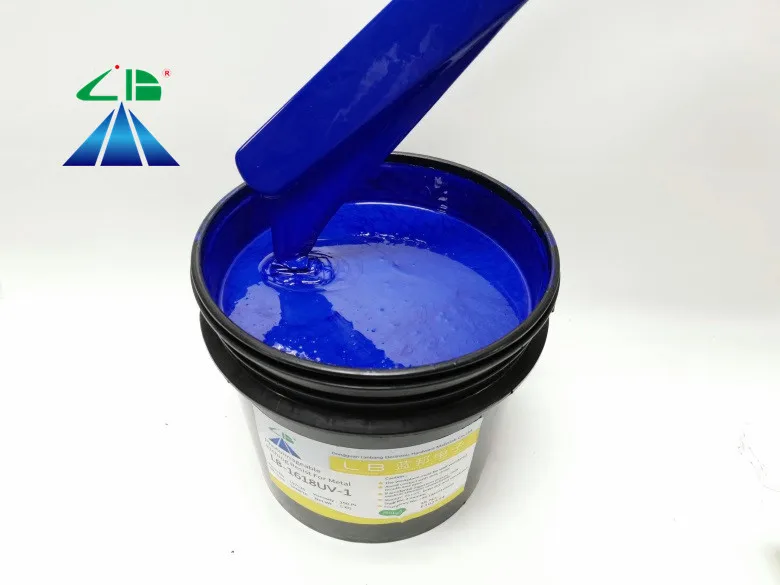

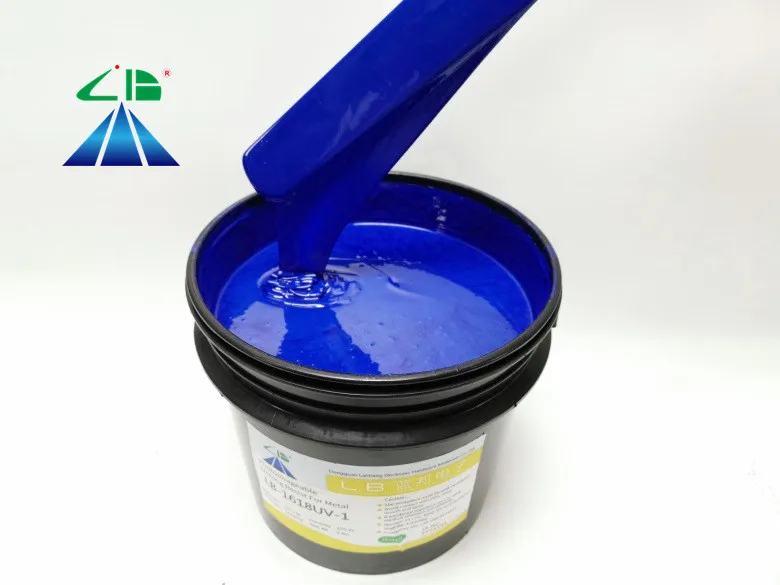

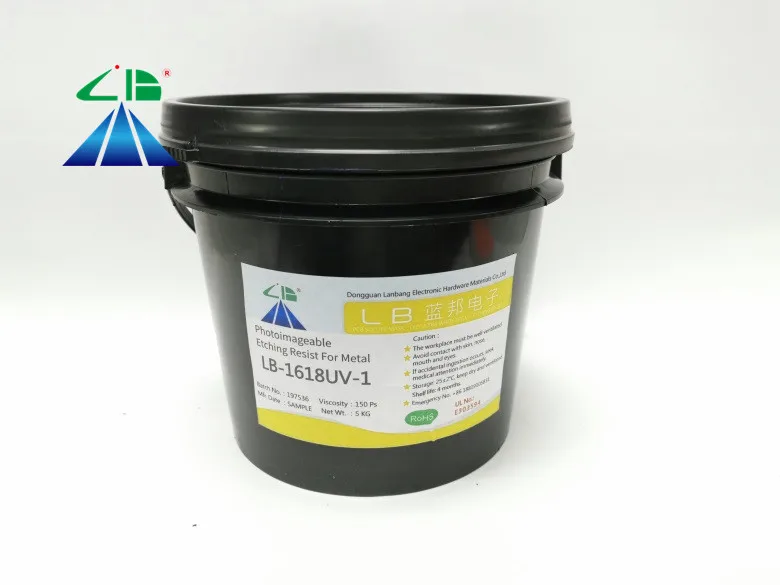

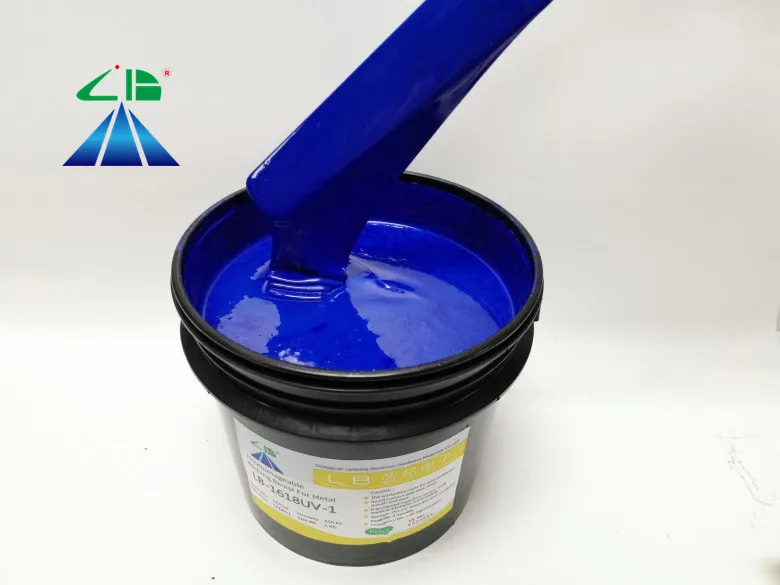

UV curable etching resistant plating resist for PCB circuit
- Category: >>>
- Supplier: Dongguan City Lan-Bang Electronic Metal Materials Co. Ltd.
Share on (1600069037832):
Product Overview
Description
Product Description
Specification
Viscosity | 75 Pas |
Adhesive | 100/100, 3M Test |
Storing Temperature | 22 Degrees |
Shelf Life | 6 Months |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

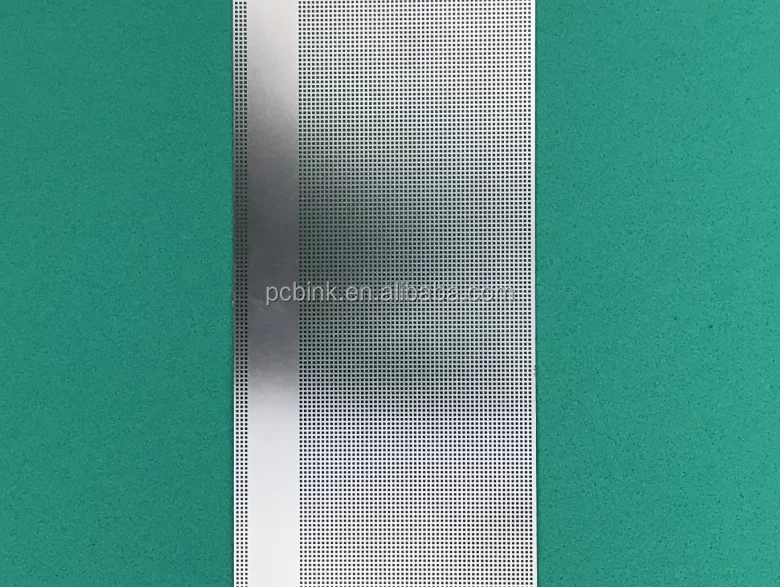

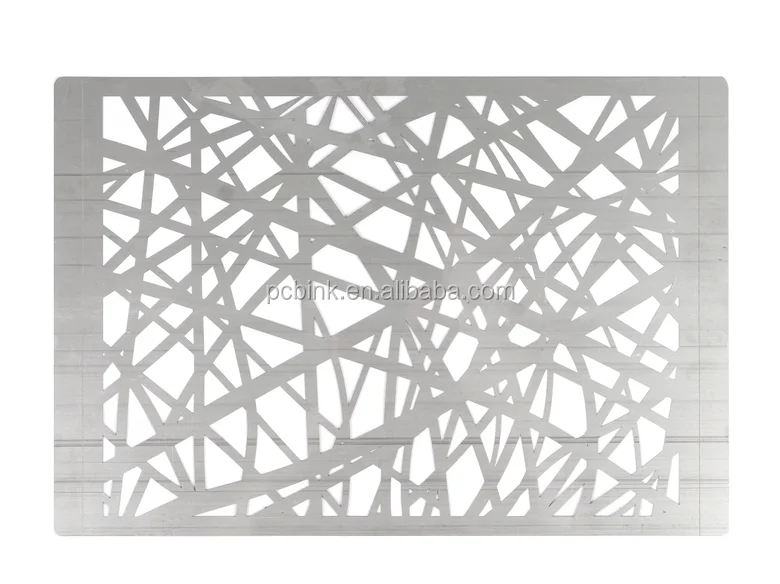

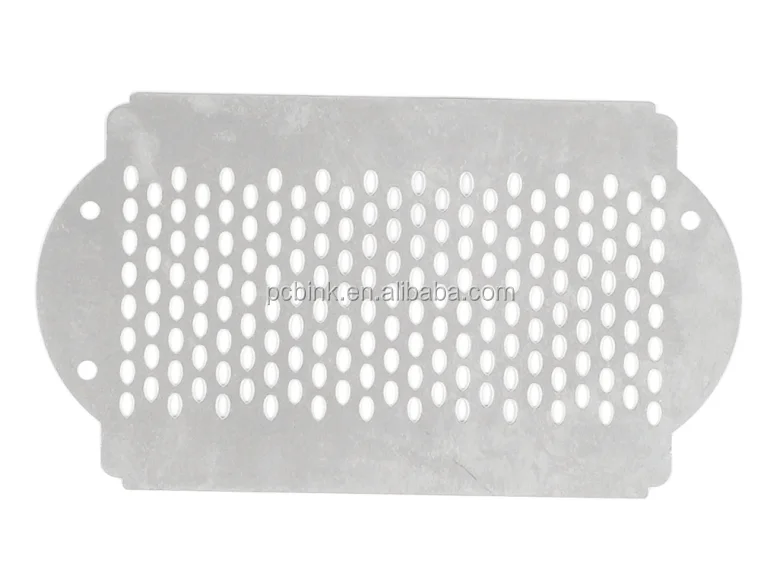

LB-1600UV is specially used in the surface protection of aluminum products, stainless steel when they are being through CNC
process.
A: Feature Introduction
Technical Feature
Color
Blue
Viscosity
VT-04F、25℃
75±10PS，the viscosity can be adjusted according to customers’ request
Fineness
Grindometer
≤5μm
Hardness
Pencil hardness tester
≥3H
Shelf life
At 25℃ for 6 months
B: Operation Procedure
Procedure
Content
（1）Pre-treatment
of substrate
To treat the substrate with scrubbing-machine：
Acid treatment→Polish-brush→Washing→Drying→Dust removing
（2）Spraying
To manually or automatically spray after diluting with thinner.
（3） Drying
Stoving: Tunnel oven, to irradiate with ultra-violet UV tubes: 5～7 kilowatt
Time: 2-3 minutes
（4）Hardness
Pencil Hardness: 3～4H
（5）Adhesion
3M Adhesive tape: ≥ 4B
（6）Stripping
1. Aluminum product-- Stripping solution: 60% of nitric acid solution, stripping time: 150-200 seconds;
2. Stainless steel-- 5% of NaOH solution, temperature: 80±2℃, stripping time: 5-8 minutes.
Matters need attention：
1. To fully stir till it’s well-proportioned before using it.
2. To use it up within24 hours after diluting.
3. Parameters above are only for reference, the specific operation should be subject to samples.
process.
A: Feature Introduction
Technical Feature
Color
Blue
Viscosity
VT-04F、25℃
75±10PS，the viscosity can be adjusted according to customers’ request
Fineness
Grindometer
≤5μm
Hardness
Pencil hardness tester
≥3H
Shelf life
At 25℃ for 6 months
B: Operation Procedure
Procedure
Content
（1）Pre-treatment
of substrate
To treat the substrate with scrubbing-machine：
Acid treatment→Polish-brush→Washing→Drying→Dust removing
（2）Spraying
To manually or automatically spray after diluting with thinner.
（3） Drying
Stoving: Tunnel oven, to irradiate with ultra-violet UV tubes: 5～7 kilowatt
Time: 2-3 minutes
（4）Hardness
Pencil Hardness: 3～4H
（5）Adhesion
3M Adhesive tape: ≥ 4B
（6）Stripping
1. Aluminum product-- Stripping solution: 60% of nitric acid solution, stripping time: 150-200 seconds;
2. Stainless steel-- 5% of NaOH solution, temperature: 80±2℃, stripping time: 5-8 minutes.
Matters need attention：
1. To fully stir till it’s well-proportioned before using it.
2. To use it up within24 hours after diluting.
3. Parameters above are only for reference, the specific operation should be subject to samples.
