Product Overview

Description



WELCOME








CNC Vertical Gear Slotting machine BK5010
THE MAIN PERFORMANCE CHARACTERISTICS:

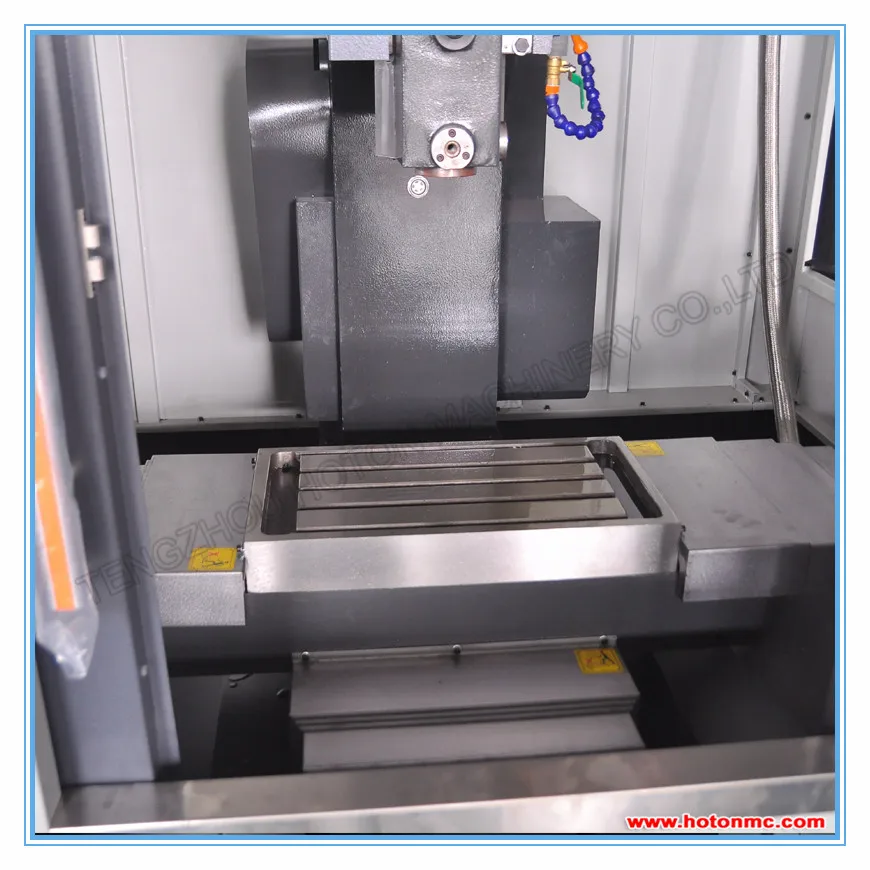

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and
rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be
adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

APPLICATION:
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,Enterprise suitable for single or small batch production.
Product main technical parameters:



Model
Unit
BK5010
BK5018
Ram maximum slotting length
mm
120
180
Ram stroke adjustment
mm
60
80
Ram per minute motion data
N/min
60-320
46/60/90
Work table size
mm
600x500
600X320
Table travel (X,Y)
mm
300(x)
460X320
The knife head supporting hole axis to distance of upright column for arm
mm
-
400
The knife head supporting hole end to
table working distance
mm
240-720
480
X to the motor torque
N.M
6
6
Y to the motor torque
N.M
3.5
6
Fast moving
X(m/min)
Y(m/min)
5
5
5
Ball screw X
/
FFZD3205-3/P4
FFZD3205-3/P4
Ball screw Y
/
FFZD3205-3/P4
FFZD3205-3/P4
The main motor power
Kw
1.5kw
1.5/2/2.2
Machine weight
kg
1500
1500
Dimension LxWxH
mm
2000x1800x1950
-
