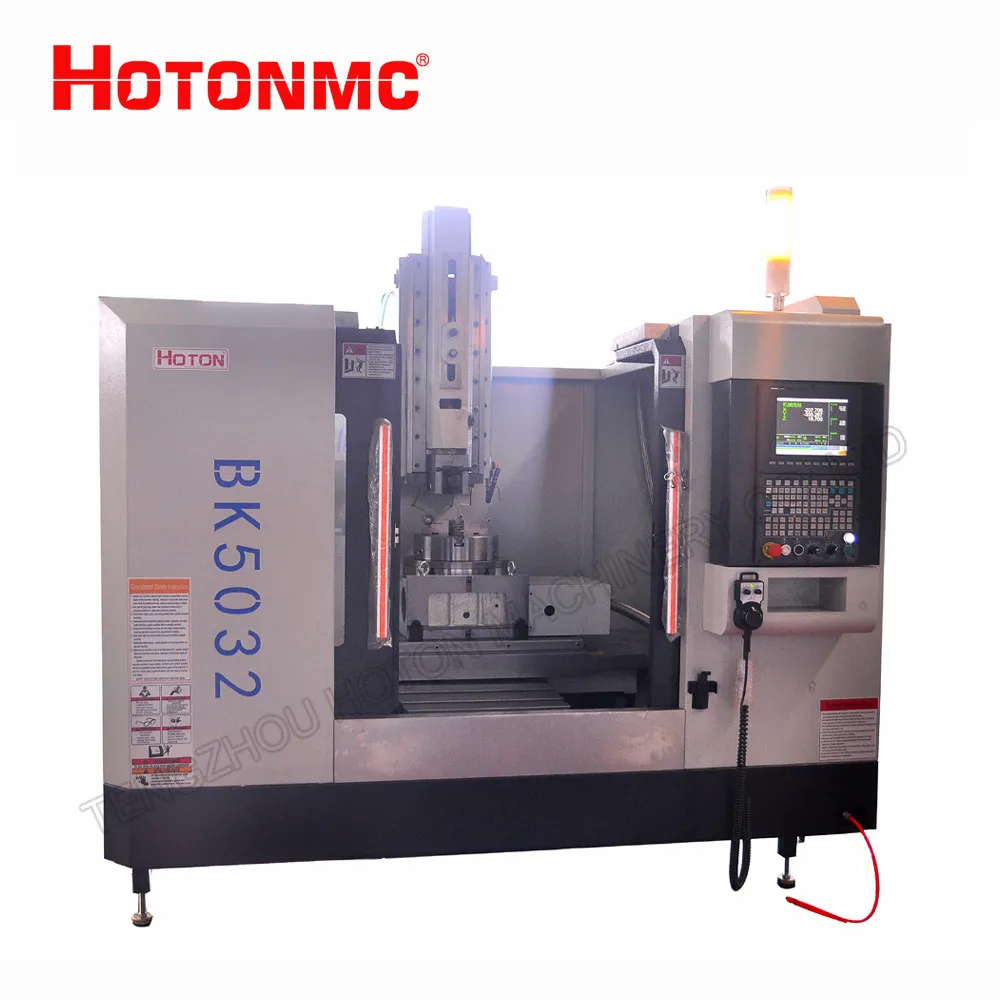

Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine
Slotting Machine BK5030 CNC Slotting Machine

Slotting Machine BK5030 CNC Slotting Machine

Share on (1600069769210):


Price:

Quantity:


Product Overview

Description



WELCOME








The main performance characteristics:

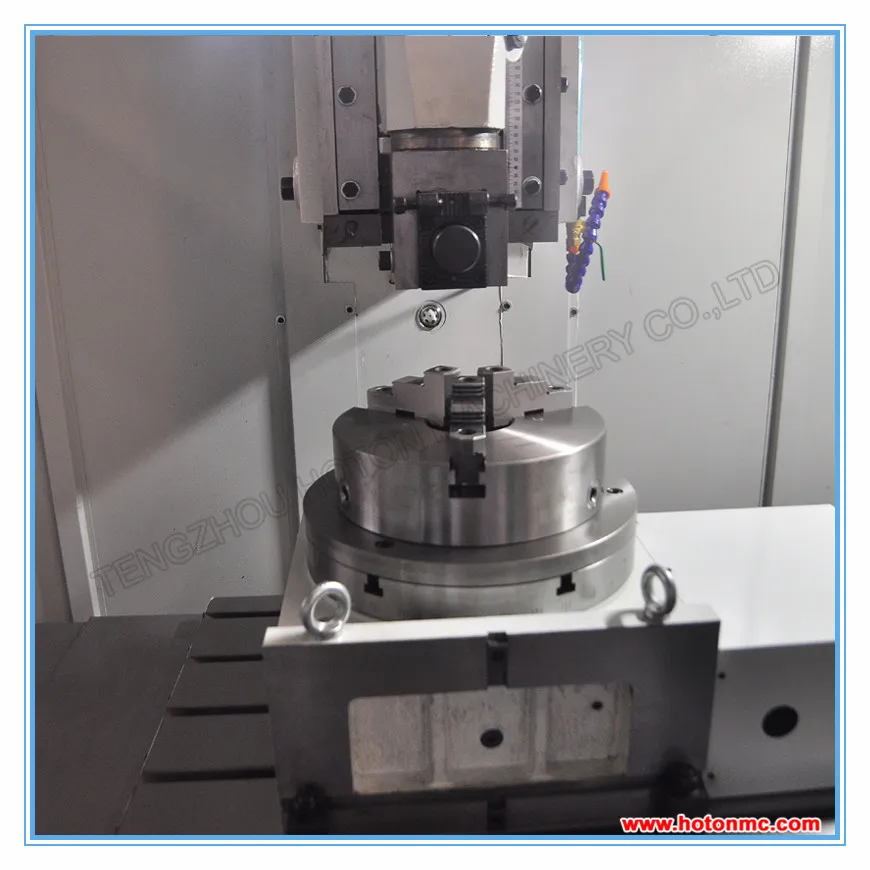

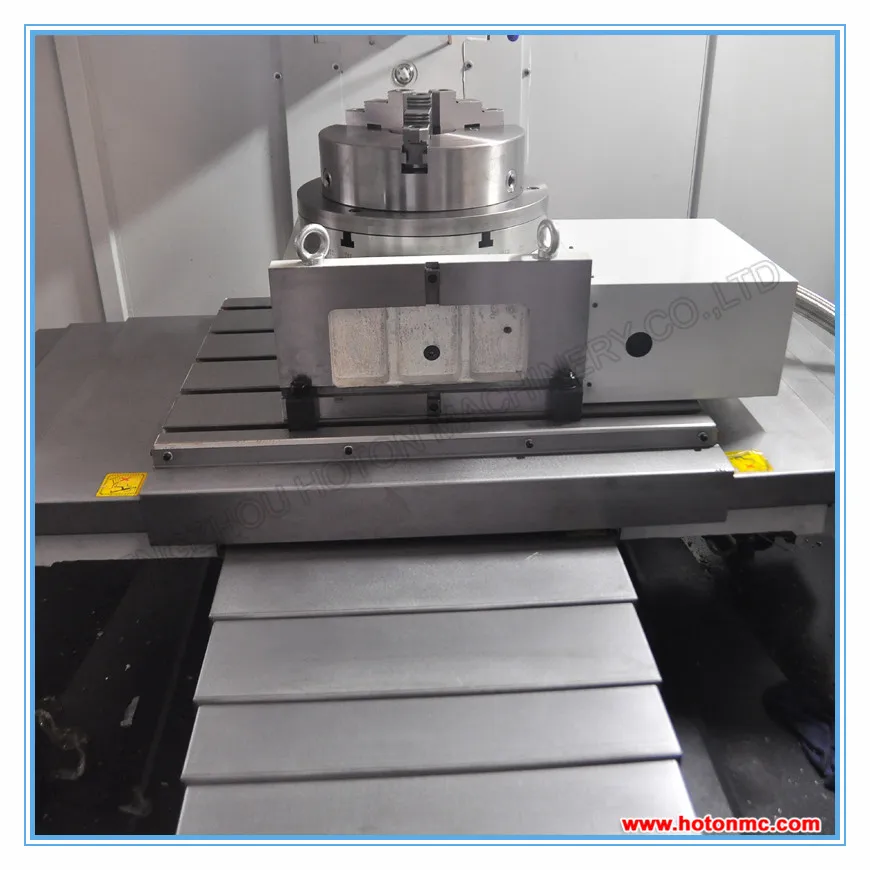

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and
rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be
adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application:
This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
Product main technical specifications:



Specification
unit
BK5030
BK5032
Max length of ram
mm
300
320
Ram adjustment stroke
mm
75
315
Number of ram movements
N/min
30-180
20/32/50/80
Worktable size
mm
550x405
600x320
Table travel X/Y
mm
280x330
620x560
The distance between the axis of the tool bearing hole and the forearm of the column
mm
505
600
The distance between the end face of the cutter head support hole and the table
mm
540
590
X direction motor torque
(N.M.)
6
7.7
Y direction motor torque
(N.M.)
6
7.7
Fast moving
X(m/min)
5
5
Y(m/min)
5
5
Ball screw(X)
FFZD3205-3/P4
FFZD3205-3/P4
Ball screw(Y)
FFZD3205-3/P4
FFZD3205-3/P4
Main motor power
kw
3.7
4
Machine weight (approx.) Kg
kg
3500
3700
Packing size
mm
2600/2300/2450
2800/2400/2550
