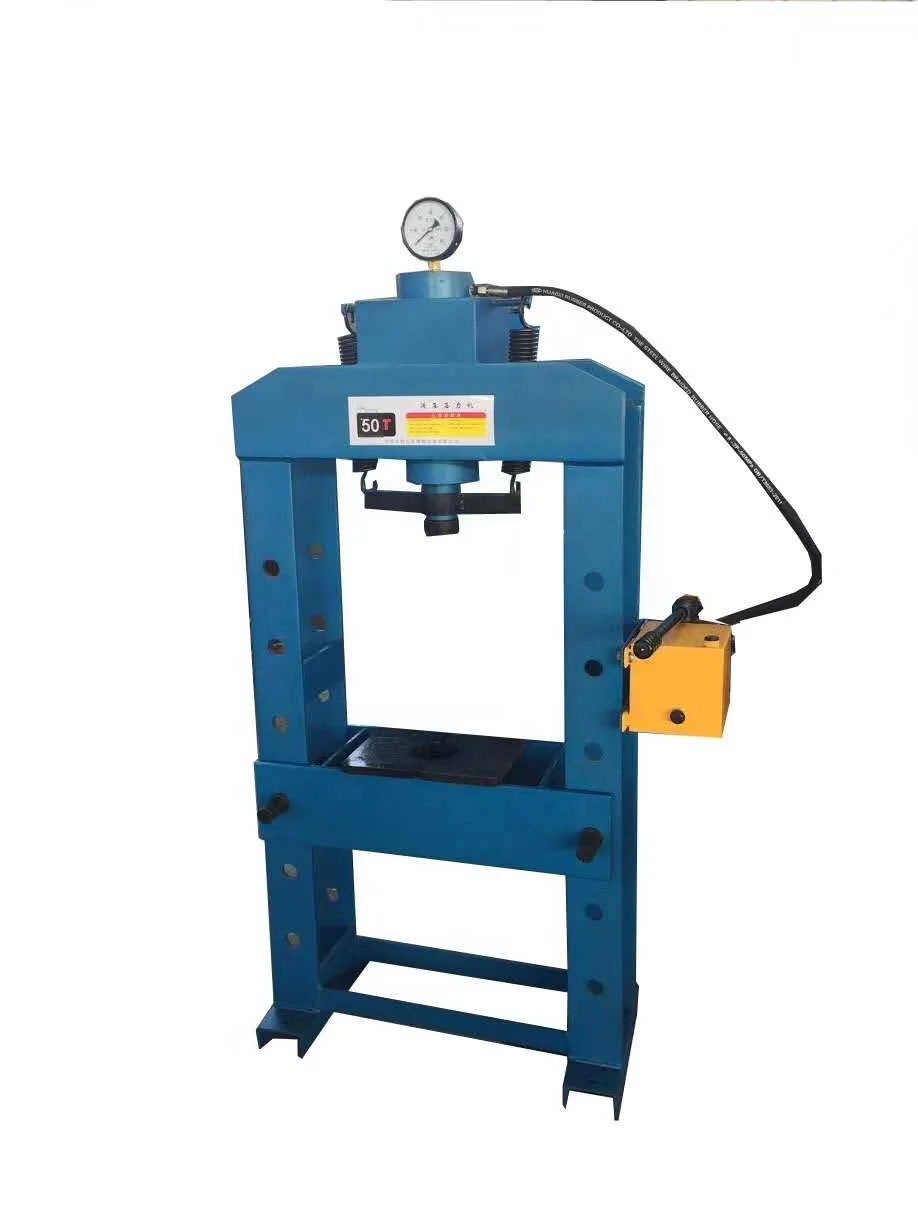

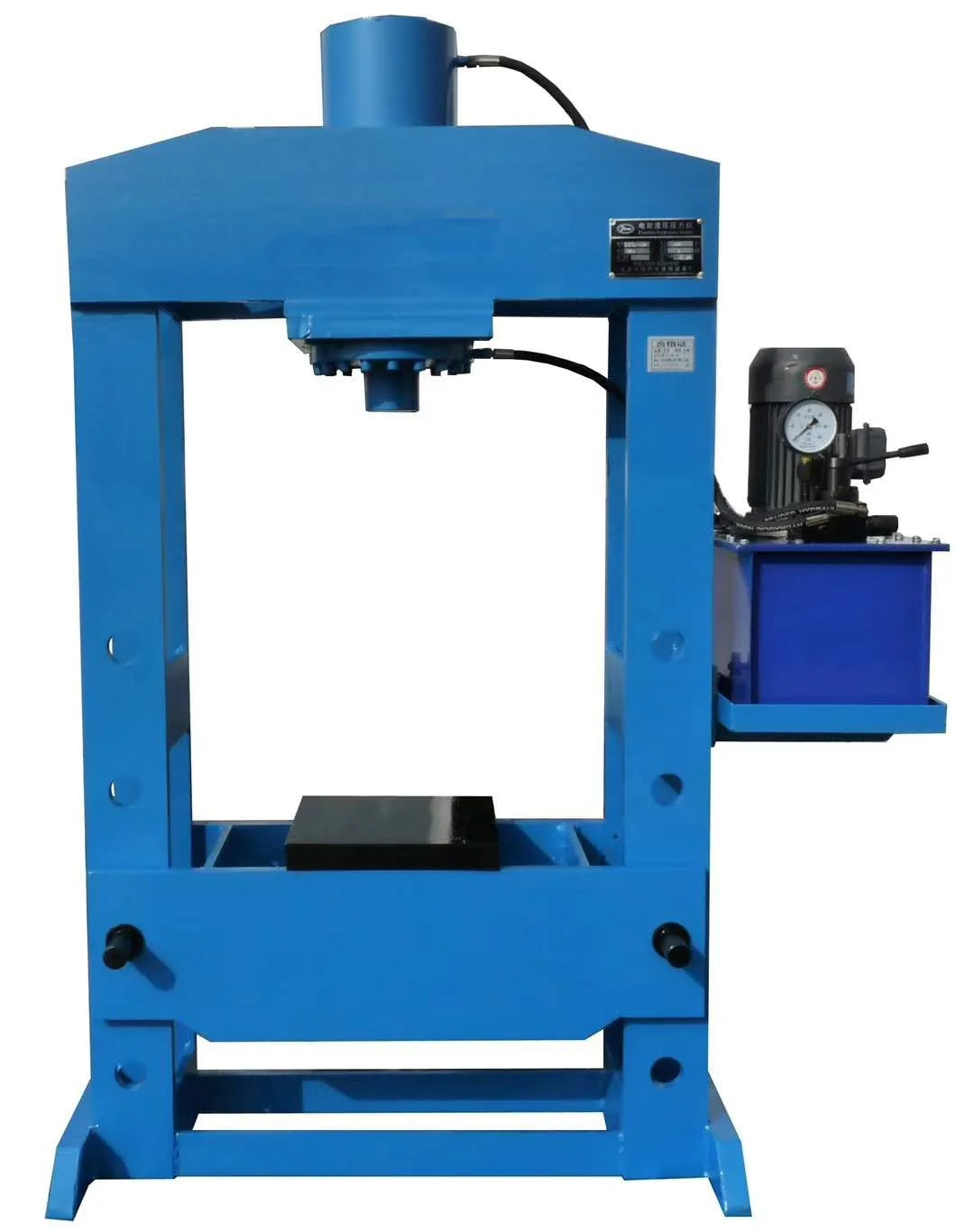

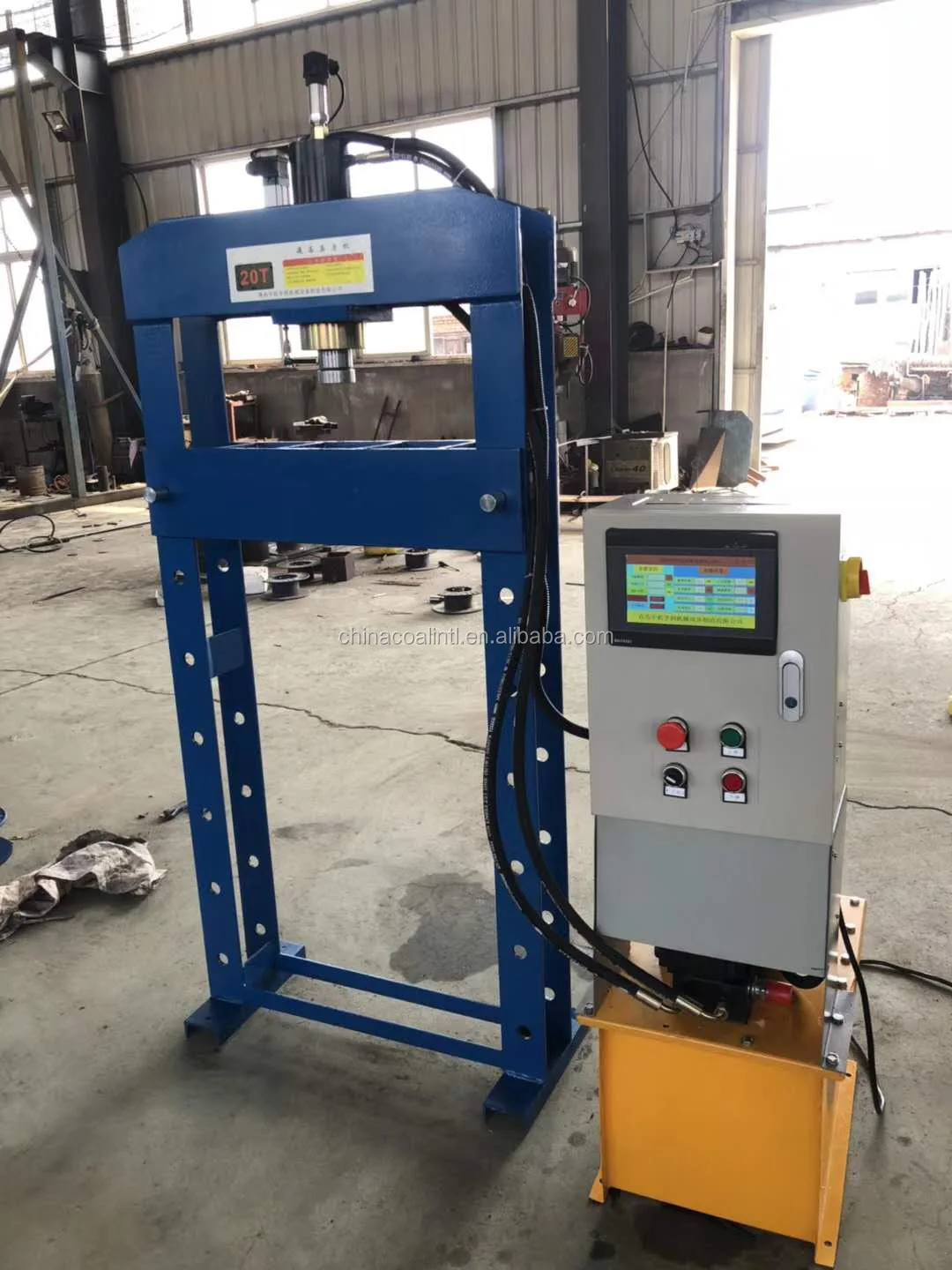

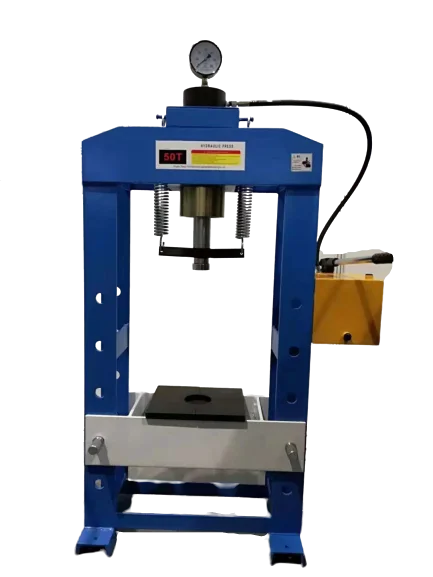

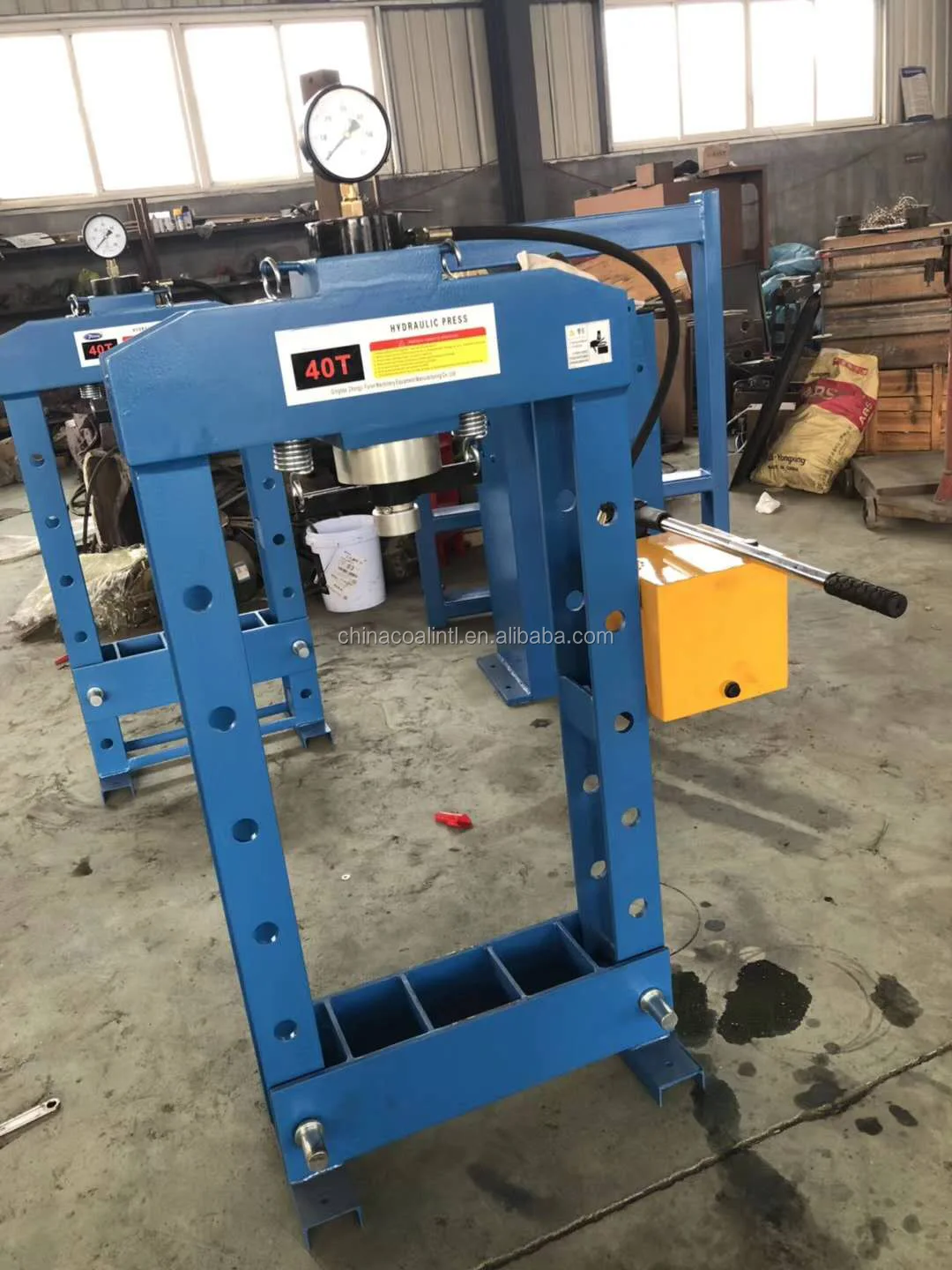

Небольшой Электрический/Ручной пресс для демонтажа 20/30/50 тонн, гидравлический козловой пресс H типа
- Category: Hydraulic Press >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (1600070191185):
Product Overview
Description
Product Description

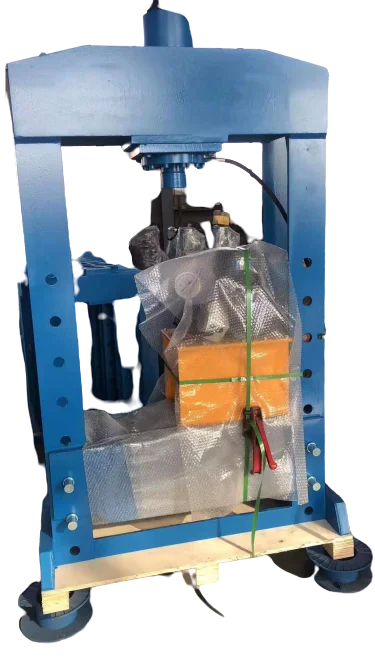

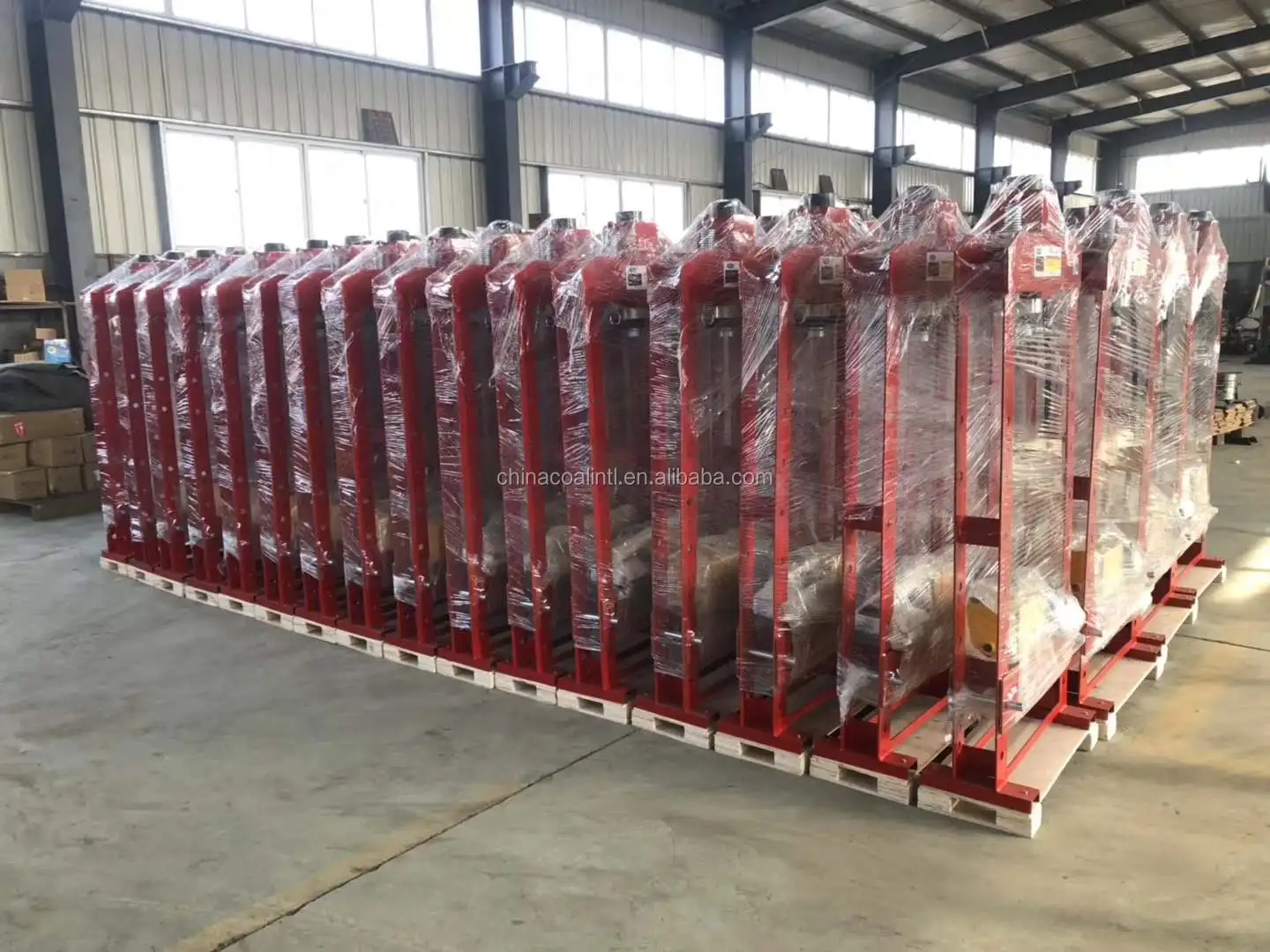

Packaging & Shipping

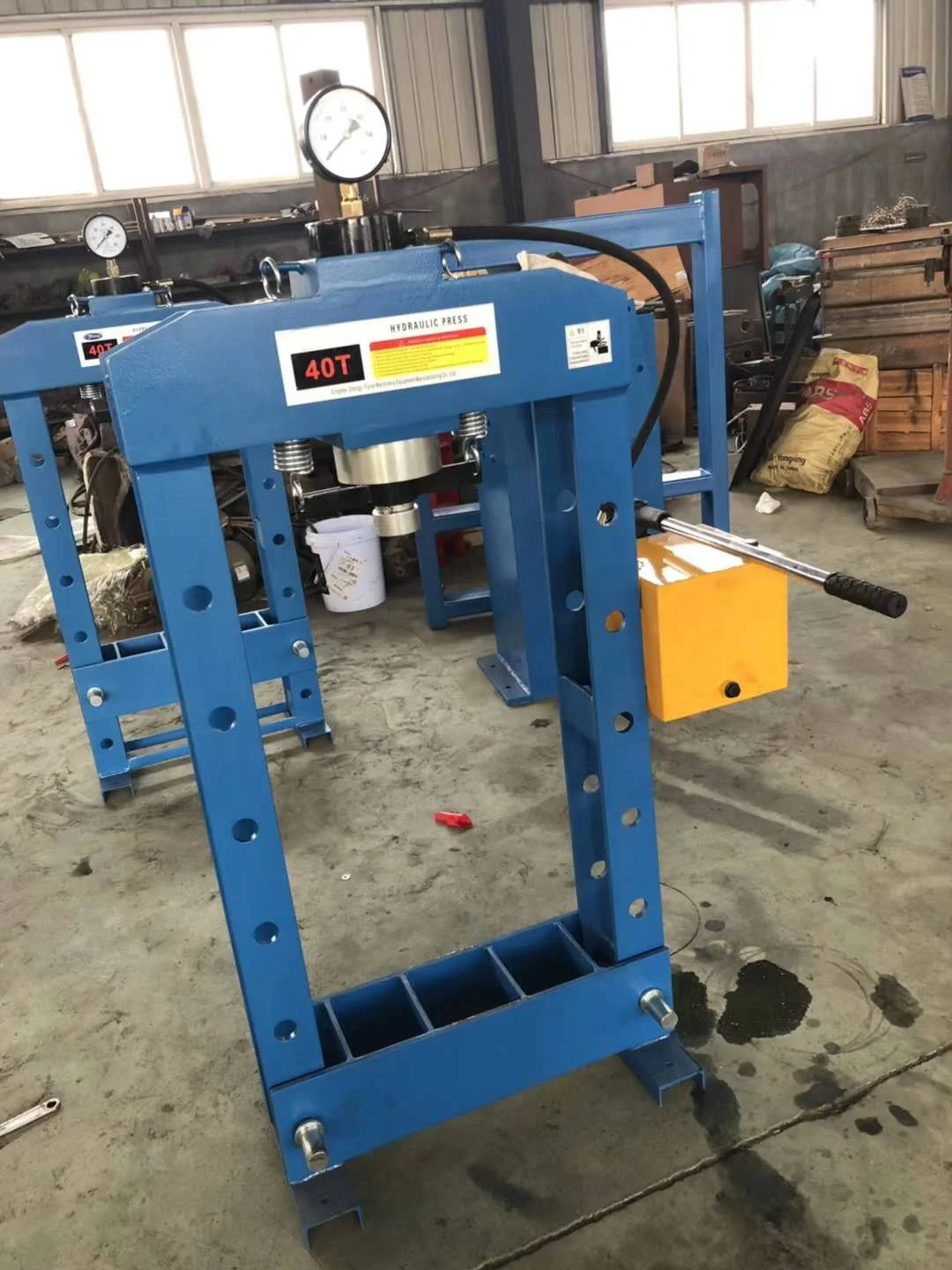

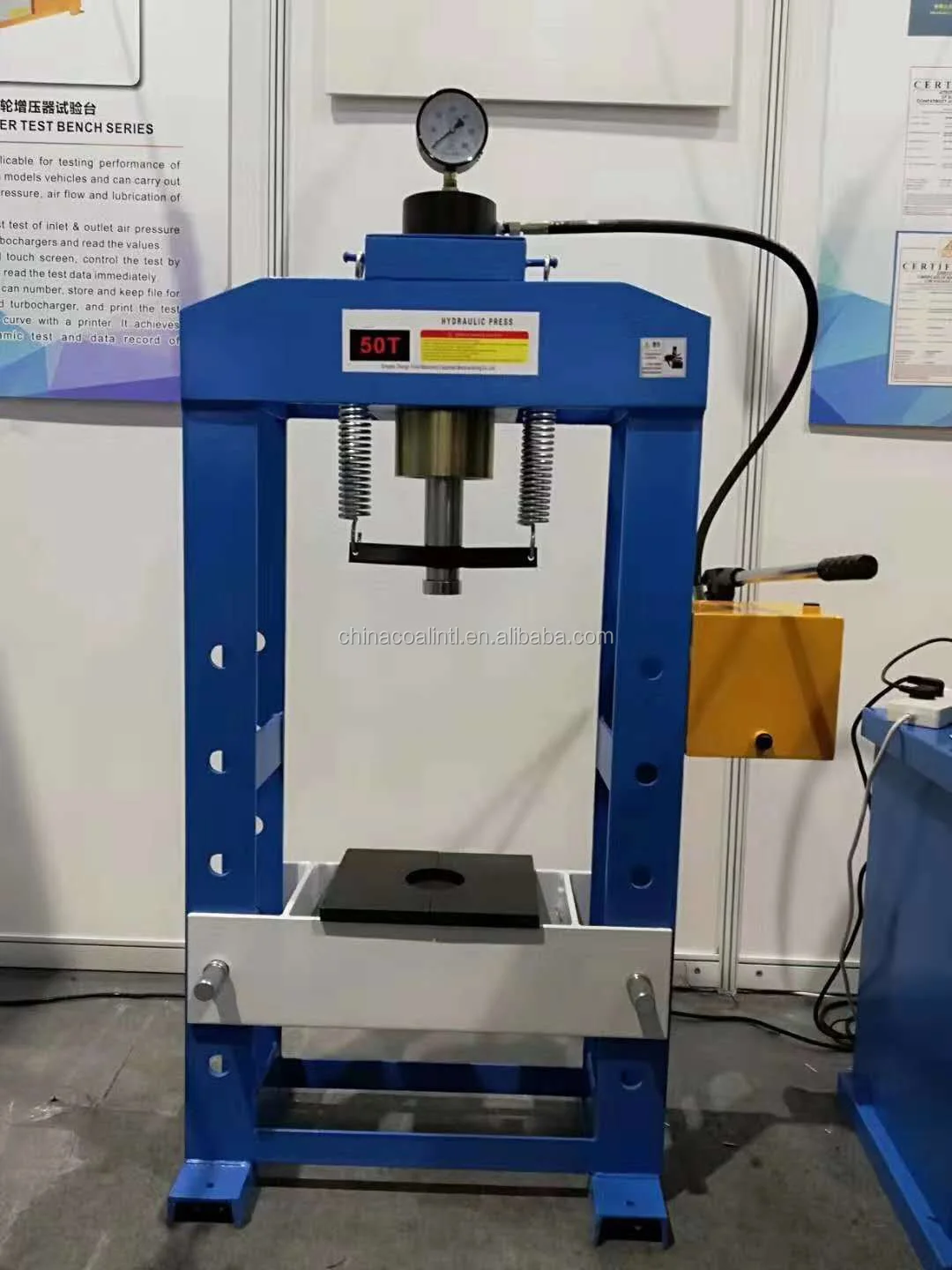

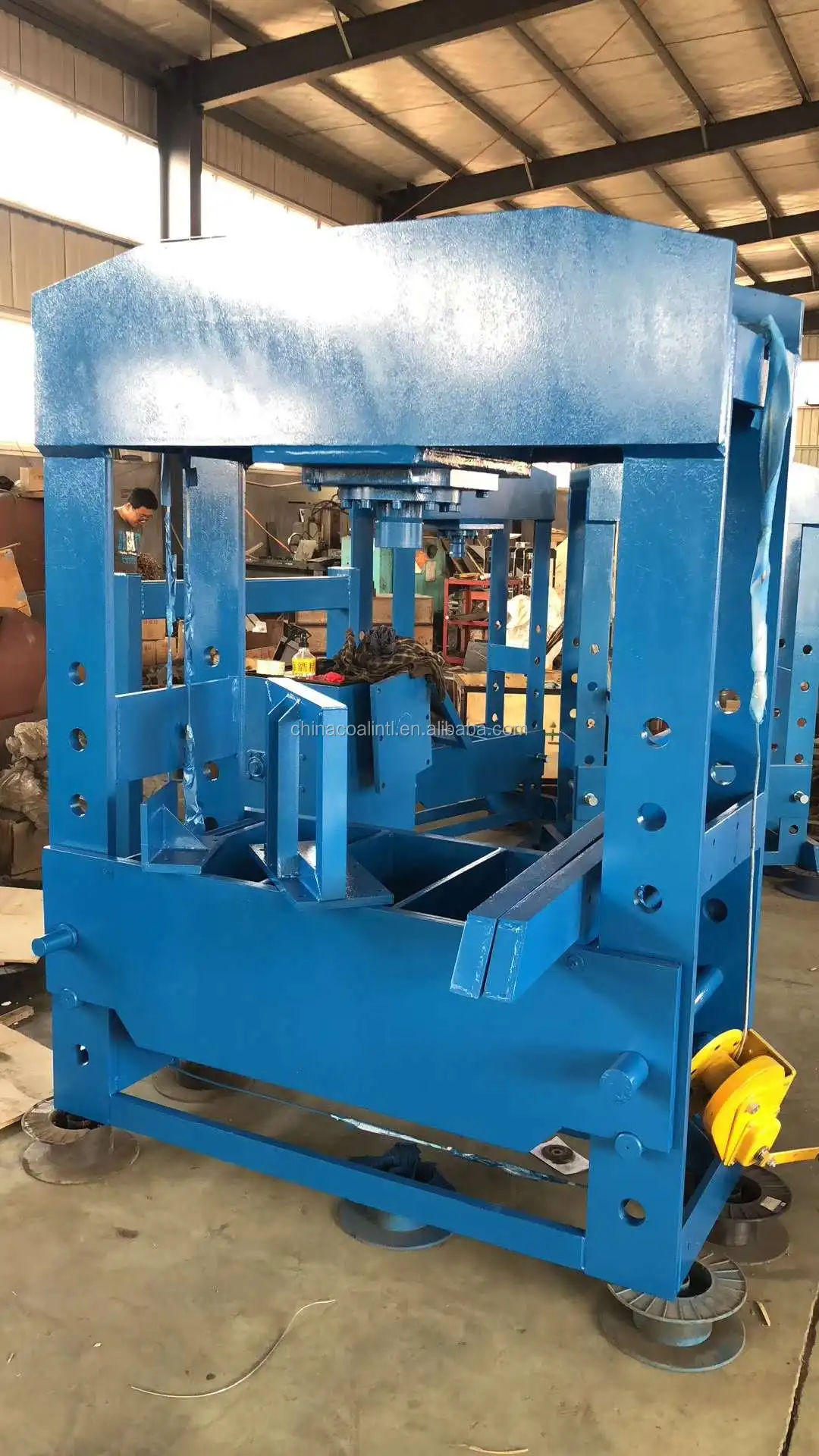

1.Heavy-duty H-frame constructed of high-grade steel Q235 & Q345 and built to exacting standards for quality and durability;
2.Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability;
3.Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility;
4.Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift;
5.Built in ISO certified facilities and engineered with 17 years OEM experience team.
Our Services
Model | Capacity | Pressure | Travel | Table size | Dimension | Weight |
ZM-10 | 100kn | 25mpa | 200mm+200mm | 260x300mm | 1000x450x1200mm | 220kgs |
ZM-20 | 200kn | 25mpa | 200mm+250mm | 260x300mm | 1160x550x1500mm | 320kgs |
ZM-30 | 300kn | 25mpa | 200mm+270mm | 300x400mm | 1160x550x1600mm | 420kgs |
ZM-50 | 500kn | 25mpa | 220mm+405mm | 480x360mm | 1500x650x1950mm | 980kgs |
ZM-63 | 630kn | 30mpa | 220mm+405mm | 400x500mm | 1500x650x1950mm | 1020kgs |
ZM-100 | 1000kn | 30mpa | 220mm+405mm | 440x980mm | 1730x730x2200mm+730x630x960mm | 1220kgs |
ZM-150 | 1500kn | 30mpa | 220mm+405mm | 440x980mm | 1730x730x2200mm+730x630x960mm | 1350kgs |
ZM-200 | 2000kn | 30mpa | 300mm+405mm | 500x980mm | 1800x800x2200mm+830x730x1260mm | 2200kgs |
ZM-250 | 2500kn | 30mpa | 300mm+405mm | 500x980mm | 1800x800x2250mm+830x730x1260mm | 2400kgs |
