Y41 Series Electric Steel Plate Deep drawing mini C Frame single column hydraulic press for straightening & pressing

Product Overview

Description

Y41 Series Electric Steel Plate Deep drawing mini C Frame single column hydraulic press for straightening & pressing



Technical Performance

1.  Totally European design, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material;

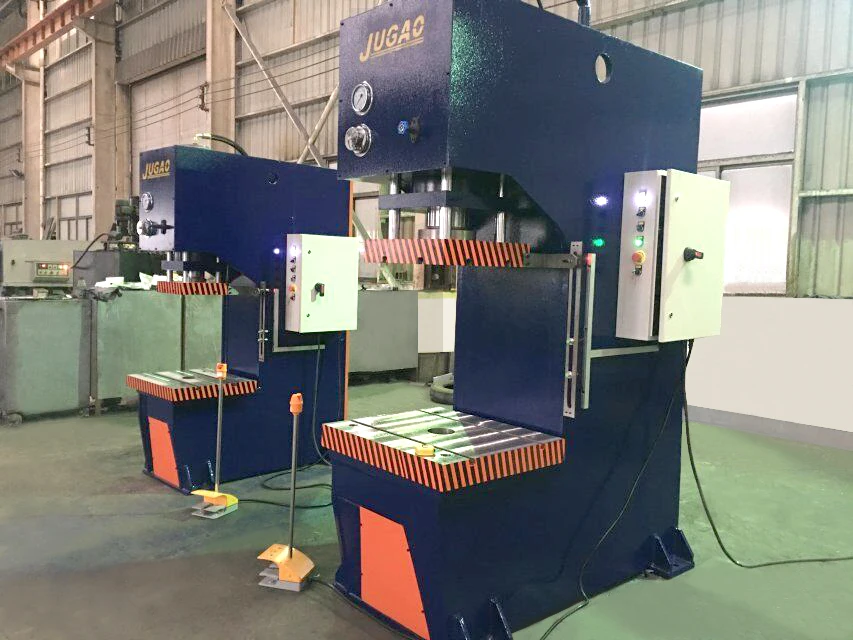

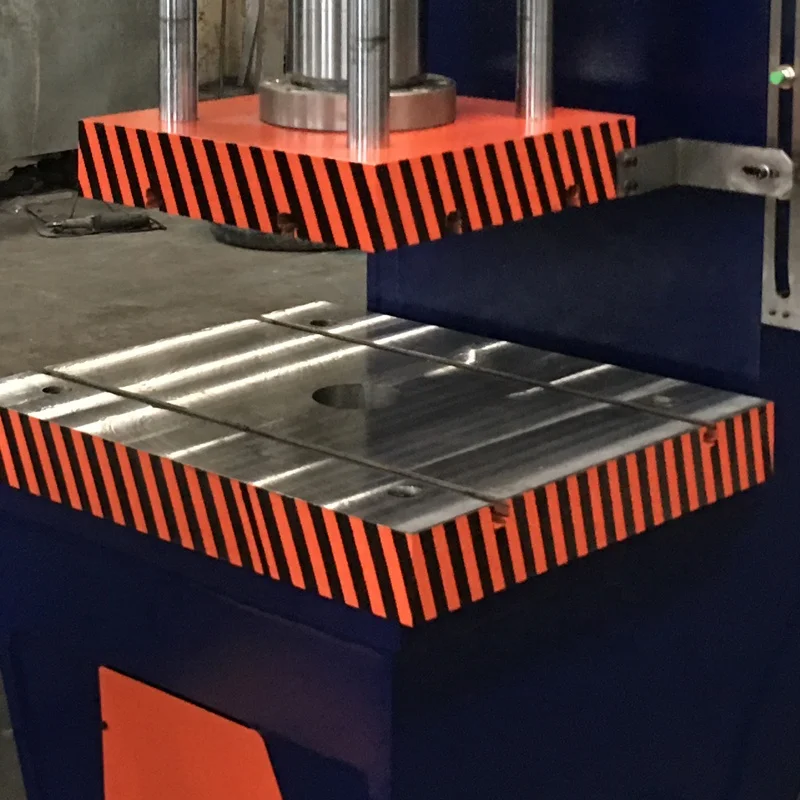

2.  Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots;


3.  Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise;


4.  Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany;

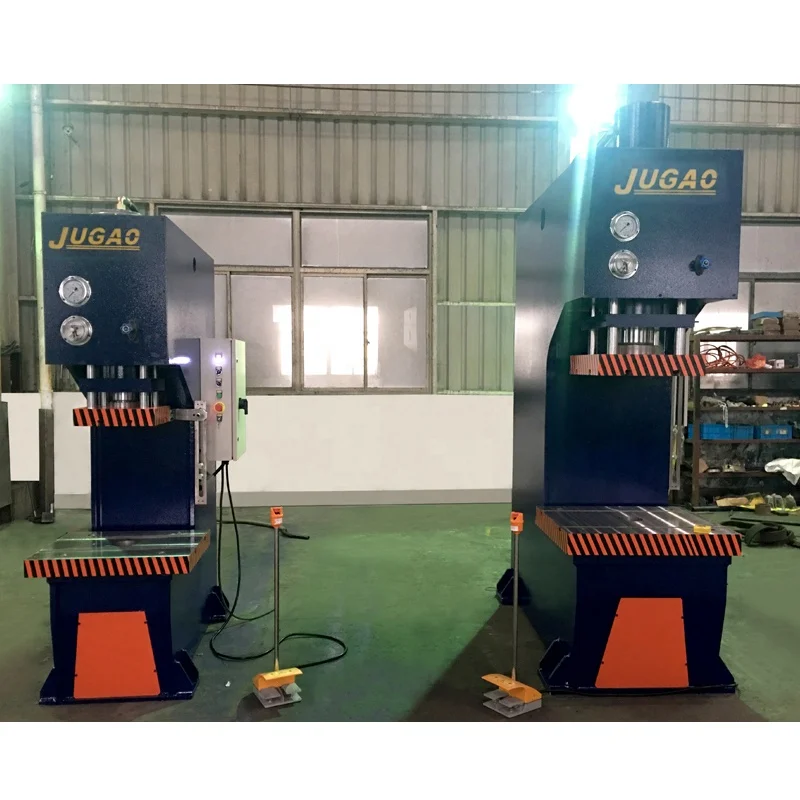

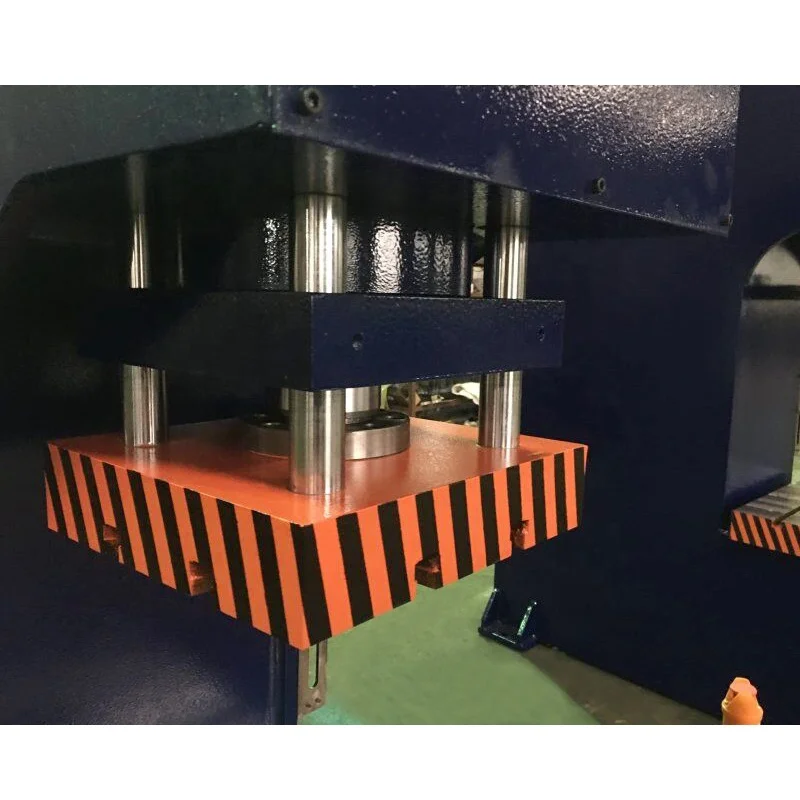

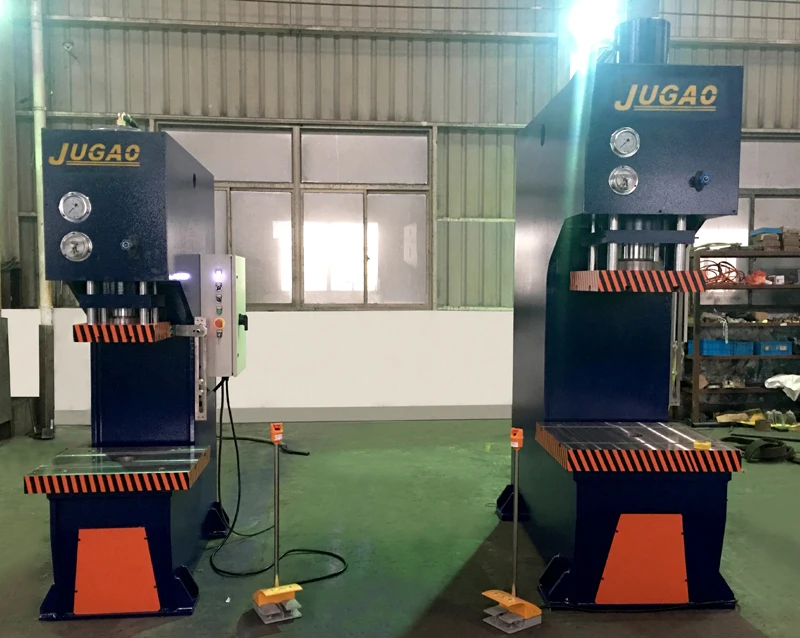

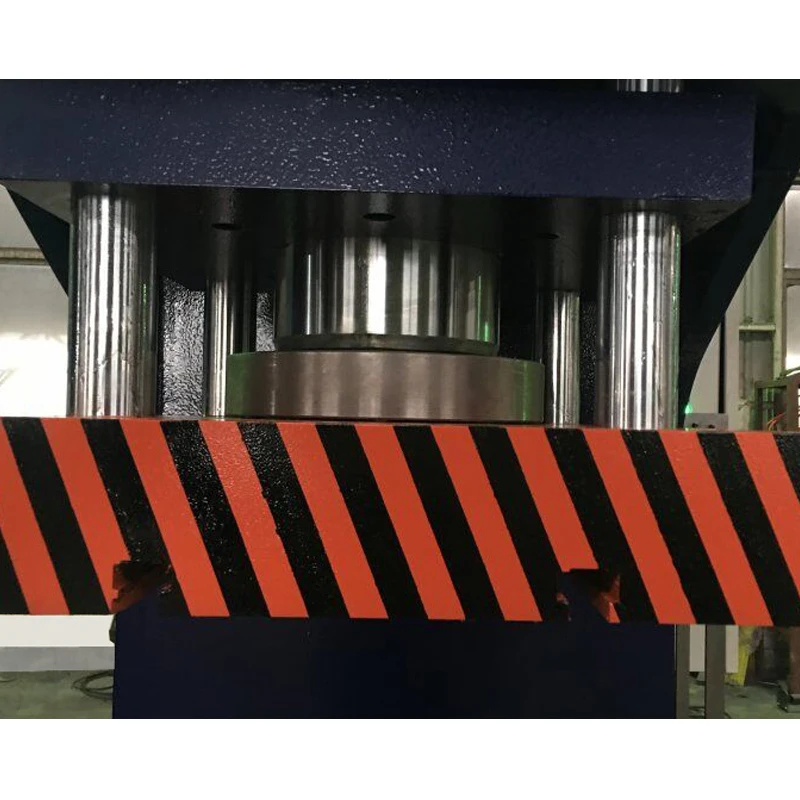

5.  Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain;


6.  Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic;

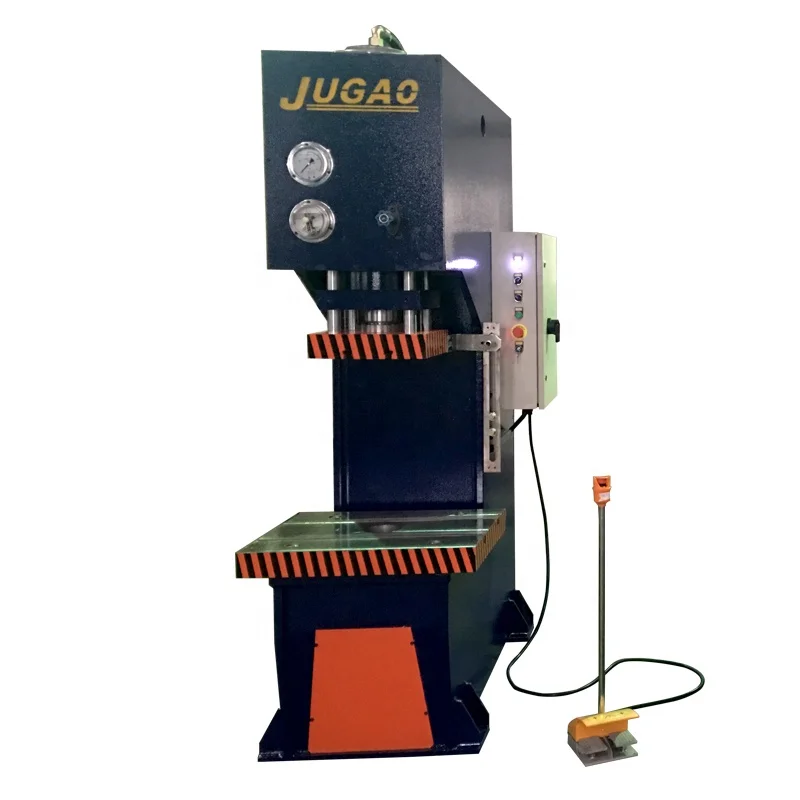

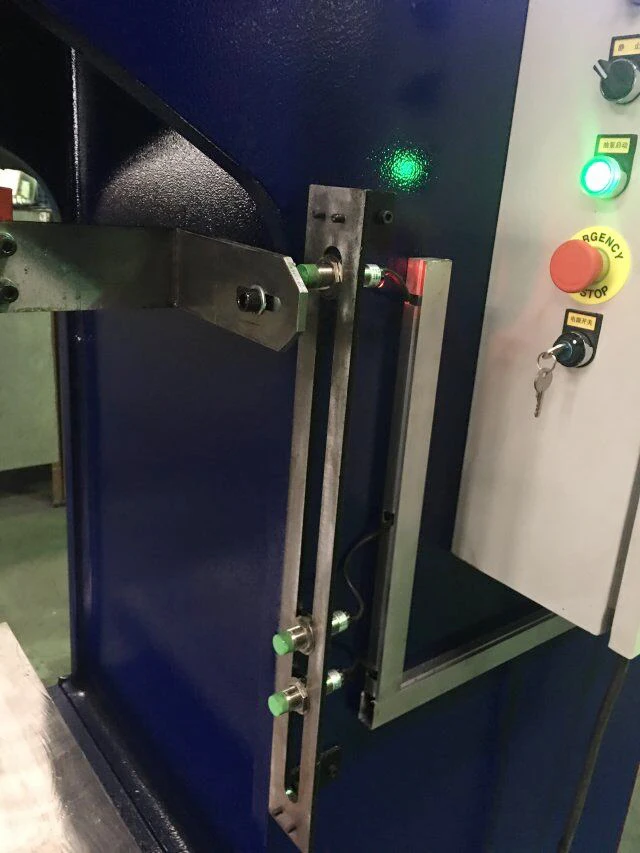

7.  PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds;


8.  The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA;


9.  Dual control you can select to use:

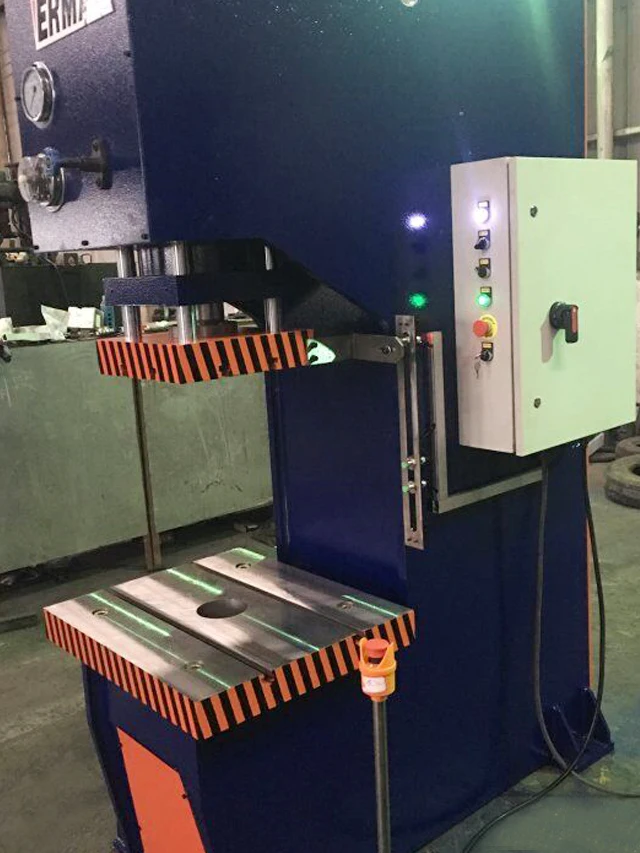

        # Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.

        # Movable single-hand pedal switch



Parameter

Y41				Unit	Y41-20T	Y41-30T	Y41-40T	Y41-60T	Y41-80T	Y41-100T
Nominal Pressure				KN	200	300	400	600	800	1000
Hydraulic Cushion		Capacity		KN	800	100	120	150	350	400
(Optional)		Stroke		mm	120	120	120	140	150	150
Max.Pressure				Map	12.8	16	22.2	24.3	25.8	25.8
Max.Opening Height				mm	500	550	600	630	720	800
Slide Stroke				mm	350	350	400	500	500	500
Accuracy Error Range Between Tables				mm	±0.01
Speed of Slide	Return Speed			mm/sec	70	75	70	80	80	80
	Working Speed			mm/sec	5~8	10~15	4~8	8~10	4~6	8~12
	Advance Speed			mm/sec	55	50	55	65	60	65
Throat depth				mm	280	300	320	350	350	350
Dimensions of Die Table			F.B.	mm	500	500	550	620	650	650
			L.R.	mm	600	600	700	700	700	800
Ram Table Dimensions			F.B.	mm	350	350	380	450	450	480
			L.R.	mm	450	450	500	500	550	600
Worktable Height				mm	710	710	710	720	730	730
Work Table Opening Diameter				mm	Φ100	Φ100	Φ100	Φ140	Φ150	Φ150
Hydraulic cylinder diameter				mm	Φ125	Φ140	Φ150	Φ180	Φ200	Φ250
Motor Power				Kw	4	4	5.5	7.5	7.5	7.5
Overall Dimension	L.R.			mm	1050	1100	1250	1450	1500	1550
	F.B			mm	650	650	780	800	950	1050
	Height			mm	2100	2150	2300	2500	2560	2800
Machine Weight				Kgs	1700	2200	3100	4600	5300	6800
