High quality 1000 ton hydraulic deep drawing press machine price
- Category: Hydraulic Press >>>
- Supplier: Zhongyou Heavy Industry Machinery Equipment Co. Ltd.
Share on (1600252118897):
Product Overview
Description

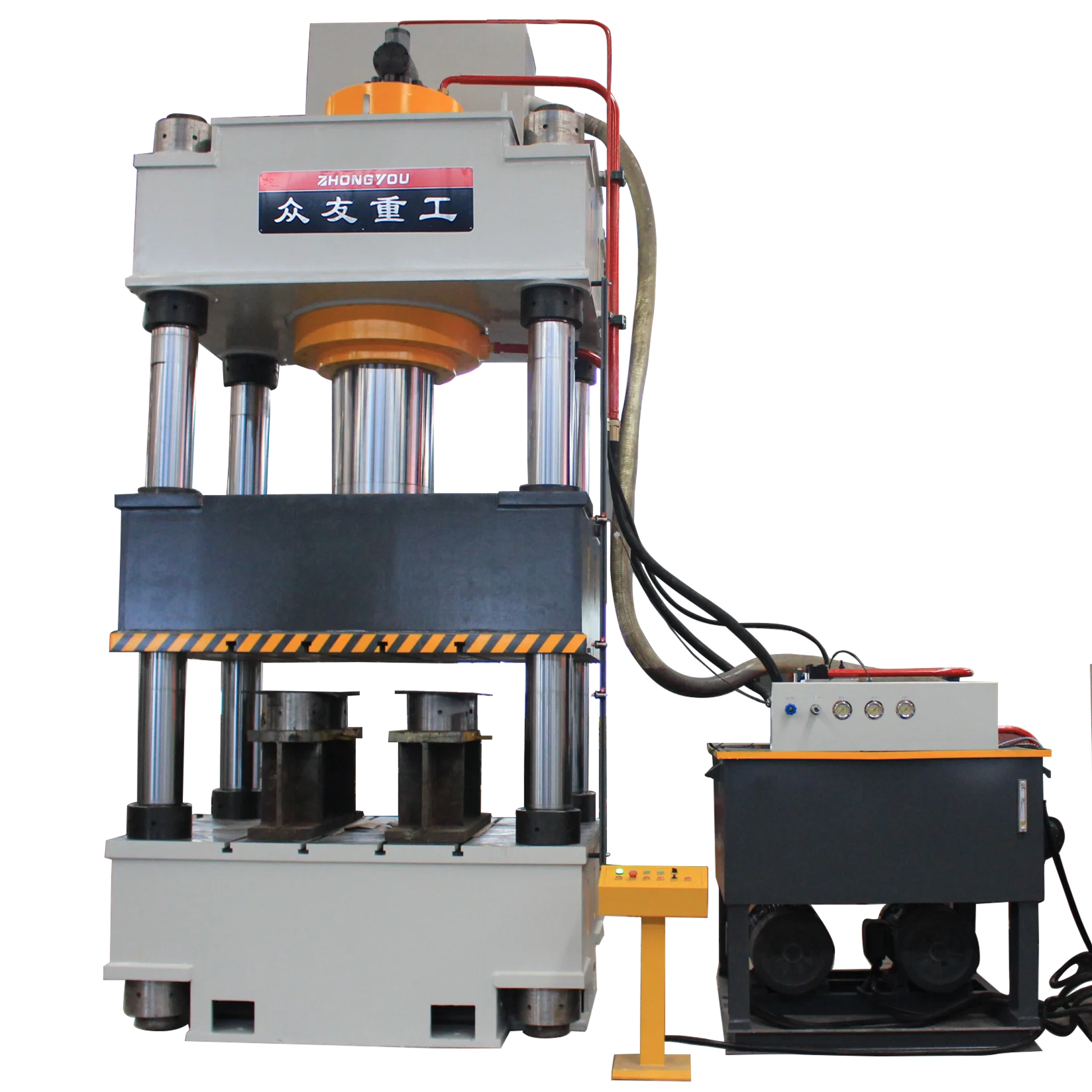

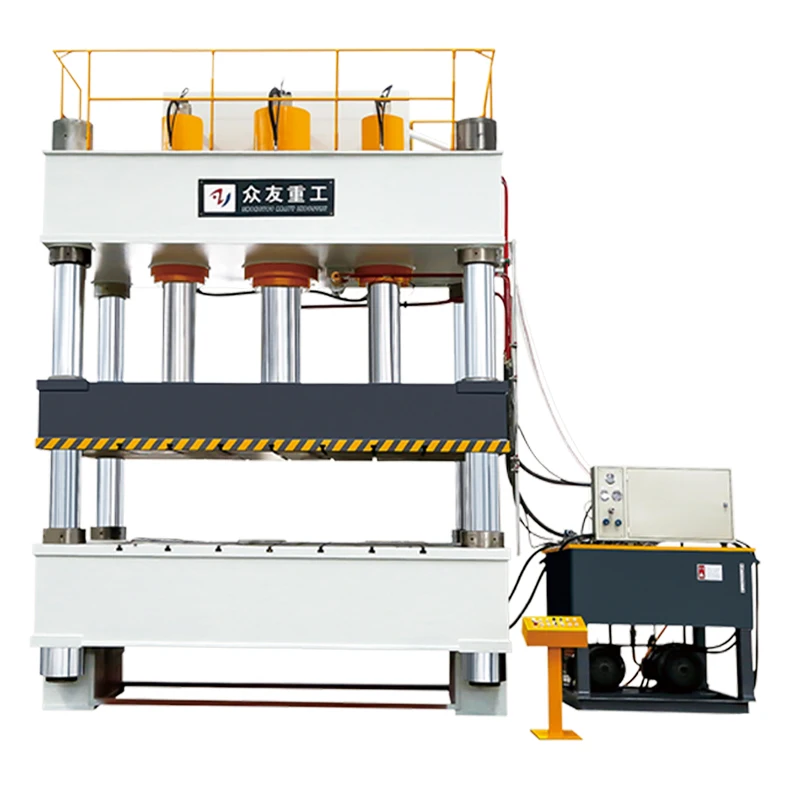

High quality 1000 ton hydraulic deep drawing press machine price
Products Description
This series of hydraulic presses are suitable for drawing,bending,flanging,cold extruding,blanking precesses for materials,straightening,press-in and forming precesses for powder and abrasive preducts,plastic and insulation materials.
main features:

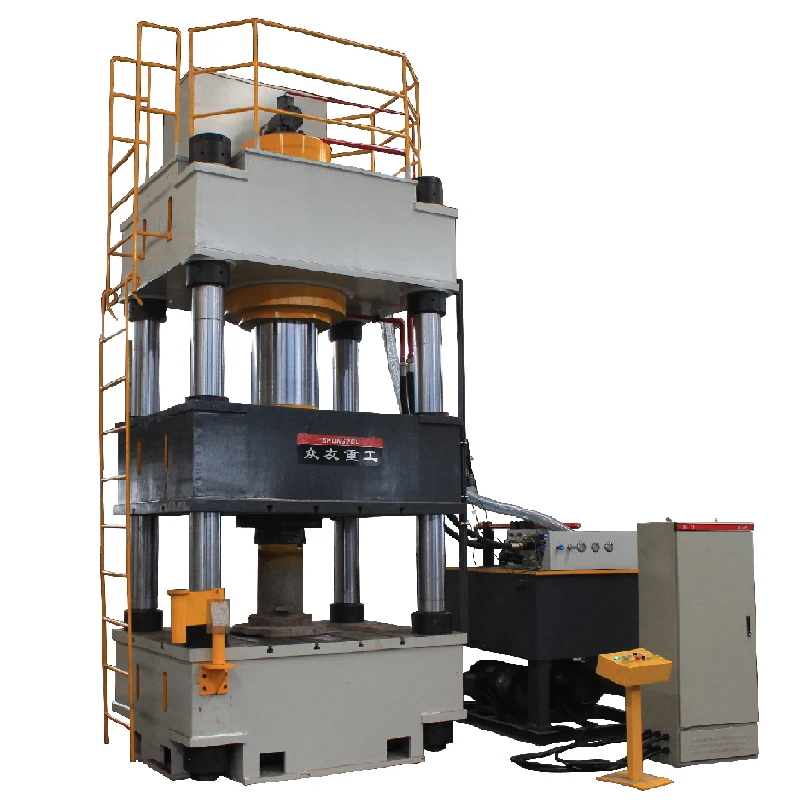

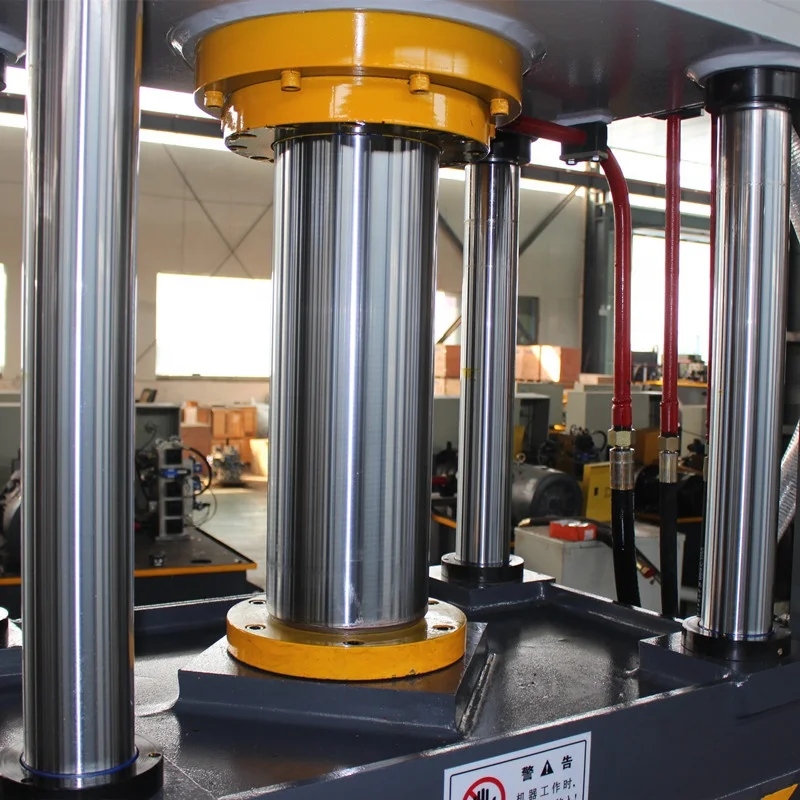

1. Three beam four column structures, specially made large countertops according to customer needs,different tonnage.2. Hydraulic control adopts to insert set valve integrated system, decrease let out Point, Movement reliability, durable and long life span.
3. It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time.\t
4. The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realize manual, semi-automatic, automatic 3 operate form.

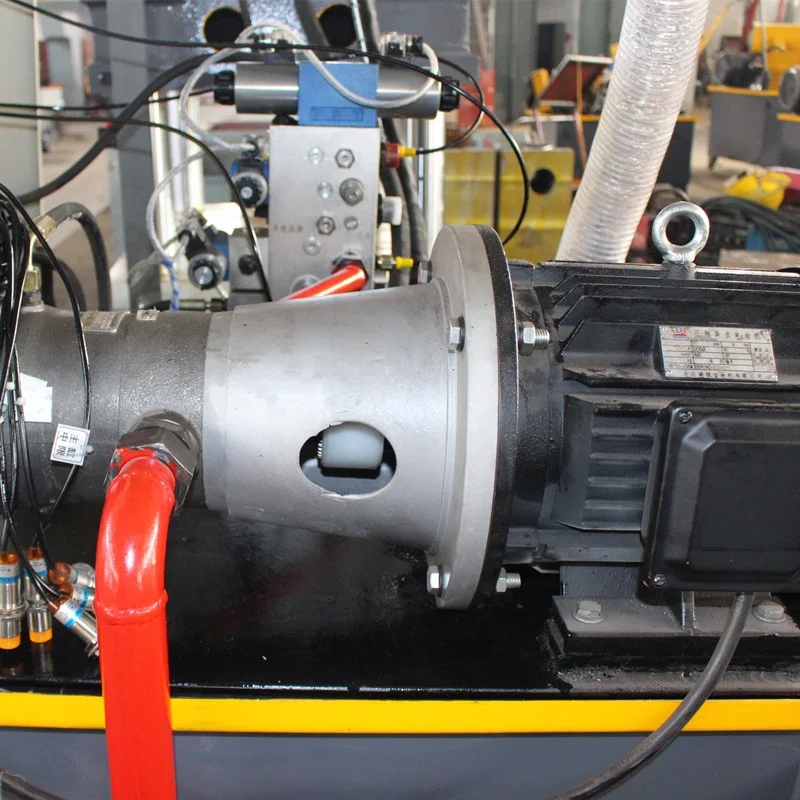

Details Images
1000 ton hydraulic press optional accessories or features:
1. Mobile workbench
2. Blanking buffer device;
3 photoelectric protection device;
4. Travel, pressure, speed digital display, numerical control device;
5. Touch industrial display;

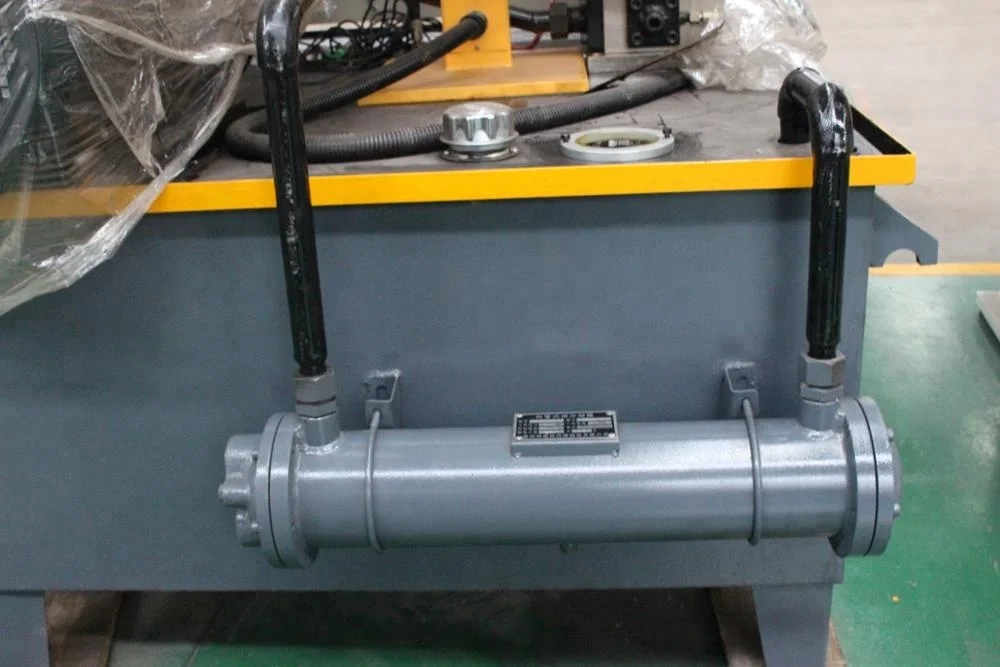

6. Hydraulic system heating and cooling device;
7. The feeding device;
8. Slide safety plugs;
9. mold heating and temperature control device;
10. PLC programmable controller.
1. Mobile workbench
2. Blanking buffer device;
3 photoelectric protection device;
4. Travel, pressure, speed digital display, numerical control device;
5. Touch industrial display;
6. Hydraulic system heating and cooling device;
7. The feeding device;
8. Slide safety plugs;
9. mold heating and temperature control device;
10. PLC programmable controller.
Product Paramenters
Parameters | Unit | YQ32-500 | YQ32-800 | YQ32-1000 |
Nominal Force | KN | 5000 | 8000 | 10000 |
System Pressure | Mpa | 25 | 25 | 25 |
Slider Max.opening height | mm | 1500 | 1800 | 1600 |
Slider effective stroke | mm | 900 | 1000 | 900 |
Effective worktable size（L.RxF.B) | mm | 1600*1600 | 1500*1500 | 1500*1500 |
Nominal force of upper ejection clinder | KN | 1000 | 1000 | 1000 |
strok of upper ejection cylinder | mm | 300 | 350 | 350 |
Slider descending speed | mm/s | 150 | 150 | 160 |
Slider pressing speed | mm/s | 10-22 | 10-20 | 10-20 |
Slider return speed | mm/s | 120 | 120 | 140 |
ps.All the Parameters of the Automatic Hydraulic power press machine can be customized according to the product you want to make.
Application
The hydraulic press machine is mainly used for the process of stretching, bending and forming of thin plates, and can also be used for plastic pressing, cold extrusion bending, forming correction and press fitting.

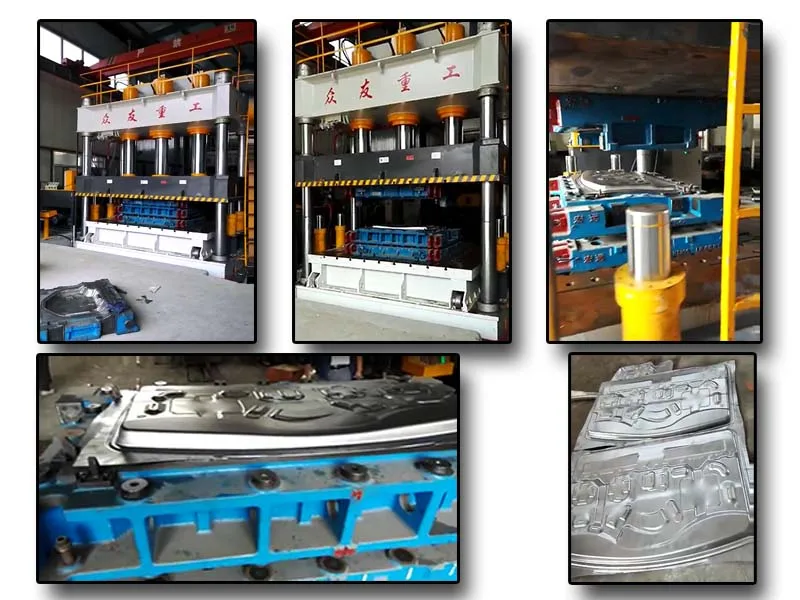

1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
4.Aluminum molding
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
4.Aluminum molding

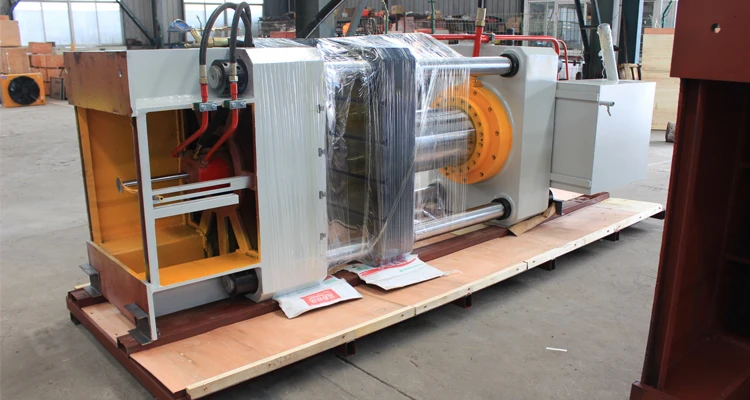

Product packaging
Packaging Details :
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,

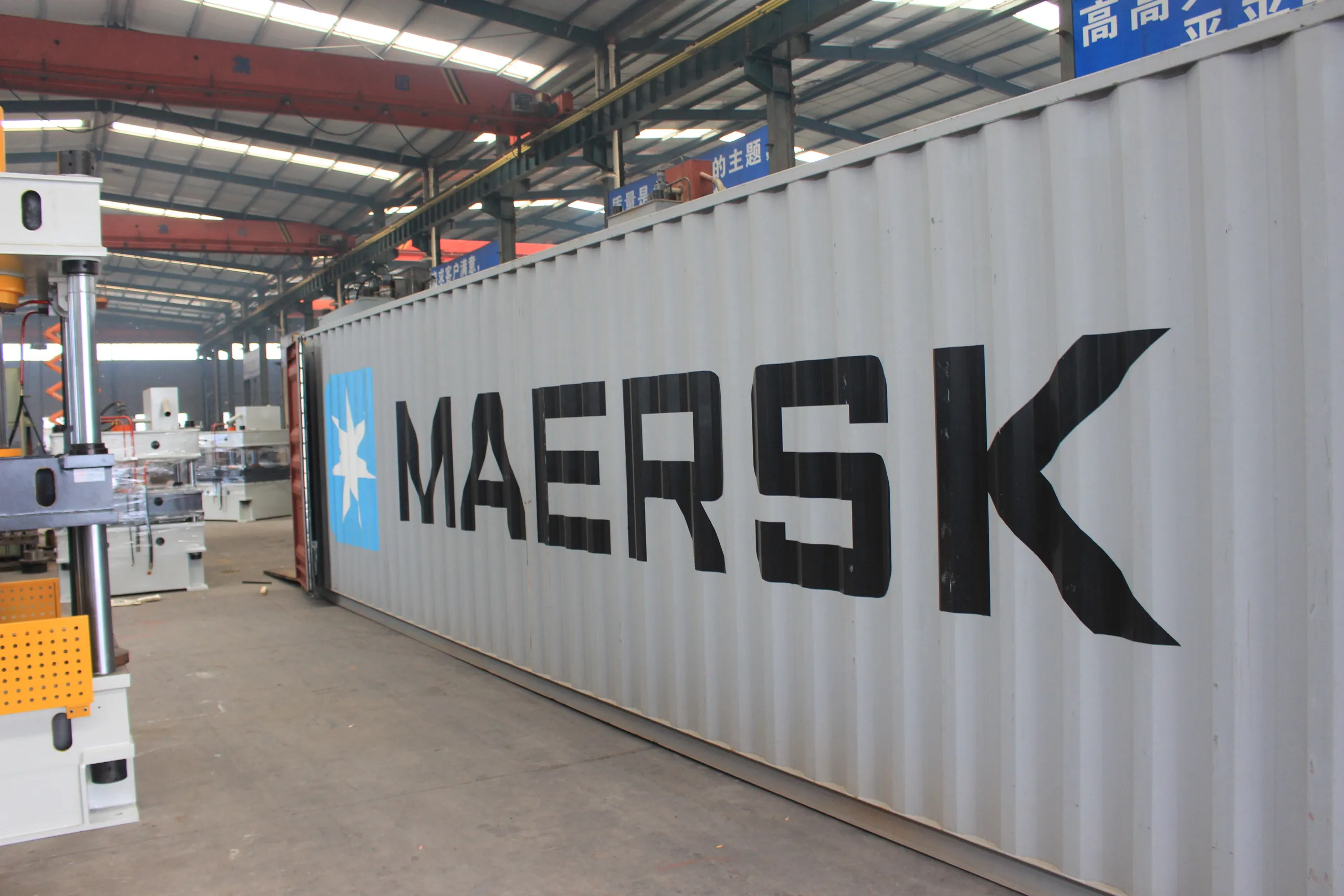

Exclusive container transport.
Delivery Time for 500T Hydraulic press Machine for Oil Filter:
Shipped in 30 days after payment
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for 500T Hydraulic press Machine for Oil Filter:
Shipped in 30 days after payment
Our service
Our services are divided into pre-sale, sale, sale three parts.
Pre-sale:
to provide detailed advice, as well as product introduction, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:
can support samples, support diversified payment methods, the production process transparent, standardized and quickly stocking.
After-sales:
support diversification guidance, training, voice and video images, and even overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Pre-sale:
to provide detailed advice, as well as product introduction, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:
can support samples, support diversified payment methods, the production process transparent, standardized and quickly stocking.
After-sales:
support diversification guidance, training, voice and video images, and even overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you
2: What's your main products of your company?
A: We specialized in hydraulic press Machine .we mainly produces various hydraulic presses forging press and auto maintenance equipment with advanced technology and equipment.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you
2: What's your main products of your company?
A: We specialized in hydraulic press Machine .we mainly produces various hydraulic presses forging press and auto maintenance equipment with advanced technology and equipment.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .
