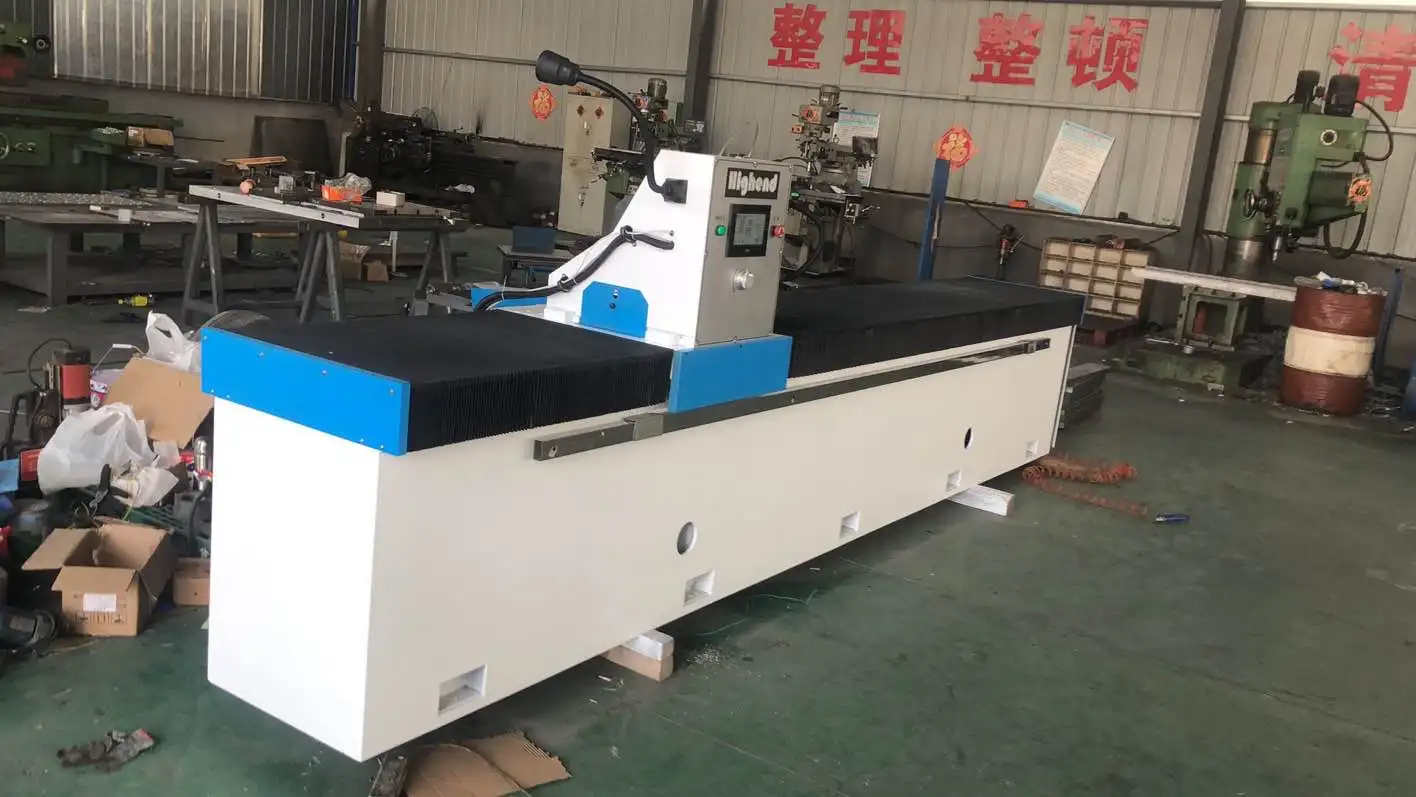

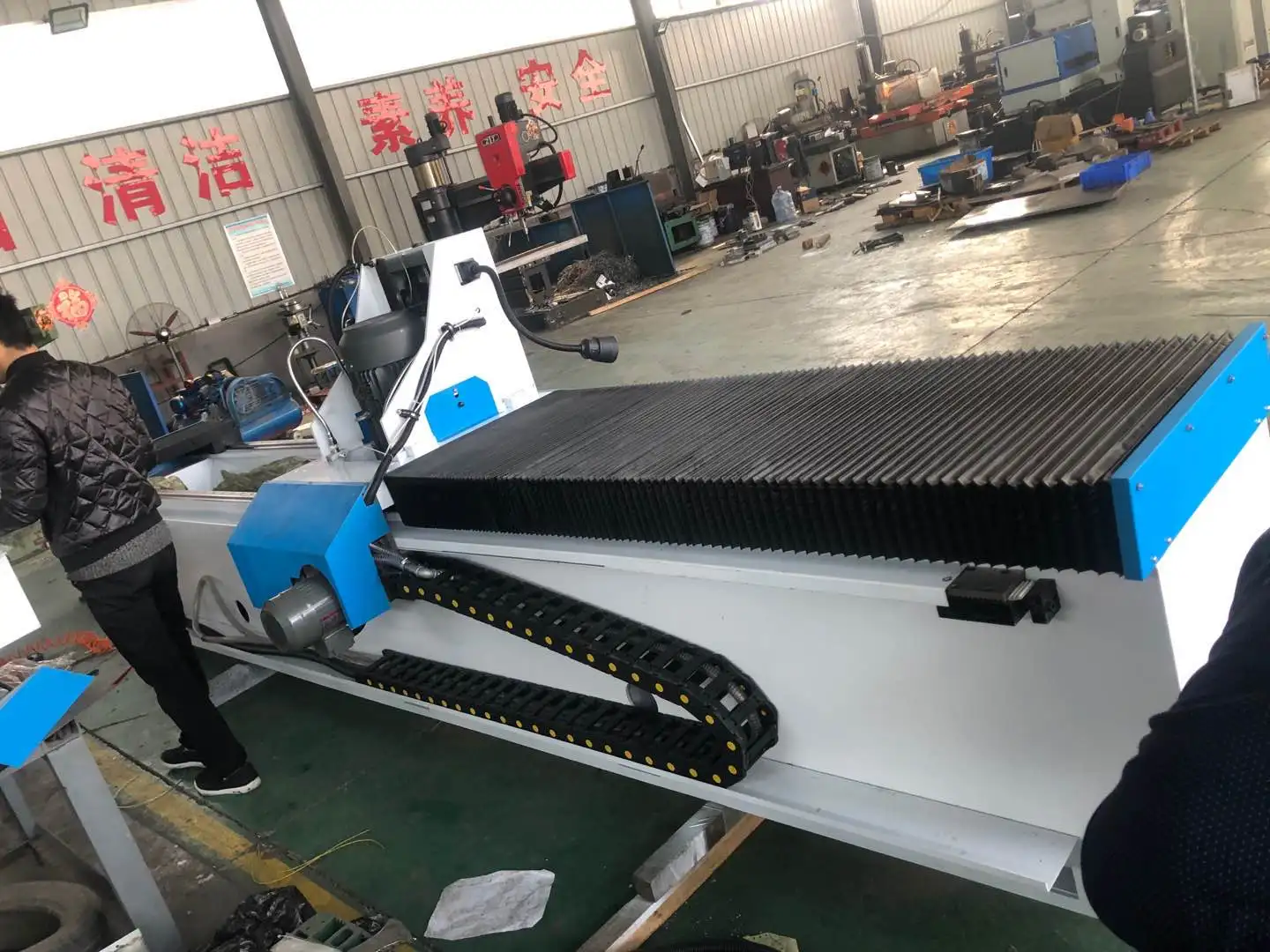

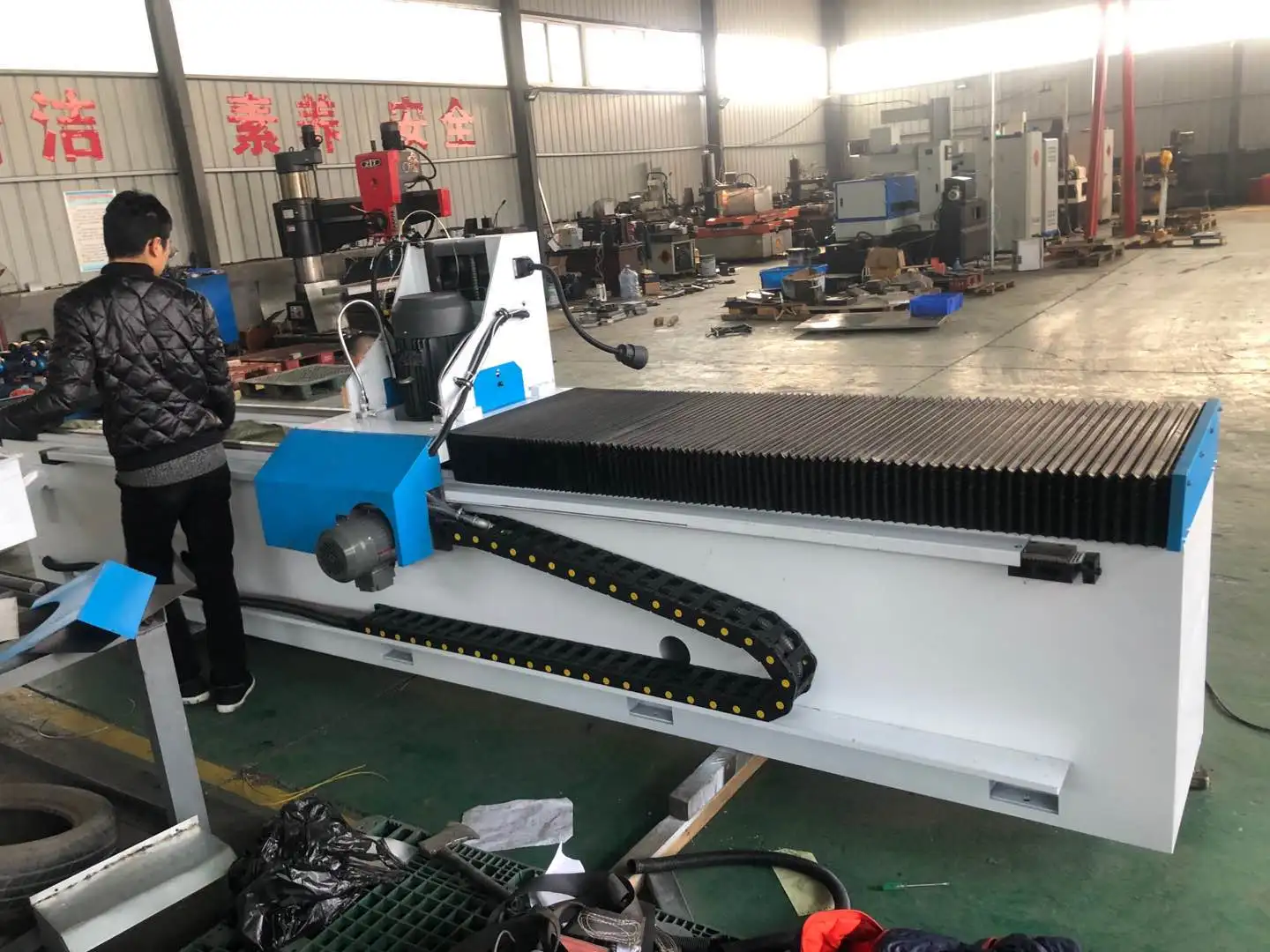

1 welded by high quality steel. The machine body do the heating treatment. The surfacedo the sands blast to anti rust 2 the grinding head lift use the structure as the surface grinder rhombus tapered iron.tomake the movement smooth and accuracy 3 the protective copver hole all machine to protect people , and ther eis a watch windowfor you to check the grining job easy 4 there is a watch windod on the moveing platen, for you to easy checking the gridningjob 5 the traveking job control byy the belt to make the movement more smooth 6plc contral and touch panel, English version 7 down feed use the ball screw, to make the working accuracy as 0.00.mm/300mm 8 automatic lubrication system 9 servi motor control, make the job accuracy as 0.002mm 10 the feed job can do by automatic and manual model. 11 the gridning stone with automatic adjust function .
Specification
Magnet length
1500mm
Magnet width
1800mm
Magnet angle adjust
±90º
Grinding head power
4KW
Travel motor power
0.75kw
Pump power
250W
Total power
5.5KW
Stone speed
37m/s
Grinding motor speed
1420r/min
Max travel speed
30m/min
Stone size
Φ200×120
voltage
380V 50Hz
weight
2.2T
size
3300×1100×1400
Packing & Delivery
pltwood box
Company Profile
we produce many model for the machine
FAQ
ang information you need, please feel free to contact me
