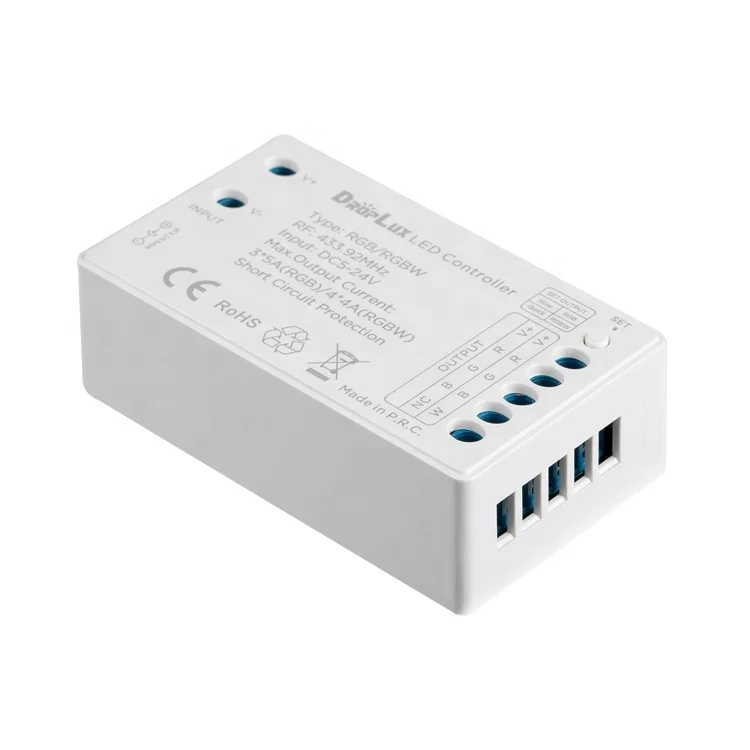

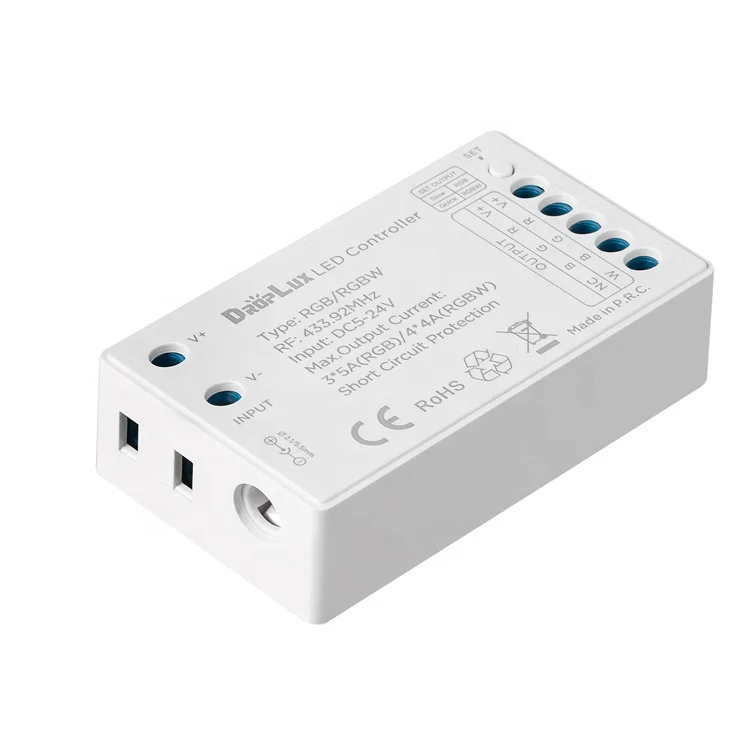

2 In 1 RGB/RGBW Color Changeable Dimming DC5V 12V 24V RGB LED Strip Controller with Touch Remote

HX-D5

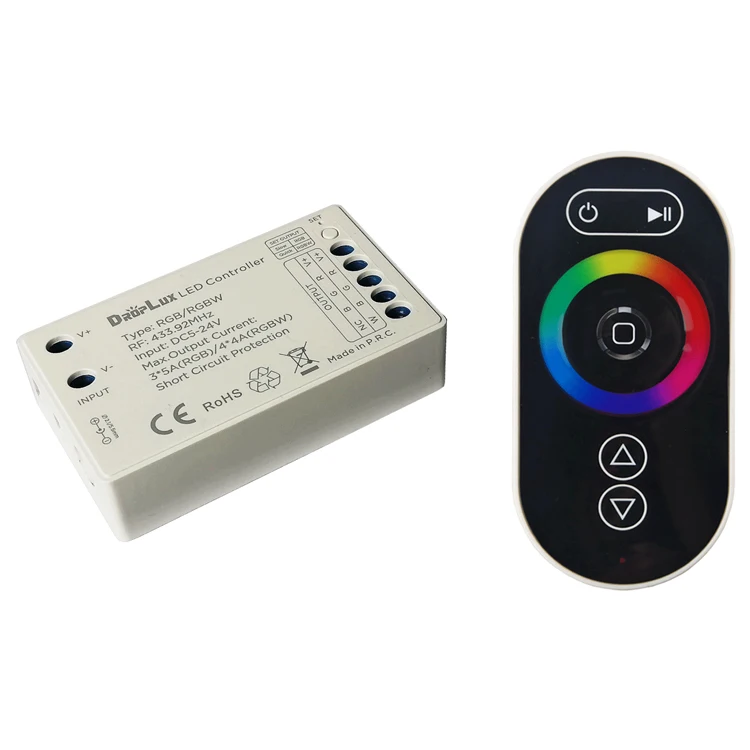

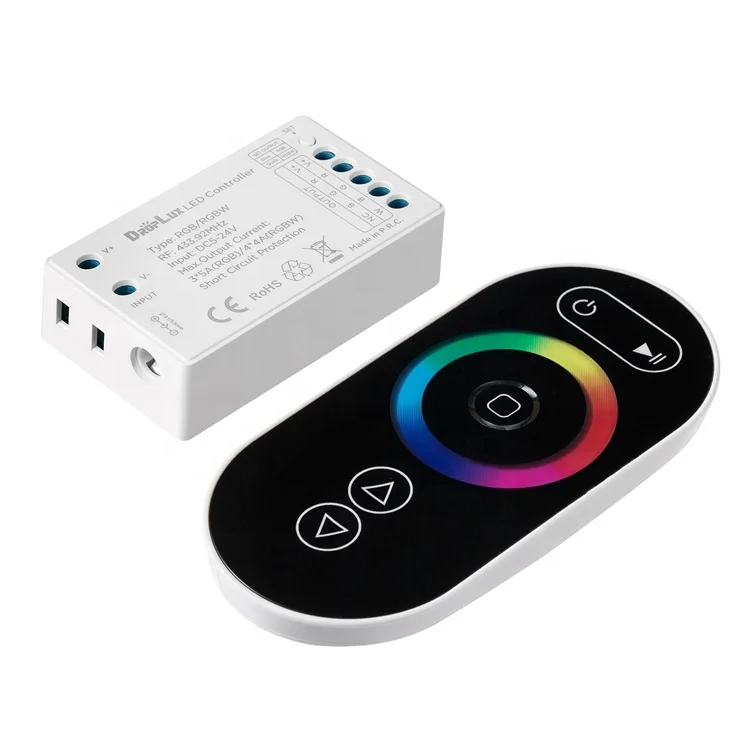

RGB/RGBW 2 in 1 LED controller with RF TOUCH remote control

Controller adopts the advanced micro control units; it is used for controlling a variety of LED light. For instance, point source of light, flexible light strip, wall washer lamp and so on. It has many advantages such as good appearance, easy connection and simplicity to use. Adopts RF touch remote control to ON/OFF, choose colors/ dynamic modes, simplicity to use. Especially, it is integrated 2 optional programs for different color type LEDs, contains RGB and RGBW. It means only one item stock for 2 types applications.

1. Product Feature

1. This product is a constant voltage controller, the standard product power supply voltage 5-24V is a wide voltage, and the power supply in this range can be used universally;

2. The output is 4 channels, the maximum current of each channel is 4A;

3. With power-off memory storage function;

4. Adopts RF touch wireless remote control, the maximum distance can reach 20 meters;

5. Adopts color ring to achieve 64 colors and 10 modes, the brightness of all static color and the speed of the dynamic modes are adjustable.

6. Both remote control and receiver are 2 in 1 for RGB and RGBW, one product for 2 types of LED strips;

7. Short circuit protection function;

8. 3-year warranty.

2. Technical Parameters

Controller

Remote control

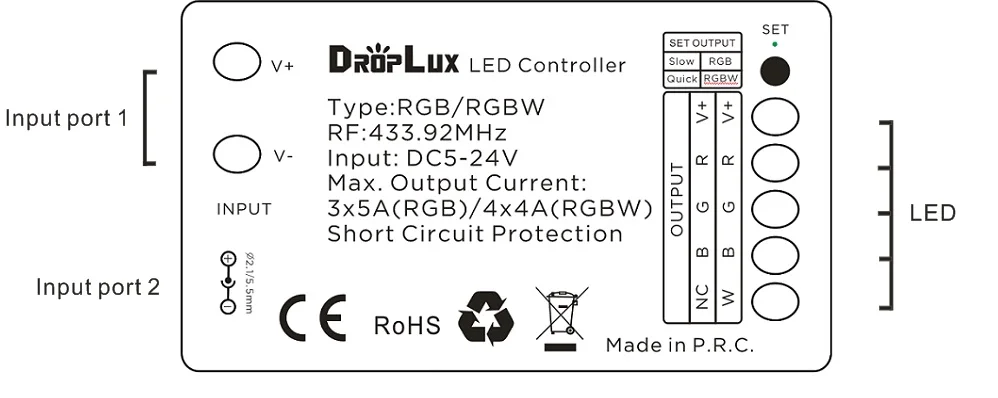

3. Interface Specifications

4. Direction for use

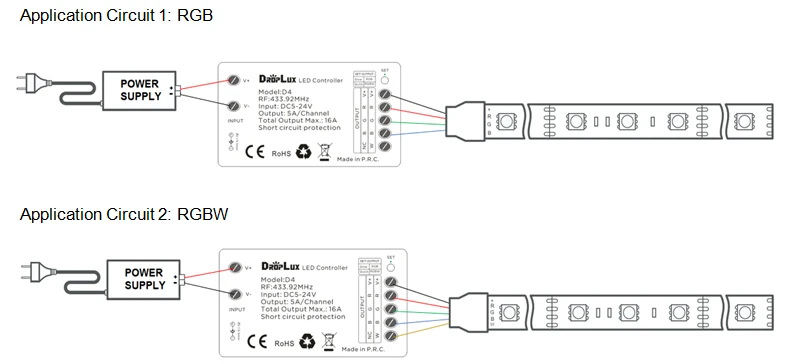

Connect the load wires at first, followed by the power wires.

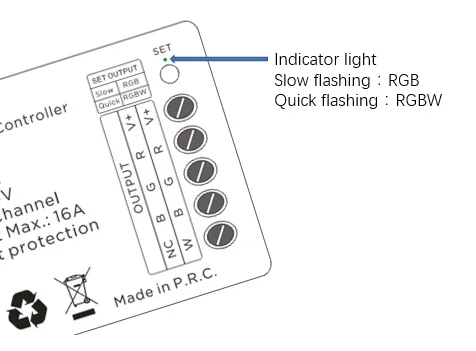

Use the SET button to set the output type to be consistent with the type of LEDs connected to the load. The indicator flashes slowly: RGB, flashes quickly: RGBW.

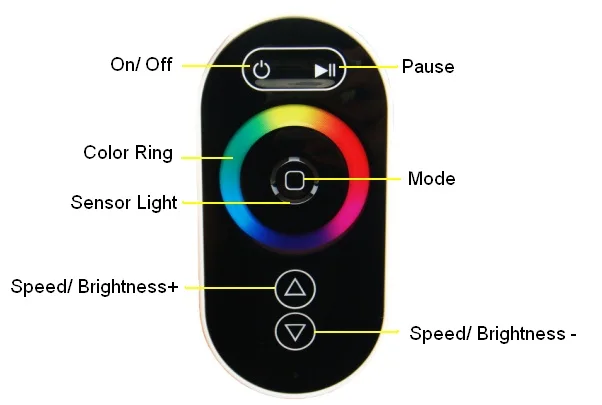

5. Adopt 2 in 1 RF wireless remote control:

RGB:

RGBW:

Key functions for RGB

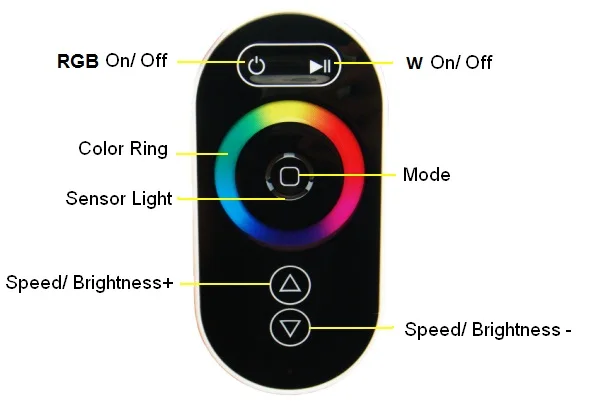

Key functions for RGBW

Remote and receivers are both could customize:

1. Customize printing logo

2. Customize color box

3. Cutomize manual
