Литиевая батарея глубокого цикла Lifepo4 48 в 50 Ач 100 Ач домашняя солнечная батарея
- Category: Batteries >>>
- Supplier: Dongguan Tairuiyuan Power Technology Co. Ltd.
Share on (1600088964633):
Product Overview
Description
Note: IN STOCK, YOU CAN MAKE ORDER DIRECTLY OR SEND INQUIRY TO US!
1. This is 48V Rack Battery, with Grade A+ quality LiFePO4 Battery;
2. One battery can be equipped with one set of connection cables. If needs, pls contact us online. Thank you!
3. If buy 4pcs, we can match with 4pcs Battery with 4 set cabels for parallel connections.
4. Before delivery, we will test all Batteries in TAICO factory and ensure for high qulity to you!
Basic specification will be mark on the Battery before shipping!
1. This is 48V Rack Battery, with Grade A+ quality LiFePO4 Battery;
2. One battery can be equipped with one set of connection cables. If needs, pls contact us online. Thank you!
3. If buy 4pcs, we can match with 4pcs Battery with 4 set cabels for parallel connections.
4. Before delivery, we will test all Batteries in TAICO factory and ensure for high qulity to you!
Basic specification will be mark on the Battery before shipping!

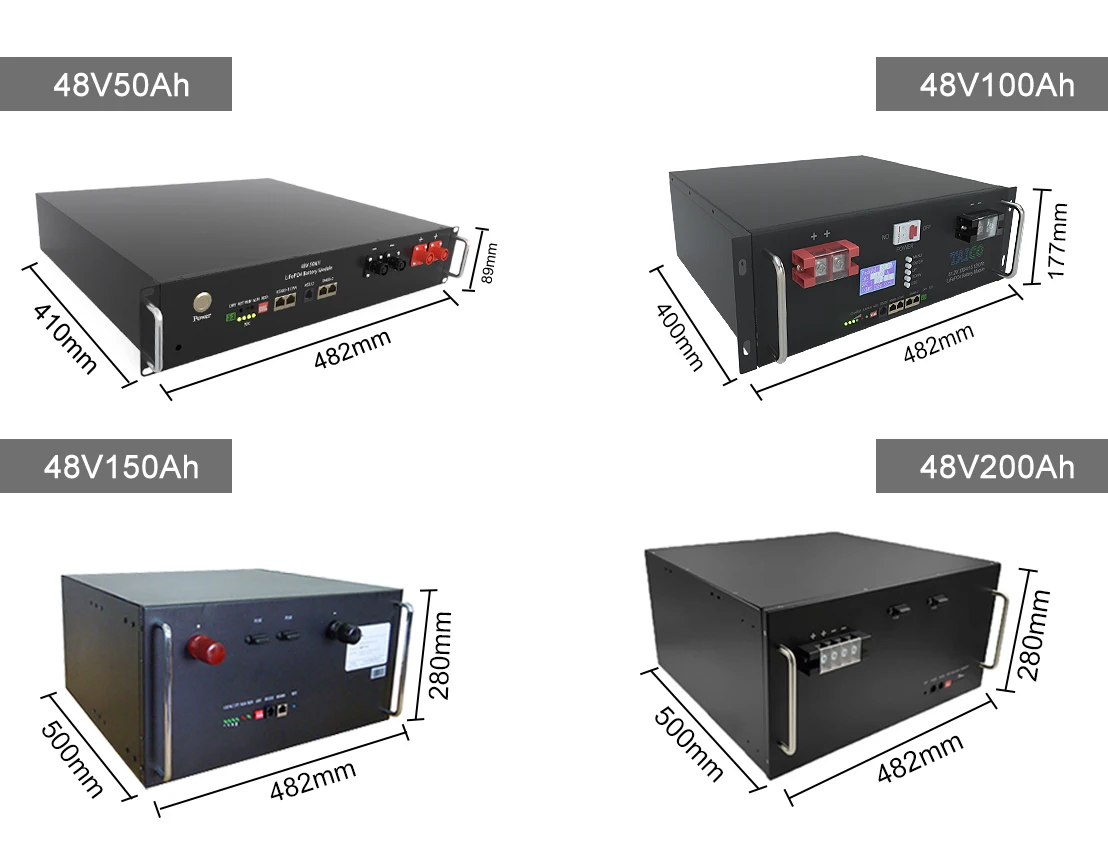

Customized Capacity and Voltage
model | capacity | size | weight |
TS2400 | 48V50AH | 482*410*89MM (2U) | 21KG |
TK2000 | 48V50AH | 482*350*132MM (3U) | 24KG |
TK4800 | 48V100AH | 482*400*177MM (4U) | 43KG |
TS5000 | 48V100AH | 482*400*177MM (4U) | 43KG |
TK7200 | 48V150AH | 482*500*280MM (6U) | 65KG |
TK9600 | 48V200AH | 482*500*280MM (6U) | 82KG |
TK12000 | 48V250AH | 482*500*280MM (6U) | 100KG |
Function Parameter | ||||||
Norminal Battery Energy | 2560wh | |||||
Norminal Capacity | 50Ah | |||||
Norminal Voltage | 48V | |||||
Internal Resistance | ≤22mΩ | |||||
Cycle Life | >6000 | |||||
Months Self Discharge | <3% | |||||
Charge Data | ||||||
DC Normal Charge Voltage | 54.75±1Vdc | |||||
Charge Mode | 0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV) | |||||
Recommended Charger Current | ≤25A | |||||
Allowed Max. Charge Current | 25Adc | |||||
Charge Cut-off Voltage | 54.75±1Vdc | |||||
Discharge Data | ||||||
50Continuous Discharge Current | 25A | |||||
Allowed Max. discharge current | 50A (option:200Adc) | |||||
Rang of DC discharge voltage | 37.5V-54.75Vdc | |||||
Working Condition | ||||||
Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity | |||||
Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
Enclosure Protection Level | IP20 | |||||
Mechanical Data | ||||||
Cell & Method | 3.2V50Ah, Prismatic | |||||
Shell material | Iron | |||||

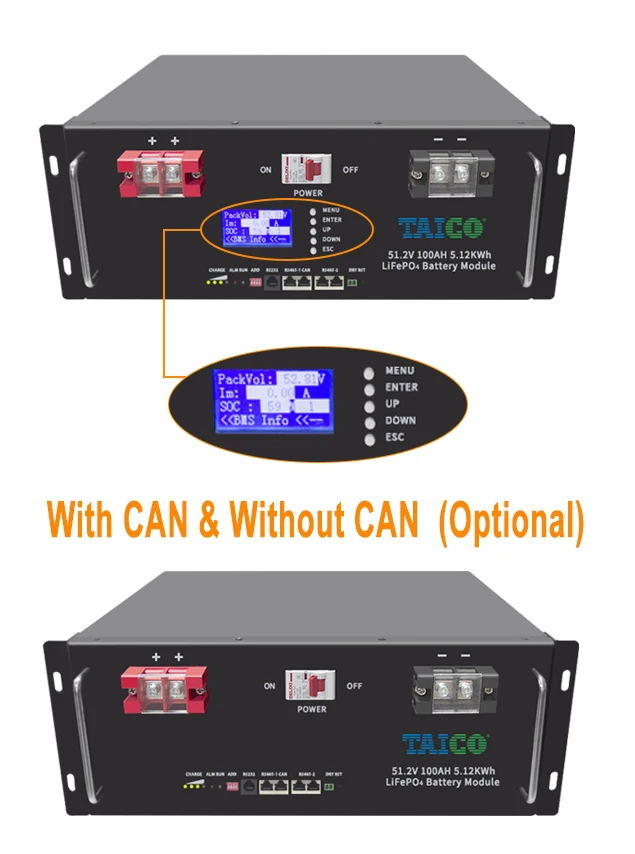

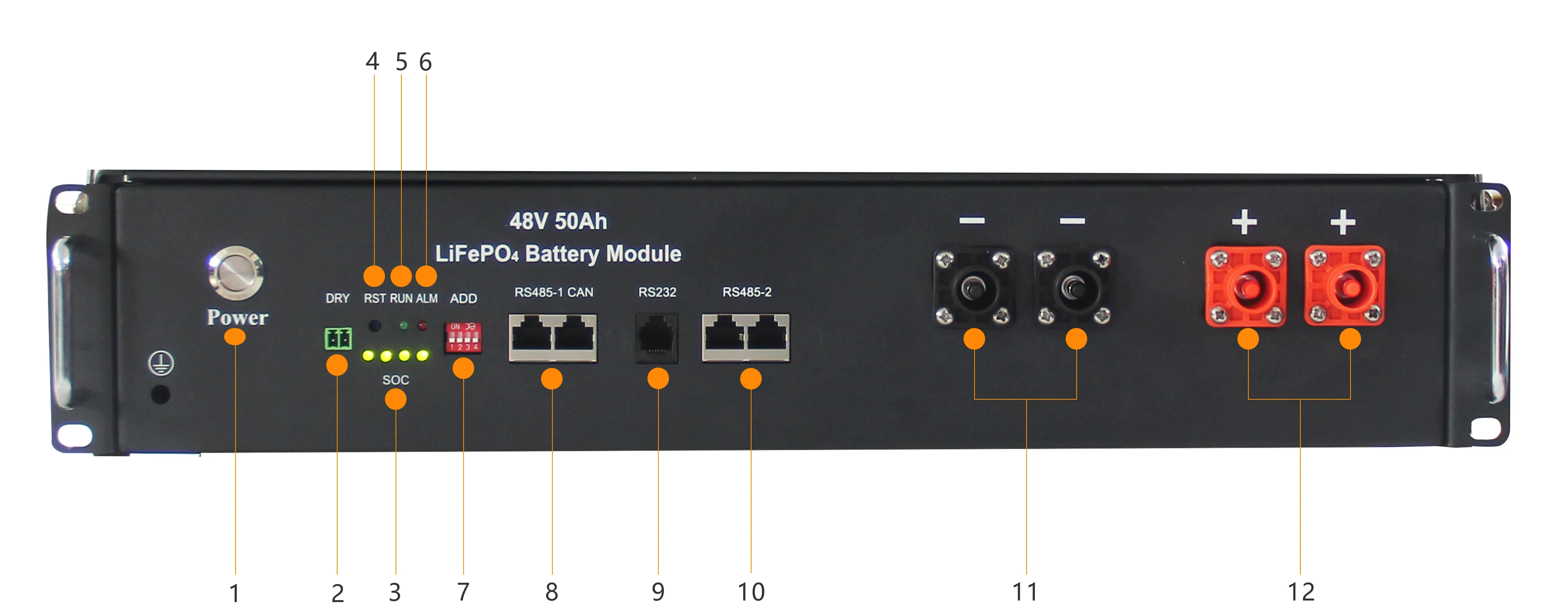

Item | Name | Definition |
1 | Power switch | OFF/ON, remains ‘ON’ when using |
2 | DRY | |
3 | SOC | Green light, showing battery capacity |
4 | RTS | |
5 | RUN | Green light, flashing when standby, always on when discharge, flash when charging |
6 | ALM | Red lights, flash when warning, always on when protection. When the condition of triggering protection is removed, the battery can recover automatically |
8 | CAN/485 | Communication Port communication (factory default CAN communication) |
9 | RS232 | Multiple interfaces possible |
10 | RS485-2 | Multiple interfaces possible |
11 | Negative socket | Battery output or parallel cathode line |
12 | Positive socket | Battery output or parallel anode line |

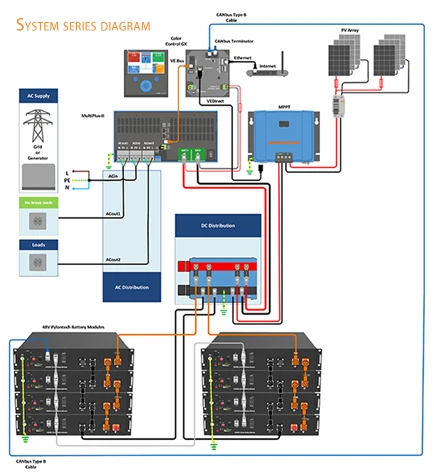

System example diagram

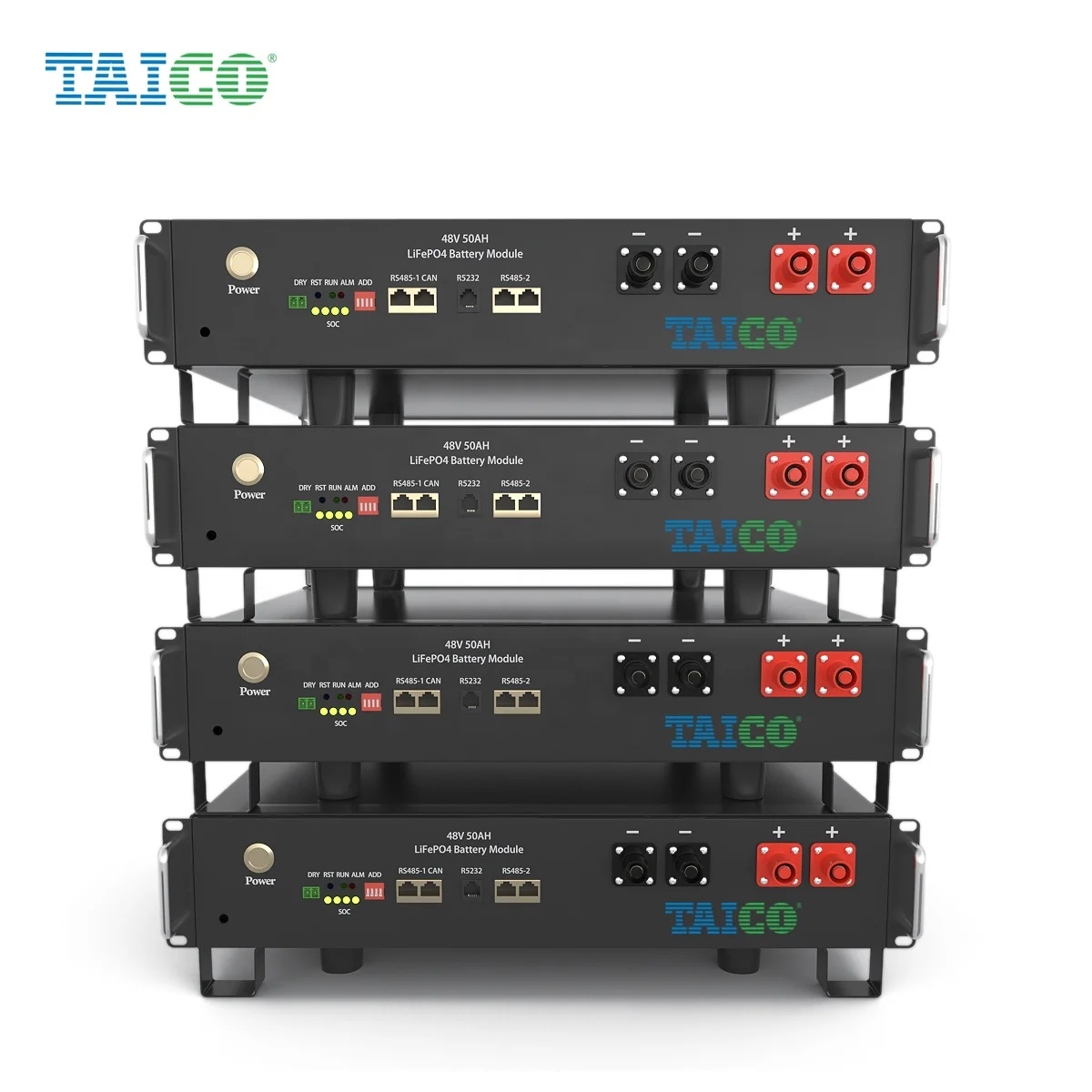

Modular design lithium battery
LIFePO4 battery, Safe, Longer lIfe span. Modular deslgn, Easy to stack. L arger energy capaclty. Wlde temperature
range of-20-25°C.
Wide Compatibility
TAICO is Proud To Announce That Our Modules Can Cooperate With Most Inverters On The Market. More Brands Are Coming Soon...

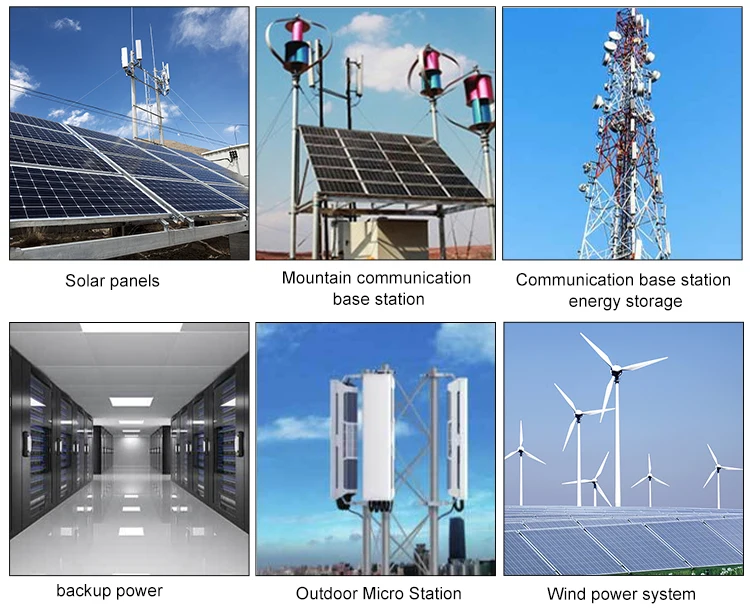

Battery Application
Product Description
Feature
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)

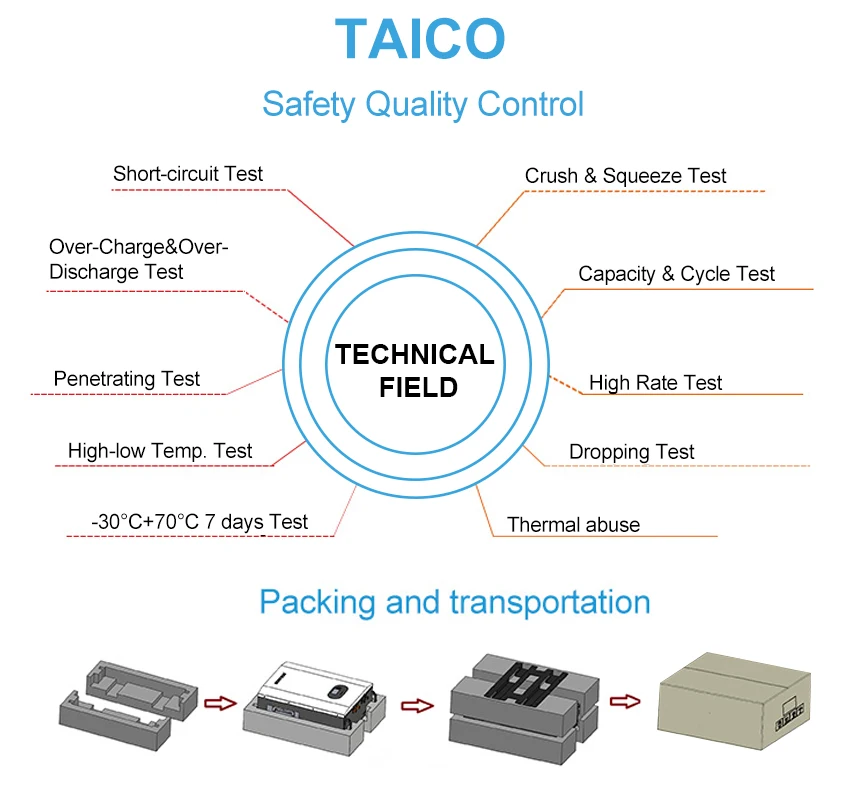

Packing & Delivery

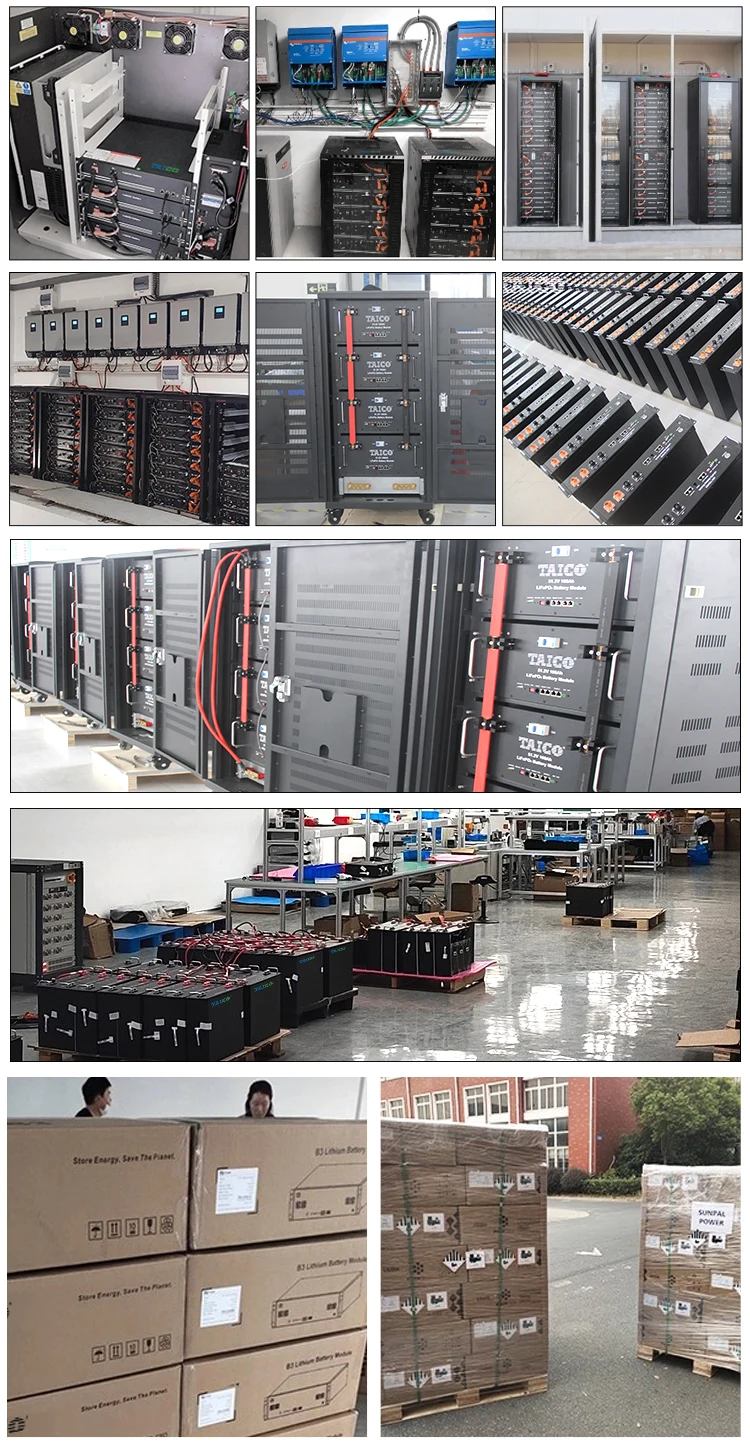

Company Exhibition
