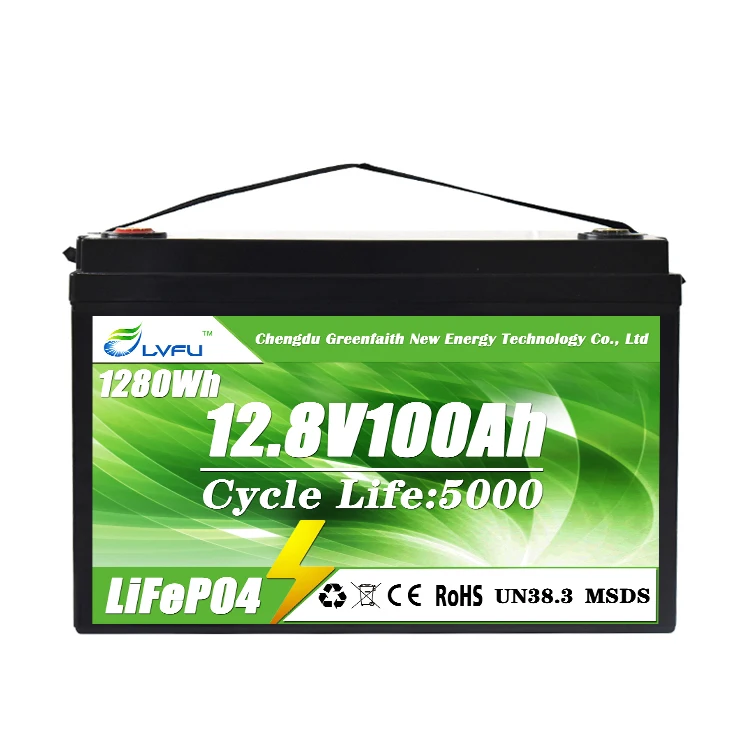

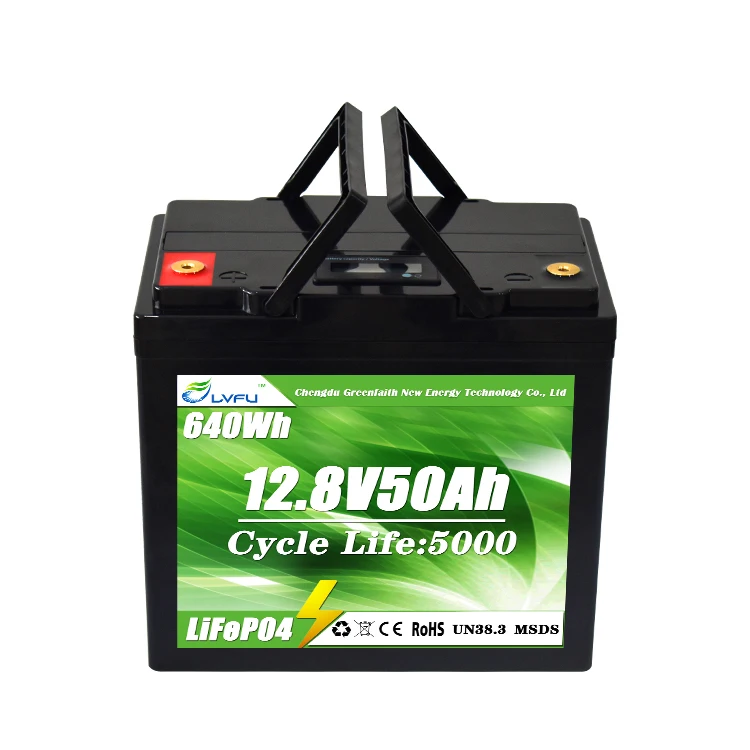

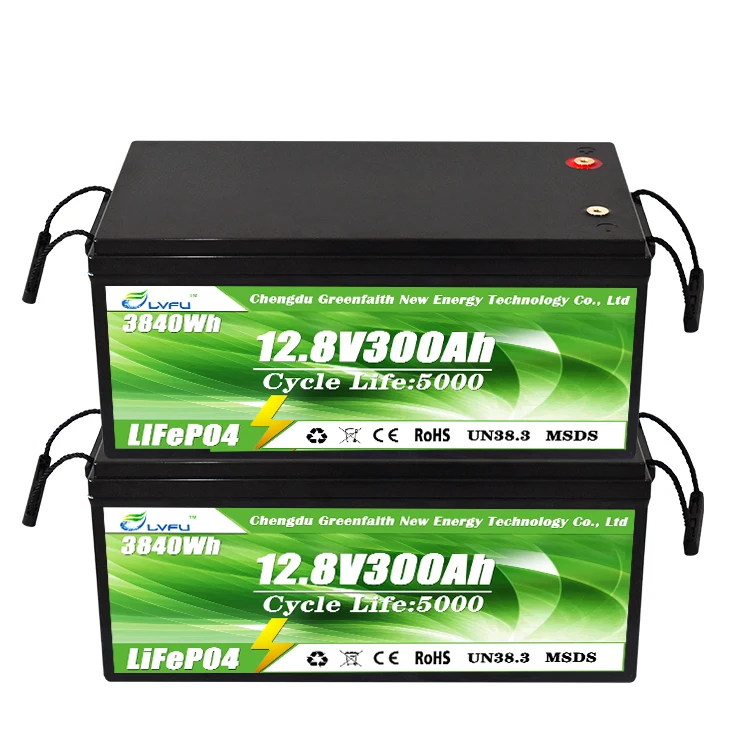

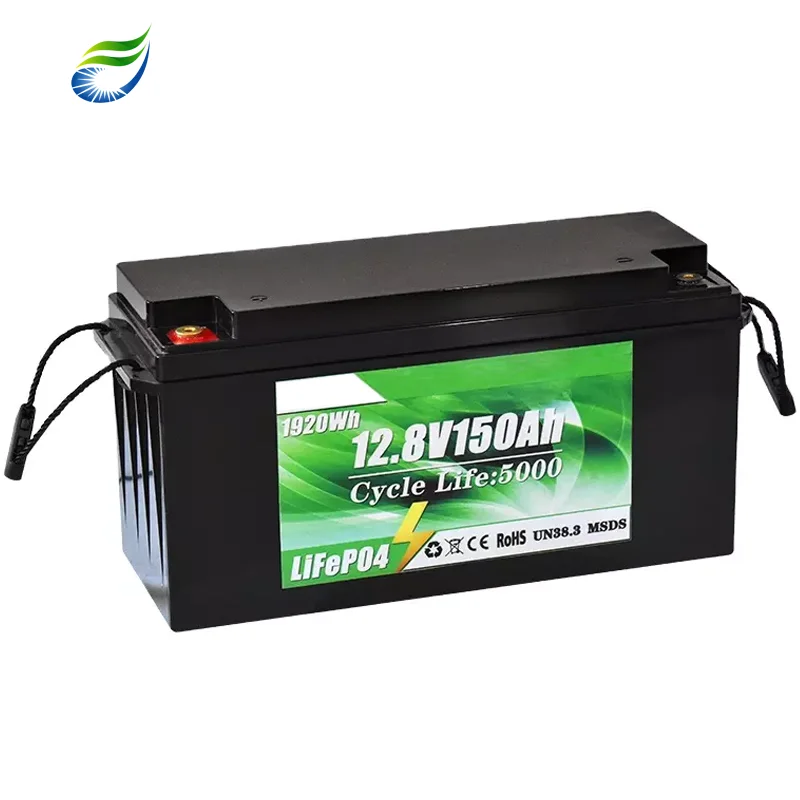

Deep Cycle 12 Volt Lithium ion Battery 12v 50Ah 100Ah 200Ah 300Ah Lifepo4 Solar Energy Storage Battery Pack
- Category: Batteries >>>
- Supplier: Chengdu,Jute,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Battery Model | 12V 50AH | 12V 100AH | 12V 200AH | 12V 300AH | |||
Battery Type | LiFeP04:(BYD/EVE/CATL Cell） | ||||||
Battery Capacity | 600WH | 1200WH | 2400WH | 3600WH | |||
Voltage window (V-DC) | 10V-14.4V | ||||||
Maximum continuous charging current | 25A | 50A | 50A | 100A | |||
Maximum continuous discharge current | 50A | 100A | 100A | 200A | |||
Maximum pulse current | 150A 3S | 300A 3S | 300A 3S | 400A 3S | |||
Product Size（MM） | L260*Wl68*H209 | L330*W175*H221 | L532*W207*H215 | L522*W270*H220 | |||
Weight(KG) | 6KG | 12KG | 22KG | 29KG | |||
Maximum number of series connected | 4S 48V | ||||||
Maximum number of parallel connected | 10P | ||||||
Storage Time Charging | The normal voltage is charged once every 3 months, and the voltage of 10 V-10.SV must be charged the next day. | ||||||
Cycle Life(+25C-0.2C) | 4000~6000Times | ||||||
Case Material | ABS | ||||||
Functions can be added | LCD/Bluetooth/Heating/485 | ||||||
Battery protection | Overcharge protection, overdischarge protection, overcurrent protection, short ci「cuit protection,vertemperature protection | ||||||
Our Advantages

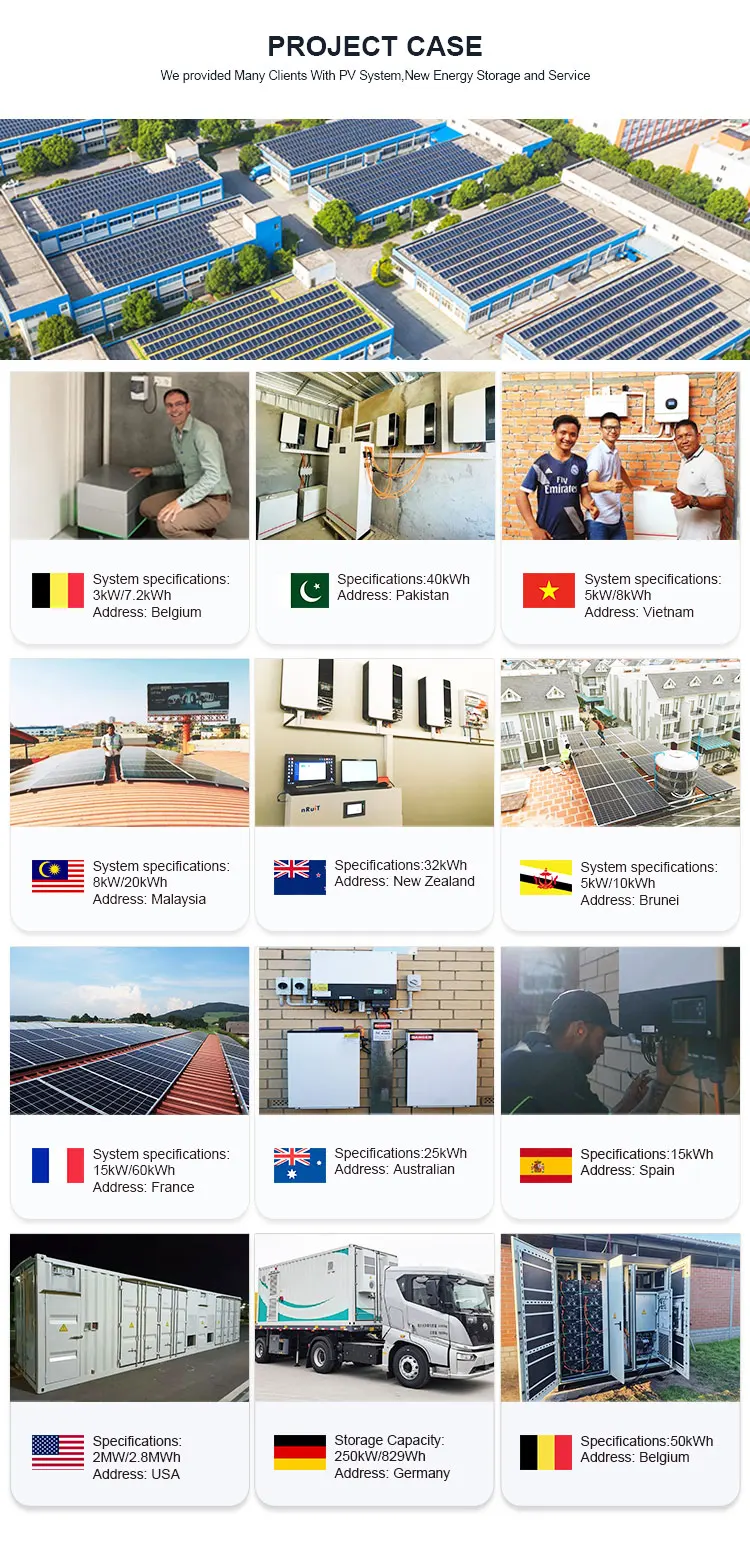

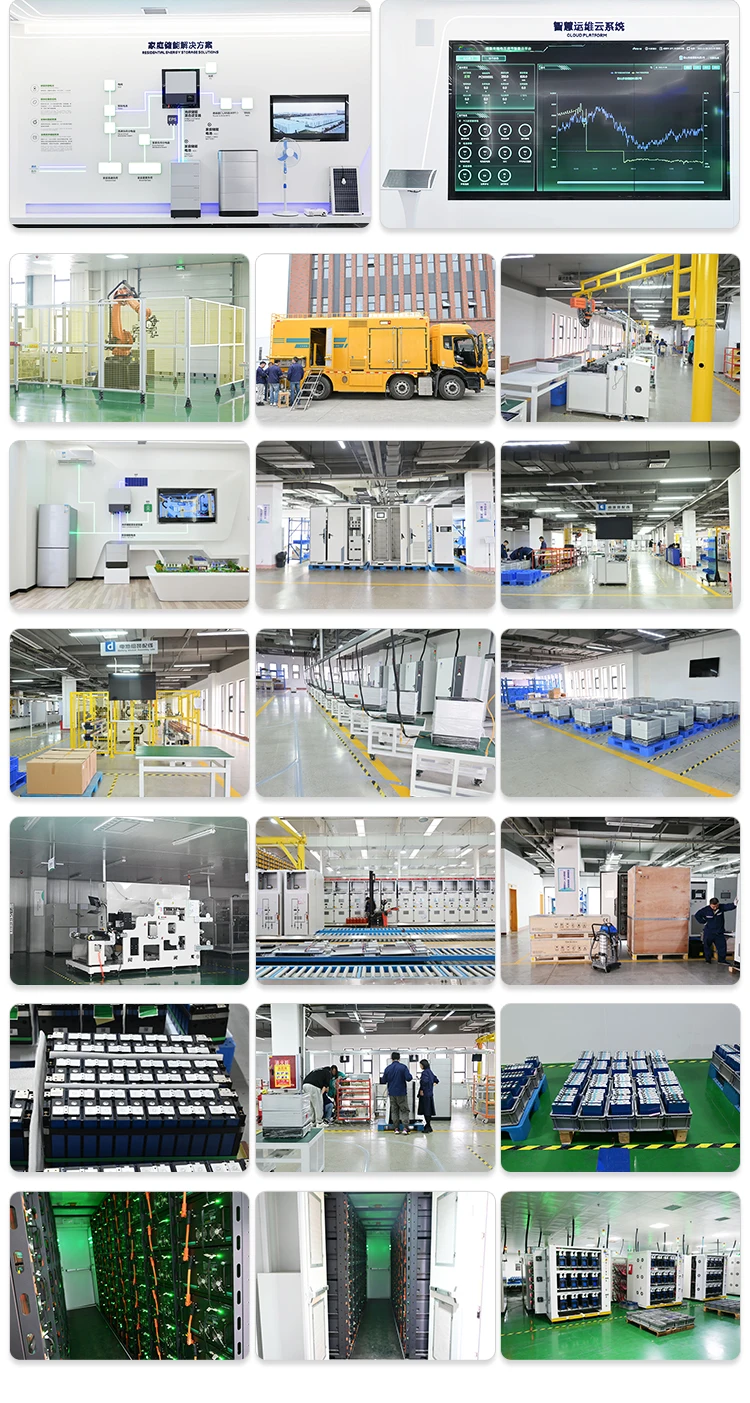

Project Case
Investment Agency
After - Sales
