Deep Cycle Agm Battery 12V 100ah 150ah 200ah 250ah 300ah Home Power Battery Storage
- Category: Batteries >>>
- Supplier: Greensun,Solar,Energy,Tech,Co.,Limited
Share on:
Product Overview
Description
Product Description
Key Features:
♦Safety seal, Deflating system ,Simple maintenance, long lasting,Stable quality and high reliability
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like, immobile and does not leak, enabling
uniform reaction of each part of the plate.
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out, environment friendliness
♦Efficient venting system release excessive gas automatically
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like, immobile and does not leak, enabling
uniform reaction of each part of the plate.
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out, environment friendliness
♦Efficient venting system release excessive gas automatically
Specification
Battery Model | FM100-12 | FM120-12 | FM150-12 | FM200-12 | FM250-12 | ||||
Nominal Voltage | 12 Volt | ||||||||
Nominal Capacity (10HR) | 100 AH | 120AH | 150AH | 200AH | 250AH | ||||
Dimensions L*W*H | 330*173*212 | 408*177*225 | 483*170*238.5 | 522*240*218 | 522*268*220 | ||||
Max. Discharge Current | 1200A (5s) | 1300A (5s) | 1500A (5s) | 2000A (5s) | 2500A (5s) | ||||
Terminal (Optional) | T6/T11 | T6 /T11 | T11 | T11 | T11 | ||||
Operating Temp.Range | Discharge : -15 ~ 50℃ (5~122°F) Charge : 0 ~ 40℃ (32-104°F) Storage : -15 ~ 40℃ (5~104°F) | ||||||||
Nominal Operating Temp.Range | 25 ± 3℃ (77±5°F) | ||||||||
Internal Resistance | Approx 4.9mΩ | Approx 4.0mΩ | Approx 3.5mΩ | Approx 2.7mΩ | Approx 2.5mΩ | ||||
Cycle Use | 14.5V~14.9V at 25 ℃(77 ºF)Temp. Coefficient -30mV/ C | 10-15 Years | |||||||
Standby Use | 13.6V~13.8V at 25 ℃(77 ºF)Temp. Coefficient -20mV/ C | 3-5 Years | |||||||
Container Material | ABS | ||||||||

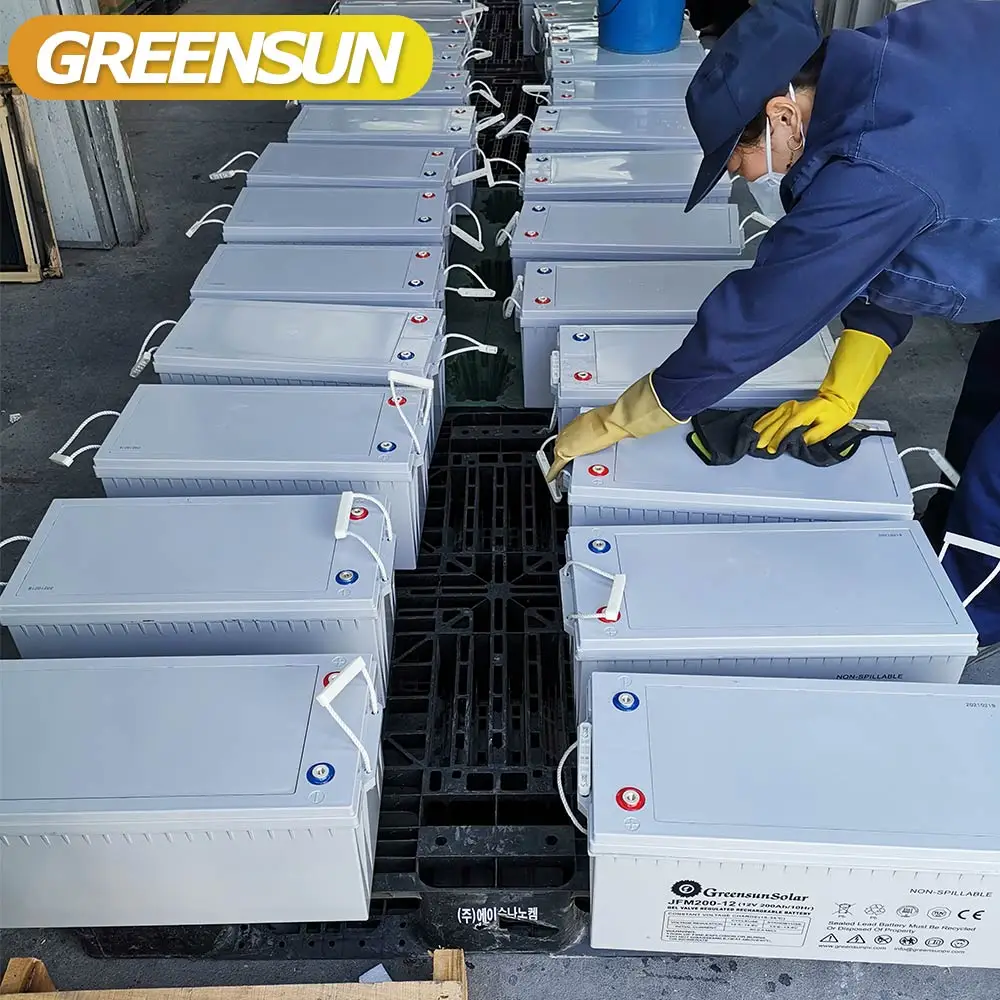

Our Factory
