The Most Stable Wireless 2.4G DMX512 The Controller DMX512 The Wireless Transceiver

Product Overview

Description

Powerful Manufacturers Specializing in the Production of Wireless Controllers

We Have a Lot of Stock for Each Model,Welcome to Consult,Looking Forward to Cooperating with You

The Most Stable Wireless 2.4G DMX512 The Controller DMX512 The Wireless Transceiver

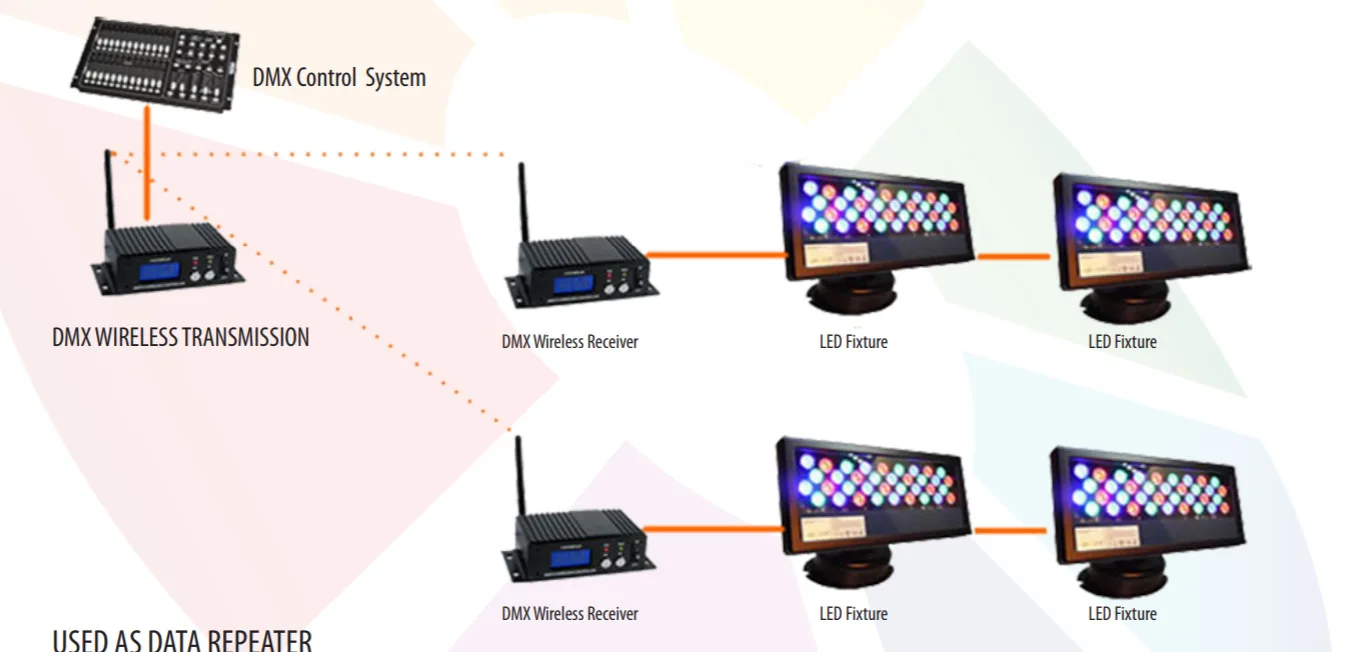

Product Connection Diagram:



LCD Screen Display WirelessDMX512Transceiver

Introduction:
WirelessDMX512 Transceiver Transmits Standard in Wireless ModeDMX512 Console Data,Can Also Transmit Lamps and
Online Data between Lamps and Lanterns,This Product Completely Solves the Problem of Lighting Console and Lights,Wireless Data between Lights
Transmission,Completely Remove the Twisted Pair That Has Long Been Relied on.No Delay during Data Transmission,The Number
According to the Real-Time and Reliable!This Product Uses2.4G Global OpenISM Band,License-Free Use. EfficientGFSK
Modulation,126 Design of Channel Automatic Frequency Hopping Communication,Strong Anti-Interference Ability.
Suitable for Field:Stage Lighting,Large-Scale Theatrical Performances,Stadium Light,Temporary Stage Performances ,City Lights System
System ,Television , Conference Center ,Professional Theater ,Theme Park ,Dance Halls,Bar and Small Text
Art Performances .
Product Performance
1. 2X8 BitLCD Display Working Status and Parameters
2. 4 Stage Output Power Regulation
3. 126 Automatic Frequency Hopping for Each Frequency Band,Automatic Selection of Non-Interference Frequency Band,Guarantee the Reliability of Communication.
4. 16 GroupID Encoding May Be Provided,Users Can Use Independent in One Place16 Group Wireless Networks without Doing Anything with Each Other
Scrambling.
5. Input Voltage:9-12VDC 500mA MIN
6. The Communication Distance:400M(The Void,Varies Depending on the Environment)
7. Working Frequency: ISM,126 A Band.
8. The Maximum Transmit Power:20dBm;The Reception Sensitivity:-94dBm
9. DMX The Signal Interface:3PIN Public,The Female Plug
10. Dimensions:75X147X43 mm
11. Weight:360g

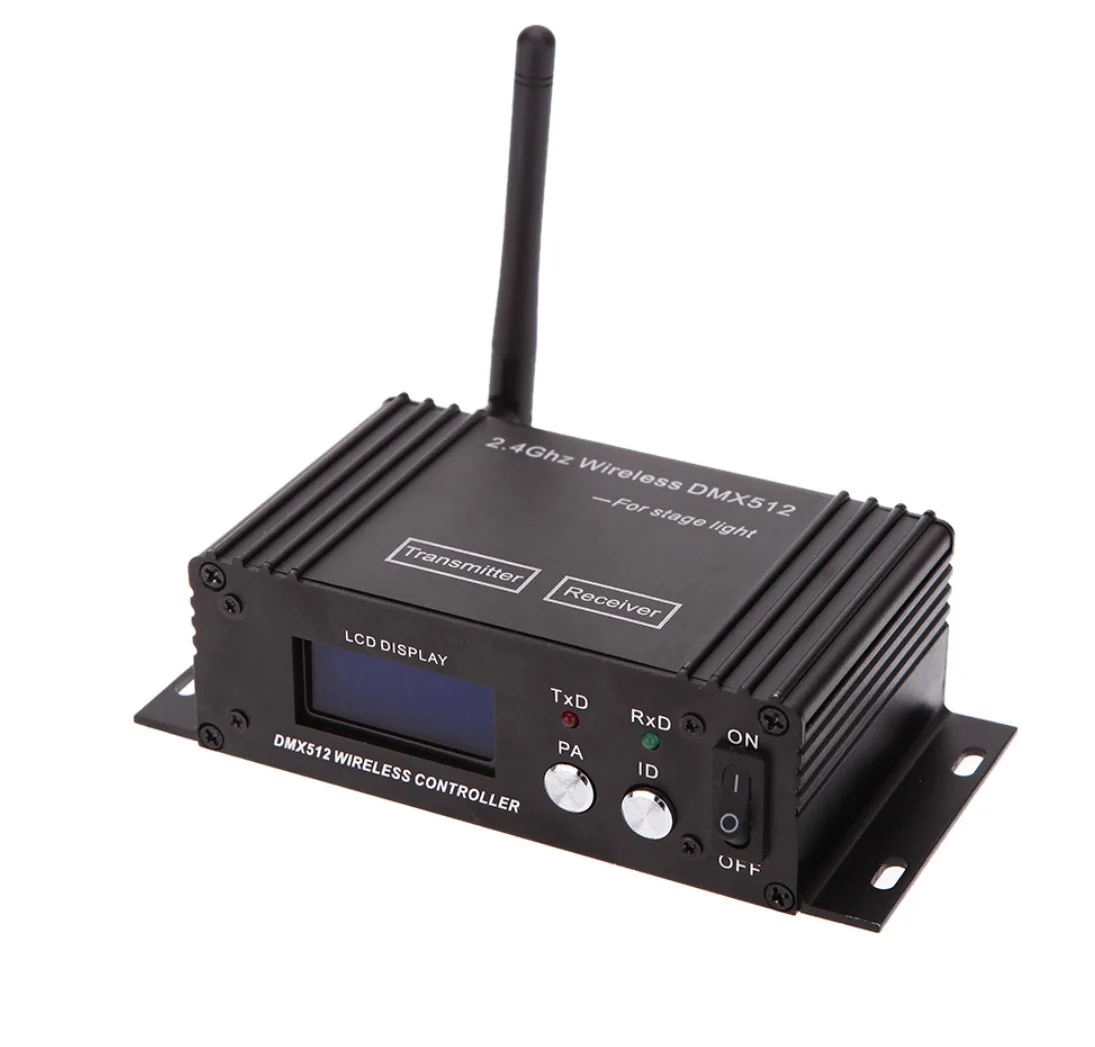

Appearance Description :
1:LCD The Display Window 2:Emission Indicator 3:Receiving Indicator 4:Emission Power Adjustment Button 5:ID Selected from
Selection Button 6:Switch
7:External Power Input Jack 8:DMX Input Interface 9:DMX Output Interface 10:The Radio-Frequency Antenna
