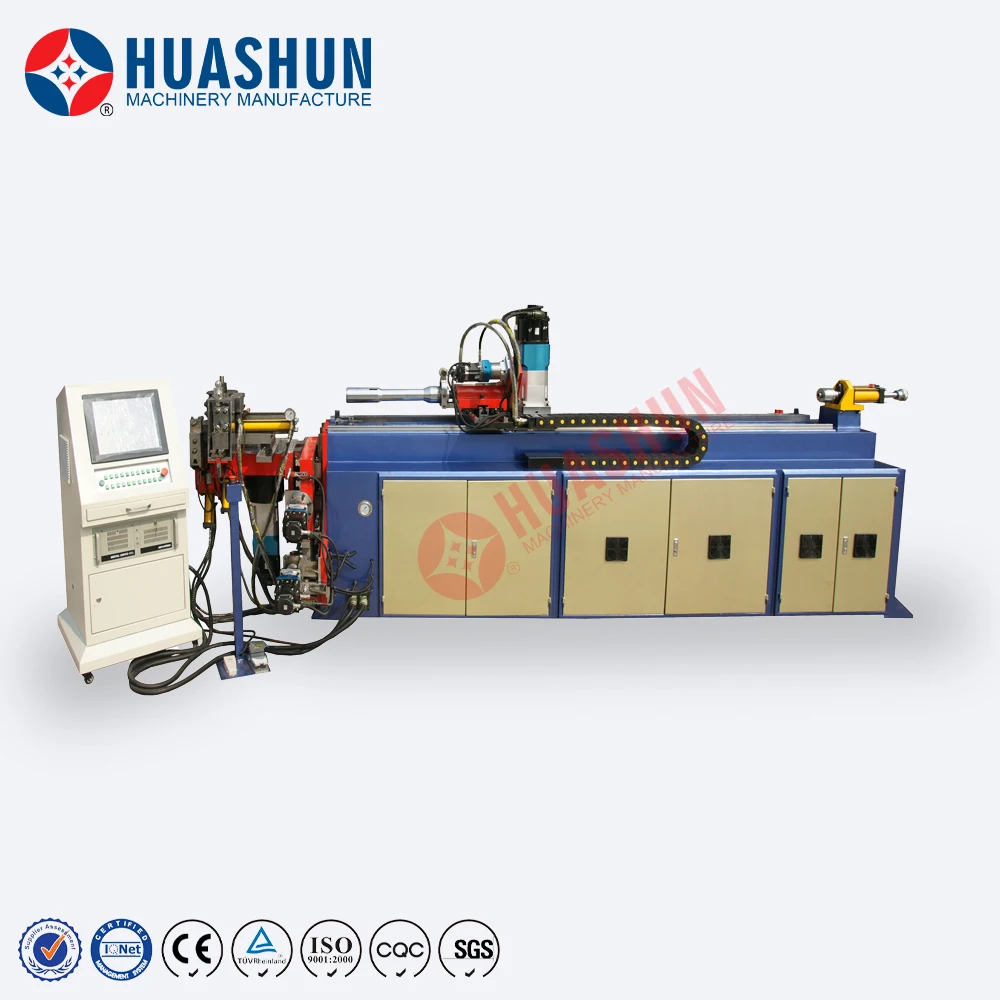

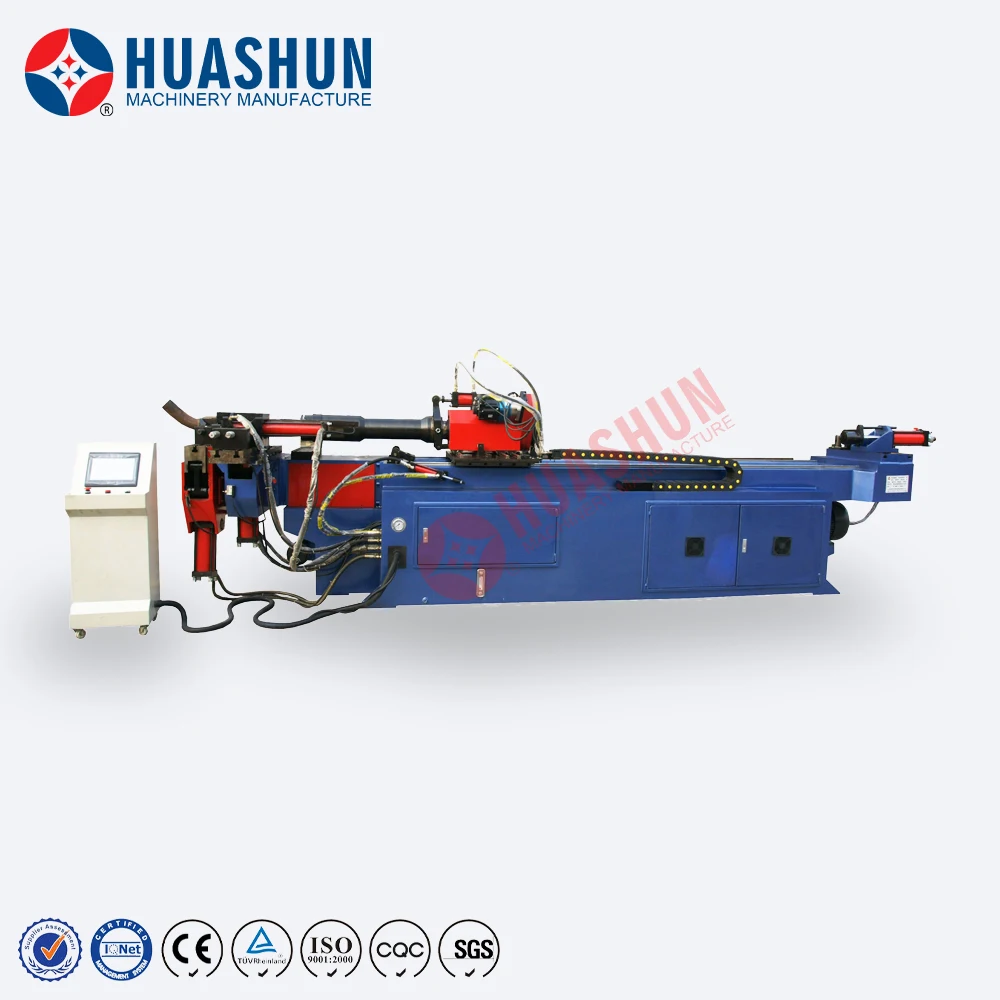

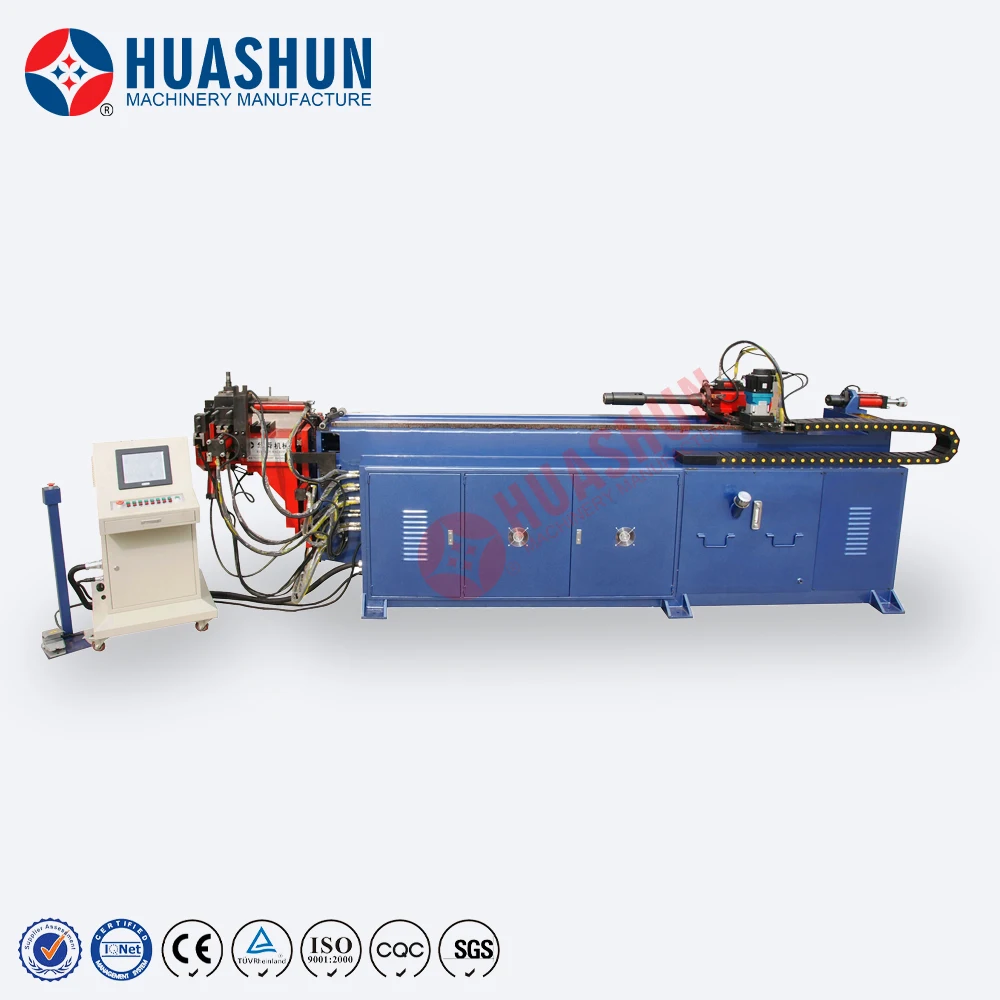

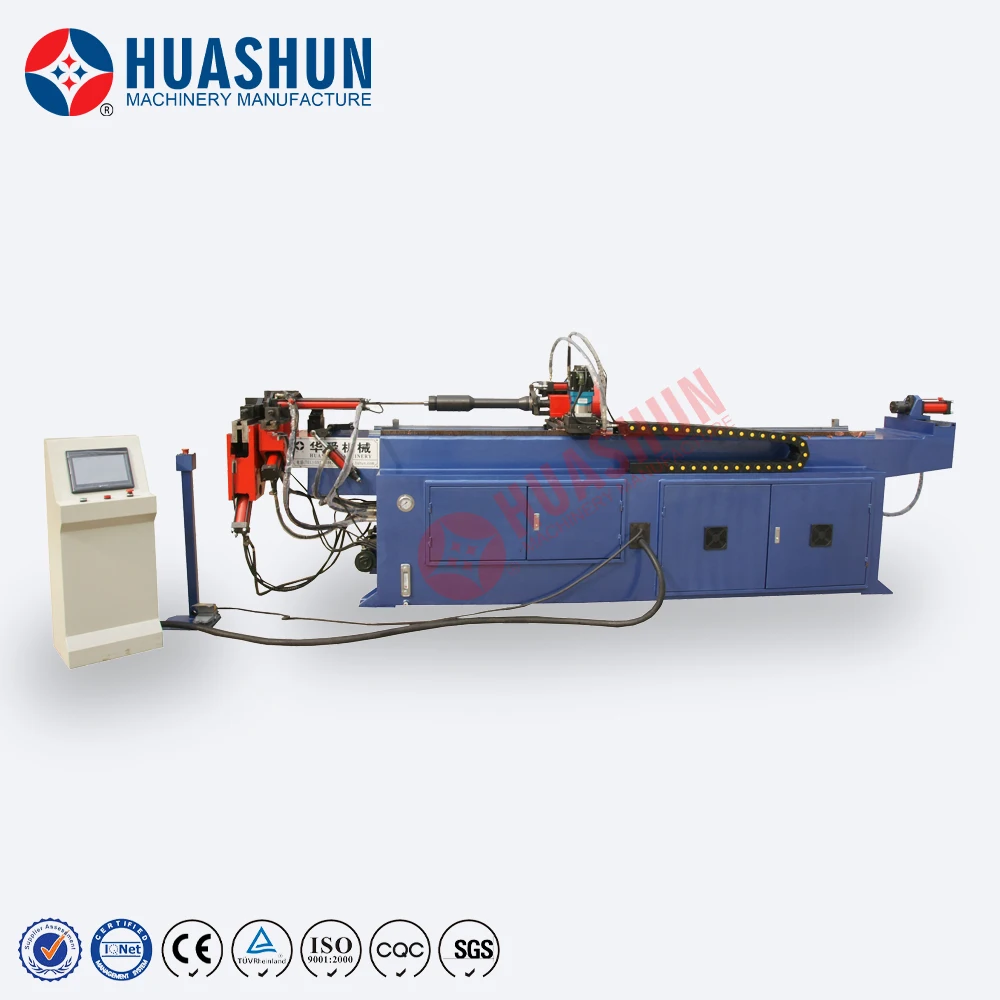

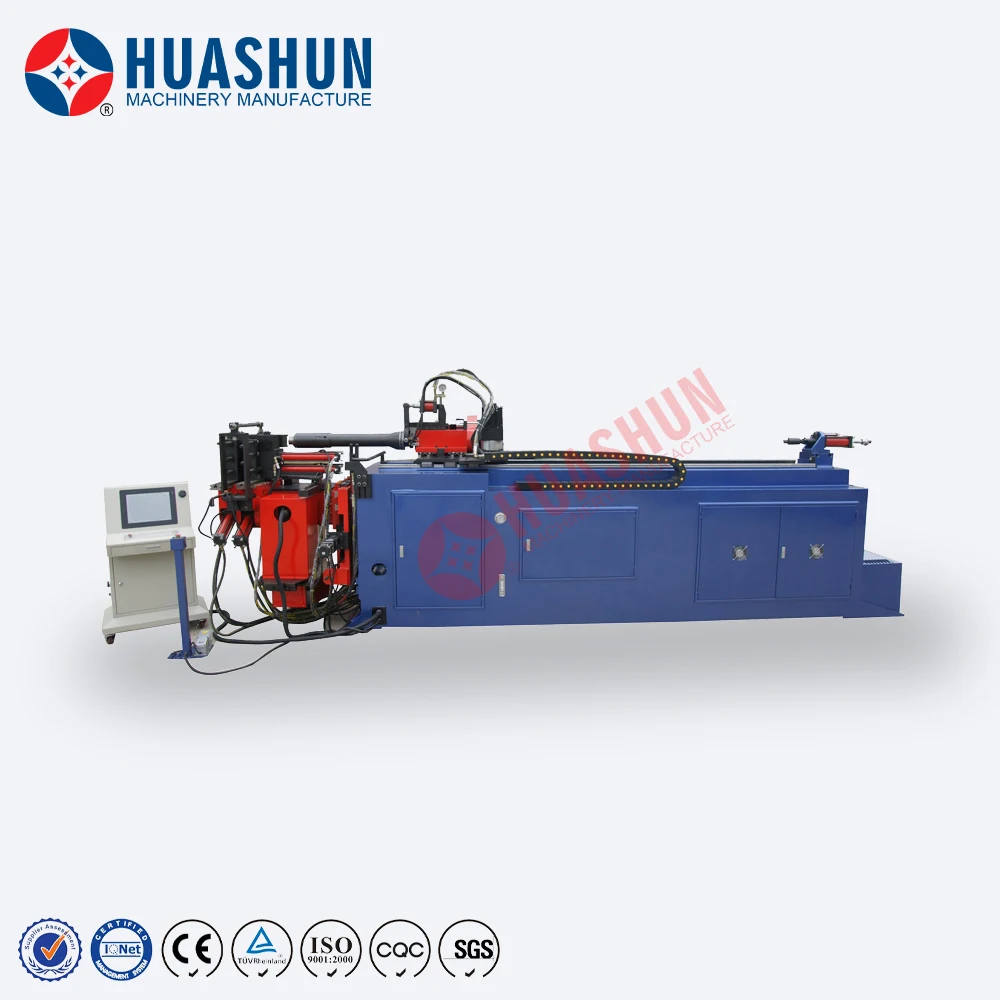

China automatic hydraulic CNC pipe bending machine price for SS stainless steel metal square/round pipe and tube
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Huashun Machinery Manufacturing Co. Ltd.
Share on (1600102469648):
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products
CNC Pipe Bending Machine Product Sample
Final Products Application
Widely used in: automobile, motorcycle, aerospace, bicycle, baby carriage, fitness and leisure equipment, steel furniture
manufacturing, air conditioning piping, food machinery, anti-theft doors and windows, exhaust pipe manufacturing, stainless steel pipe and other pipe manufacturing industries.
Cart
Fitness and gym equipment
Guardrail
Exhaust pipe manufacturing
Air conditioning piping
Beverage line
Furniture frame
ATV structure
Bicycle, electric vehicle frame
Main Products
CNC Pipe Bending Machine.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration, as well as large torque at the same time. It adopts precision, heavy-duty linear rolling bearings in the press touch, press touch boost system and centerline radius adjustment system;
2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability;
3. Self-calibration pressure with automatic positioning can be set quickly;
4. Three-station platform: It can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons;
5. Semi-automatic or automatic feeding table;
5. Semi-automatic or automatic feeding table;
6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows;
7. Power assisted mold replacement, making mold replacement simple and efficient.
Bending Mold

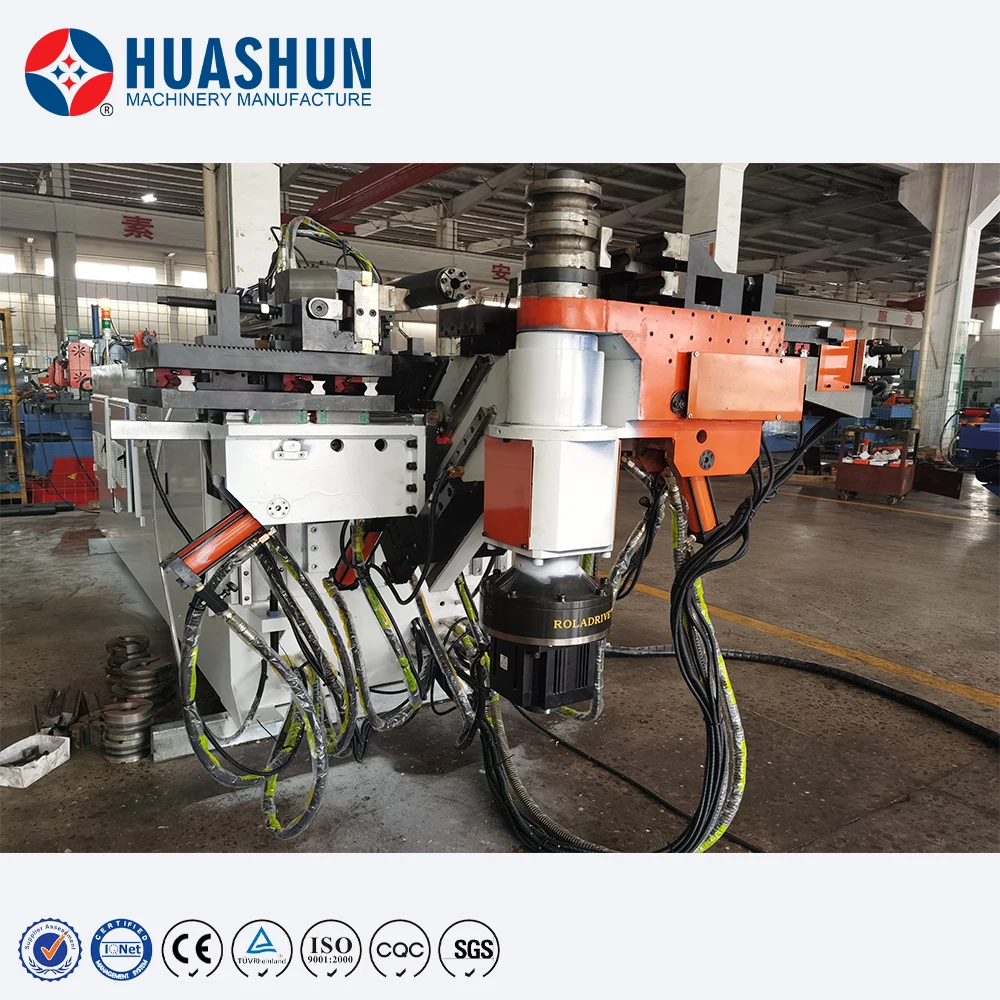

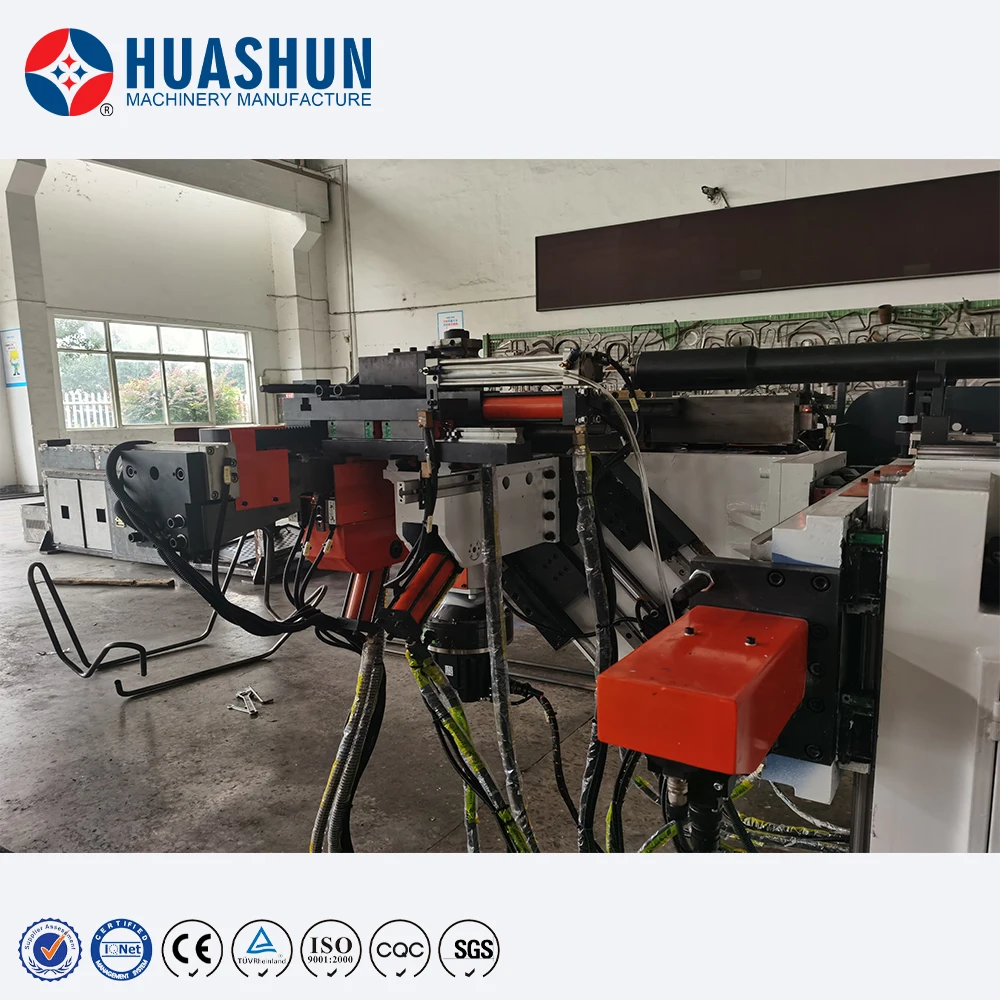

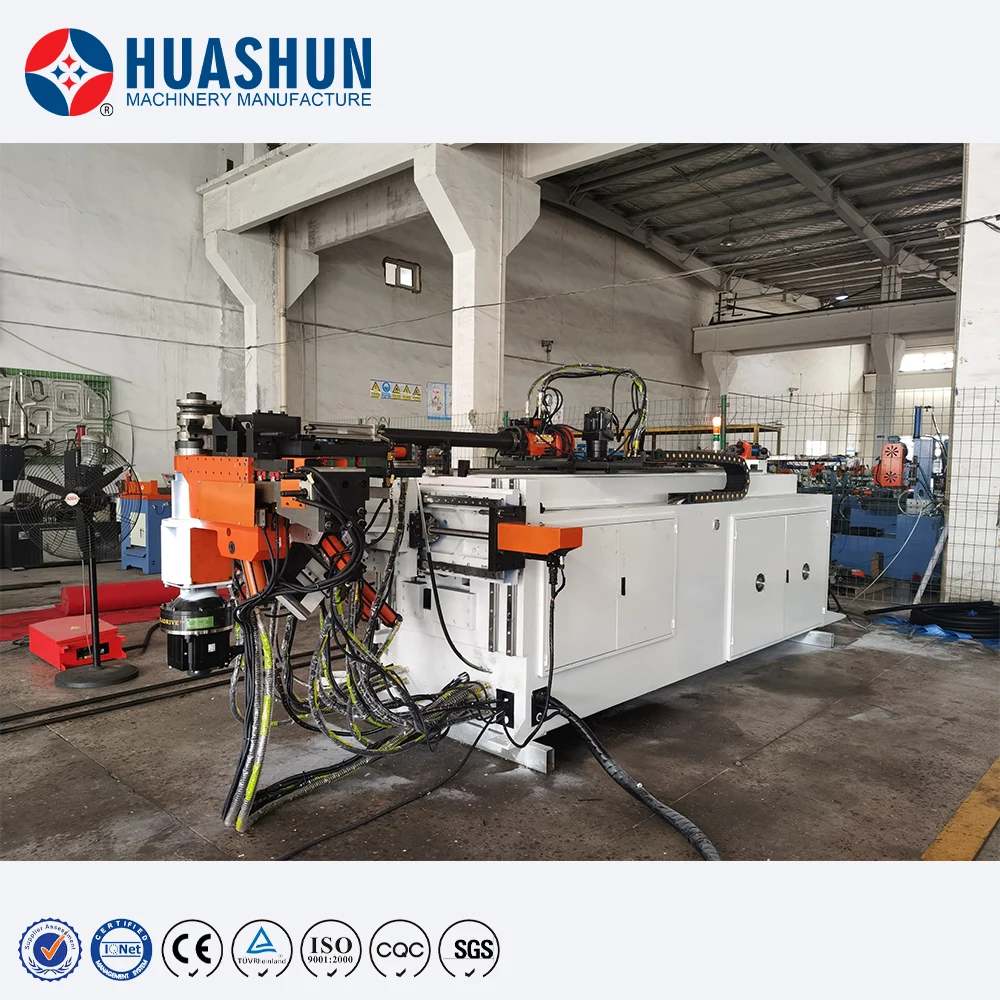

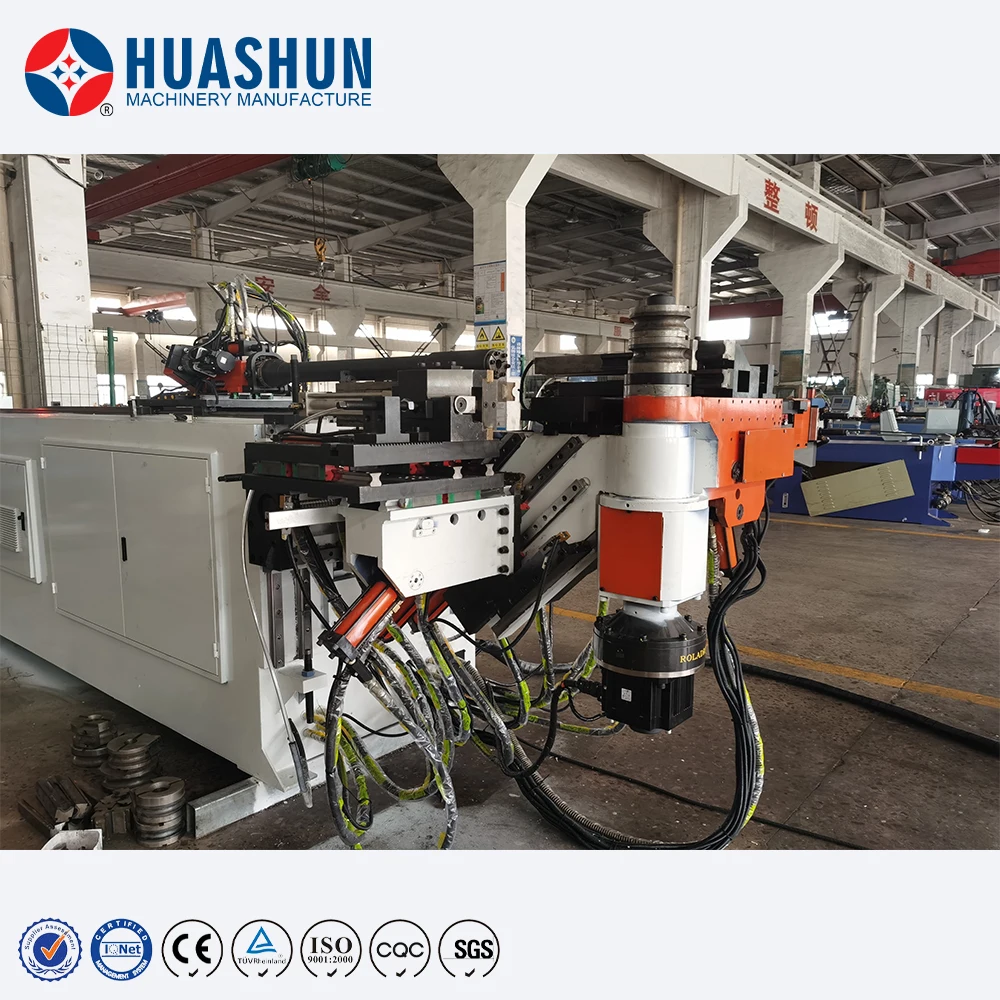

Machine Details
Machine Details.
* Industrial Computer offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Left and Right bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
* System diagnostics and multiple language capability.
* Left and Right bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
Machine Details.
* Direct acting hydraulic pressure die with adjustable speed valve.
* Maximum 10000 sets of program storage,20 or more bends for each program.
* With Independent programmable speeds Y, B, and C axes.
* Programmable material spring back settings for each bend angle.
* Automatic mandrel/machine lubrication
* Maximum 10000 sets of program storage,20 or more bends for each program.
* With Independent programmable speeds Y, B, and C axes.
* Programmable material spring back settings for each bend angle.
* Automatic mandrel/machine lubrication
Machine Details.
* Automatic release of tube prior to final bend.
* Bending Axis-Driven by Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor,Left to Right Axis-Driven by Servo Motor,Up to Down Axis-Driven by Servo Motor.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Foot Pedal Cycle start.
* With Air Cooling System.
* Bending Axis-Driven by Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor,Left to Right Axis-Driven by Servo Motor,Up to Down Axis-Driven by Servo Motor.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Foot Pedal Cycle start.
* With Air Cooling System.
Machine Details.
* One set of Tooling for Draw Bending.
* Wiper die Bracket.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional
* Anticipate Mandrel Extraction
* Machine effective length over mandrel
* Safety Mat
* Wiper die Bracket.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional
* Anticipate Mandrel Extraction
* Machine effective length over mandrel
* Safety Mat
Product Paramenters
Take model HS-SB-38CNC-5A-3S（LR） as the reference standard.
Name | Unit | Data | ||||
Max Draw Bending Capacity | Mild steel round tube | mm | ￠38*2 | |||
Stainless Steel(R=1.5D) | mm | ￠31.75*1.5 | ||||
Draw Bending Radius Layer Difference | mm | 80 | ||||
Rolling Radius Range | mm | 6D-∞ | ||||
Through Effective Distance Over Mandrel | mm | 3200 | ||||
Can customized as per customer’s requirement | ||||||
Max. One Time Feeding Length | mm | 2500 | ||||
Can customized as per customer’s requirement | ||||||
Max Bending Radius | mm | 200 | ||||
Max Bending Degree | ° | 190 | ||||
Bending Unit | pieces | 32 | ||||
Bending Axis | Speed | Deg/sec | 150 | |||
Accuracy | ° | ±0.1 | ||||
Power | KW | 5 Controlled by Servomotor | ||||
Feeding Axis(Rolling) | Speed | mm/sec | 1000 | |||
Accuracy | mm | ±0.1 | ||||
Power | KW | 1 Controlled by Servomotor | ||||
Rotating Axis | Speed | Deg/sec | 200 | |||
Accuracy | ° | ±0.1 | ||||
Power | KW | 0.4 Controlled by Servomotor | ||||
Left-Right Axis | Accuracy | mm | ±0.1 | |||
Power | KW | 1 Controlled by Servomotor | ||||
Up-Down Axis | Accuracy | mm | ±0.1 | |||
Power | KW | 5 Controlled by Servomotor | ||||
Date Input | / | 1.Coordinate ( X, Y, Z ) | ||||
/ | 2.Working value ( Y, B, C ) | |||||
Max. Pressure | Mpa | 12 | ||||
Max Storage Units | Group | 1000 | ||||
Can be extended as per customer’s requirement | ||||||
Machine Dimensions | mm | 4250*980*1450 | ||||
Appro. Weight | Kgs | 3200 | ||||
Recommend Products
CNC Pipe Bending Machine.
CNC Pipe Bending Machine SB-38CNC-2A-1S
CNC Pipe Bending Machine SB-38CNC-2A-2S
CNC Pipe Bending Machine SB-38CNC-5A-3STR
CNC Pipe Bending Machine SB-50CNC-2A-1S
CNC Pipe Bending Machine SB-50CNC-5A-3STR
CNC Pipe Bending Machine SB-63CNC-4A-2S
CNC Pipe Bending Machine SB-63CNC-5A-3STR
CNC Pipe Bending Machine SB-75CNC-2A-1S
CNC Pipe Bending Machine SB-89CNC-2A-1S
CNC Pipe Bending Machine SB-38CNC-5A-3STR
CNC Pipe Bending Machine SB-50CNC-2A-1S
CNC Pipe Bending Machine SB-50CNC-5A-3STR
CNC Pipe Bending Machine SB-63CNC-4A-2S
CNC Pipe Bending Machine SB-63CNC-5A-3STR
CNC Pipe Bending Machine SB-75CNC-2A-1S
CNC Pipe Bending Machine SB-89CNC-2A-1S
NC Pipe Bending Machine.
NC Pipe Bending Machine SB-38NC
NC Pipe Bending Machine SB-50NC
NC Pipe Bending Machine SB-63NC
NC Pipe Bending Machine SB-75NC
NC Pipe Bending Machine SB-89NC
NC Pipe Bending Machine SB-100NC
NC Pipe Bending Machine SB-115NC
NC Pipe Bending Machine SB-133NC
NC Pipe Bending Machine SB-168NC
NC Pipe Bending Machine SB-63NC
NC Pipe Bending Machine SB-75NC
NC Pipe Bending Machine SB-89NC
NC Pipe Bending Machine SB-100NC
NC Pipe Bending Machine SB-115NC
NC Pipe Bending Machine SB-133NC
NC Pipe Bending Machine SB-168NC
If you want to know more model types machine, inquiry us now!
Why Choose Us
Zhangjiagang Huasheng Machinery Manufacturing Co., Ltd.
Huashun Machinery started factory in 2000 from producing pipe bending machine, and then expands the whole line of pipe equipments.Lead the manufacturing of pipe equipments after 19 years' of development.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huasheng Machinery Manufacturing Co., Ltd.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huasheng Machinery Manufacturing Co., Ltd.
It is located in Zhangjiagang City, along the Economic circle of Yangtse River Delta, Located on the National Road,enjoying the highly developed economic expansion and convenient transportation access.
Factory.
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine,GY rolling machine, MC cutting machine,TM pipe-end forming machine, MC metal circular saw machine,EF chamfering machine,CH ARC strike machine,SX riveting machineand some other automatic machines.
We provide unitized and perfect sets of equipments for processing pipes for automobile, motorcycle, physical gymnastic equipment, steel-pipe furniture, toursim and leisure articles, plumbing and bathing industries.
Our team.
Our factory is combined with manufacture, sales, service, and supply of Pipe equipments, We are devoted to providing a one-stop sales model to customer; We give more important care on our customer's satisfaction. So far, over 108 countries and regions have enjoyed our products and service. Our success has been mainly achieved by following the corporate philosophy of being firmly committed to "Integrity is the base, Customer is the first".
Ceritificates.
Ceritificates.
FAQ
Q:Are you manufacturer or trading company?
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
