DW-75CNC Single head 3D CNC Hydraulic metal pipe bending machine tube bender

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

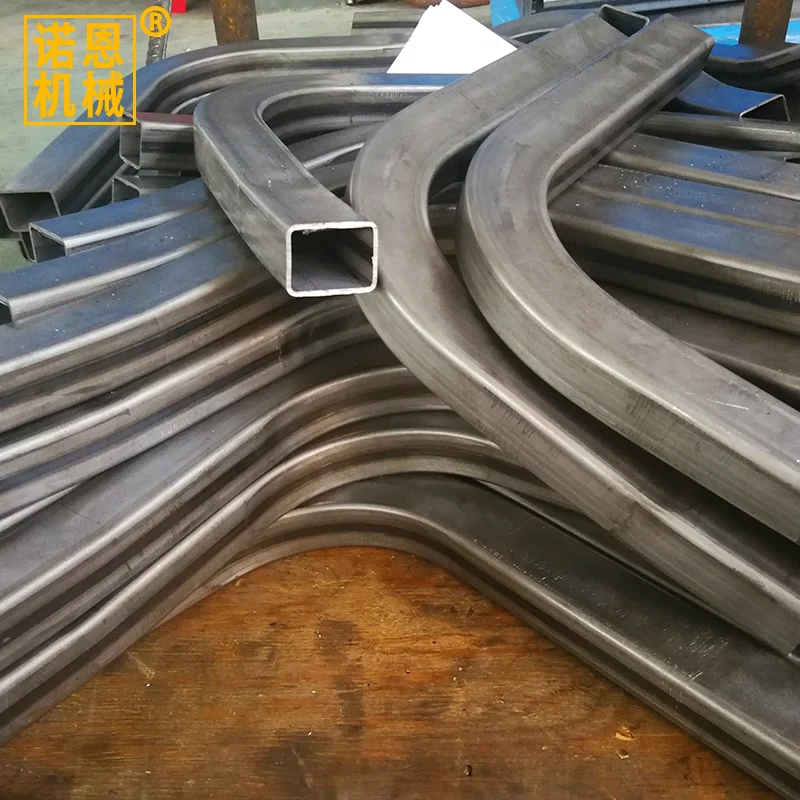

 8.jpg3square pipeDW-75CNC Hydraulic automatic pipe bending machine


A.   Introduction


The product is controlled by PLC and hydraulically driven. The display operating system is touch-type full Chinese menu. It has prefabrication with various bending angles, Chinese subtitle display and man-machine dialogue operation. It can choose manual, semi-automatic and fully automatic operation modes. The mobile foot switch has both start and stop functions.


Hydraulic system, control system, drive system, display system, etc. all adopt high-reliability imported parts, with high precision, high efficiency, suitable for mass production, with international and domestic advanced level.


It is a CNC automatic pipe bending machine, which is equipped with a full-featured device for bending three-dimensional space pipe fittings. The input program is automatically completed during the entire bending process. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.


B. The main technical parameters:





























































































































Name



Unit



Model: 1,DW75CNCX2A-1S
2,DW75CNCX3A-2S



Remarks



Maximum Bending Pipe Diameter * Wall Thickness



mm



Φ75*4




  1. The minimum bending radius depends on the pipe diameter

  2. The maximum bending radius depends on the customer requirements

  3. The maximum core-through length may depend on the customer requirements



Minimum Bending Radius



mm



R250



Maximum Bending Radius



mm



R30



Maximum Bending Angle



Degree



190°



Maximum Feeding Length



Mm



2850



Feeding Mode



1.Direct Feeding 2.Clamp-type Feeding



Optional



Working Speed



Pipe Bending Speed



Deg/sec



40



Pipe Rotating Speed



Deg/sec



160



Feeding Speed



Mm/sec



800



precision



Feeding Precision



mm



±0.1°



Pipe Rotating Precision



Degree



±0.1°



Pipe Bending Precision



Degree



±0.1



Information input mode




  1. Coordinate Values(X,Y,Z)

  2. Working Values(Y,B,C)



Optional



Bend way







1. Servo bend: 1 kw (more than three axis)
2. The hydraulic pipe bending



Power of Pipe Rotating Servo Motor



W



1500



Power of Feeding Servo Motor



W



2000



Allowable Pipe Fitting Elbow Number







1,12     2,33



Storable Component Number







1,330    2,125



Oil Hydraulic Motor Power



Kw



11



Maximum System Pressure



Mpa



12



Machine Size



cm



4950*1350*1230



Machine Weight



Kg



4500








C.Application:


1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of  kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.






Our Services


 Company Details
Professional: More than 15 years in metal pipe proccessing machines fabrication.
Brand: NUOEN, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Ningbo, FOB Shanghai, CIF your port
Payment Terms: T/T, L/C, Western Union, MoneyGram
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
