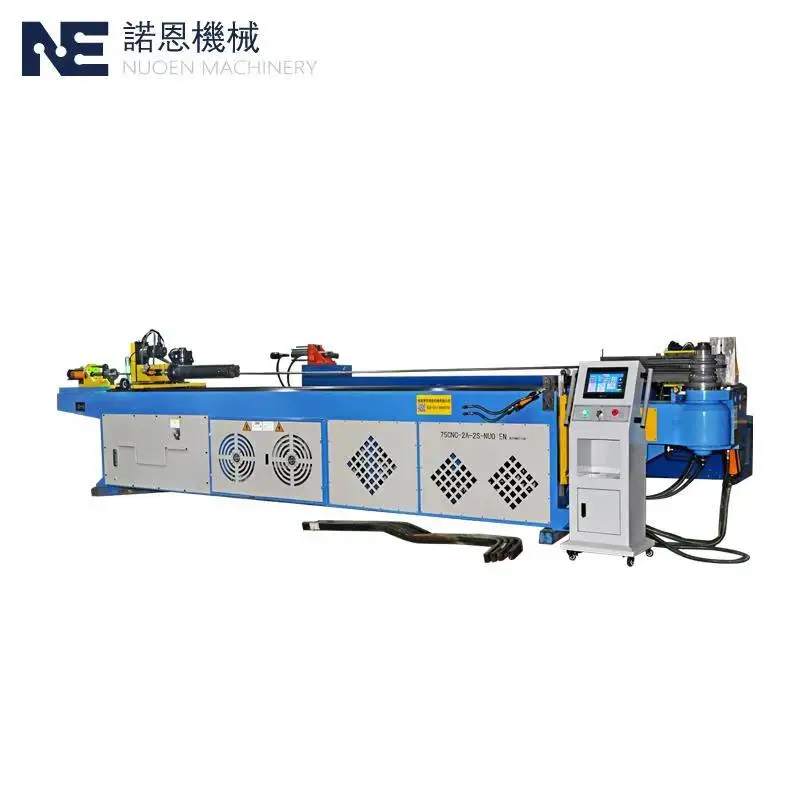

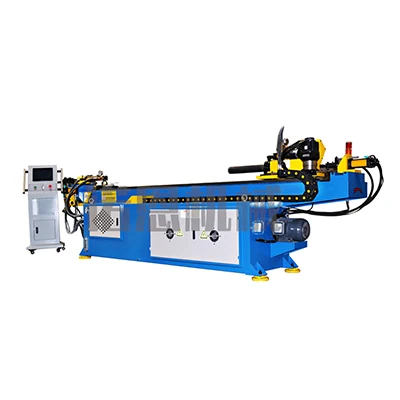

DW38CNC High Efficient Tube Bender Hydraulic CNC Pipe Bending Machine, Favorable Tube Bender for Chair processing

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

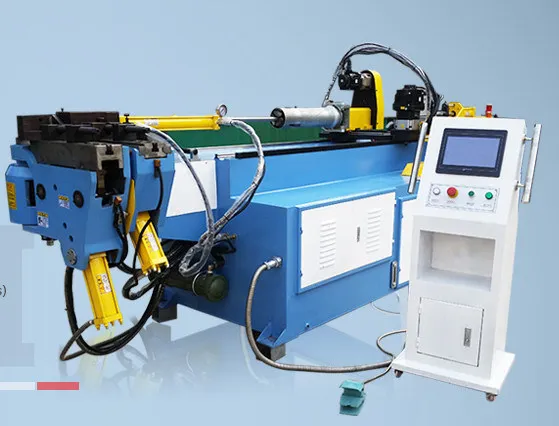

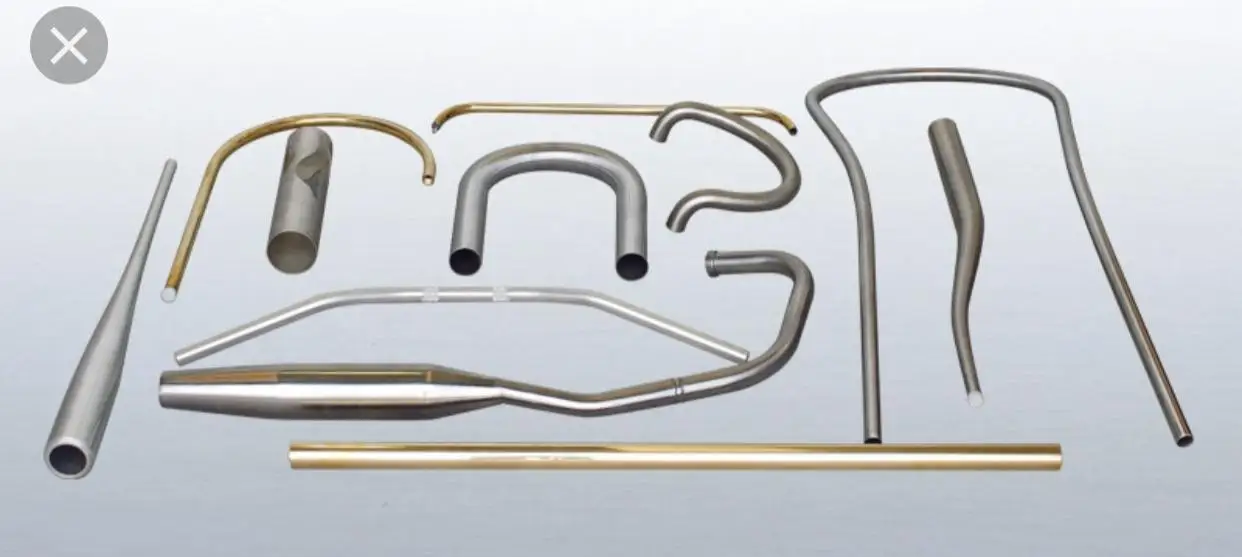

Co 25.jpgMachine tool Co 14.jpgcharacteristics:


1. Standard display language: Chinese/English switch. (Other language can be changed as needed)


2. The maximum bending program memory capacity is 400 groups, and each group can be programmed with up to 16 bends. (expandable)


3. Directly input the bending pipe processing parameters. The machine can be single-stepped and paused during automatic operation, so that it can be manually intervened when bending special pipe fittings, and can also resume automatic operation. At the same time, it has a pause function, with automatic and manual functions. It is activated by a switch when running the next cycle after one cycle, and an emergency stop button is required when an emergency stop is required.


4. The operating program and the elbow program have unlimited memory storage time, and will not cause program loss due to power outage or long-term non-use.


5. While the machine is performing automatic machining, the controller can still input or edit the program.


6. The elbow program can set the individual actions of each axis in each processing step. 0-9 A total of ten speeds can be flexibly used for different work items to improve work efficiency. An external speed knob is also available to reduce or increase the machining speed as needed.


Machine tool configuration:














































































Item



Supplier



Electromagnetic reversing valve



Yuken



Servo motor



Mitsubishi



Reducer



PINHONG



Linear guides



Hiwin



Overflow valve



Yuken



Superposition valve



Yuken



Rack



ATLANTA



Micro computer



Changzhou



Vane pump



NOVA



Seals



DingZing



AC contactor



Schneider



Thermal overload relay



Schneider



Fuse



Schneider



Proximity switch



ROKO



Switch



Delixi



Electric motor



TAIHU



Oil tube



KuDos



 Machine technical parameters:





























































































































Name



Unit



Model: 1,DW38CNCX2A-1S
2,DW38CNCX3A-2S



Remarks



Maximum Bending Pipe Diameter * Wall Thickness



mm



Φ38*2




  1. The minimum bending radius depends on the pipe diameter

  2. The maximum bending radius depends on the customer requirements

  3. The maximum core-through length may depend on the customer requirements



Minimum Bending Radius



mm



R180



Maximum Bending Radius



mm



R15



Maximum Bending Angle



Degree



190°



Maximum Feeding Length



Mm



2000



Feeding Mode



1.Direct Feeding 2.Clamp-type Feeding



Optional



Working Speed



Pipe Bending Speed



Deg/sec



85



Pipe Rotating Speed



Deg/sec



200



Feeding Speed



Mm/sec



1000



precision



Feeding Precision



mm



±0.1°



Pipe Rotating Precision



Degree



±0.1°



Pipe Bending Precision



Degree



±0.1



Information input mode




  1. Coordinate Values(X,Y,Z)

  2. Working Values(Y,B,C)



Optional



Bend way







1. Servo bend: 1 kw (more than three axis)
2. The hydraulic pipe bending



Power of Pipe Rotating Servo Motor



W



750



Power of Feeding Servo Motor



W



1000



Allowable Pipe Fitting Elbow Number







1,12
2,33



Storable Component Number







1,330
2,125



Oil Hydraulic Motor Power



Kw



5.5



Maximum System Pressure



Mpa



12



Machine Size



cm



3830*760*1200



Machine Weight



Kg



1500






0.011 s.
