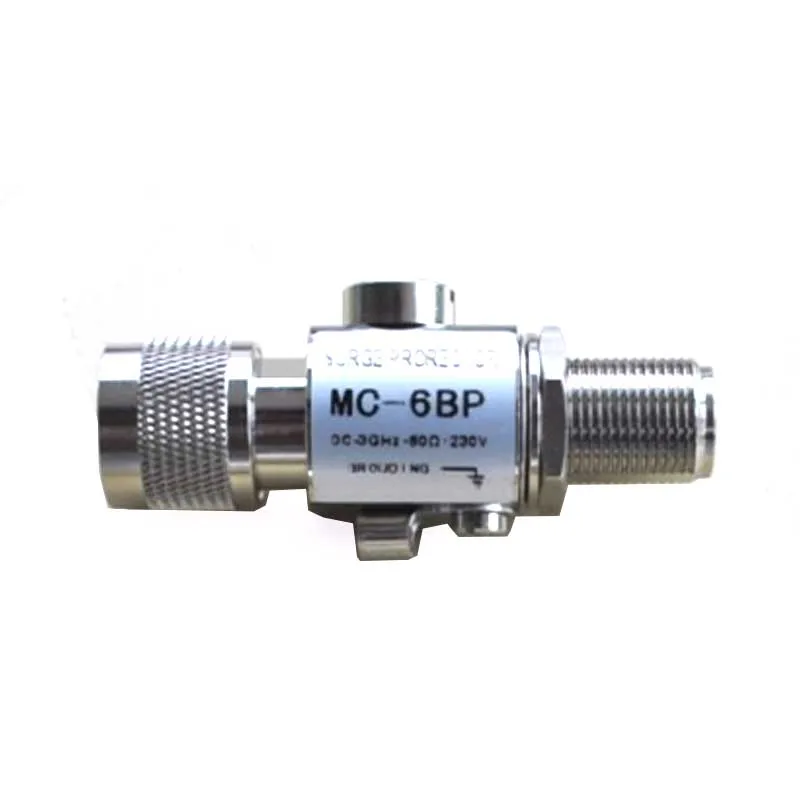

antenna lightning arrester male to female surge protector RF connector N male to N female
- Category: Coaxial Connectors (RF) >>>
- Supplier: Shenzhen,Qifan,Communication,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Details
ARRESTERS COAXIAL SURGE PROTECTOR (BULKHEAD TYPE) | ||
SPECIFICATIONS | ||
TYPE SERIES | SLA-6BP | |
FREQUENCY RANGE | DC-6GHz | |
CONNECTOR | N-K/N-J | |
APPLICATED STANDARD | JISC 5419 | |
IMPEDENCE | 50Ω | |
V.S.W.R. | ≤1.2:1 | |
INSERTION LOSS(≤) | ≤0.25dB | |
MAXIMUM HANDLING POWER (25℃) | 250W/300MHz 160W/500MHz 100W/900MHz 75W/2GHz 52W/3GHz 36W/6GHz | |
INSUL ATION RESISTANCE | DC 100V MORE THAN 50MΩ | |
D.C. DISCHARGE VOLTAGE | DC 230V +20% | |
INITIAL IMPUL SE WAVE | LESS THAN 700V 1KV/μ sec | |
DISCHARGE VOLTAGERATED IMPULSEWAVE DISCHARGE | 10KA 8/20u SEC 5 TIMES | |
WATERPROOF RATE | IP67 | |
GROUND CONNECTION | BY FEEDTHROUGH OR SCREW TERMINAL | |
WORKING TEMPERATURE | -40℃~+85℃ | |
DIMENSION | 68.2x31*23mm | |
WEIGHT | 130g | |
Packing & Shipping
Packing
We have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.
Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.
Company Profile
About us
Shenzhen Qifan Communication Equipment Co.,Ltd. (Qifan) is specializing in the design & manufacture of wireless antenna within the 70 MHz to 6 GHz spectrum. Our extensive range of antennas include: yagi antenna, parabolic dish antenna, cell tower sector antenna, external wireless antenna, mobile antenna, broadband and ultra-wideband antennas for the wireless, public security. Our antennas have been widely used for applications including: WiMAX, LTE, WLAN; Wi-Fi, Cellular Telecoms, RFID, Surveillance ...
Production Workshop
We have a factory with 5000 square meters, 60 employees and a whole supplier chain. We can design and produce new antennas within 12 days.
R&D Ability
QIFAN put around 12% from sales amount used as R&D expense per year. To make sure proving stable technology support to customers and keep going on innovation.
Sample room
As a professional antenna manufacturer, QIFAN with 10 years of experience designing and producing antennas. Now we can produce more than 500 types of antennas.
Sales Team
heeeWe have a strong sales team willing to assist you with your needs. We will help you from choosing products to shipping.
Certifications and Licenses
Our mission is to provide high quality products.
Contact Us
Jeremy Lin
Tel: +86-15989344695
E-mail: [email protected]
Skype: live:244135443
E-mail: [email protected]
Skype: live:244135443
Louis Lin
Tel: +86-13760321993
E-mail: [email protected]
Skype: live:signalplus_1
E-mail: [email protected]
Skype: live:signalplus_1
FAQ
Q: How is your product quality?
A: All our products have strict QC process and will be 100% tested before shipping. And Our antenna engineers have more than 10-year experience.
Q: Can you customize antennas ?
A: Sure! We have a professional R&D team. The antennas can be customized to serve different purposes. OEM and ODM
Q: Could you offer free sample to test ?
A: We can provide free samples for some low-In general , for new customer you pay the sample fee first, but when you order required amount we refund the sample cost back to you.
Q: When can you ship the goods ?
A: It depends on the order quality and if we have the good in stock. The lead time usually is 2-12 days.
Q: What is your payment term?
A:50% payment should be paid when you make the order and the 50% should be paid when the products are ready for shipping.
