Product Overview

Description



Product Description


Item Type: Bridge Meter
Material: Metal, Plastic
ModelET4401DigitsMain parameter: 5 digits; secondary parameter: 5 digitsMeasurement ParameterMain parameter: L/C/R/Z; secondary
parameter: X/D/Q/ESRMeasurement Range(L)0.01μH - 9999HMeasurement Range(C)0.01pF - 99999μFMeasurement Range(R)0.0001Ω -
99.99MΩBasic Accuracy0.2%Test Frequency (Hz)100-10kHz 10 pointMeasurement
Display Speed2 times/second (slow), 4 times/second
(medium speed), 8 times/sec (fast)Internal Bias0-1500mV adjustable, 1mV steppingTest Level100mV, 300mV, 600mV, 1000mV, 1500mV,
2000mVCorrection FunctionOpen circuit correction, short circuit correctionScreening functionThe screening limit can be set from
-50% to + 50%
with fixed points of 1%, 5%, 10% and 20%Selection of comparatorFive gear sorting, third gear qualified, one gear failed, one
ancillary gearCommunication InterfaceStandard configuration: USB, RS232 (or 485)Handle interface; Optional: GPIB, USB
HostOthersSupport DCR, electrolytic capacitor measurement modeadjustable backlight brightness, optional in English and Chinese

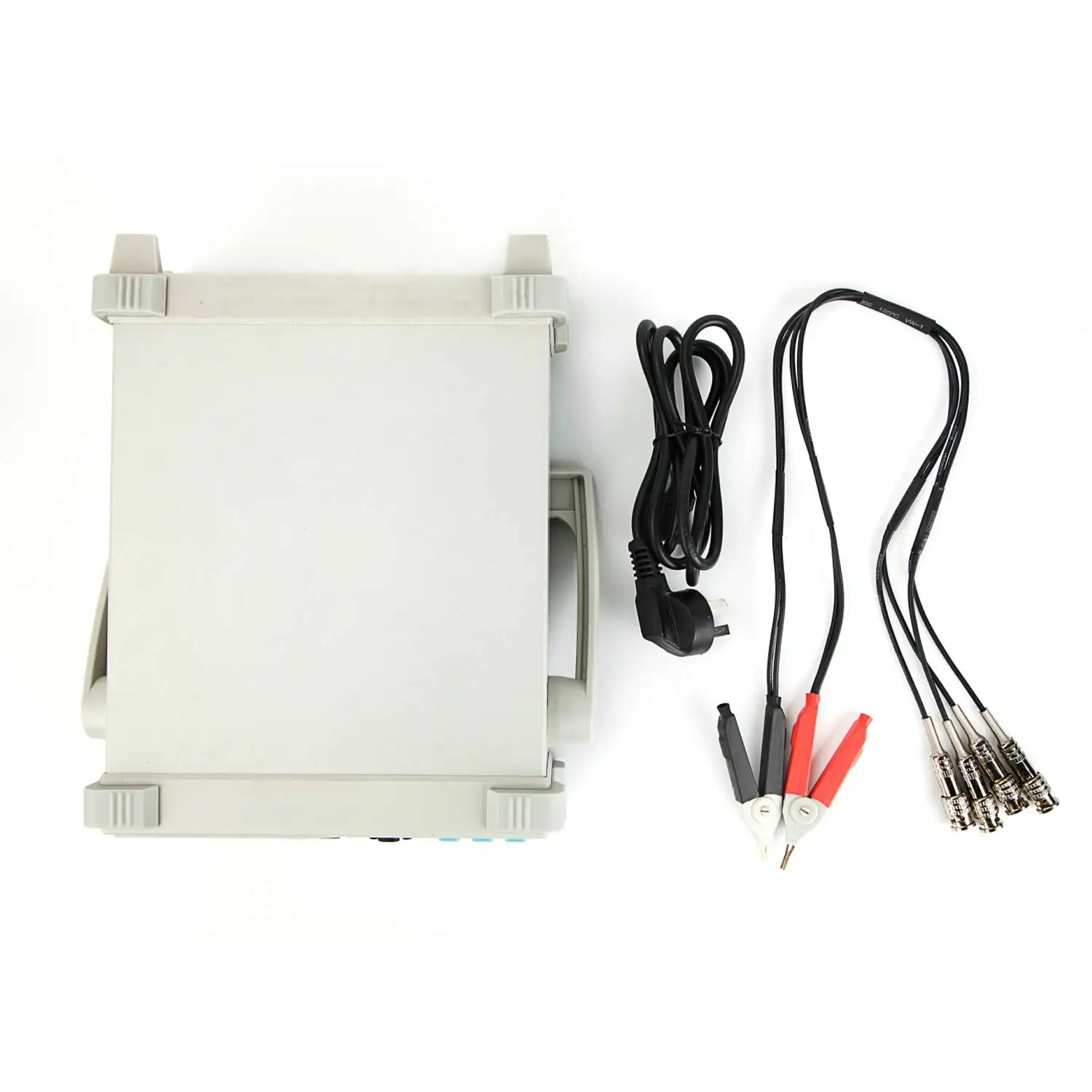

Package List:
1 x Digital Bridge Meter
1 x Set of Accessories
1 x Instruction Manual

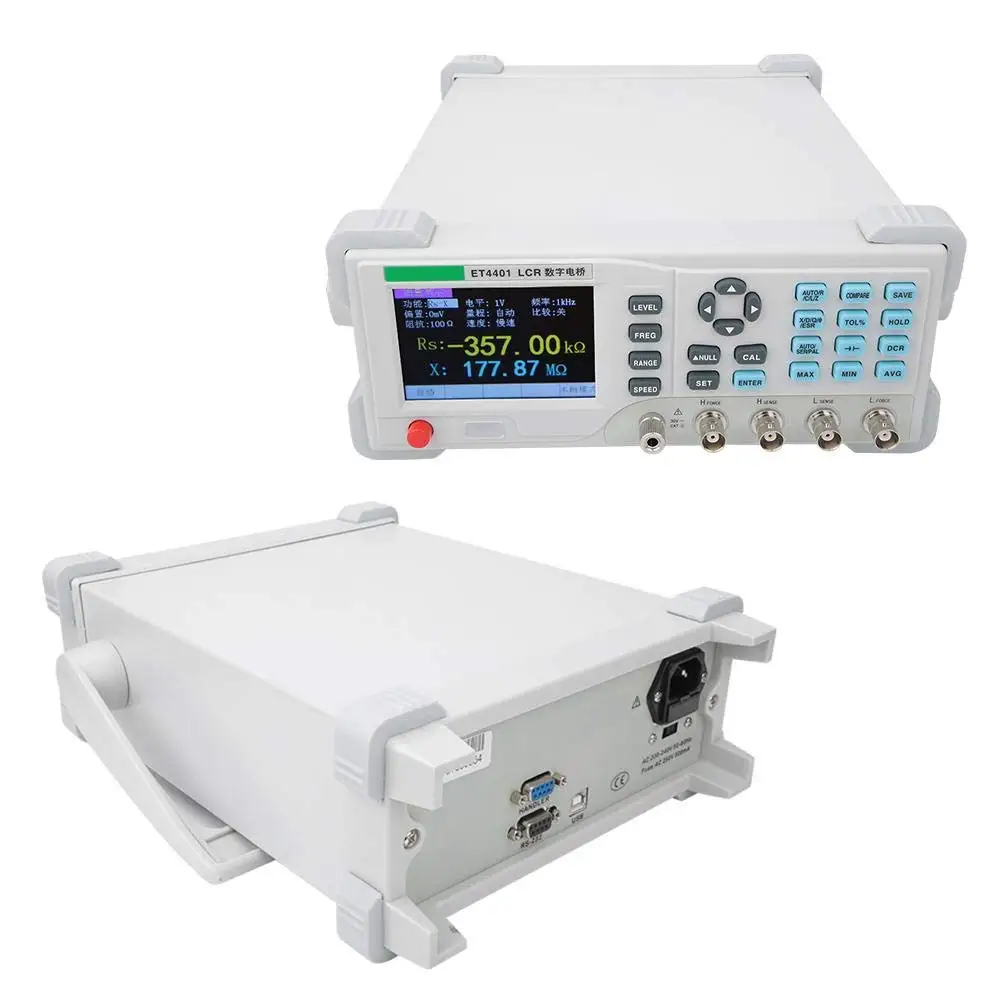

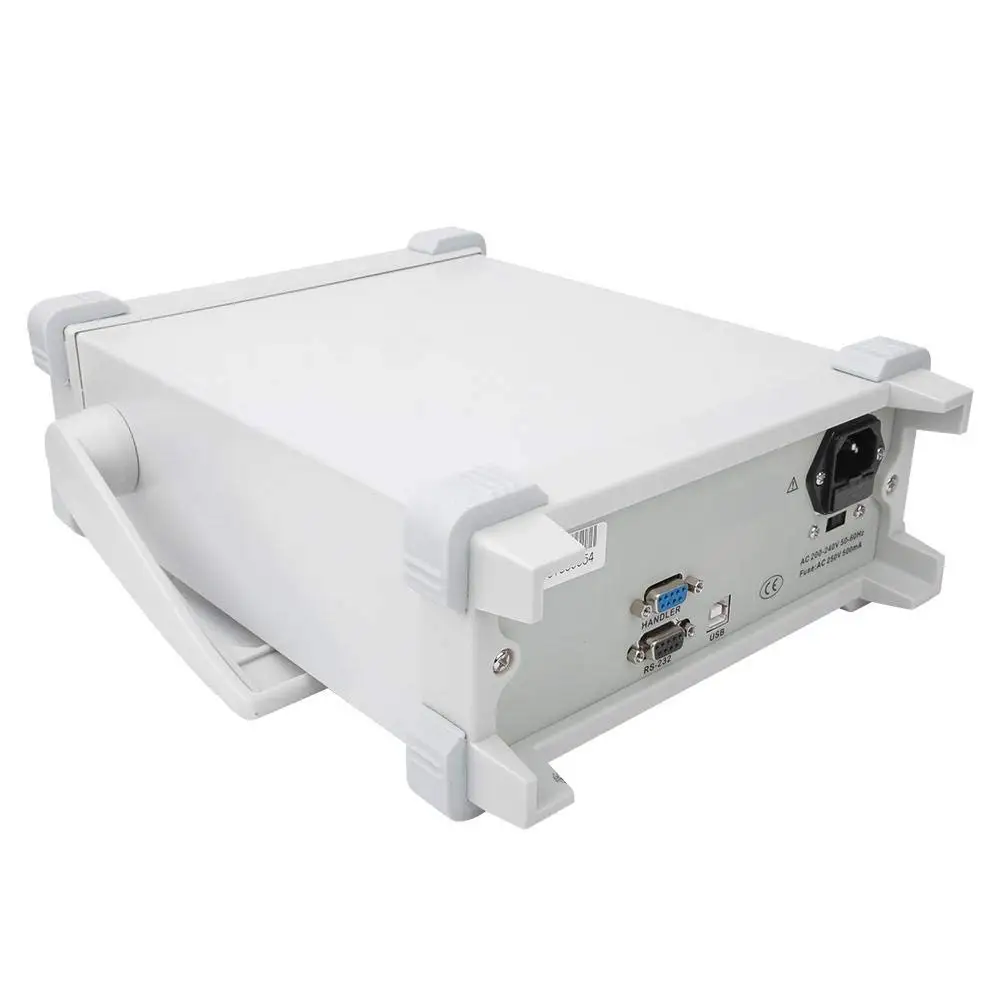

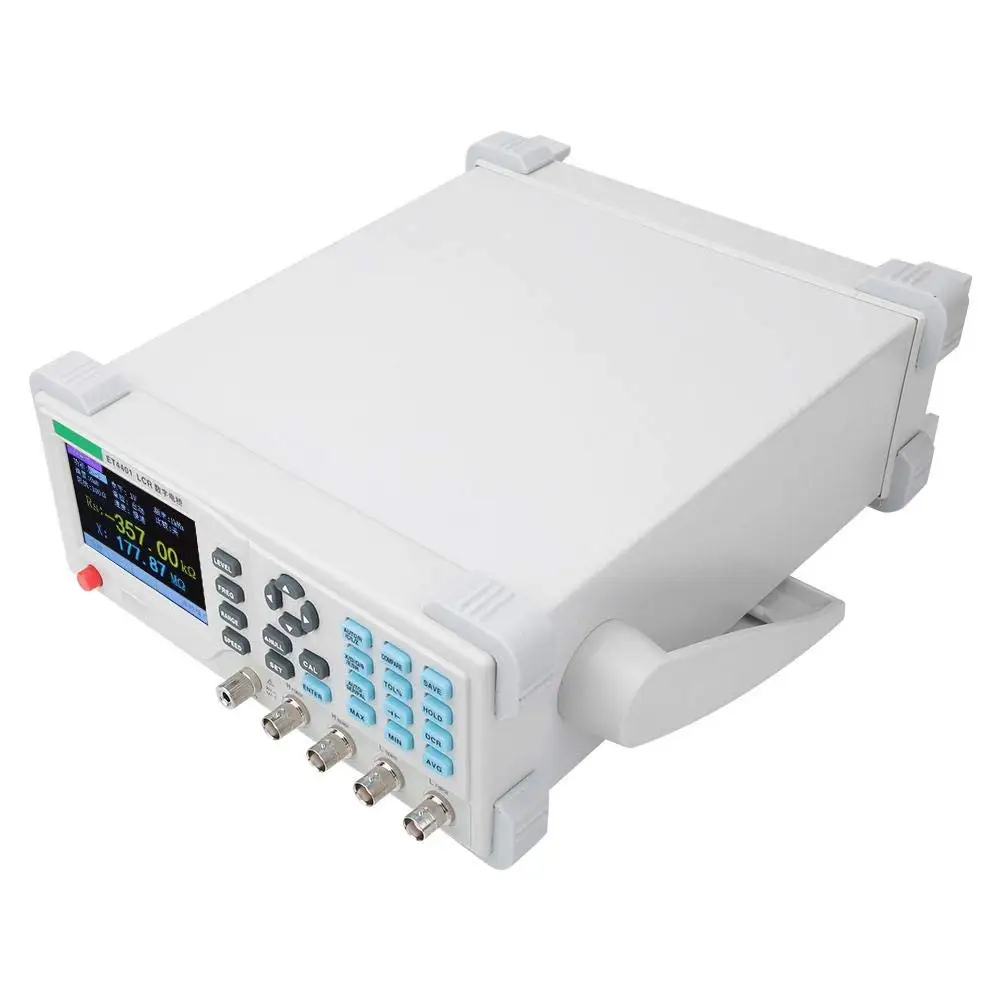

Detailed Images




Related Products




Packing&Shipping


All products have stock, for small trial order can ship out immediately. For OEM order also can be finished very fast.Well packed with brown Carton box to ensure safty on transportation
We provide different shipping way like air fright and Sea freight, courier method by DHL, FEDEX,UPS,TNT, Aremex and also EMS by post to meet your requirements.




Company Introduction


We are an professional distance meter,Mutileters and handheld tools producer and wholesale. We provides the customized products and OEM service. Most models have ready stock to ensure fast delivery. and aso help online retailers to ship to FBA warehouse


Aftersales and Quality Ensurance
We provide 1 Year Warranty, free replacement or repair.
We will do full test before shipment to ensure quality.


FAQ


1. Can you print our logo? Yes.

2. Can you help to handle shipment to Amazon FBA? Yes

3. Do you have MOQ limited?
No, Most models we have stock, So no MOQ limited. MOQ only for OEM order.

4. What is your lead time?
Most model we have stocks, So we can ship your order immediately. For OEM order, normally, we can finish with 15 working days.

5.Can we buy a sample before mass order? Yes
