Ceramic Plate Making Machine Steel Floor Deck Roll Forming Machine

Product Overview

Description

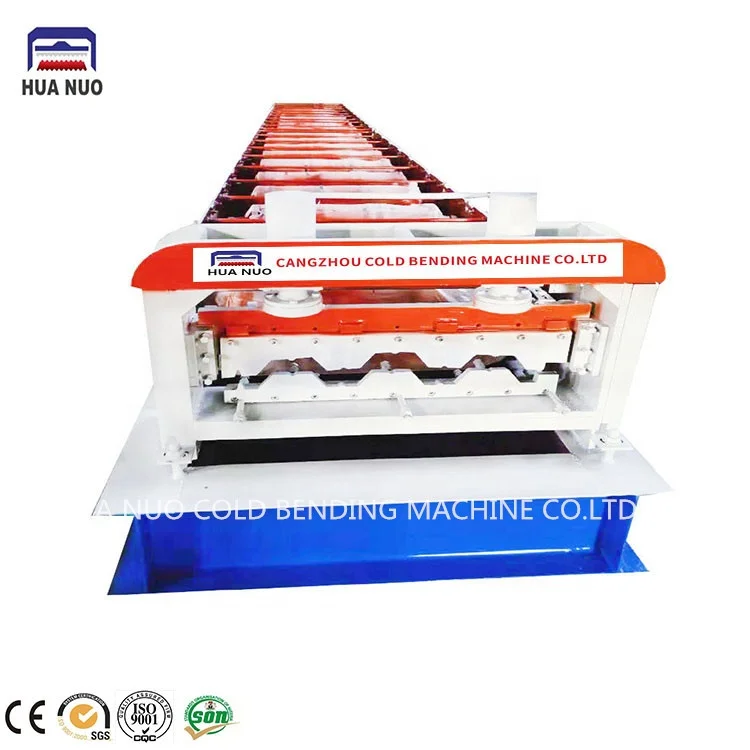

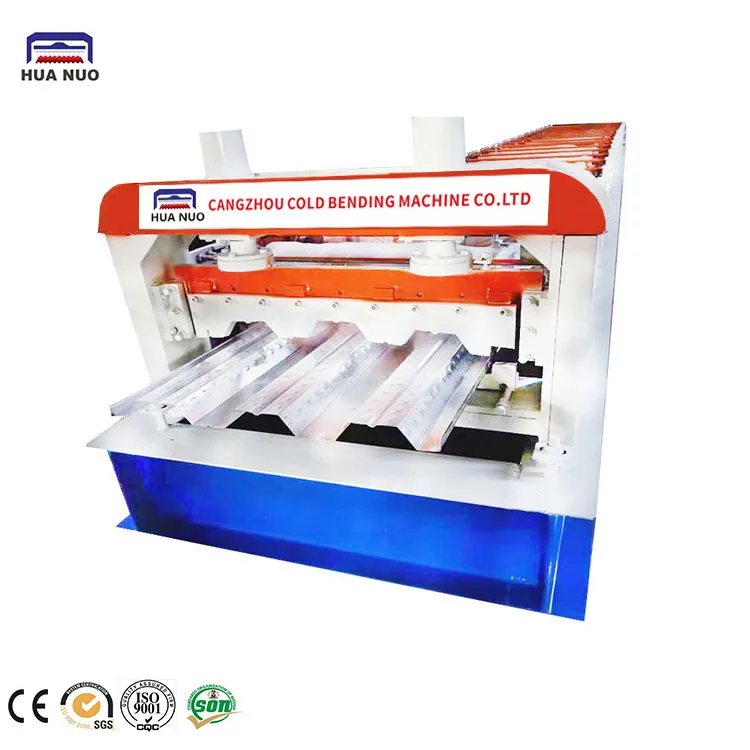

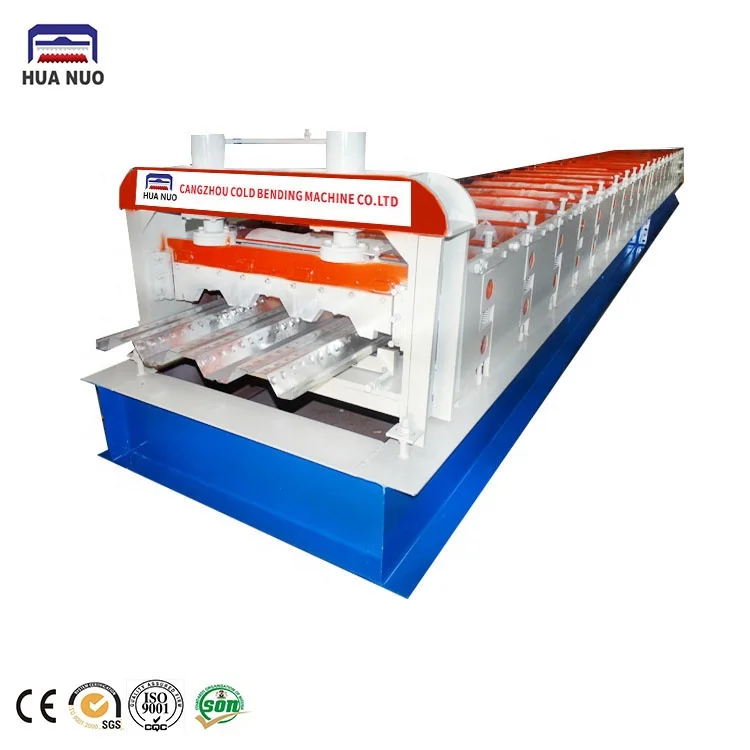

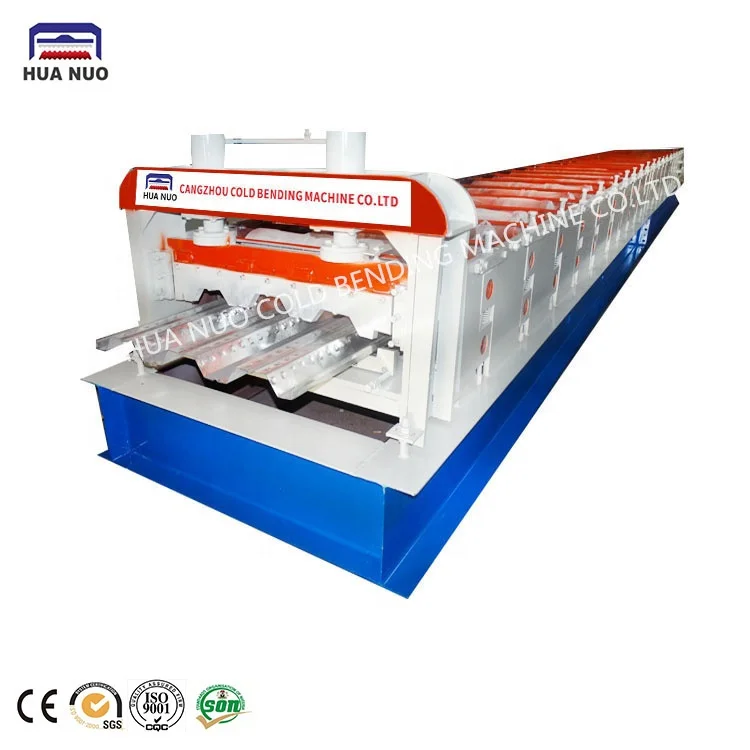

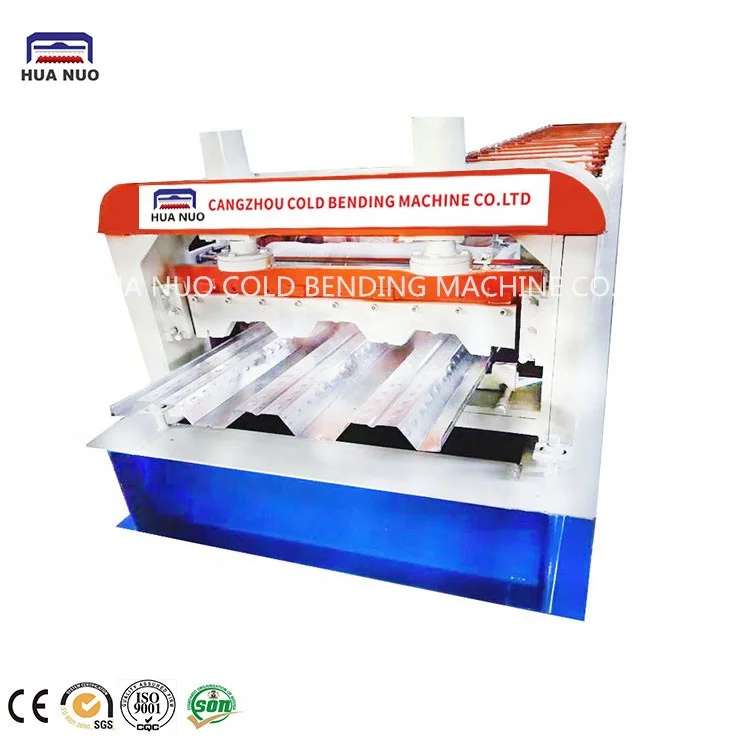

Ceramic Plate Making Machine Steel Floor Deck Roll Forming Machine





The total length of the equipment	Length 11.5m, width 1.5m and height 1.2m

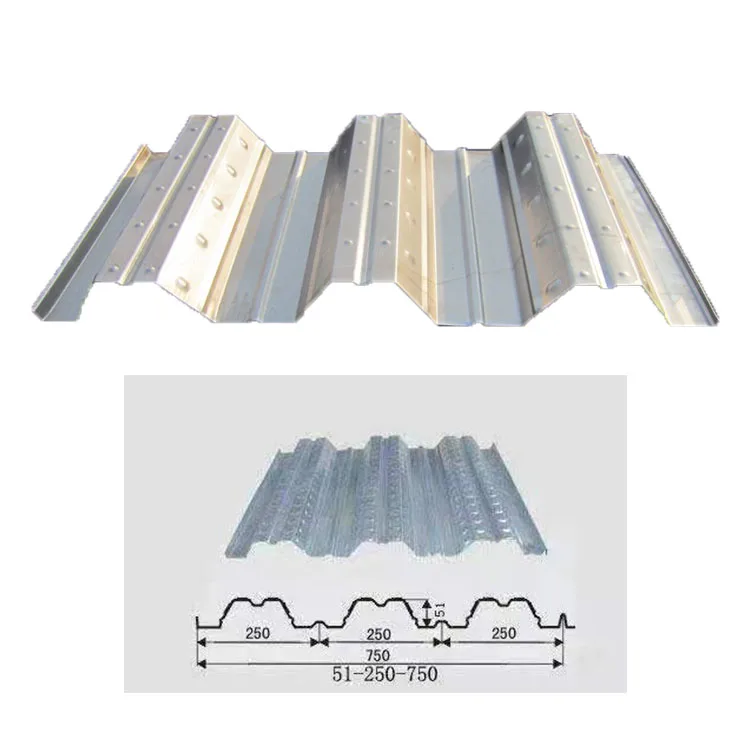

Version to width	Effective width 750 working voltage 380V or customized
Equipment weight	12T  400H steel frame, thickness of medium plate 18mm
Retarding mechanism	Planetary cycloid reducer.
The transmission way	2 inch chain drive
Shaft diameter material	Nancial 90 solid shaft material 45# steel hb220-250, 6214 bearing inner hole nancial 70,

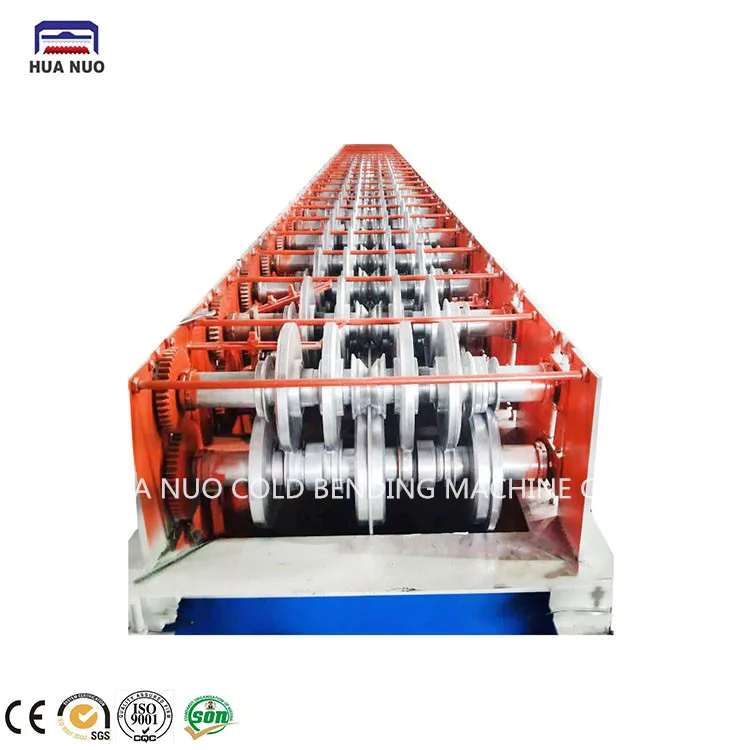

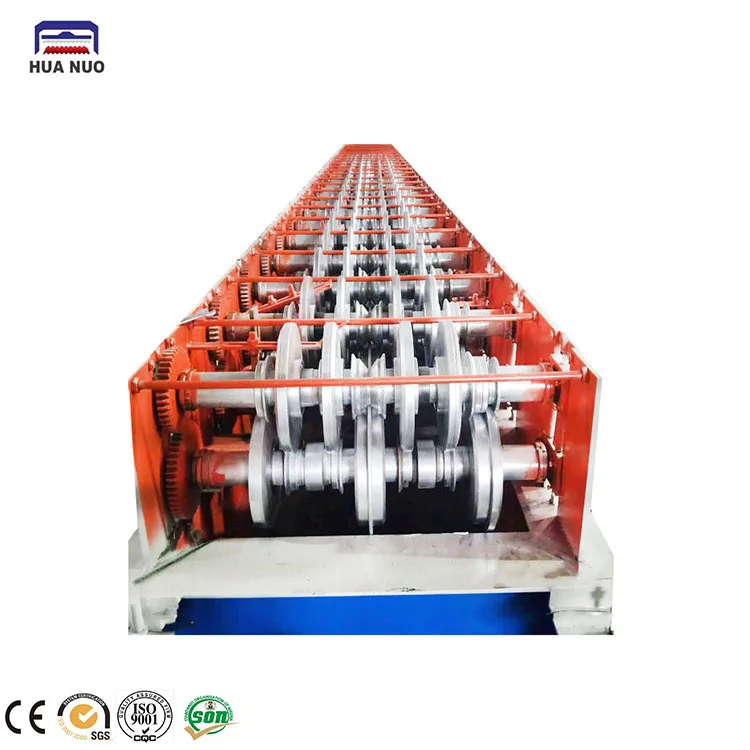

Roller way	20 rows molding
Material and treatment	Pressure wheel is G chromium 15 bearing steel car quenching, hardness 55 degrees, polishing hard chromium plating 0.05mm, shaft and hole fit no loose clearance, version face side there are pits.The thickness of the plate is 18mm.
The host power	11 kw * 2 sets
Cut off the way	Hydraulic cutting power 5.5kw, 125 of two cylinders, blade Cr12 quench, Rc62, no flash.
The molding part	Precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient and fast, can maximize the control of deviation.
The thickness of the plate	0.6 ~ 1.5 mm
Into the plate width	1000 mm
Platen speed	4 ~ 6 m/min
Control system	Numerical control system, main motor, a frequency converter, an electrical cabinet.
	1 manual, send technicians to debug the equipment
Warranty period	12 months
