Professional Usb Smart Mini Hd Video Conferencing Pc Android Tv Box Windows 10 Webcam
- Category: >>>
- Supplier: Shenzhen Oneking Technologies Co. Ltd.Shenzhen Ltd.
Share on (1600147285567):
Product Overview
Description

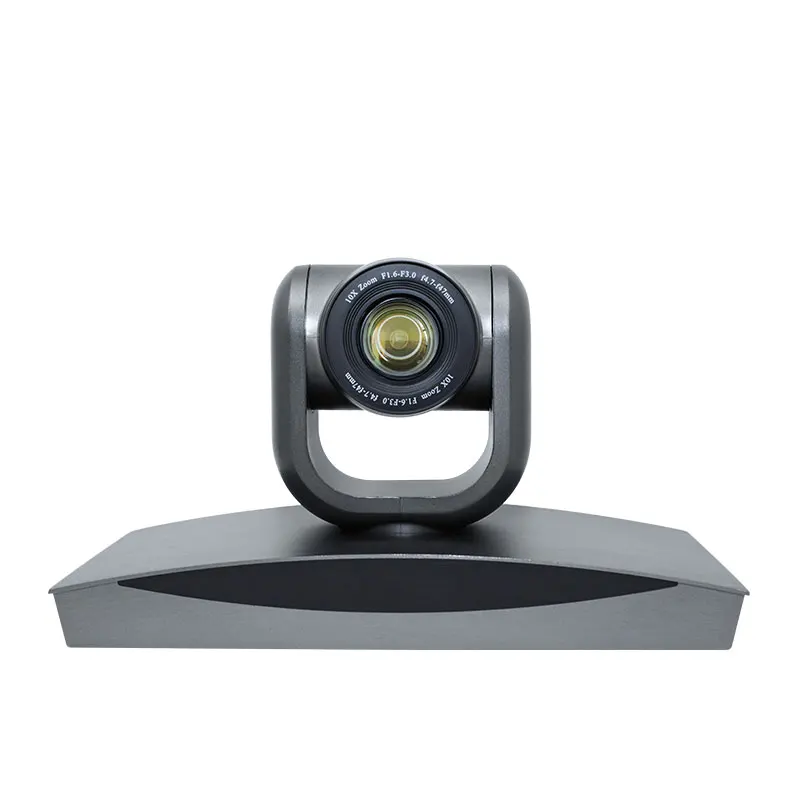

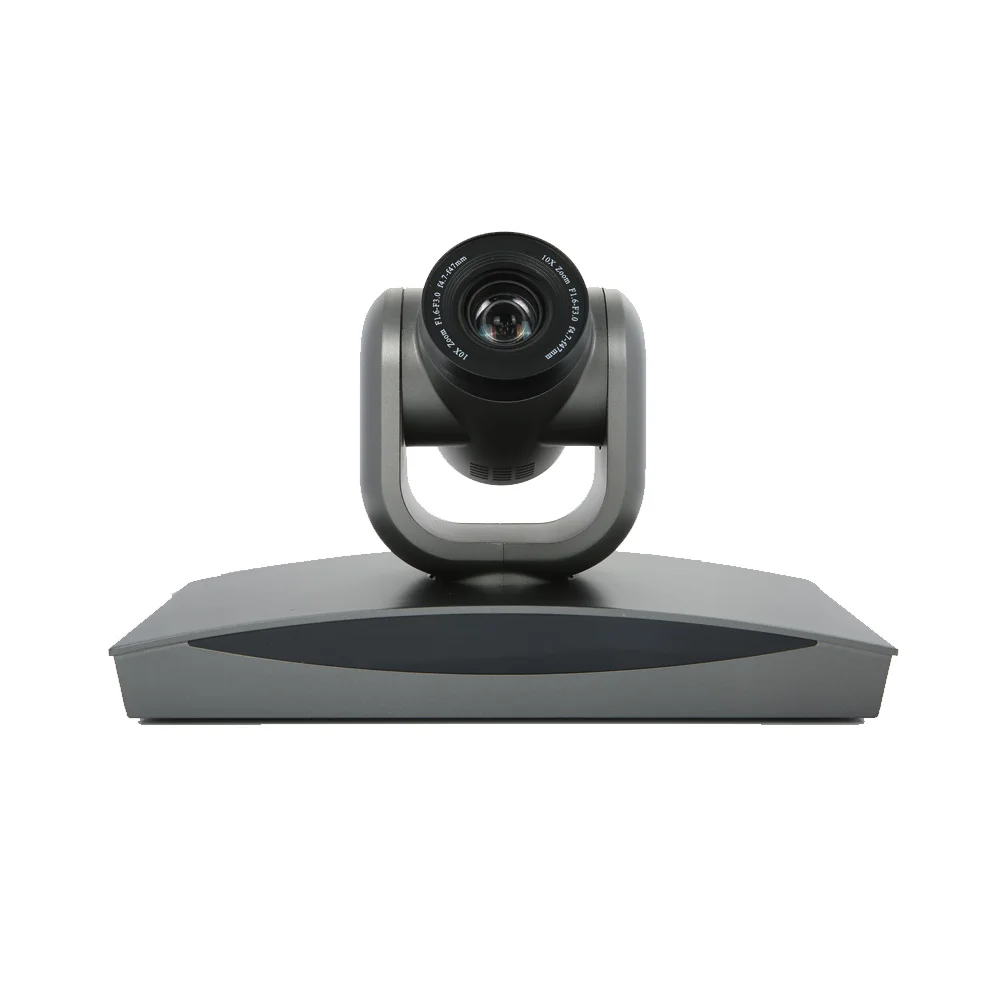

Professional Usb Smart Mini Hd Video Conferencing Pc Android Tv Box Windows 10 Webcam
Professional Usb Smart Mini Hd Video Conferencing Pc Android Tv Box Windows 10 Webcam
Android Conferencing Codec
1) Cortex-A17 Quad core
Mali-T764, 3D GPU
2GB DDRIII 16GB(EMMC) 10x PTZ
2) USB2.0*2 OTG*1 HD*1
3) 1/2.9" SONY CMOS, 2.1 Megapixel
4) 10x optical Zoom, f=4.7mm-47mm, HOV 54°
Specification
PC Hardware Specification | |
CPU | Cortex-A17 Quad-Core1.8GHz |
GPU | Quad-Core Mali-T764, 3D GPU |
RAM | DDRIII 2G |
SSD | 16GB (EMMC) |
Internet | 2.4GHz/5GHz WiFi 802.11 b/g/n & 802.11 ac. (Wifi module optional) |
LAN 10M/100M/1000M | |
Bluetooth | Support BT4.0 Module (Optional) |
Audio Input | 3.5mm MIC IN (Optional) |
Audio Output | SPK OUT 3.5mm(Optional)/HD Audio Out |

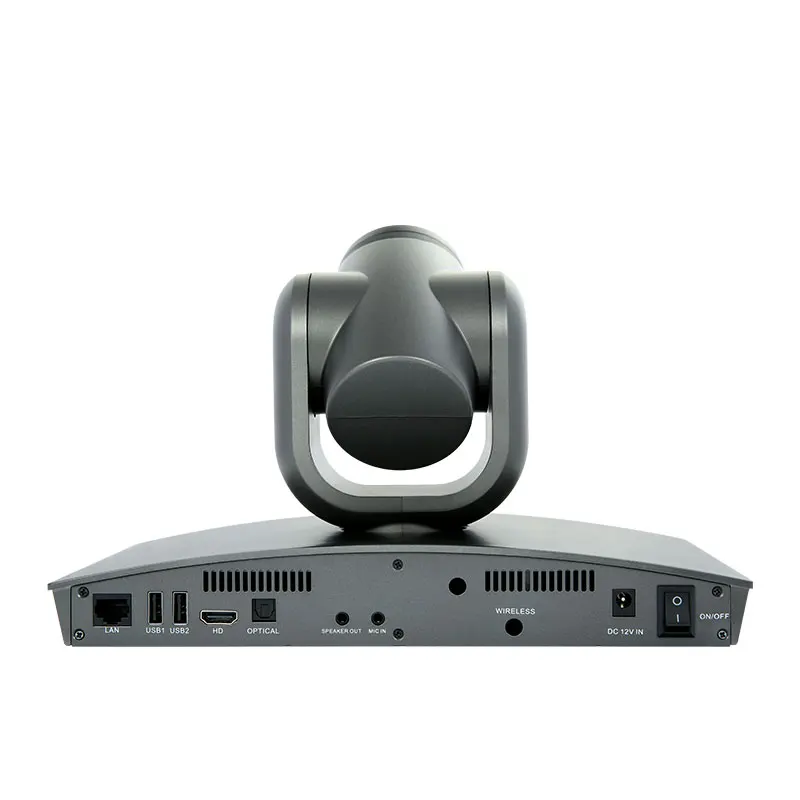

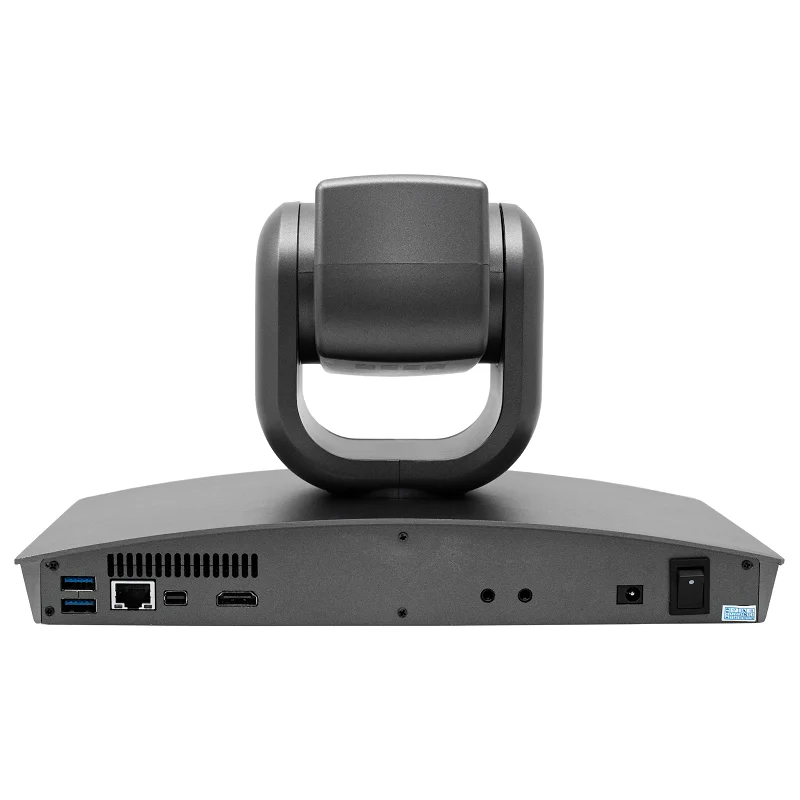

Peripheral Interface | USB2.0*2, OTG*1, HD *1 |
TF*1 | |
RJ45*1 | |
OS | Android 5.1 |

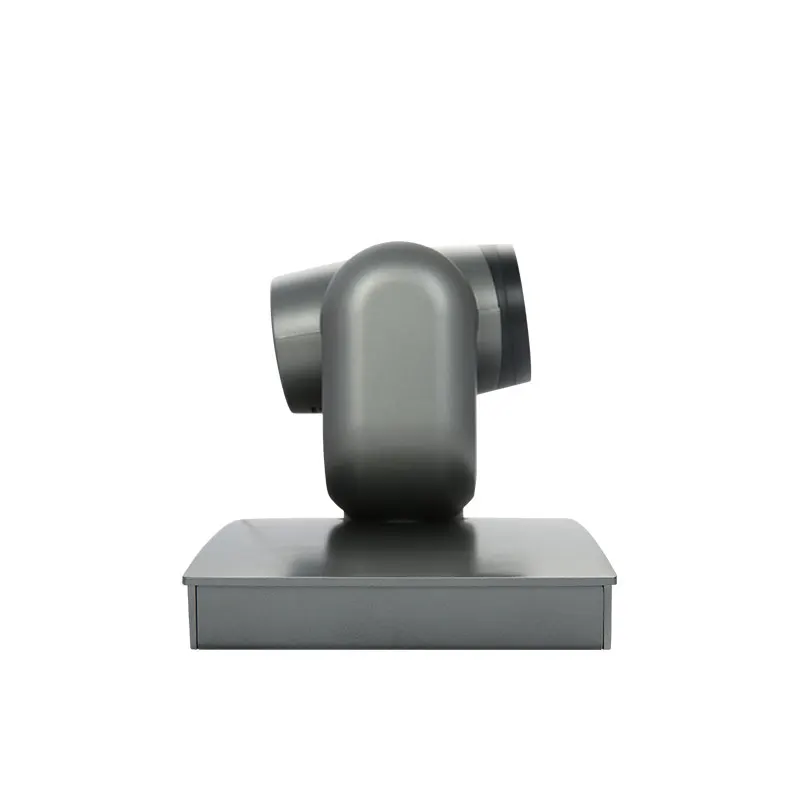

PTZ Camera Specification | |
Sensor | 1/2.9" SONY CMOS |
Effective Pixel | 2.1 Megapixel |
Min Illumination | 0.1Lux at F1.6 |
White Balance | Auto/Manual/Indoor/Outdoor/ATW |
Gain Control | Auto |
Back Light Compensation | On/Off |
Electronic Shutter | 1/60-1/10,000S |
SN Ratio | >50db |

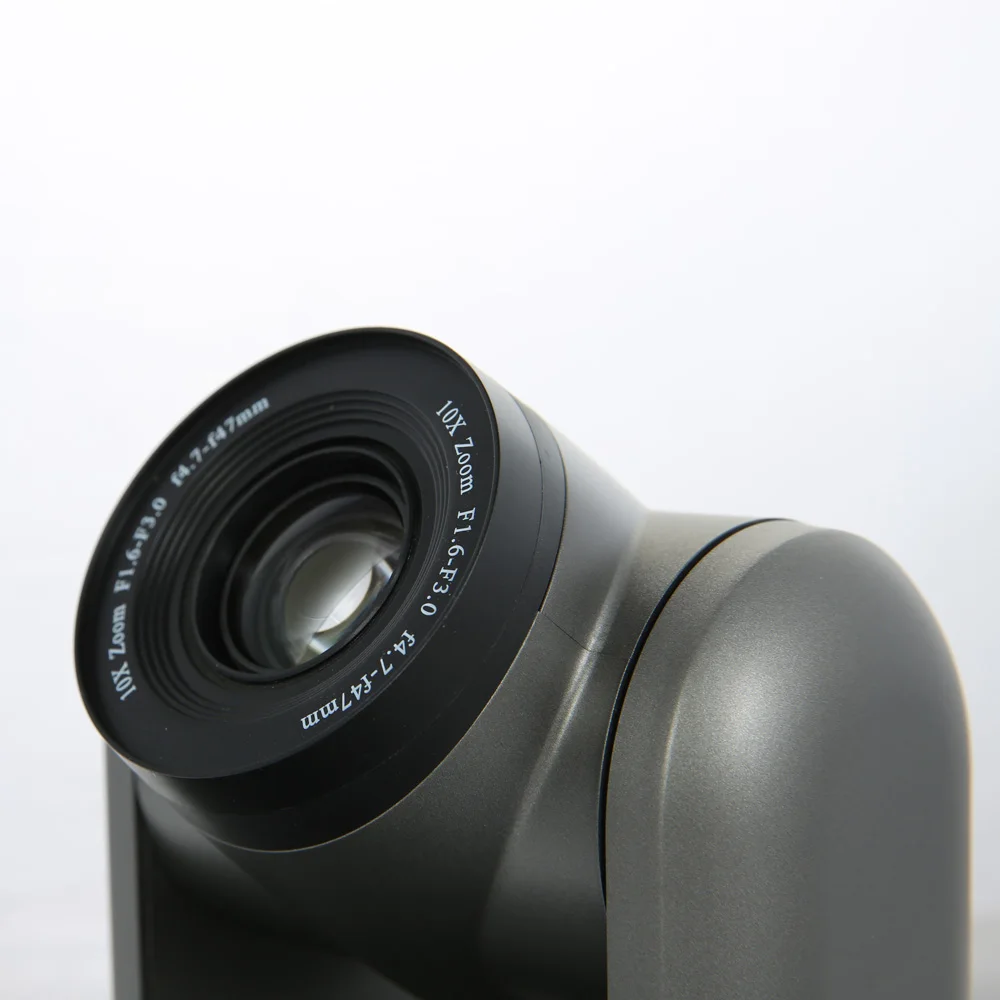

Focus | f=4.7mm-47mm |
Iris | F1.6-F2.5 |
Zoom | 10x Optical |
HOV | 54° |
Video Output Format | MJPEG: 1080P30/25, 720P30/25, 640*480, 640*360 |
Baud Rate | 9600bps/38400bps |
Communication Interface | USB |
Communication Protocol | VISCA/PELCO-D/UVC1.5 |
Speed Match | Support |
OSD Menu | Support |
Image Flip | Support |
Pan Movement Speed | 1-60°/S |
Tilt Movement Speed | 1-60°/S |
Pan Movement | 0-355° |
Tilt Movement | 90°(UP),30°(DOWN) |
Preset Position | 64 |
Power Input | 100V-240V 1.5A AC 50-60HZ |
Power Output | DC12V 2A |
Work Temperature | 0-50 ℃ |
Work Humidity | 0-90% RH |
Dimension | 284mm*147mm*161mm |
(Conference Camera
)
Related Products
FAQ
Why choose us:
1. We provide OEM&ODM service with strong R&D development,
2. Free main board replacement for any faulty products within 1-2 years warranty.Low Repair Rate is our best reward during past 13 years.
3.100% inspection before shipping.
Q:What kind of camera should I use?
A:For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X , 10X, 12X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Q:Which kind of software
A:Compatible with all Popular Web Conferencing System
