High definition wide angle 120 degree all in one 8x zoom eptz 4K ultra hd ptz video conference camera 1080P

Share on:

Price:$200.00 - $450.00
Price in USD:Details


Product Overview


Product Description


●Ultra 4K HD
Support 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p,720p.
●USB 3.0
Full functional USB, 3.0 connection,power supply,video and audio all in one and support 2 streaming USB video signal(option) and one auido source.
Wide angle up to 120°. At the same time, it supports EPTZ to make it more biger and visible.
●Built in Microphone
Built in microphone array,omnidirectional pickup, pickup distance up to 6 meters, noise suppressing algorithm with excelent sound.
●Low Light
Star-level ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case of image noise, while the application of 2D and 3D noise reduction algorithm, significantly reducing the image noise, even under low light conditions, still keep the picture Clean and clear, the image signal to noise ratio up to 55dB or more.

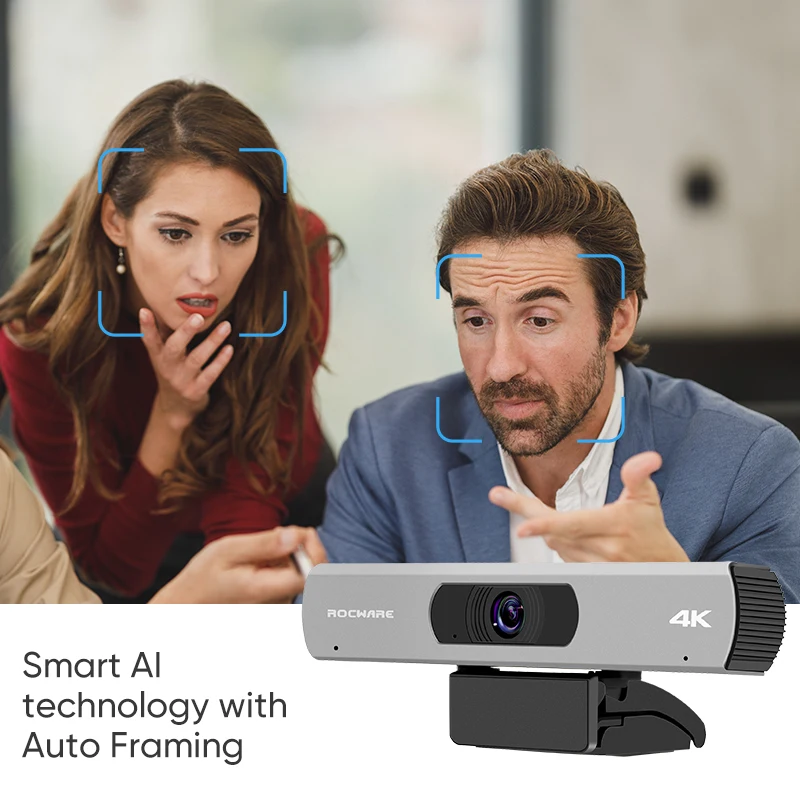

●Auto framing
Support intelligent automatic framing function, can be changed with the seat order of the meeting room, the camera automatic transfer to obtain the best composition.
●Easy Installation
Equiped with damping rotary shaft bracket, to meet the market almost 100% of the display, easy to install, stable and reliable.
Full functional USB, 3.0 connection,power supply,video and audio all in one and support 2 streaming USB video signal(option) and one auido source.

1/2.5'', CMOS, Effective Pixel: 8.29M
Scanning Mode
Lens Mount

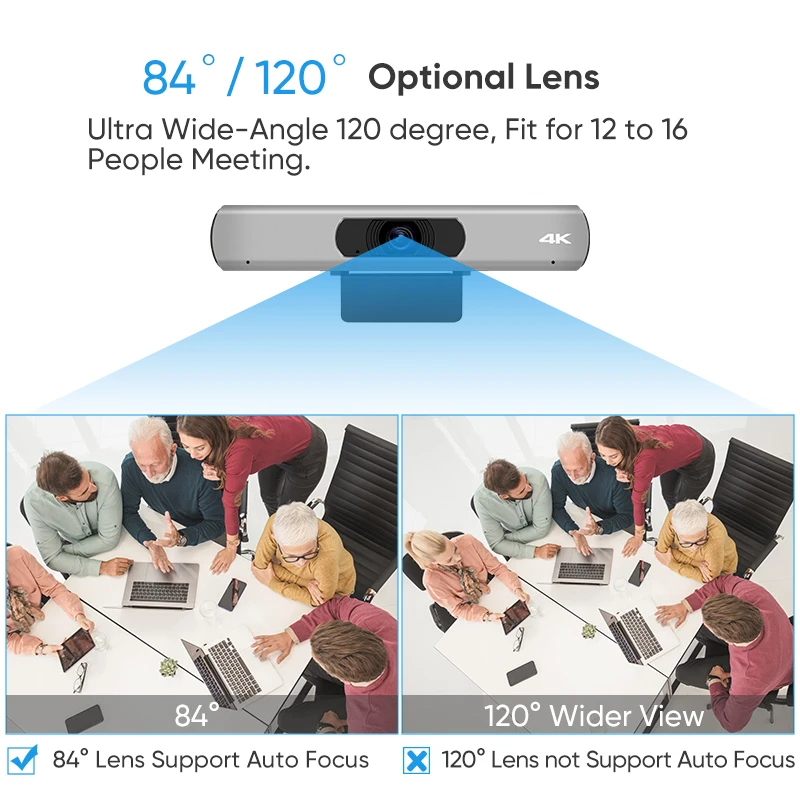

Lens 1 (Default)
Focus: f=3.5mm, FOV: 84°
Lens 2
Focus: f=2.8mm, FOV: 120°
Auto focus
Support (84°)
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual
Camera bracket
bracket with damper
Digital Noise Reduction
2D,3D digital noise reduction
Backlight Compensation
USB Features

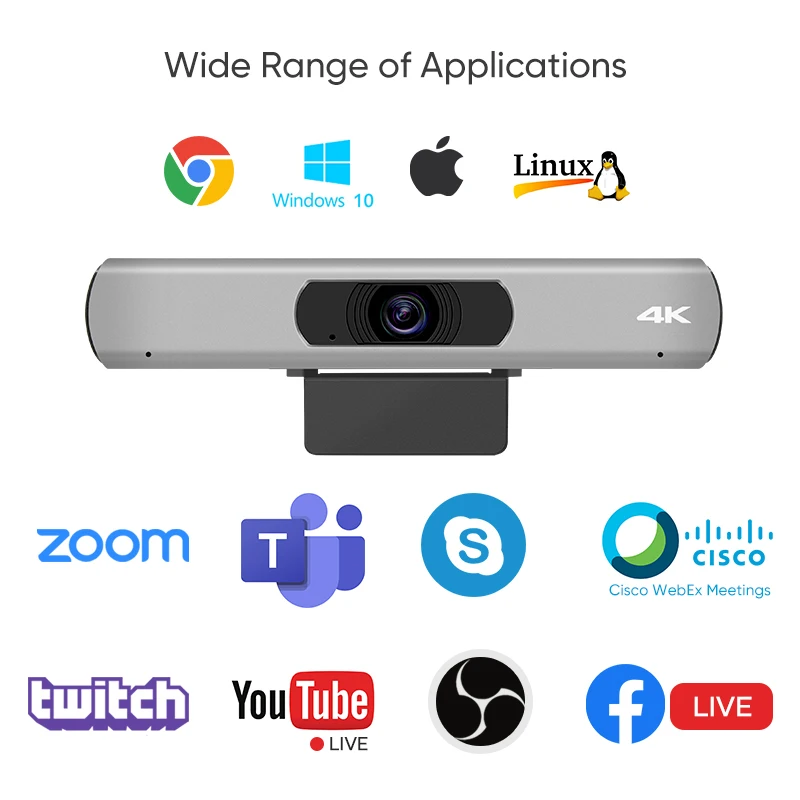

Operate System
Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version
29.0.1547.70 or higher Linux
Hardware requirements
2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or more USB 2.0 port (USB 3.0 required for 4K)
Color System / Compression
H.264 / MJPEG/YUY2/NV12
Video Format
4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps etc
USB Video Communication Protocol
UVC 1.1
Input/Output Interface
USB Interface
1xUSB 3.0: Type B, famale
HDMI Interface (Optional)
1xHDMI: Version 1.4
General specification
Input Voltage
5V (USB power supply)
Current Consumption
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
194mm x 34mm x 42mm (without bracket)
Net Weight
