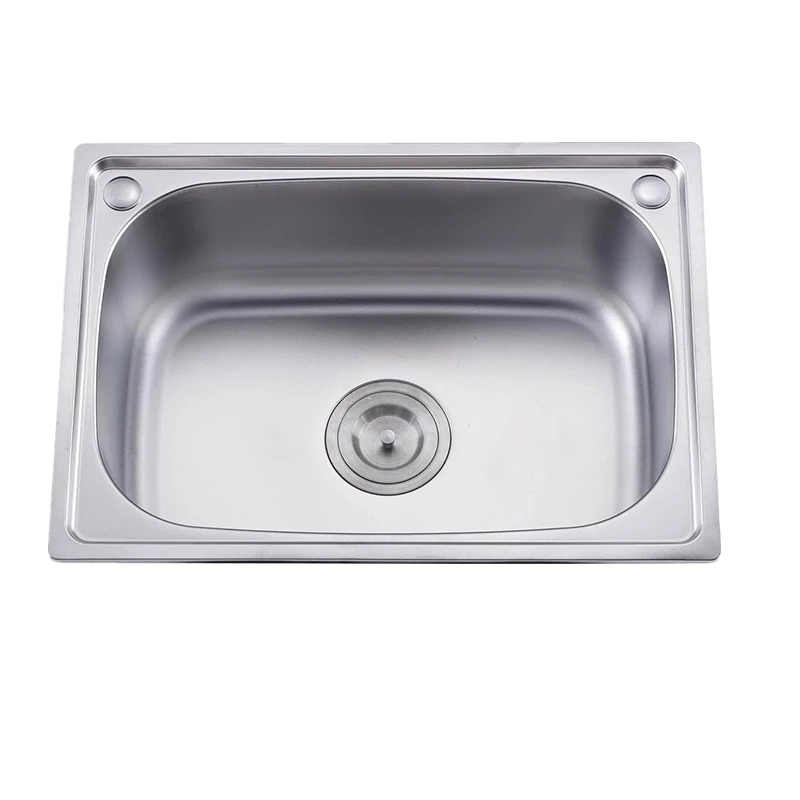

100 тонн глубокой вытяжки гидравлический пресс машина для кухонная раковина из нержавеющей стали
- Category: Hydraulic Press >>>
- Supplier: Wuxi Kelai Nc Machine Tool Co. Ltd.
Share on (1600148930012):
Product Overview
Description

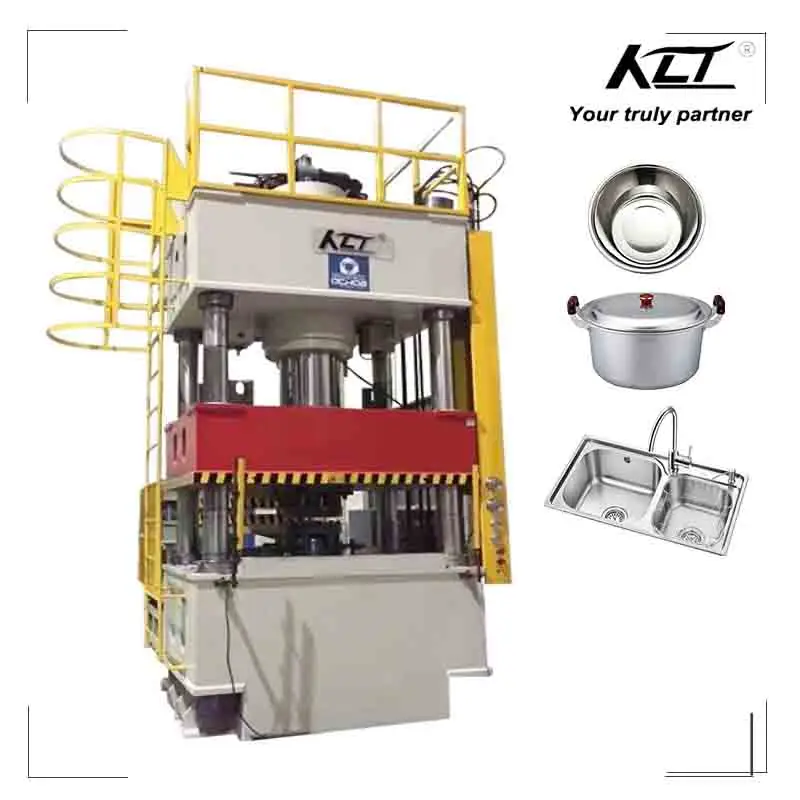

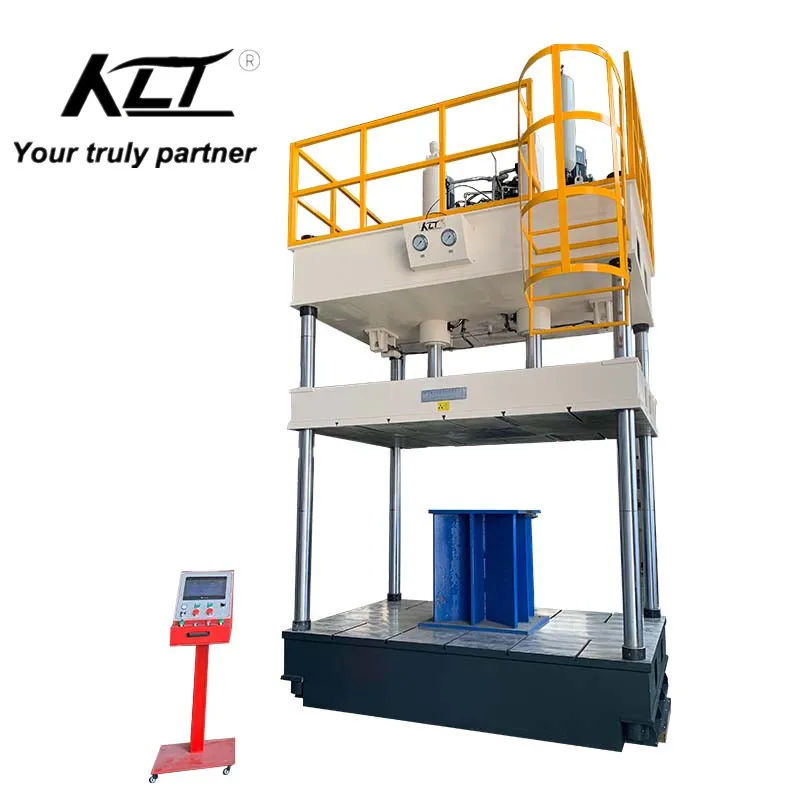

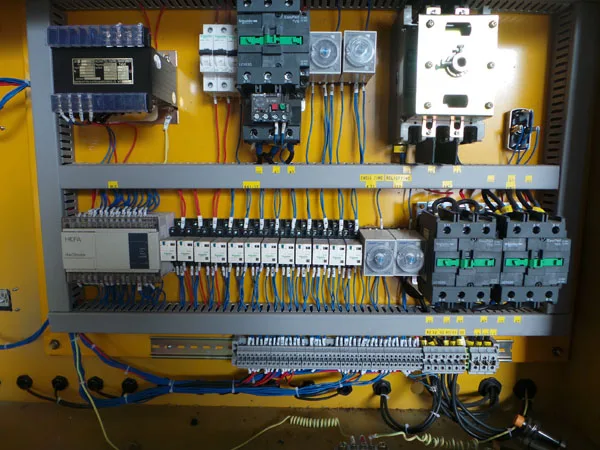

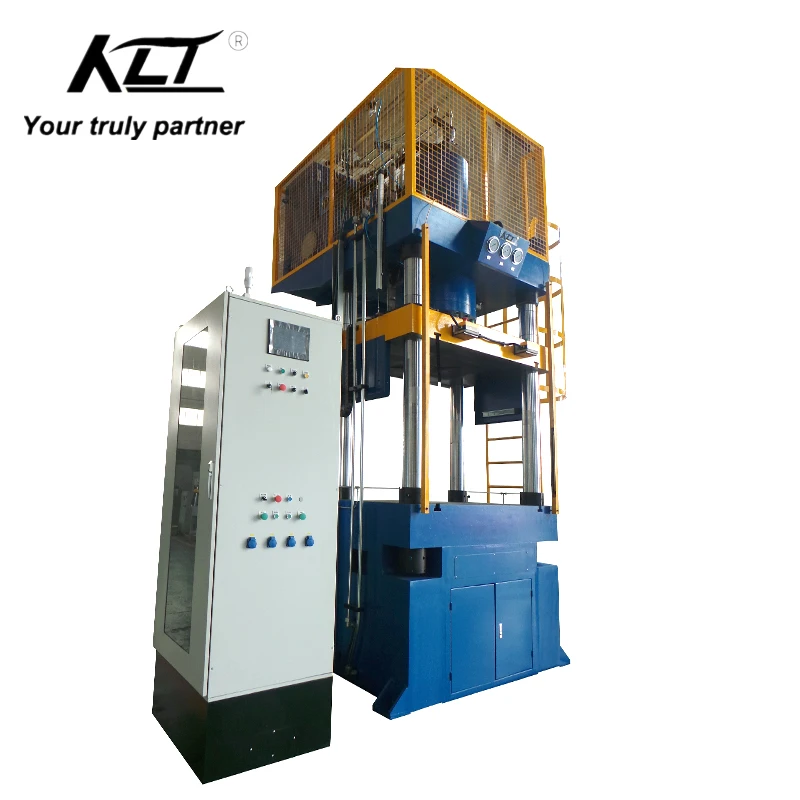

This four column hydraulic press machine adopts a three-beam and four-column structure with a hydraulic cylinder on the top and a hydraulic cushion on the bottom.It adopts imported oil pump, servo motor and driver to control the action, and the system is equipped with imported high-quality pressure sensor and displacement control ruler, which can accurately adjust the control stroke. With independent power mechanism and electrical system, German Siemens PLC programmable controller programming, button centralized control, touch screen to modify the programming process parameters. It can realize the process function of fixed stroke and pressure, and two operation modes of jog and single cycle automatic. The upper and lower limits of the main cylinder are controlled by a displacement ruler, and the process parameters can be set on the touch screen. The operation is simple and safe.
Products introduction
1. A new generation of CNC hydraulic presses, four-column guided body steel plate welding. Applicable technology, SMC.DMC.BMC plastic products molding.
2. It is suitable for medium-sized parts in the automotive, yacht, hardware, aviation, electronics, electrical and other industries.
3, servo motor with high-precision oil pump drive segmentation control pressure, speed, exhaust.
4, PLC programming, touch screen display, control.
5, displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touch screen.
6, provide remote network services, the machine automatically alarms to indicate failure and maintenance.
2. It is suitable for medium-sized parts in the automotive, yacht, hardware, aviation, electronics, electrical and other industries.
3, servo motor with high-precision oil pump drive segmentation control pressure, speed, exhaust.
4, PLC programming, touch screen display, control.
5, displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touch screen.
6, provide remote network services, the machine automatically alarms to indicate failure and maintenance.

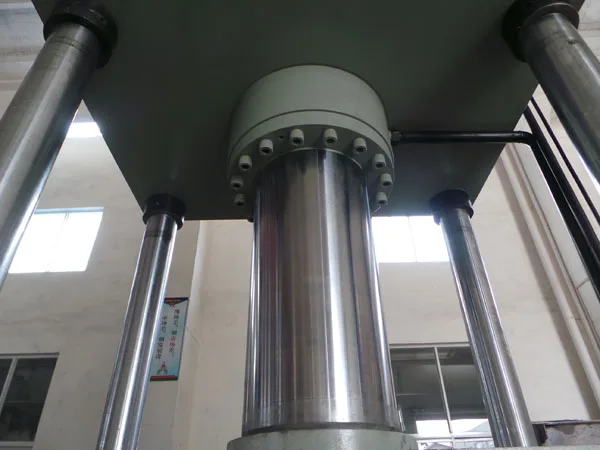

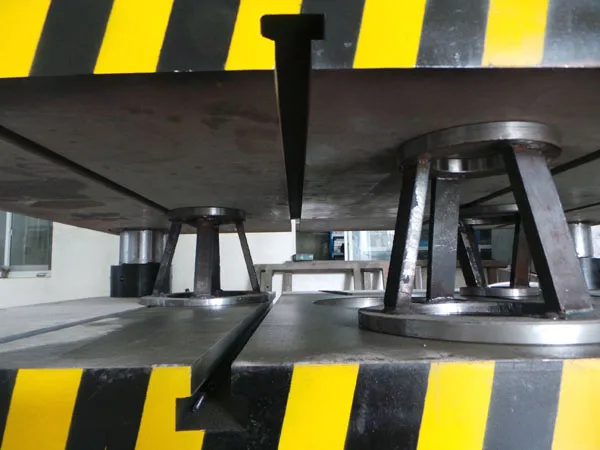

Detailed Images
Size Information
Type | Unit | 63T | 100T | 160T | 200T | 315T | 630T | 1000T | 2000T |
Ejecting force | KN | 100 | 200 | 250 | 400 | 630 | 1000 | 1200 | 2000 |
Nominal pressure | KN | 630 | 1000 | 1600 | 2000 | 3150 | 6300 | 10000 | 20000 |
Slider Stroke | mm | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 1400 |
Max.opening height | mm | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1600 |
Ejecting Stroke | mm | 160 | 200 | 200 | 250 | 300 | 300 | 400 | 450 |
Power of motor | KW | 5.5 | 7.5 | 15 | 18.5 | 22 | 45 | 68 | 134 |
Max.Working pressure | Mpa | 25 | 26.2 | 26 | 25 | 25 | 26 | 26 | 27 |
Table size(F.B.) | mm | 500 | 580 | 800 | 900 | 1200 | 1500 | 1600 | 2000 |
Table size(L.R.) | mm | 500 | 710 | 800 | 900 | 1200 | 1500 | 1600 | 2800 |
Idle stroke | mm/s | 76 | 100 | 100 | 100 | ＞100 | ＞100 | ＞100 | ＞100 |
Pressing | mm/s | 10 | 8-15 | 8-15 | 8-15 | 8-15 | 10 | 12 | 10 |
Return | mm/s | 60 | 60 | 60 | 70 | 70 | 65 | 80 | ＞75 |
Total Weight | T | 2.5 | 4 | 7 | 12 | 15 | 38 | 48 | 145 |
Applications
This series of hydraulic presses are suitable for drawing,bending,flanging,cold extruding,blanking precesses for materials,straightening,press-in and forming precesses for powder and abrasive preducts,plastic and insulation materials.
Product Features
1, high efficiency and energy saving, electricity consumption is 30%-50% energy saving than ordinary motors.
2, low noise, noise can be controlled at about 60 decibels.
3, working position, speed, pressure can be adjusted infinitely.
4, rapid response, pressure, position repeatability is high.
5, high efficiency, multiple protection inside, the failure rate is extremely low.
6, 12 hours of continuous work does not require cooling oil temperature.
7. Pipes and joints adopt SEA international standards to prevent oil leakage from pipes.

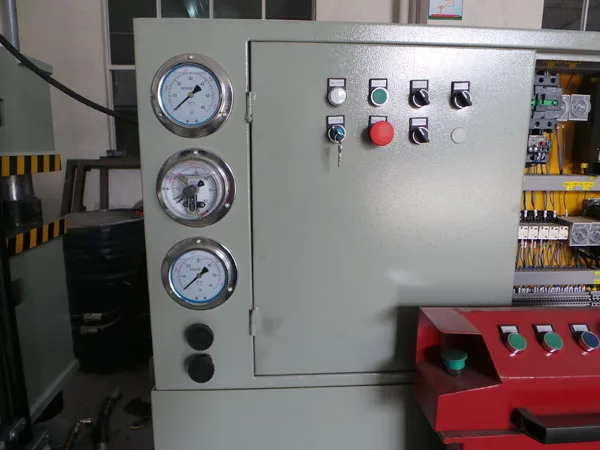

8, using button centralized control, (fixed / constant pressure) two control methods, (adjustment / automatic) two modes of operation.
9, European CE standard hydraulic system and electrical safety IP54 grade.
2, low noise, noise can be controlled at about 60 decibels.
3, working position, speed, pressure can be adjusted infinitely.
4, rapid response, pressure, position repeatability is high.
5, high efficiency, multiple protection inside, the failure rate is extremely low.
6, 12 hours of continuous work does not require cooling oil temperature.
7. Pipes and joints adopt SEA international standards to prevent oil leakage from pipes.
8, using button centralized control, (fixed / constant pressure) two control methods, (adjustment / automatic) two modes of operation.
9, European CE standard hydraulic system and electrical safety IP54 grade.
Advantages
1. CE, ISO Certification.
2. We can supply KLT brand or OEM for clients.

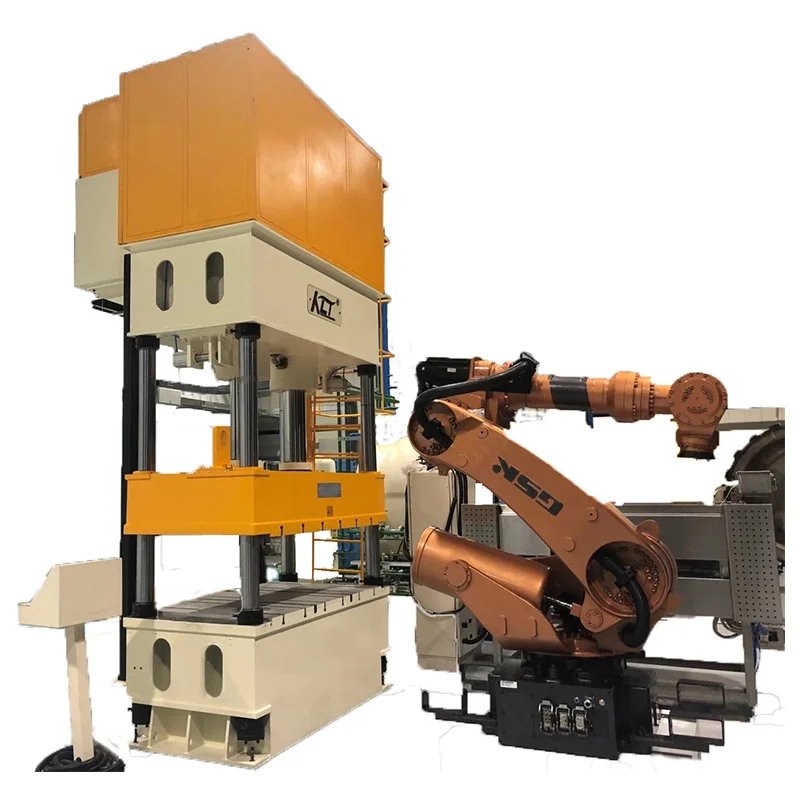

3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.

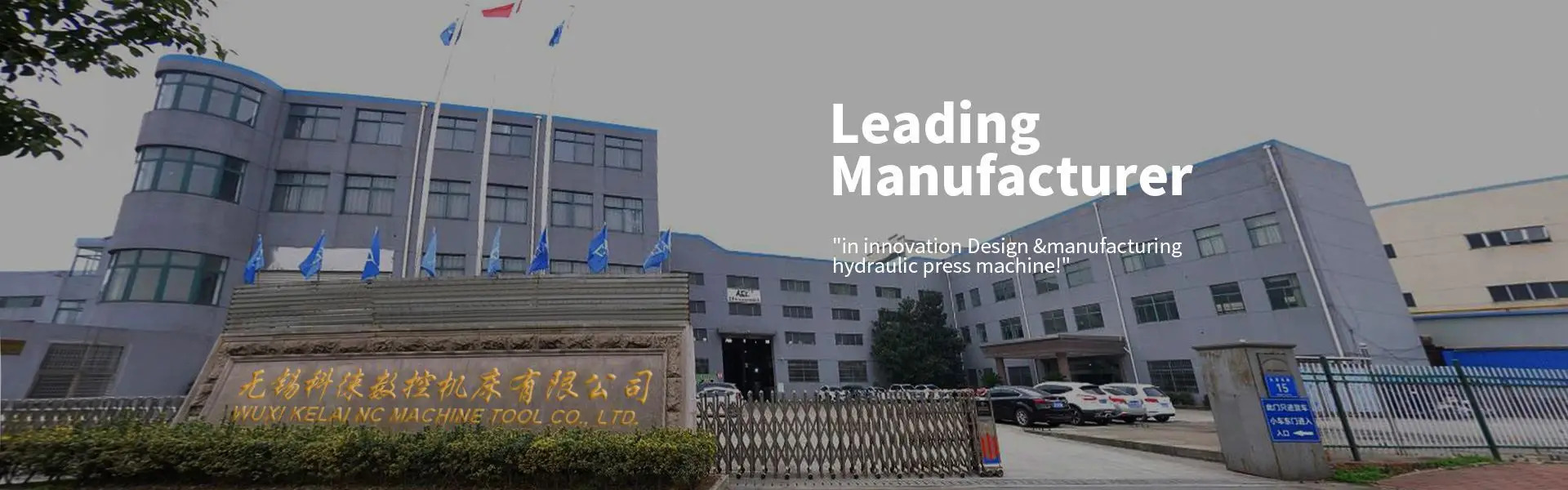

Company Profile
We serve customers with high-quality products and services, achieve a win-win situation,help customers save costs, and improve production efficiency.All of our products are supplied directly from factory. So the price is very competitive.
Our Service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Exhibition
FAQ
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
